983-02-143

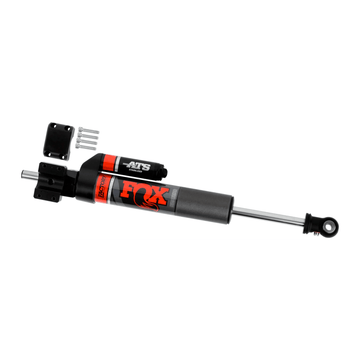

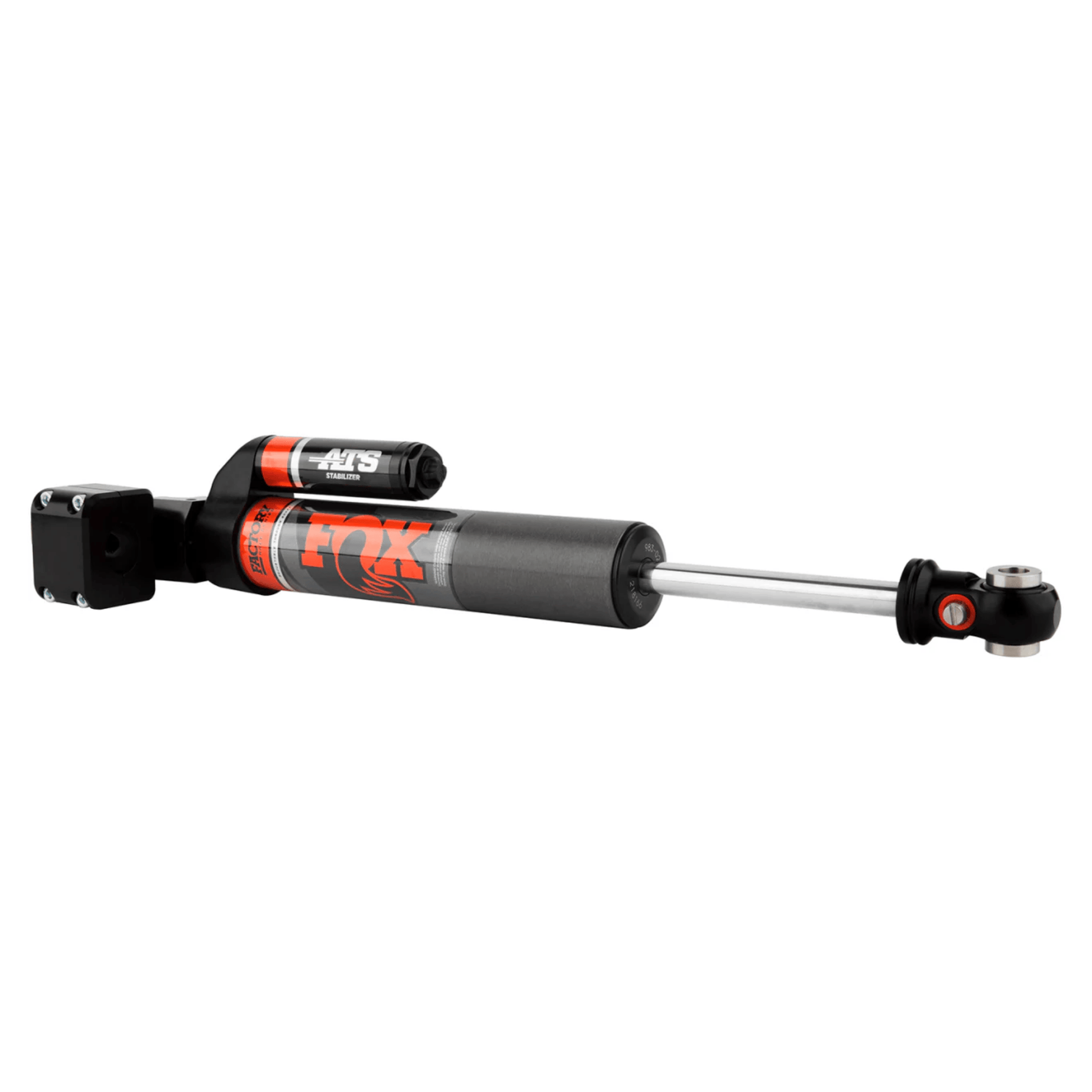

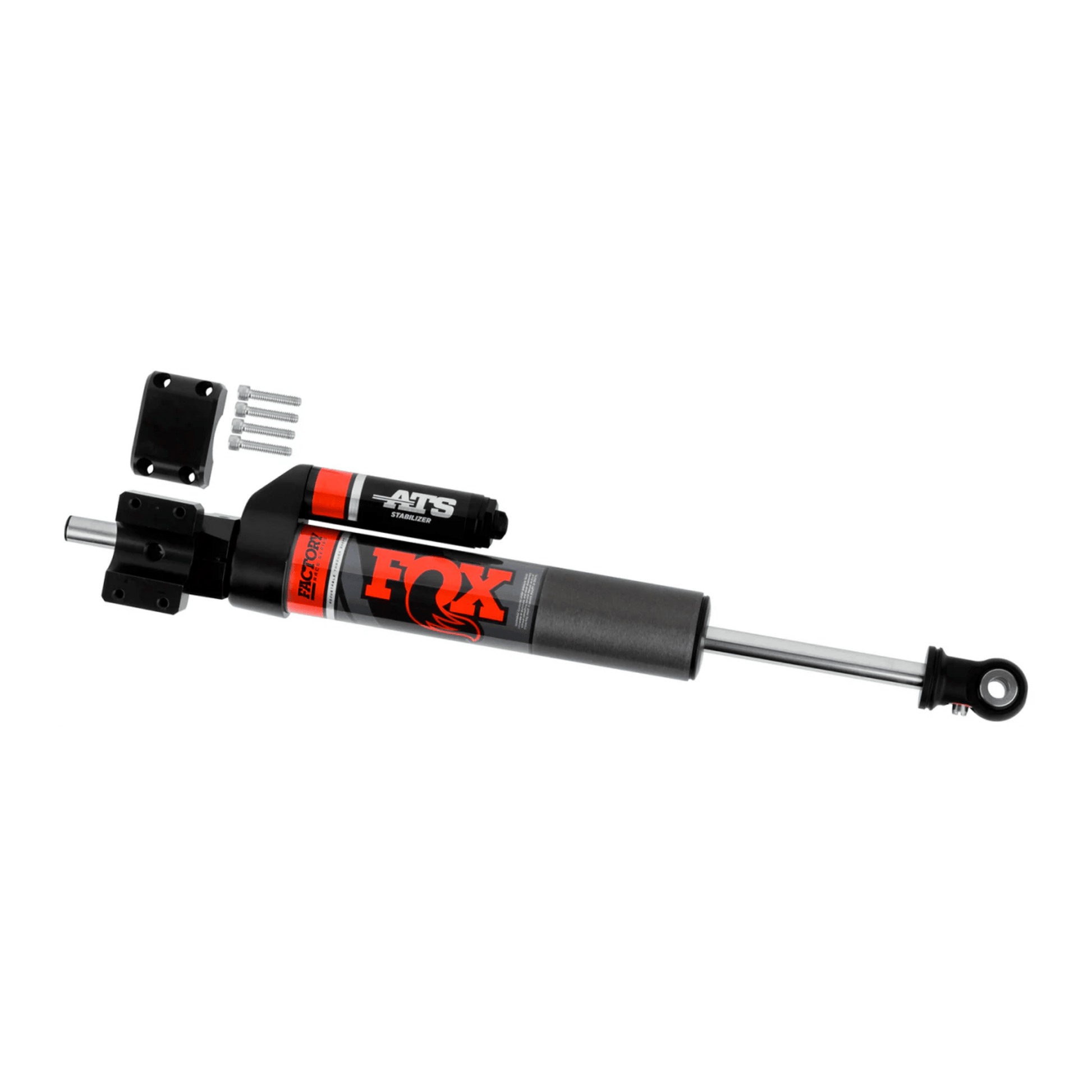

Fox FACTORY RACE SERIES 2.0 ATS STABILIZER - Ford F250 F350 2017 - 2023
$1,499.95
Fox Factory Race Steering Stabiliser F250 F350
Conventional steering stabilizers can cause increased pressure and unidirectional force when turning, but not with the Fox FACTORY RACE SERIES 2.0 ATS STABILIZER for Ford F250 F350 2017-2023. Say goodbye to extra hardware and limited space while feeling confident and in control behind the wheel!
The Factory Race Series 2.0 Stabiliser ATS utilizes an Adjustable Through Shaft (ATS) architecture that eliminates shaft fluid displacement throughout the stabilizer’s entire travel in both directions. The external piggyback reservoir provides additional fluid capacity and utilizes an Internal Floating Piston (IFP) to separate the fluid from the nitrogen gas charge to eliminate cavitation. For increased control that can be tailored to any driving style and setup, an external adjuster provides 24 clicks of adjustment to fine tune the feel. The result is highly customizable and consistent damping of unwanted steering feedback in a single, bolt-on stabilizer.
| Body | 2.0” impact extruded and CNC machined 6061-T6 clear anodized aluminum body resists rust over time |
|---|---|
| Body Plating | Hard-anodized for a durable finish |
| Reservoir | External reservoir design separates shock oil from the high-pressure nitrogen |
| Components | Black-anodized, CNC-machined 6061-T6 billet aluminum |
| Shaft | 5/8" hard chrome plated heat-treated alloy steel |
| Piston | Race-developed high-flow piston design |
| Valving | Application specific valving to maximize performance |
| Seals | Redundant sealing pack system main seal, wiper seal, scraper seal |
| Bushings | Quiet nitrile rubber allows for increased suspension articulation |
| Adjustments | Adjuster - 24 clicks of adjustability |
| Extended | 22.190 |
| Compressed | 14.090 |
| Travel | 8.110 |

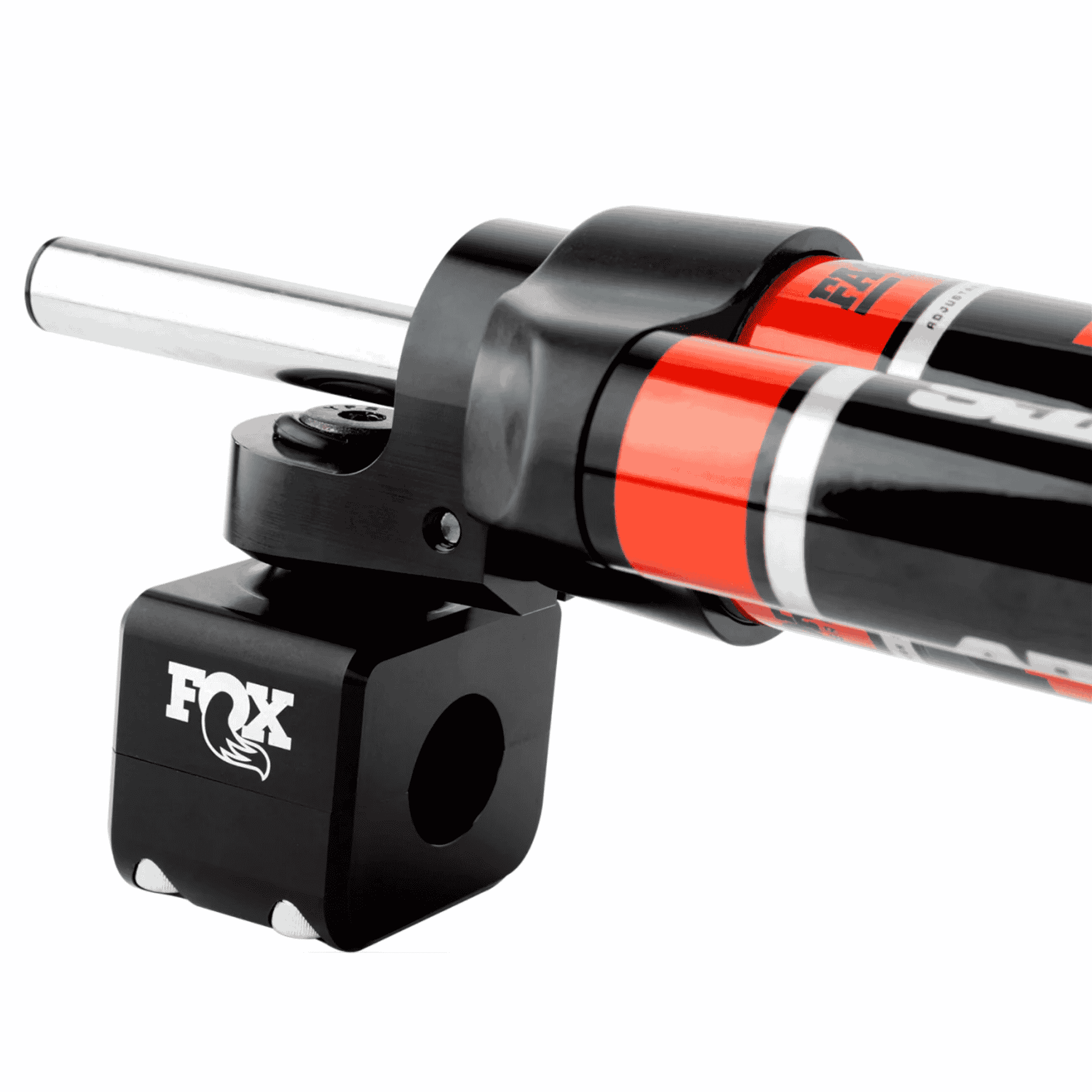

| Top Mount | Tie Rod Clamp |
| Bottom Mount | Eyelet |
| Fitment notes | Requires drop bracket for greater than 1.5" lift |
Vehicle Suitability
- Ford F250 & F350
- 2017 - 2023
