Chevrolet Silverado 1500 LTZ & ZR2 GVM & GCM packages
4250kg & 8750kg

  • SSM federally approved
    Australia wide
  • Fox & BDS suspension
    components
  • Pre-rego only
  • 35" tyres legal

Unleash the Full Potential of Your Chevy Silverado 1500 2019 - 2026

Stop worrying about weight limits and start adventuring with confidence. Offroad Industries (ORI) offers the most comprehensive, Federally Approved GVM (Gross Vehicle Mass) upgrades for the Chevy Silverado 1500 (LTZ, Trail Boss, and ZR2).

ORI now has approval for MY26i Silverado LTZ and ZR2

By bundling the ORI GVM Packages & GCM testing and the combination of LS16 certification, you are offering a legal "Super-Truck" status. The LS16 code is the secret sauce here: it’s the specific modification code for Gross Combination Mass Re-rating, ensuring the truck, the gear, and the massive 4.5T trailer are all 100% legal together for either PRE or Post Rego.

Whether you’re a weekend explorer, a tradie with a heavy load, or a serious tourer towing a 4.5T caravan, our staged packages transform your truck’s legality, safety, and performance.

*Please note that some workshops may apply additional discretionary administration fees to the quoted installation and engineering price. Additionally, all Post-Registration GVM upgrades will incur additional local fees. Shipping is not included in the price.

ORI Chevy Silverado 1500
GVM & GCM Packages

Stage 1$11,500* · Installed & engineered

The Weekender Family Getaway3650 KG GVM + GCM 8150 KG

The perfect entry point for those needing a legal payload boost without a major lift.

GVM increase
Up to 3650 KG (approx. 1077 KG payload).
Key features

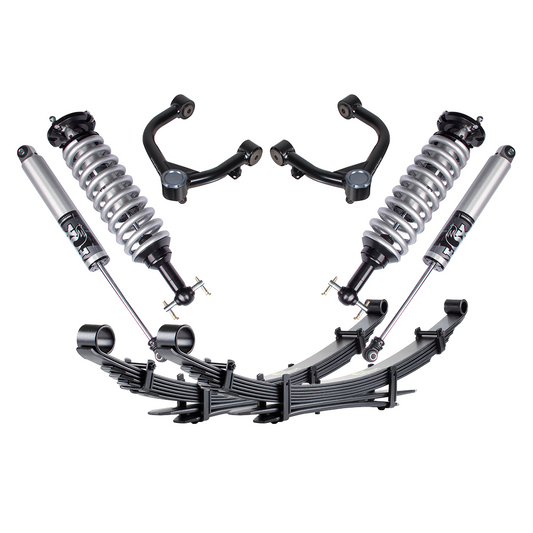

Fox 2.5 Performance Series shocks and ORI 200 KG heavy-duty leaf packs matched with heavy duty BDS control arms.
Best for
Daily drivers and light towing where you need to clear the "one-tonne" mark for tax purposes (ATO compliance) or carry extra tools/gear legally.
Benefit
Maintains a lifted stance with premium USA-made shocks, while significantly improving stability under load without the need of purchasing load rated wheels.
Part number

CHV-1500-Stage1-GVM

ORI Chevy Silverado 1500
GVM & GCM Specifications

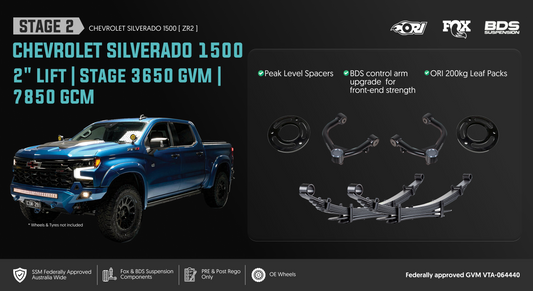

SpecificationOEMStage 1Stage 2Stage 3Stage 4Stage 5
Gross Vehicle Mass (GVM)3300 KG3650 KG3650 KG3850 KG4250 KG4250 KG
Braked Towing Capacity (BTC)4500 KG4500 KG4200 KG4500 KG4500 KG4500 KG
Gross Combined Mass (GCM)7160 KG8150 KG7850 KG8350 KG LTZ, 8050 KG ZR28750 KG LTZ, 8450 KG ZR28750 KG LTZ, 8450 KG ZR2
Kerb Weight2543 KG2573 KG2563 KG2578 KG2578 KG2578 KG
Payload (bases on kerb weight)757 KG1077 KG1087 KG1272 KG1672 KG1672 KG
Payload Increase (%)0%42.28%43.59%68.03%120.87%120.87%
Front Axle Capacity1724 KG1724 KG1724 KG1724 KG1770 KG1770 KG
Rear Axle Capacity1724 KG1926 KG1926 KG2126 KG2480 KG2480 KG
Wheel Offsets28282828Zero +12Zero +12
Wheel Load Rating862 KG963 KG963 KG1063 KG1250 KG1250 KG
Tyre Load Rating862 KG110 Q110 Q112 Q116 Q116 Q
Requires Wheel/ Tyre UpgradeOEMOEMOEMOEM✔✔
Maximum Tyre Size275/60 R20275/60 R20LT275/70R18LT275/70R18295/70 R18, 35x12.5R18295/70 R18, 35x12.5R18
ItemPart NumberStage 1Stage 2Stage 3Stage 4Stage 5
Fox 2.5 PS Coilovers (Front)987-02-004✔
Fox 2.5 PS Shocks (Rear)987-24-028✔

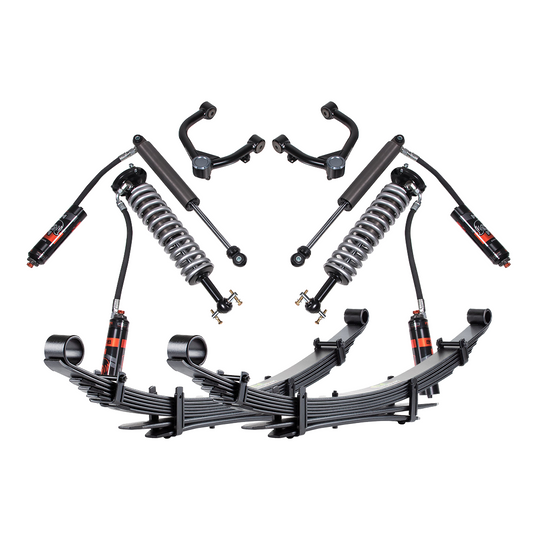

Fox 2.5 PE DSC Coilovers (Front)883-06-162✔✔
Fox 2.5 PE DSC Shocks (Rear)883-26-087✔✔

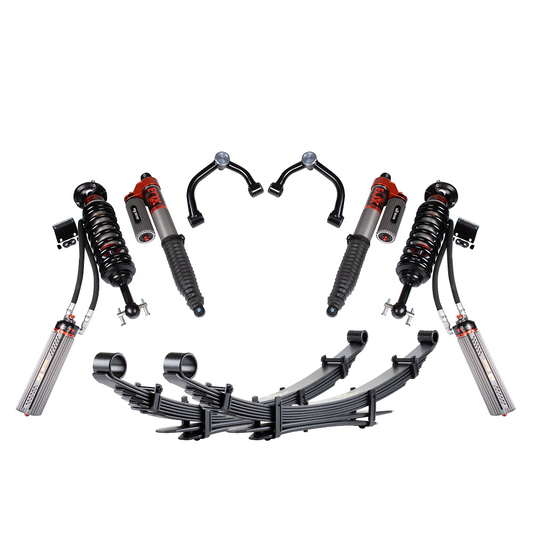

Fox 3.0 Bypass Race Series (Front)883-06-175✔
Fox 3.0 Bypass Race Series (Rear)883-26-105✔
ORI 200 KG Leaf Spring PackORI-CHV-200KG✔✔✔✔✔

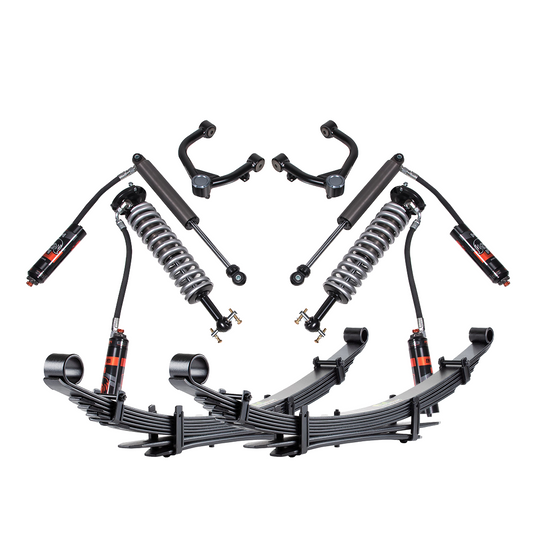

ORI 400 KG Leaf Spring PackORI-CHV-400KG✔✔
BDS Control ArmsBDS121260✔✔✔✔✔

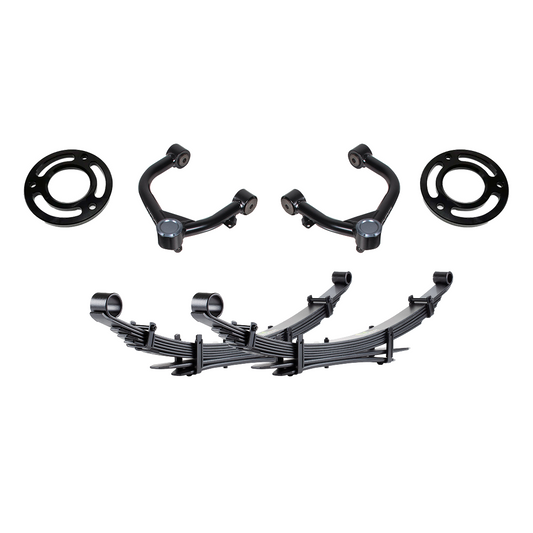

Retain Factory Multimatic Suspension✔
Lift Height3.5"2"3.5"3.5"3.5"
Load-Rated Wheels Required✔✔
GVM Part NumbersCHV-1500-Stage1-GVMCHV-1500-Stage2-GVMCHV-1500-Stage3-GVMCHV-1500-Stage4-GVM-200, CHV-1500-Stage4-GVM-400CHV-1500-Stage5-GVM-200, CHV-1500-Stage5-GVM-400

Offroad Industries Wheel Recommendations

Struggling with wheel offsets? ORI is here to help! We take the guesswork out of finding the perfect fit, specializing in Method and KMC wheels

Approved GVM Wheels

Method Race wheel Load Rated Wheels

Approved load rated wheels for your chevy Silverado Stage 4 and 5 packages.

  • MR305 NV

    • 18x9
    • 17x8.5
    Colour
    Double Black
    Offset
    Zero
  • MR305 NV

    • 18x9
    • 17x8.5
    Colour
    Titanium
    Offset
    Zero
  • MR305 NV

    • 18x9
    • 17x8.5
    Colour
    Method Bronze
    Offset
    Zero
  • MR305 NV

    • 18x9
    • 17x8.5
    Colour
    Machined
    Offset
    Zero
  • MR709 HD Bead Grip

    • 18x9
    • 20x9
    Colour
    Matte Black
    Offset
    +12
  • MR709 HD Bead Grip

    • 18x9
    • 20x9
    Colour
    Machined - Clear Coat
    Offset
    +12

Approved GVM Wheels

KMC Load Rated Wheels

Approved load rated wheels for your chevy Silverado Stage 4 and 5 packages.

  • IMS

    • 18x9
    • 20x9
    Colour
    MATTE BLACK W/ GLOSS BLACK LIP
    Offset
    Zero
  • IMS

    • 18x9
    • 20x9
    Colour
    GLOSS SILVER W/ MACHINED FACE
    Offset
    Zero
  • IMS

    • 18x9
    • 20x9
    Colour
    MATTE BRONZE W GLOSS BLACK LIP
    Offset
    Zero
  • IMS

    • 18x9
    • 20x9
    Colour
    MACHINED W/ MATTE BLACK LIP
    Offset
    Zero

Chevy Silverado 1500
GVM Packages

Federally approved stages for the LTZ, Trail Boss and ZR2. Pick a stage for its full specifications, or request a quote.

Learn

GVM & GCM upgrades explained

A short guide to what a GVM and GCM upgrade changes on your truck, how SSM federal approval works, and what to expect from quote to compliance plate.

  • What GVM and GCM mean for your truck
  • Pre-rego SSM approval vs post-rego engineering
  • How your payload and towing limits change
  • What happens at your authorised installer
Get a quote

GVM Enquiry? Contact us Now

Your kit
Your details
Your message

No obligation. Our team will reply within one business day.

Why Upgrade Your Chevy Silverado 1500's GVM?

  • More Legal Payload

    The 3650kg to 4250kg Range: ORI's packages scale to your exact needs. The entry Stage 1 pushes your GVM to 3650kg and GCM to 8150kg, yielding approximately 1077kg of payload. The top-tier Stage 4 and 5 packages push the GVM to an enormous 4250kg and GCM to 8750kg, giving you roughly 1672kg of payload for heavy tray-and-canopy setups.

  • Premium Suspension

    ORI is an authorised Fox & BDS Distributor for the Australia market we carry a large range of Fox Performance Series, Performance Elite Order and Factory bypass race.

  • Federally Certified

    Many GVM upgrades force a reduction in your maximum towing capacity to stay within strict factory GCM limits. By bundling ORI's heavy-duty GVM packages with their validated LS16 GCM re-rating, you can legally run fully built tray-and-canopy setups, bull bars, and long-range tanks while still legally towing your 4.5T caravan or boat.
