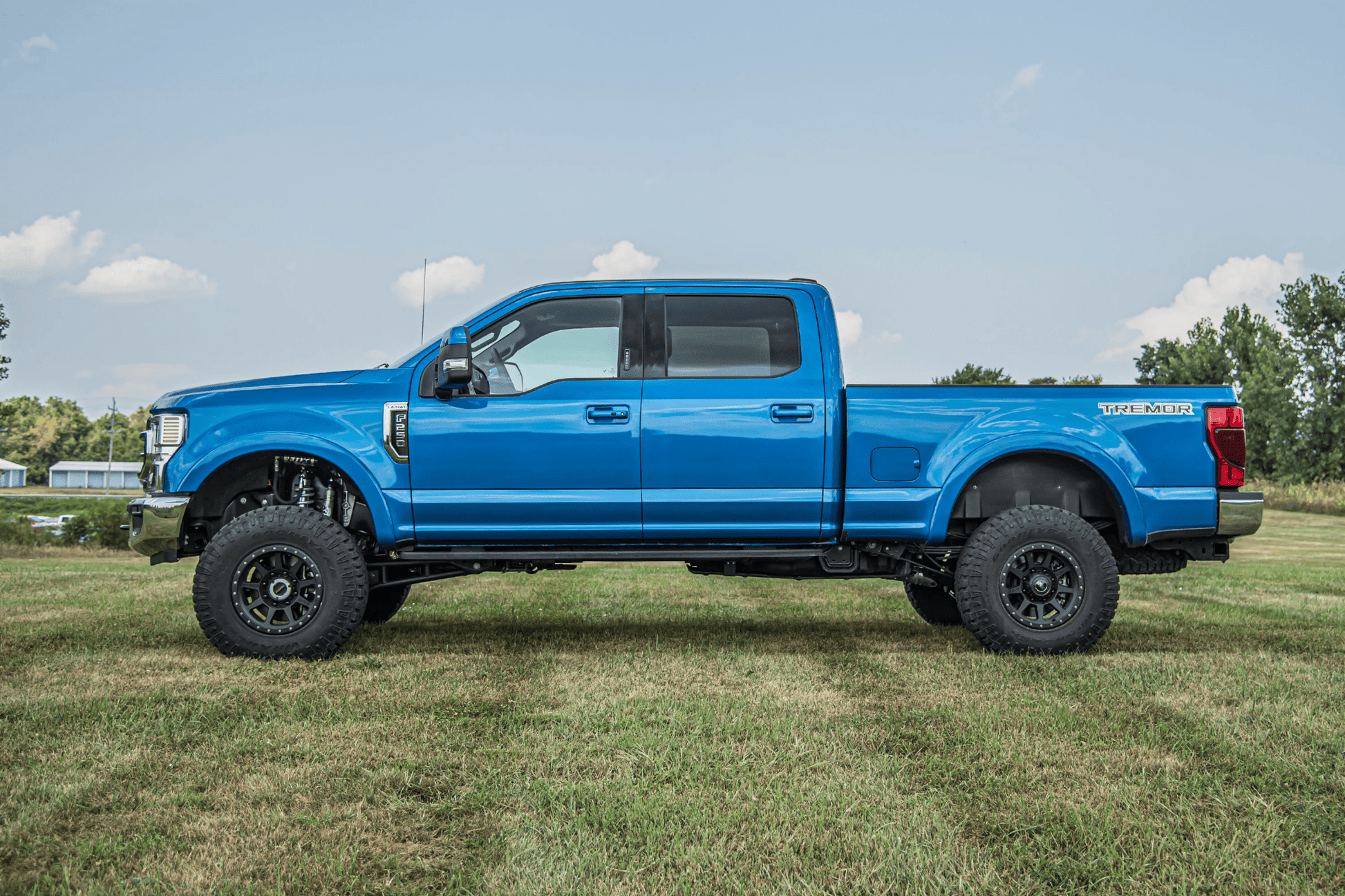

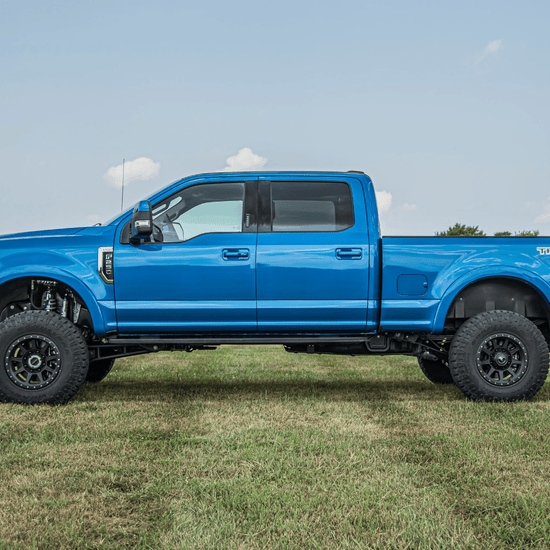

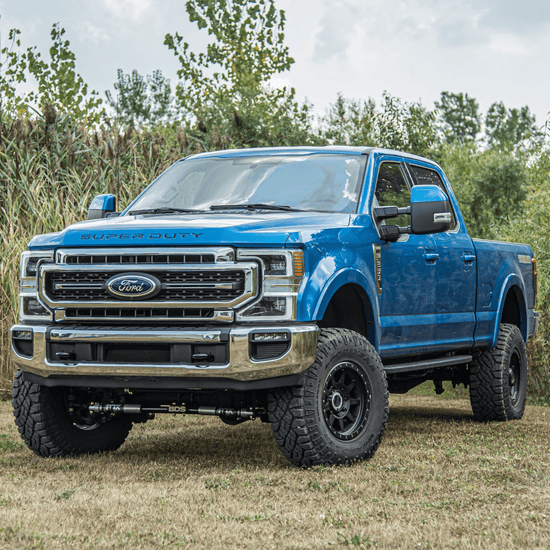

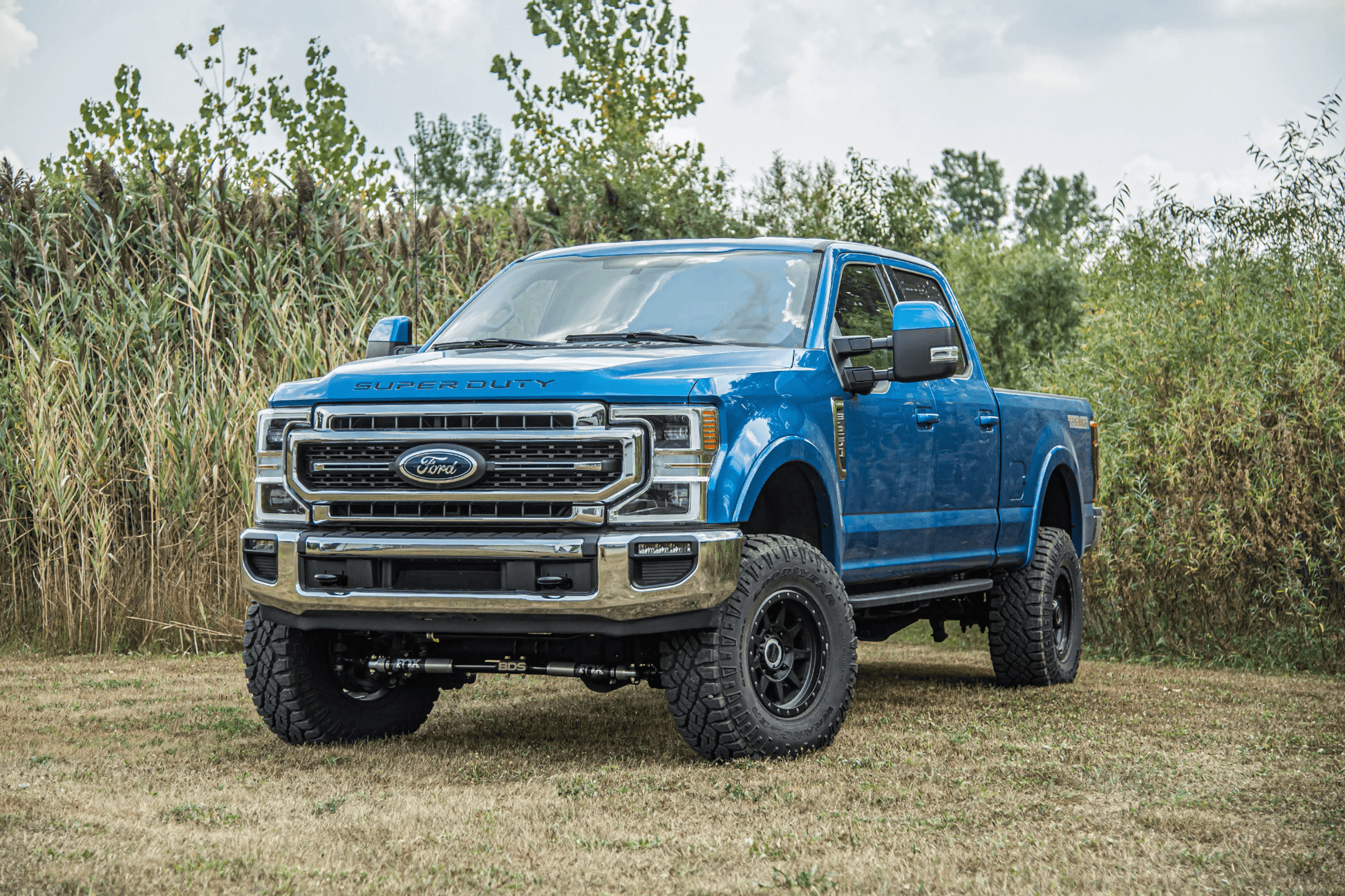

BDS 3" Suspension FOX 2.5 Coil-Over Conversion | Ford F250/F350 Super Duty (20-22)

BDS Fox Suspension 3" Ford F250/F350

Transform your Ford Super Duty into a powerhouse with this impressive 3-inch lift kit featuring FOX 2.5 Performance Elite coil-over shocks from BDS Suspension. Experience a boost in stance, performance, and capability with this all-inclusive kit, providing ample clearance for up to 35" tires.

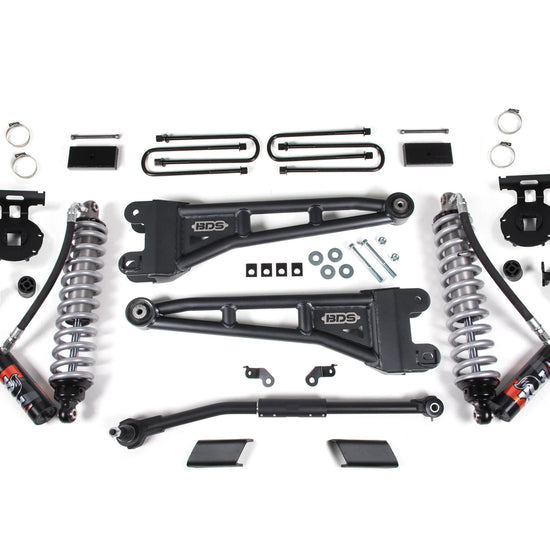

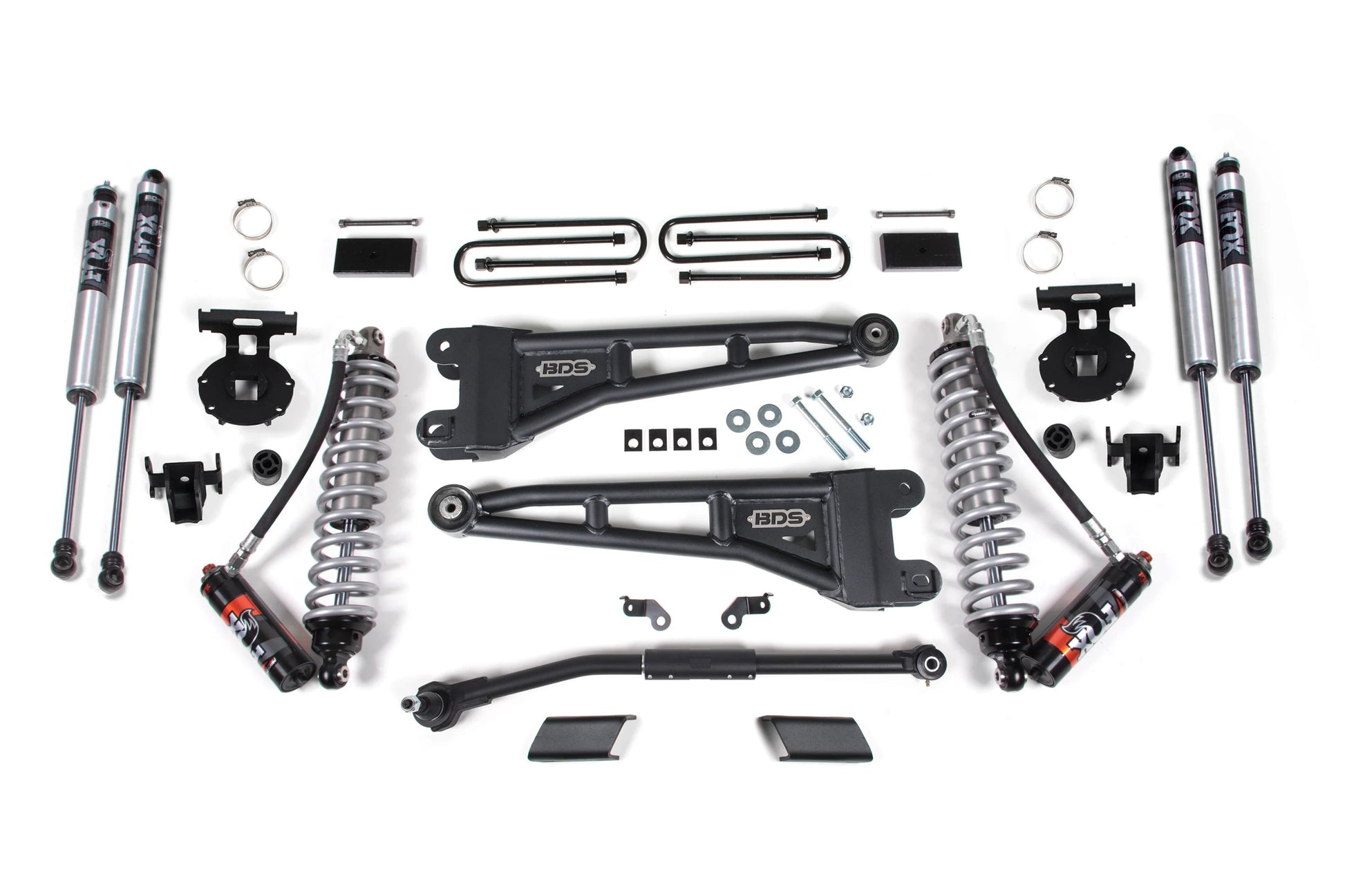

Transform your Ford F250/F350 Super Duty (20-22) with the BDS 3" Suspension FOX 2.5 Coil-Over Conversion. This kit includes high-performance diesel-specific shocks, heavy duty radius arms, a durable 1-3/8 inch solid steel track bar for precise steering, sway bar relocation, and brake line brackets. Elevate your truck's performance and ride with this top-of-the-line upgrade.

In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of FOX Performance shocks.

The factory ride heights of 2020 and newer model year trucks tend to be lower, which means that this kit will actually provide 1" more lift than advertised. For example, a 4" kit will result in a net lift of 5".

FOX Performance Elite Coil-Over

FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.

HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

HD Adjustable Track Bar

Maintain proper handling and steering geometry with the BDS high strength adjustable track bar that allows you to recenter the front axle at a variety of lift heights. Built from 1-3/8" solid steel stock, the track bar comes pre-assembled with bushings and is ready to bolt into the factory mounting points.

Features & Benefits

  • FOX 2.5 Coil-Over mounts in factory coil bucket location
  • Adds additional secondary FOX 2.0 shock for max performance
  • Eibach coil springs ride smooth through the roughest terrain
  • Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
  • Adjustable solid steel track bar designed to recenter the front axle
  • Fabricated steel blocks provide level stance from front to rear
  • FOX shocks are fully serviceable and resistant to corrosion and harsh environments.
