BDS198FS

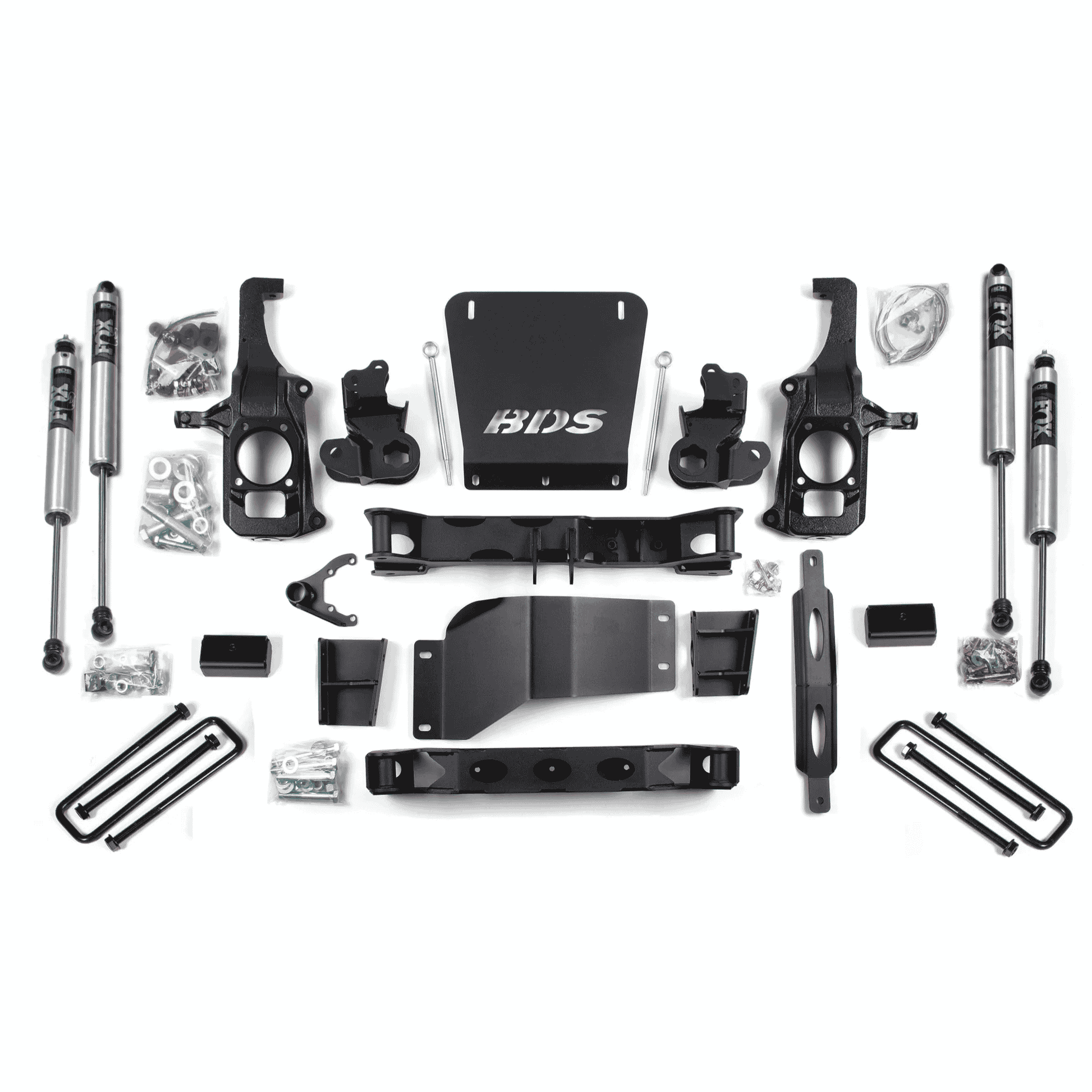

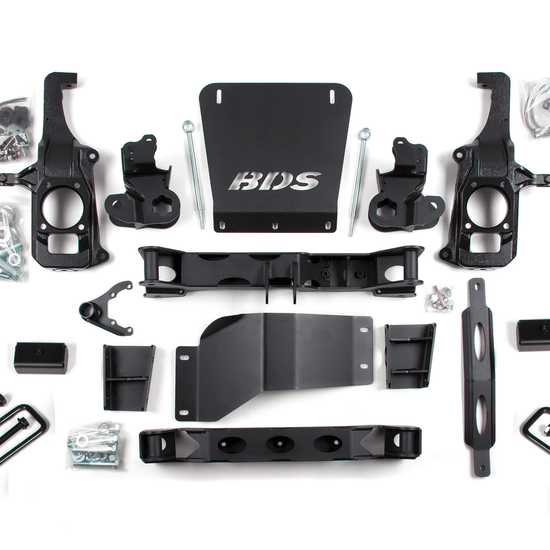

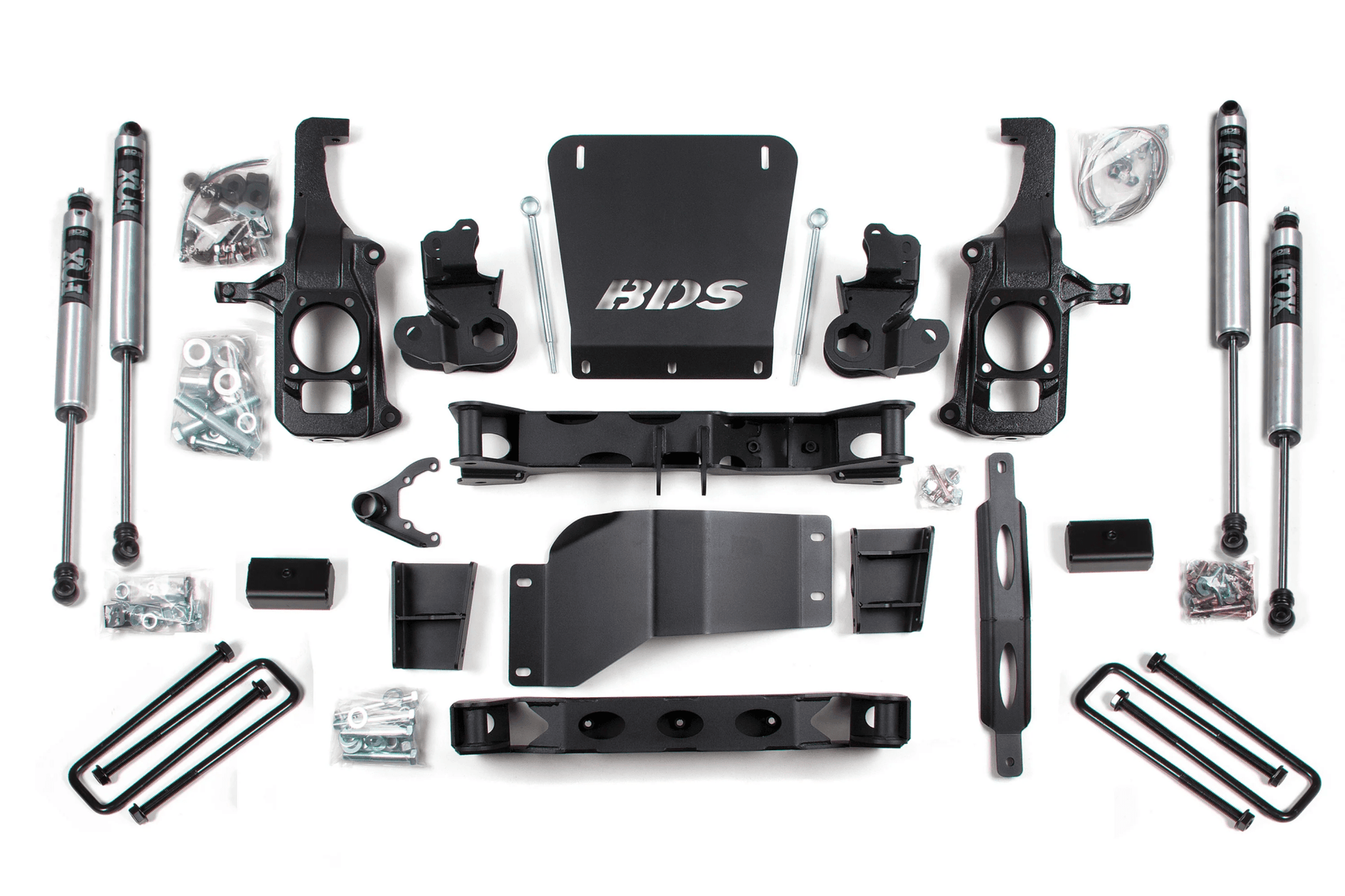

BDS 6.5 Inch Lift Kit | Chevy Silverado Or GMC Sierra 2500HD/3500 (11-19)

 BDS 6.5" Chevy Silverado 2500HD 11 - 19



Enhance the appearance, functionality, and power of your 2011-2019 Chevy Silverado or GMC Sierra 2500 HD 4WD with the BDS 6.5-inch lift kit. Utilizing a No Torsion Bar Drop System, this kit allows for maximum ground clearance by mounting the torsion bars directly to the top of the lower a-arm, eliminating the need for a torsion bar cross-member. Everything necessary for installation is included in this kit.essary to set your truck up right with clearance for up to 37" tyres

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes torsion bar relocation brackets, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar links, bump stop extensions, stainless steel brake lines, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear BDS offers replacement lift blocks to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear is a u-bolt flip kit for max clearance and precision tuned NX2 Nitro or FOX 2.0 Performance Series shocks.

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function.

Features & Benefits

  • High Clearance design w/ no torsion bar drop maximizes ground clearance
  • Robust steering knuckles maintain ESC system compliance
  • HD skid plate system improved offroad protection
  • Multipoint differential relocation brackets to secure the front axle and improve CV angles
  • Factory Protection Plus drivetrain warranty included
  • Choice of NX2 or FOX 2.0 gas shocks for improved performance

Recommended Tires & Wheels

(Trimming may be required)

  • 37 x 12.5 with 17 x 8 and 4.625 in. Backspace
  • 37 x 12.5 with 18 x 9 and 4.625 in. Backspace
  • 37 x 12.5 with 20 x 9 and 6 in. Backspace
