Fox 2.0 Performance Suspension Chevy Silverado 1500 LTZ
-
Shipping Calculated on checkout
Competitive Pricing

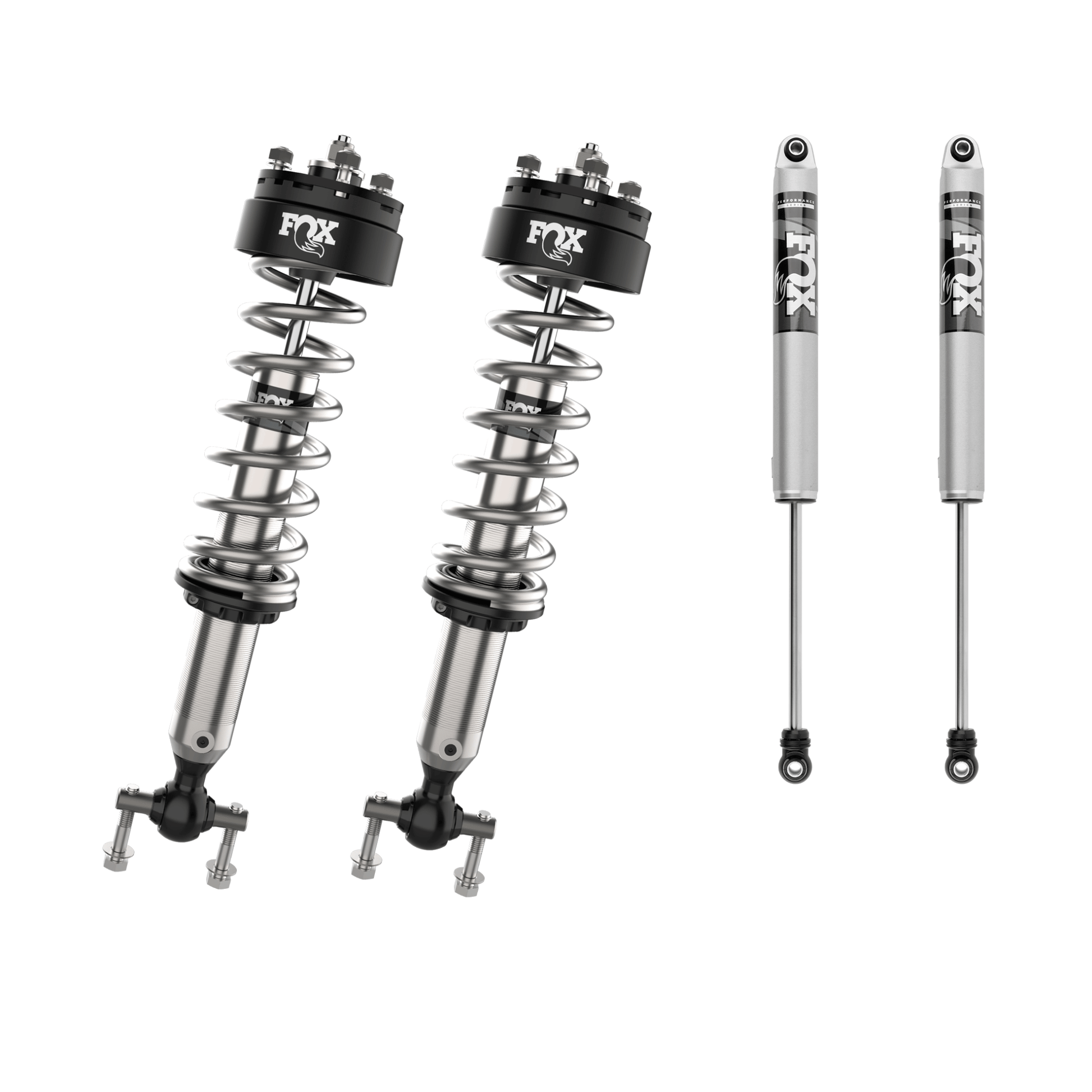

Fox 2.0 Performance Series kit Chevy Silverado 1500 LTZ
Transform your Chevy Silverado 1500 LTZ into an off-road beast with Fox 2.0 Performance Series IFP shocks. These bad boys deliver a buttery-smooth ride on pavement while keeping you planted and confident when things get gnarly off-road. Built tough for Australia's toughest terrain, they handle whatever you throw at them without breaking a sweat.
The precision metal impact aluminium body increases cooling capacity and will never rust. Inside you will find our race-proven performance valving technology. Our Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned precision valving. The race developed high flow damping piston matched with application specific valving provides the Performance Series 2.0 IFP shock a predicable ride quality capable of handling the roughest road conditions.
Vehicle Specifications
- Chevy Silverado 1500 LTZ 2019 - 2024
- Chevy Silverado 1500 Trailboss (No Lift)
Front Fox 2.0 Technical Information
| Body | 2.0” Impact extruded and CNC machined 6061-T6 clear anodised aluminium one-piece body resists rust over time |
|---|---|
| Body Plating | Clear-anodised for a durable finish |
| Reservoir | Internal IFP mono-tube reservoir design |
| Components | Black-anodised, CNC-machined 6061-T6 billet aluminium |
| Shaft | 5/8" hard chrome plated heat-treated alloy steel |
| Piston | Race-developed high-flow piston design |
| Valving | Application specific valving to maximise performance |
| Seals | Redundant sealing pack system main seal, wiper seal, scraper seal |
| Oil | JM92 Advanced Suspension Fluid for improved performance at variable temperatures |
| Bearing | Large diameter, heavy-duty spherical |
| Adjustments | Ride height preload ring |
| Extended | 21.000 |
| Compressed | 16.400 |
| Travel | 4.600 |
| Top Mount | OEM |
| Bottom Mount | Bar Pin |
| Fitment notes | Trail Boss Models Fit 0" Lift Only |
Rear Fox 2.0 Technical information
| Body | 2.0” Impact extruded and CNC machined 6061-T6 clear anodised aluminum one-piece body resists rust over time |
|---|---|
| Body Plating | Clear-anodized for a durable finish |
| Reservoir | Internal IFP mono-tube reservoir design |
| Components | Black-anodized, CNC-machined 6061-T6 billet aluminium |
| Shaft | 5/8" hard chrome plated heat-treated alloy steel |
| Piston | Race-developed high-flow piston design |
| Valving | Application specific valving to maximize performance |
| Seals | Redundant sealing pack system main seal, wiper seal, scraper seal |
| Oil | JM92 Advanced Suspension Fluid for improved performance at variable temperatures |
| Bushings | Quiet nitrile rubber allows for increased suspension articulation |
| Extended | 25.920 |
| Compressed | 16.300 |
| Travel | 9.620 |
| Top Mount | Eyelet |
| Bottom Mount | Eyelet |
