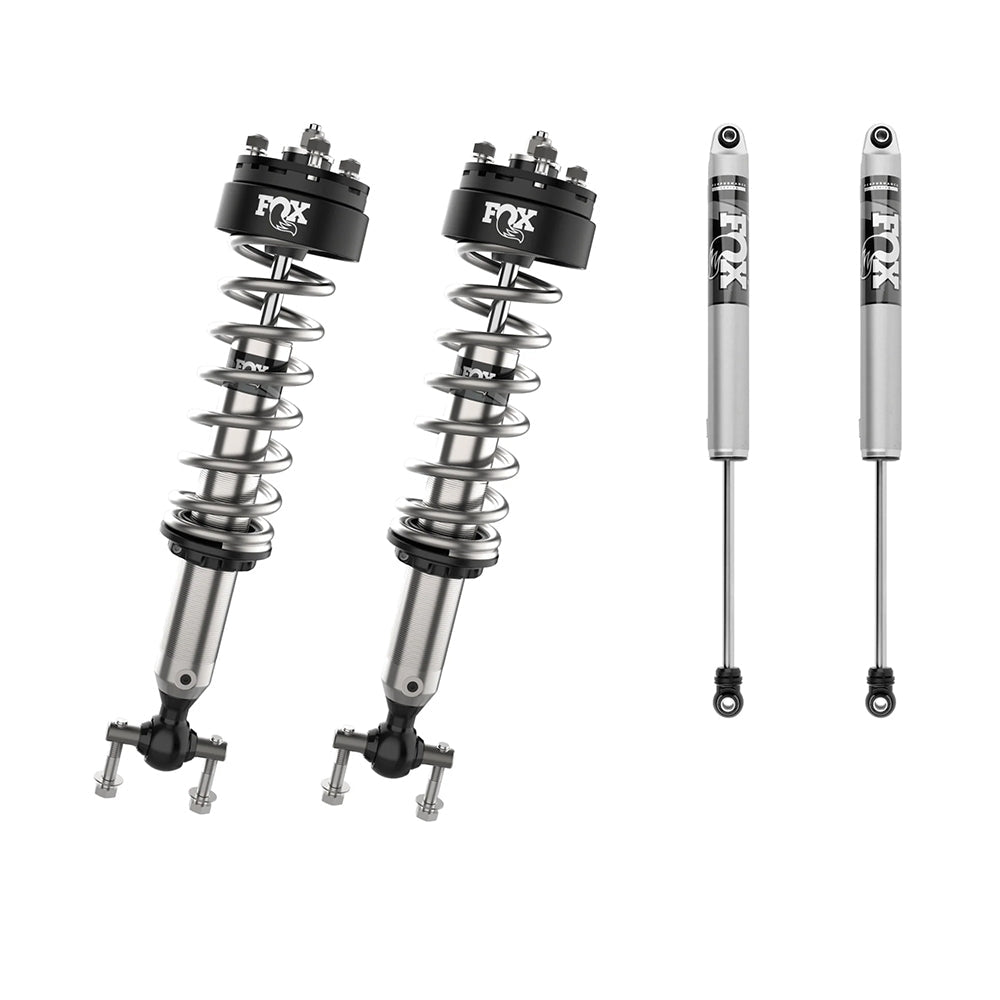

Fox 2.0 Performance Suspension Chevy Silverado 1500 LTZ Trailboss ZR2 3.5 Front- 2.5-4" rear
-
Shipping Calculated on checkout
Competitive Pricing
Fox 2.0 Performance Series kit Chevy Silverado 1500 LTZ TrailBoss ZR2
Get ready to elevate the performance of your Truck or SUV with the cutting-edge technology of the Fox 2.0 Performance Series IFP shocks. Experience a smooth and controlled ride on the road, as well as unbeatable handling off-road, even in the harshest conditions.
The precision metal impact aluminium body increases cooling capacity and will never rust. Inside you will find our race-proven performance valving technology. Our Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned precision valving. The race developed high flow damping piston matched with application specific valving provides the Performance Series 2.0 IFP shock a predicable ride quality capable of handling the roughest road conditions.
Vehicle Specifications
- Chevy Silverado 1500 LTZ 2019 - 2024 3.5" Front - 2.5-4"Rear
- Chevy Silverado 1500 Trailboss ZR2 1.5"
Will require block in the rear, and upper control arms for the front
Front Fox 2.0 Technical Information
| PART NUMBER | 985-02-156 |
| FEATURES |
2.0 impact-extruded and CNC-machined 6061-T6 clear anodized aluminum one-piece body Application-specific springs 5/8 hard chrome-plated steel shafts Vehicle-specific valving to maximize performance Redundant sealing pack system: main seal, wiper seal, scraper seal |
| SERIES | Performance |
| TRAVEL | 4.47 |
| BODY | 2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time |
| BODY PLATING | Clear-anodized for a durable finish |
| COMPONENTS | Black-anodized, CNC-machined 6061-T6 billet aluminum |
| PISTON | 5/8" hard chrome plated heat-treated alloy steel |
| VALVING | Two-stage shim stack increases off-road bottom-out resistance while mitigating road vibration and harshness |
| SEALS | Redundant sealing pack system main seal, wiper seal, scraper seal |
| BEARINGS | Large diameter, heavy-duty spherical |
| EXTENDED LENGTH | 23.31 |
| COMPRESSED LENGTH | 18.84 |
| TOP MOUNT | TM |
| BOTTOM MOUNT | Bar Pin |
| FITMENT NOTES | Trail Boss and AT4 models requires UCA. |
Rear Fox 2.0 Technical information
| PART NUMBER | 985-24-269 |
| SERIES | Performance |
| TRAVEL | 10.42 |
| BODY | 2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time |
| BODY PLATING | Clear-anodized for a durable finish |
| COMPONENTS | Black-anodized, CNC-machined 6061-T6 billet aluminum |
| SHAFT | 5/8" hard chrome plated heat-treated alloy steel |
| SEALS | Redundant sealing pack system main seal, wiper seal, scraper seal |
| EXTENDED LENGTH | 27.82 |
| COMPRESSED LENGTH | 17.4 |
| TOP MOUNT | ES7 |
| BOTTOM MOUNT | ES7 |
