Fox 2 Inch Lift Kit | FOX 2.0 Coil-Over | DS Ram 1500 13-24

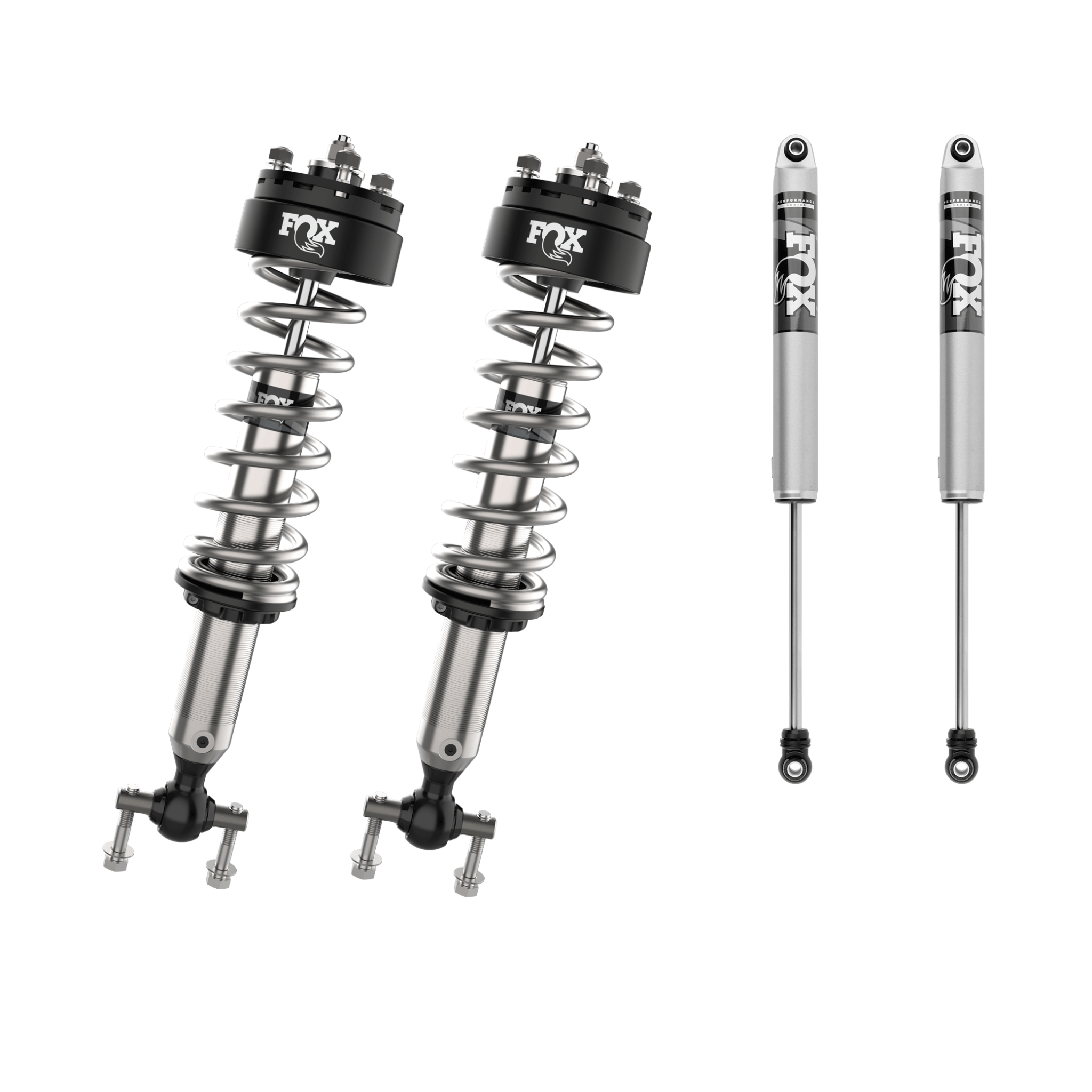

Fox 2" Lift Kit DS RAM 1500 2013 - 2024




Experience the ultimate in performance and technology with our bolt-on, Performance Series Coil-over IFP shock. Its advanced features and metal impact extruded aluminum body provide increased cooling and rust resistance. Plus, the vehicle-specific upper mount includes a composite bushing for reduced noise and vibration..

Locking, spring preload rings that allow easy ride height and preload adjustment retain a top quality racing coil, selected to deliver the optimal spring rate. Performance Series Coil-Over IFP shocks bolt on with no modifications and are designed to level your truck front-to-rear. Applications are available for stock and lifted trucks that re-use the stock shock.

Inside is an internal reservoir with Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving. The easy-to-install, Performance Series 2.0 Coil-over IFP provides a comfortable on-road ride and predictable off-road handling in even the toughest conditions.


Body 2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
Body Plating Clear-anodized for a durable finish
Reservoir Internal IFP mono-tube reservoir design
Components Black-anodized, CNC-machined 6061-T6 billet aluminum
Shaft 5/8" hard chrome plated heat-treated alloy steel
Piston Race-developed high-flow piston design
Valving Application specific valving to maximize performance
Seals Redundant sealing pack system main seal, wiper seal, scraper seal
Bearing Large diameter, heavy-duty spherical
Adjustments Ride height preload ring
Extended 20.460
Compressed 15.060
Travel 5.390
Top Mount OEM
Bottom Mount Clevis

Features & Benefits

  • FOX 2.0 performance series struts offer improved damper performance over factory and are a direct bolt-in replacement
  • FOX 2.0 performance series IFP rear shocks included
  • Easy, 100% Bolt on installation

  • 983-02-050 (Front Coil-overs) x 2
  • 985-24-032 (Rear Suspension) x


Vehicle Suitability

  • DS RAM 2013 - 2024
  • Will not suit DT RAM 2019 +

Recommended Tyres & Wheels

(Trimming may be required)

  • 33 x 12.5 with 18 x 9 and 5 in. Backspace
  • 33 x 12.5 with 20 x 9 and 5 in. Backspace
