Sold out

883-26-098

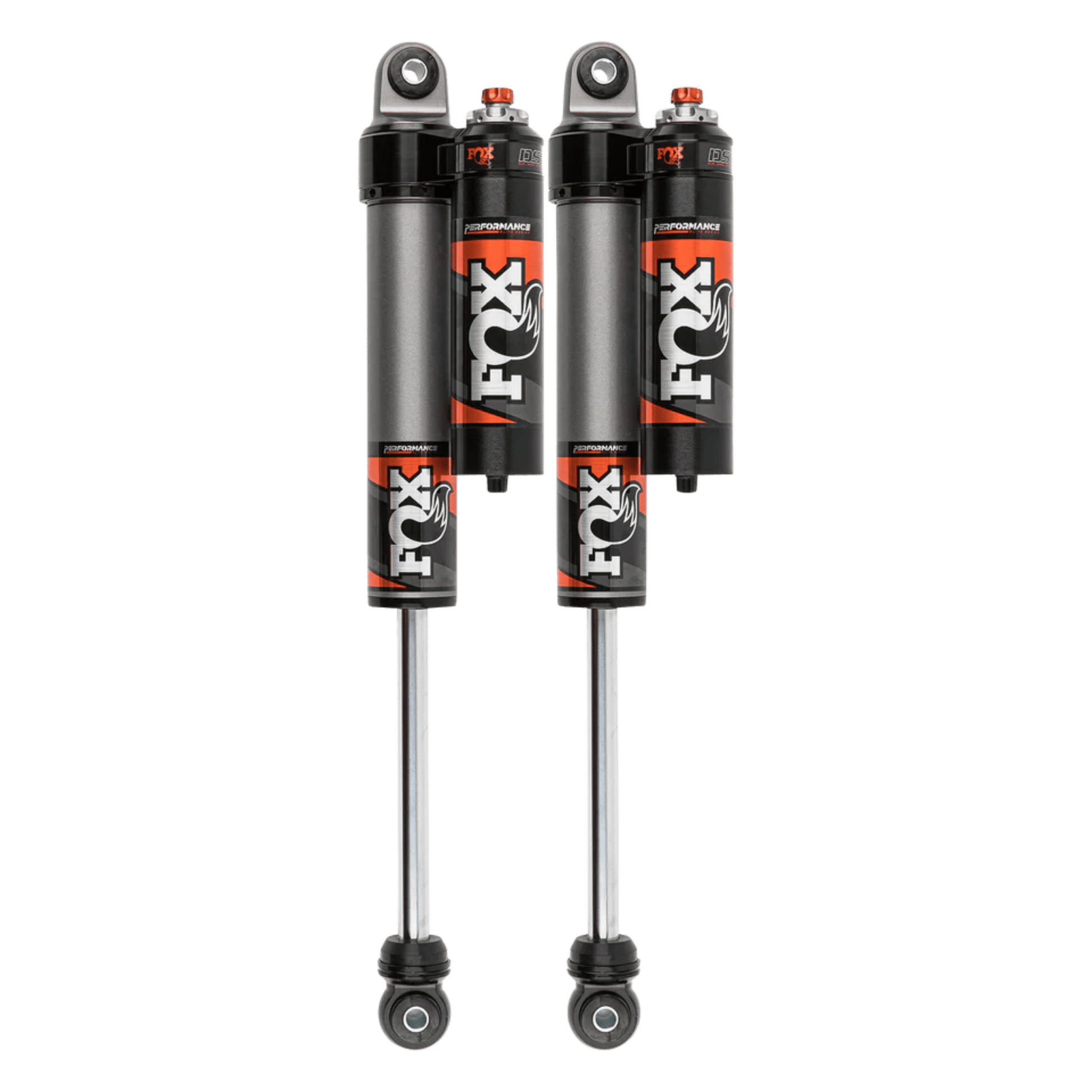

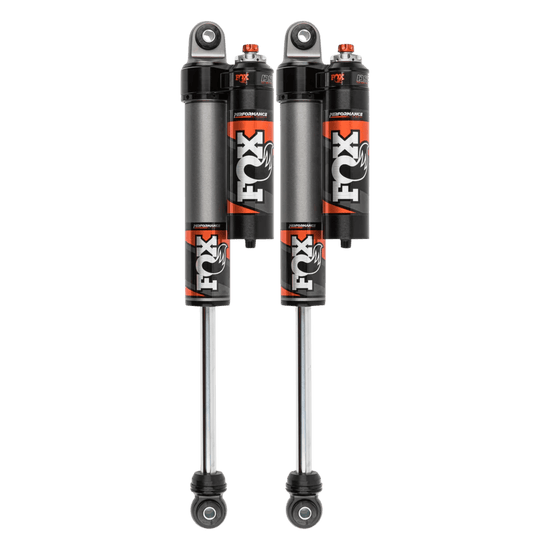

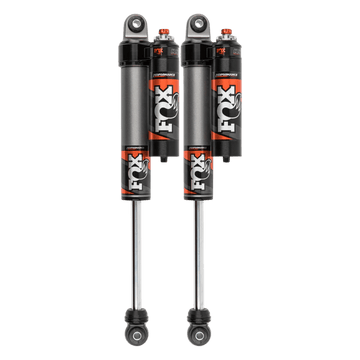

FOX PERFORMANCE ELITE 2.5 Ford F250 F350 Rear shock 2- 3.5"

FOX PERFORMANCE ELITE 2.5 Ford F250 F350 Rear shock 2- 3.5"

883-26-098

FOX Performance Elite 2.5 Series shocks for the Ford Super Duty provide an excellent all-around ride in a bolt-on solution. FOX shocks are designed and engineered to increase the vehicle’s capability off-road and improve stability while towing.

FOX shocks provide the versatility required to cruise your commute, manage hauls, and navigate the backcountry in comfort and control.

Vehicle Suitability

  • Ford F250 F350 2017+ Rear Shock
FOX-021-CMYK-HiRes.png__PID:d54ebeb3-8397-4bf5-9159-569ba3bda665

Fox 883-26-098 Specifications

PART NUMBER 883-26-098
FEATURES 2.5" impact-extruded and CNC-machined 6061-T6 Type III anodized aluminum body; 7/8" hard chrome-plated steel shafts; Redundant sealing pack system; 2.5" smooth bore and honed seamless alloy reservoir with Dual Speed Compression (DSC) adjuster; Unlock all travel available in jounce and droop positions; Maximize comfort and control through any terrain; Remote reservoirs are mounted to clear aggressive tires at full lock; Aluminum shock bodies and external reservoirs efficiently dissipate heat by increasing oil capacity; Larger, high flow piston increases bottom-out resistance and damping in any environment
SERIES Performance Elite
TRAVEL 12.48
REAR LIFT HEIGHT 2-3.5
BODY 2.5" impact extruded and CNC machined 6061-T6 Type III anodized aluminum body
RESERVOIR 2.5" smooth bore and honed seamless alloy reservoir with Dual Speed Compression (DSC) adjuster
SHAFT 7/8" hard chrome plated steel shafts
PISTON Larger, high flow piston increases bottom-out resistance and damping in any environment
VALVING Vehicle-specific valving to maximize performance
SEALS Redundant sealing pack system main seal, wiper seal, scraper seal
EXTENDED LENGTH 32.33
COMPRESSED LENGTH 19.85
TOP MOUNT Eyelet
BOTTOM MOUNT Eyelet
