987-24-008
FOX PERFORMANCE SERIES 2.5 HTO SHOCK 0 - 1" Chevy Silverado 2500HD 2020+
$700.00
FOX HTO Shock Chevy Silverado 2500HD 2020+
The FOX PERFORMANCE SERIES 2.5 HTO SHOCK for Chevy Silverado 2500HD 2020+ delivers advanced position-sensitive technology, custom valving, and oversized pistons for unparalleled on and off-road performance. Its type II anodised aluminium body not only adds to its sleek appearance, but also ensures maximum heat dissipation and protection against corrosion. Furthermore, the internal floating piston (IFP) separates the shock oil from the high-pressure nitrogen, resulting in exceptional damping capabilities.

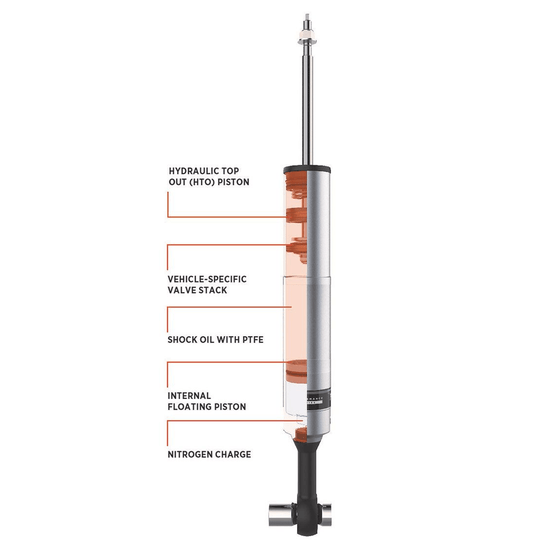

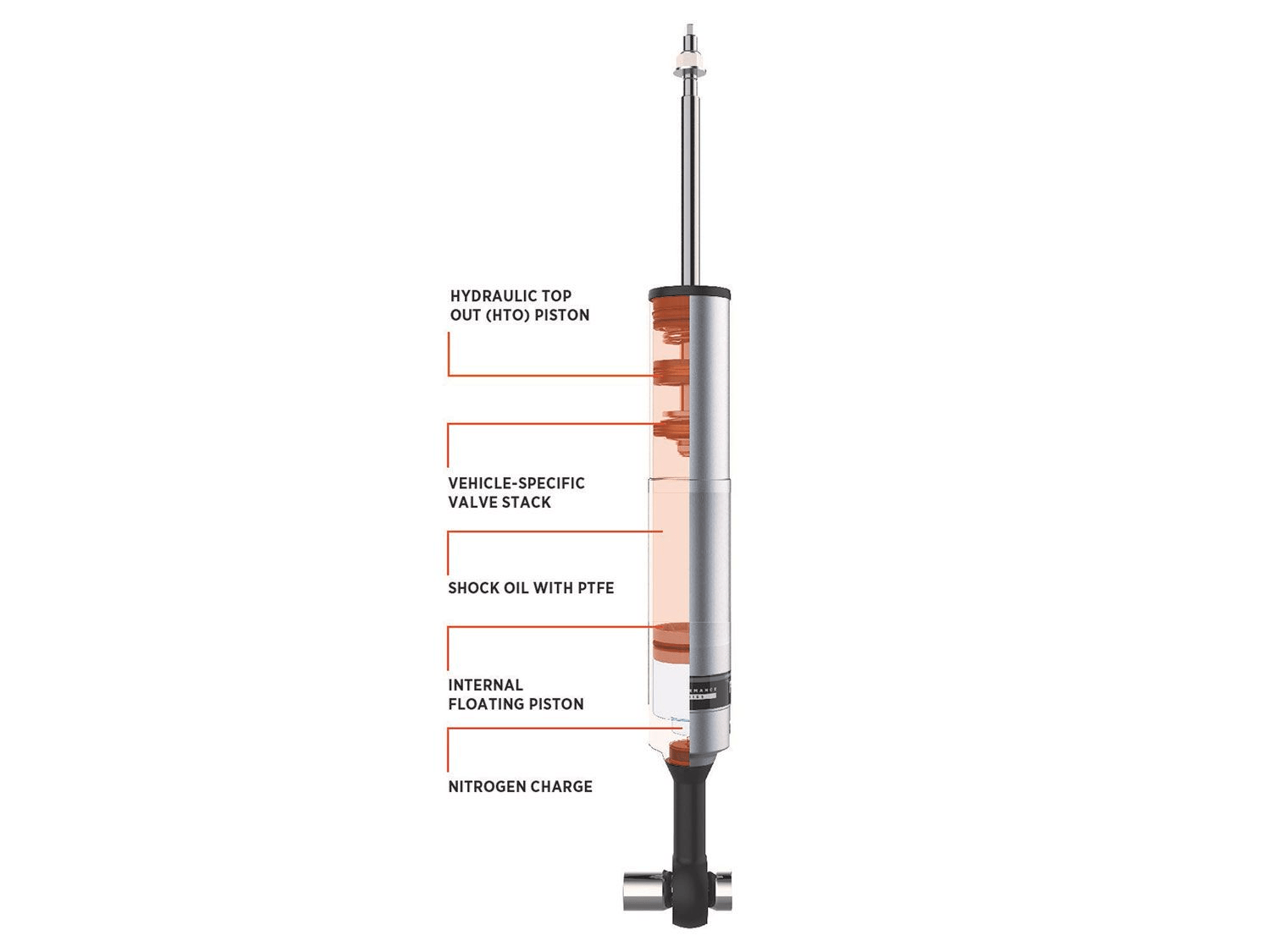

Hydraulic Top Out (HTO) technology offers usable position-sensitive rebound damping control on and off the pavement. HTO reduces harsh top-outs and increases comfort by forcing shock oil through a secondary shim stack to slow down shock shaft speed; HTO is particularly beneficial after installing heavier, aggressive tires and applications lifted higher than OEM specification.
Bolt-on 2.5 Performance Series HTO shocks to increase damping capacity and ride in comfort with position-sensitive rebound control.
Vehicle Suitability
- Chevrolet Silverado 2500HD 2020 - 2024
- 0 -1"
- * Shocks are sold individually you will need to order 2
Product Specification 987-24-008
| PART NUMBER | 987-24-008 |
| FEATURES | 2.5” Impact extruded 6061-T6 aluminium shock body Type II clear-anodised body plating High-flow velocity-sensitive damping 5/8” hard chrome shaft Internal floating piston (IFP) Hydraulic Top Out (HTO) piston |
| TRAVEL | 4.38 |
| FRONT LIFT HEIGHT | 0-1 |
| EXTENDED LENGTH | 18.15 |
| COMPRESSED LENGTH | 13.76 |
| TOP MOUNT | Bar Pin |
| BOTTOM MOUNT | Clevis |
| FITMENT NOTES | Lift: 0-1 inch |
