Smittybilt

98512

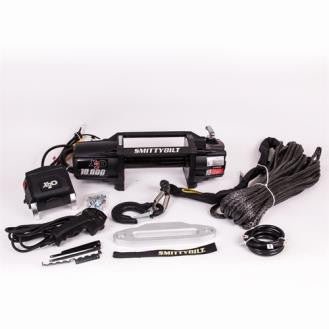

Smittybilt X20 GEN2 Wireless Waterproof Synthetic Rope Winch 12000


The new Gen2 series of Smittybilt X2O winches have been thoroughly updated with heavy-duty features for enhanced performance and comes standard with an integrated wireless remote. The new 6.6HP amphibious motor offers the highest torque in the industry and is connected to a 3-stage Planetary Gear System for increased pulling power and line speed.



All Gen2 X20 Winches come backed by a Lifetime Mechanical Warranty and a 5-Year Electrical Warranty. The COMP Series difference If you’re after a winch equipped with a state-of-the-art synthetic rope, look to the X2O COMP Series for the ultimate in pulling power. Smittybilt's exclusive Dynamic Braking System reduces drum temperatures by 66%, making it perfectly suited to operate all types of synthetic ropes.

Key Features SmittyBilt X20 Gen 2 Wireless Synthetic Rope Winch

  • Waterproofing: IP68 Rating
  • Rated Line Pull: 12,000Lbs (5,545kgs) Single Line
  • Motor: 6.6hp Series Wound
  • Control: Remote Switch, 12’ (3.7m) lead
  • Gear Train: 3-Stage Planetary
  • Gear Ratio: 265:1
  • Clutch: Sliding Ring Gear
  • Brake: Automatic Out-Of-Drum
  • Drum Size: Diameter 2.5”Cable: 98.5’ 3/8” Diameter
  • Cable Type: Synthetic Rope
  • Fairlead: Hawse Remote

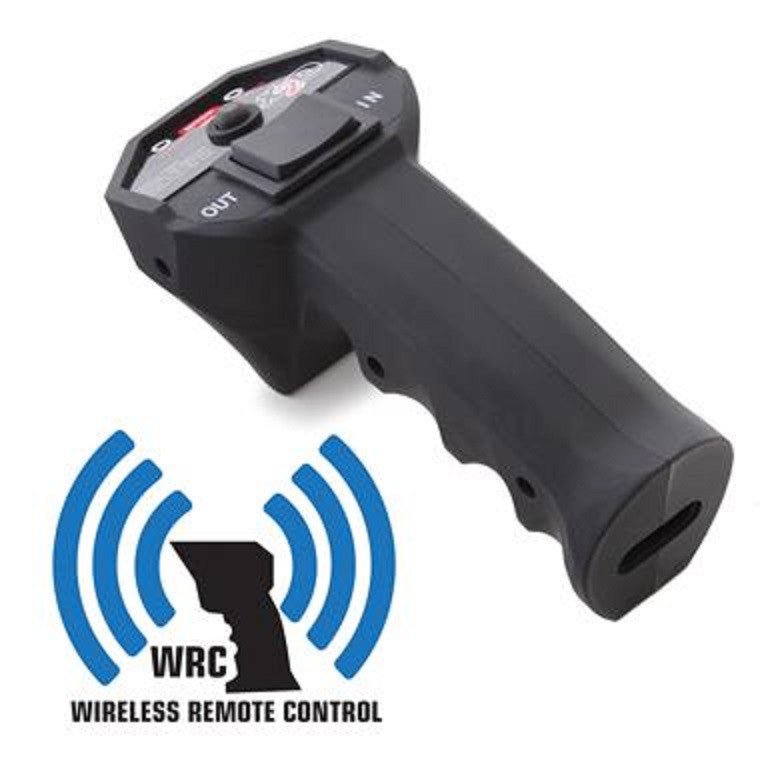

  • Control: Included Integrated Wireless Remote Recommended Battery: 650CCA Minimum for Winching
  • Battery Leads: 25mm2, 72”(1.83m)1
  • Finish: Textured Black
  • Weight: 67.0Lbs (30.4Kgs)
  • Mounting Bolt Pattern: 10.0” x 4.50”
  • Overall Dimensions: (L x W x H) 22.3” x 5.4” x 9.4

Shipping Details

  • This item will be shipped via Courier
  • We require a Business address PO BOX will not be accepted.
