EVO-12-S-103255

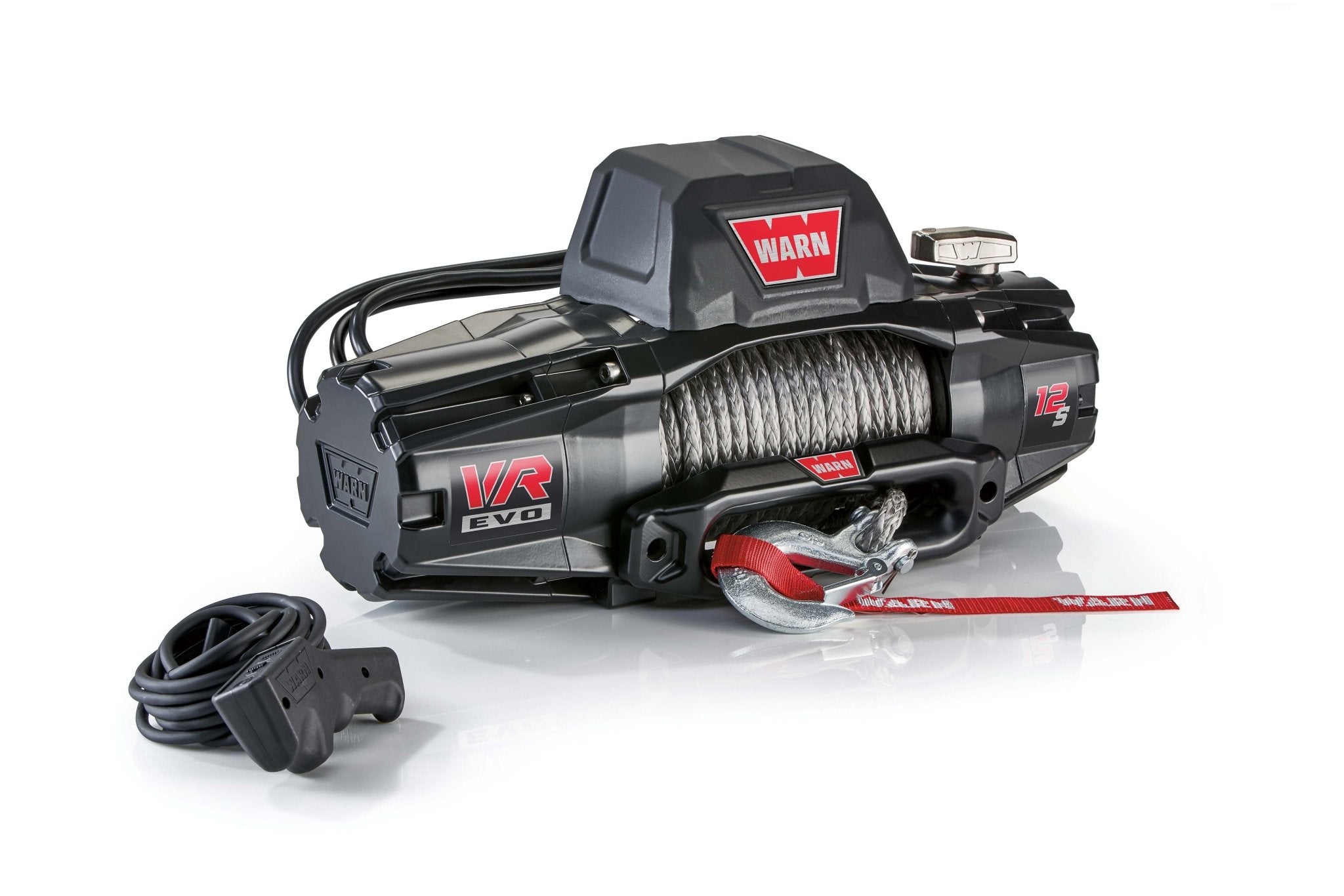

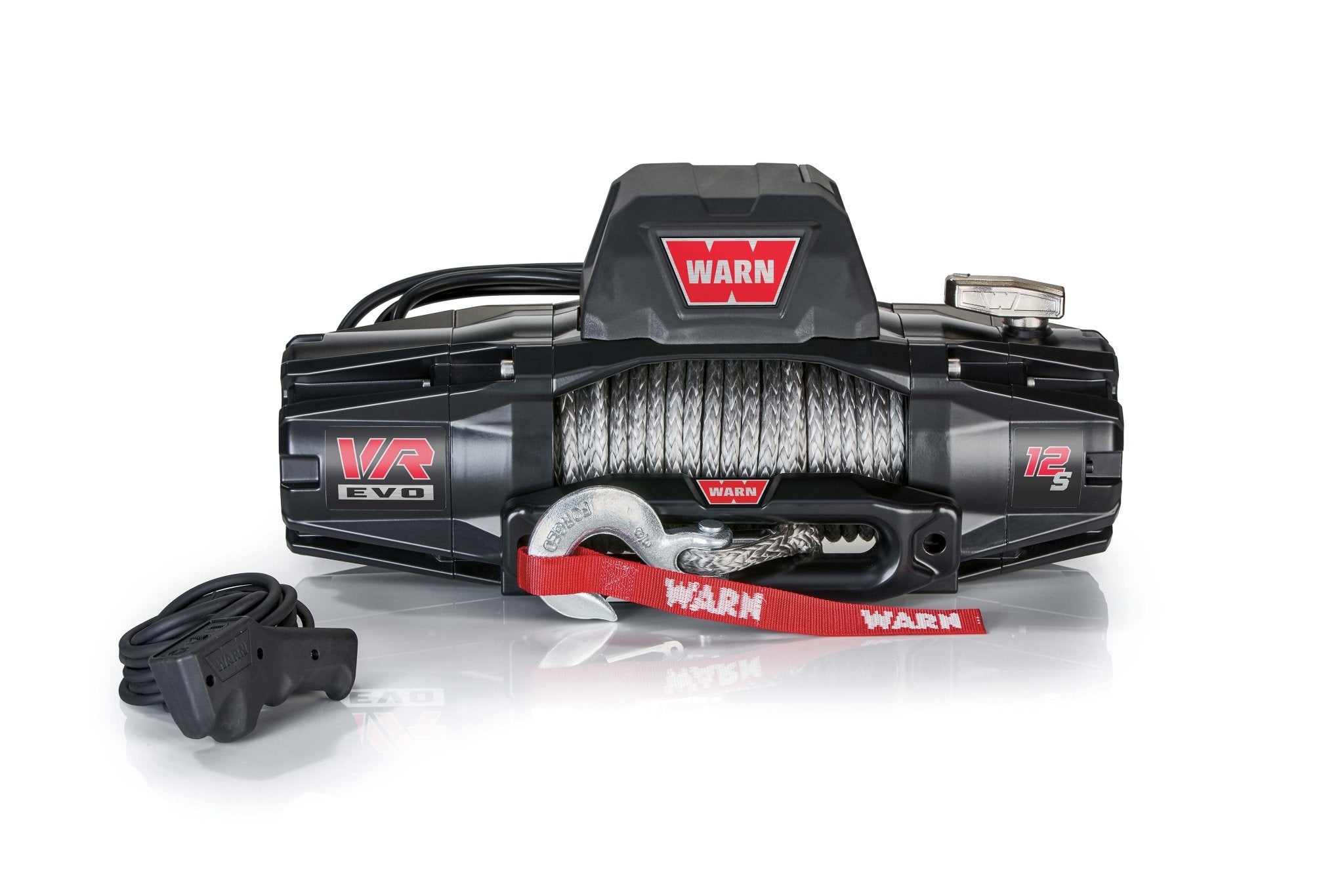

Warn Winch EVO 12-S

or a first payment of $475.00 and 3 interest free payments of $375.00
with
×
Shop online now,
pay over time.
Get 6 weeks to pay, interest free.
Choose Zip at checkout
Quick and easy. Interest Free.
Use your debit or credit card
Apply in minutes with no long forms.
Pay in fortnightly instalments
Enjoy your purchase straight away.
Eligibility criteria and late fees apply.
Read our complete terms and privacy policies
© 2021 Zip Co Limited



Great for 1-ton pickups and various large frame rigs that need extra power for longer, heavier pulls. The EVO 12 and 12-S boast a waterproof construction with IP68 rating, an Albright® contactor stored in a versatile control pack, and a cutting-edge, two-in-one remote for added convenience and flexibility. These winches are incredibly efficient with a fast line-speed and lower amp draw, making the EVO series the toughest standard-duty winches yet. The tactical design adds a great look to your vehicle without breaking your budget.

  • A powerful series-wound motor and planetary gear train deliver faster line speed under load, with lower amp draw

  • IP68-rated waterproof winch construction keeps the elements out

  • High-performance Albright contactor delivers maximum reliability

  • Control packs can be relocated for low-profile installations

  • Durable, one-piece cast-aluminum tie-plate for added strength and durability

  • Two-in-one remote with wired AND wireless options for ease of use and versatility

  • Limited lifetime warranty for mechanical parts and 7 years on the electrical

  • Designed, engineered, and tested by WARN engineers in the U.S.A.


Specifications

Part number: EVO-12-S-103255
Rated line pull: 5443kg (12000 lbs.)
Motor: 12V series wound
Electrical controls: Albright Contactor
Remote Control: 2 in 1 plug-in remote with wireless capability and 3.5M lead
Geartrain: 3-Stage Planetary
Gear ratio: 234:1
Clutch (freespooling): Rotating ring gear
Brake: Spring brake
Drum diameter/Length: 6.73cm/23cm (2.5″/ 9.0″)
Shipping weight:  32.78 kg (72.27 lbs.)
Net product weight: 24.98 kg (55.07 lbs.)
Rope: 9.5mm x 27.4m (3/8″ x 90′)
Fairlead: Die cast hawse
Recommended Battery: 650 CCA minimum for winching
Battery leads: 25m x 2M
Finish: Powder coating over primer undercoating
