30CLB

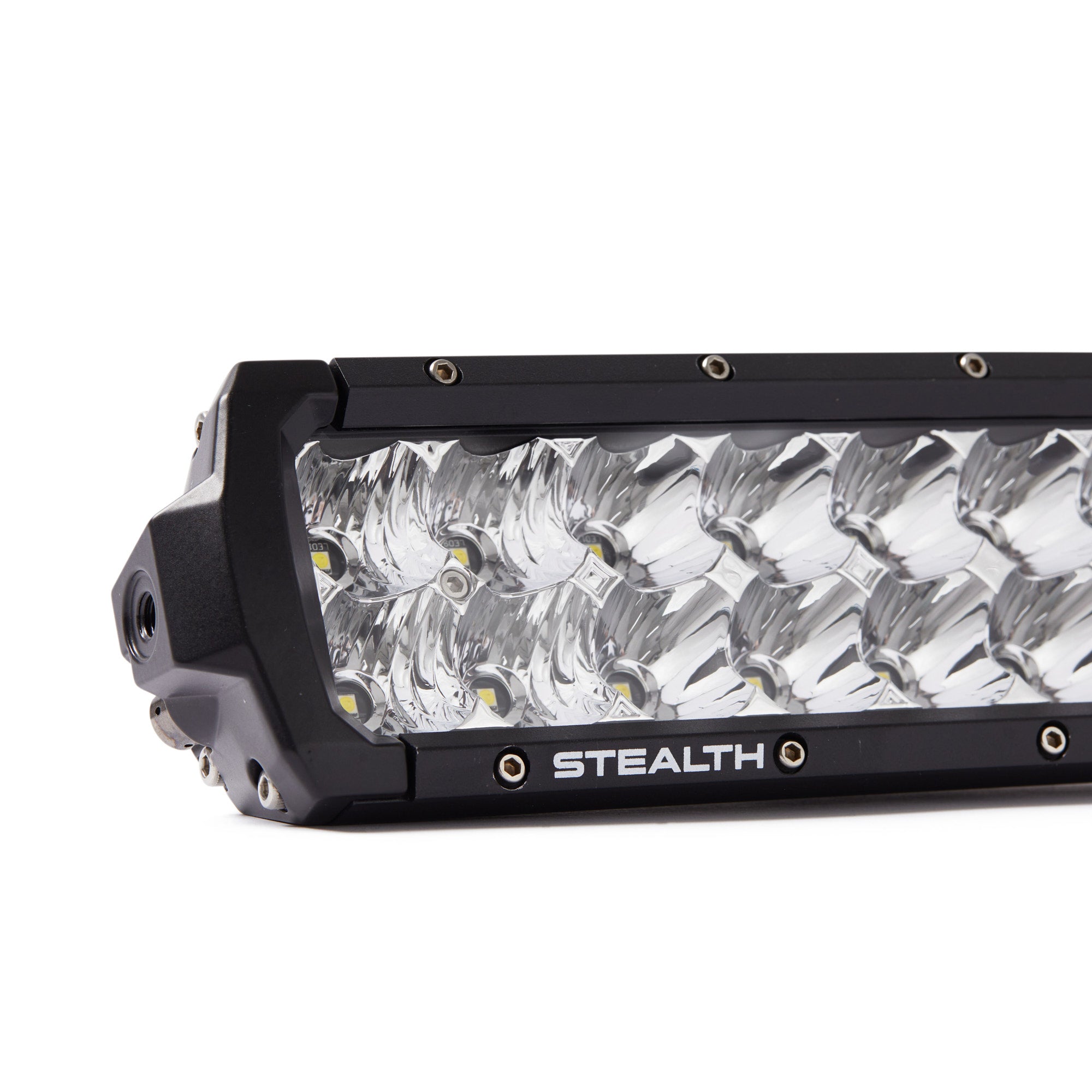

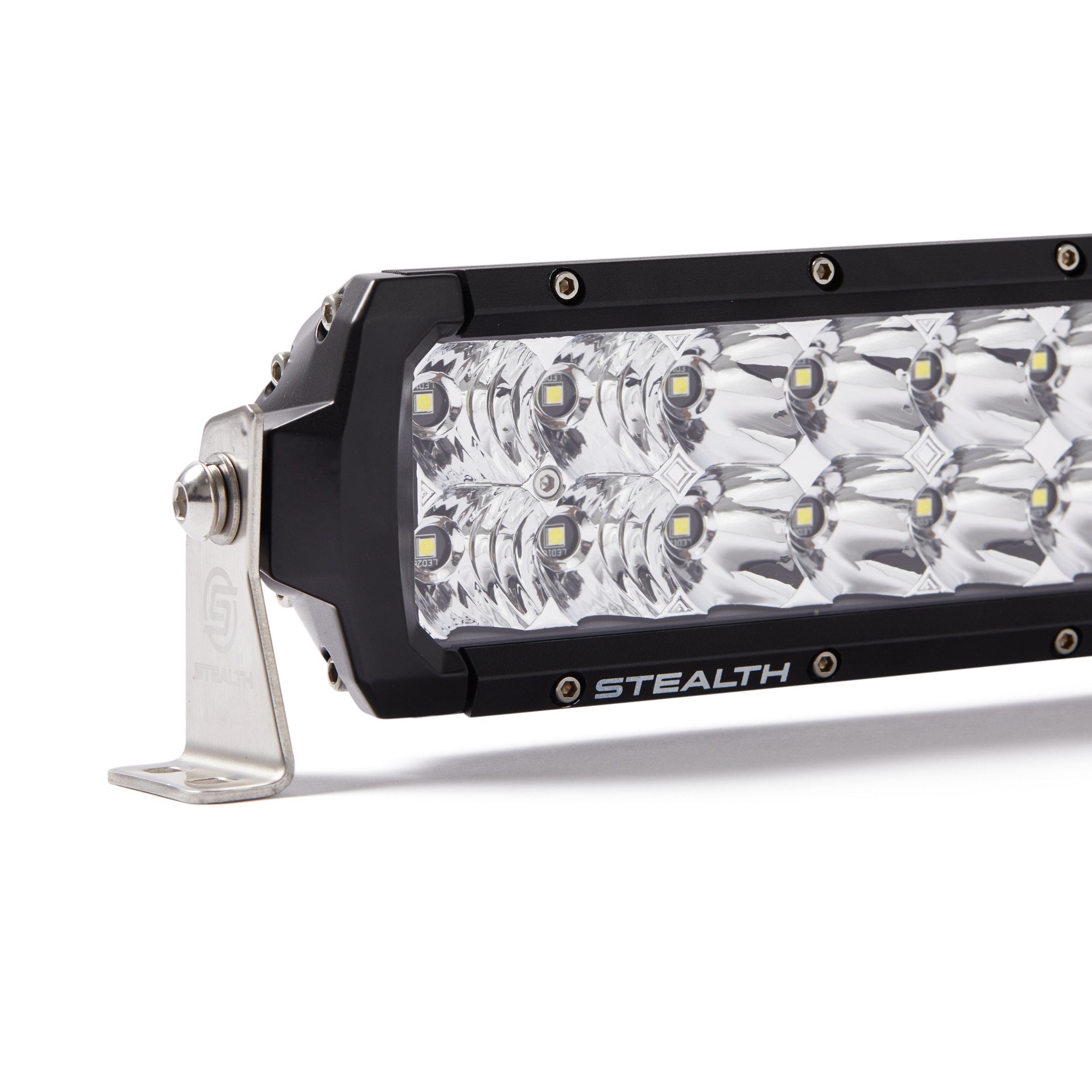

30" Stealth Curved C Series LED Light Bar



Plug and Play

9994 LM

Waterproof IP69K

3 year warranty

FREE SHIPPING

AUSTRALIA WIDE



KEY PRODUCT FEATURES

  • Installation Made Easier - We supply a quick fit wiring harness, that has H4 & HB3 plugs.  We supply side mounting feet and you have option purchasing additional mounts that can allow the light bar to be mounted from the rear. Which then can be mounted on to the top of bull bars on UHF Mounts.
  • Dust & Waterproof - Stealth Light bars have been tested in laboratories to have be given IP69K certification from dust and water ingression.
  • 5700 Kelvin Colour temperature, is a subtle white light reducing glare on road sign and less fatigue on your eyes.
  • Interference Free - Its been discussed in depth cheaper light bars cause a lot of radio interference Stealth LED Light bars rated to CISPR25, What Does that mean ? It will not cause issues with the FM/AM radio or UHF.
  • Durability - The Stealth D Series LED Light bars, are no screw design the are finished with a specific DU PONT Coating thats been salt spray tested and UV Stable.

TECHNICAL SPECIFICATION

  • LED – 60 x 5w Genuine OSRAM LED's.
  • Effective Lumens - 9994 Lumens (Real Lumens Not RAW)
  • Voltage – 9-36V DC
  • Warranty – 3 Year Replacement Warranty
  • Amps   12.3A @ 12V DC
  • Power - 300w
  • Vibration – Vibration dampened and shockproof to 28G
  • Beam Pattern – Combination Beam
  • IP Rating – IP69K – Waterproof up to 3 meters
  • Colour Temperature - 5700 Kelvin

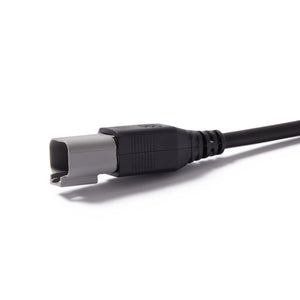

  • Connections – Waterproof Deutsch® connector

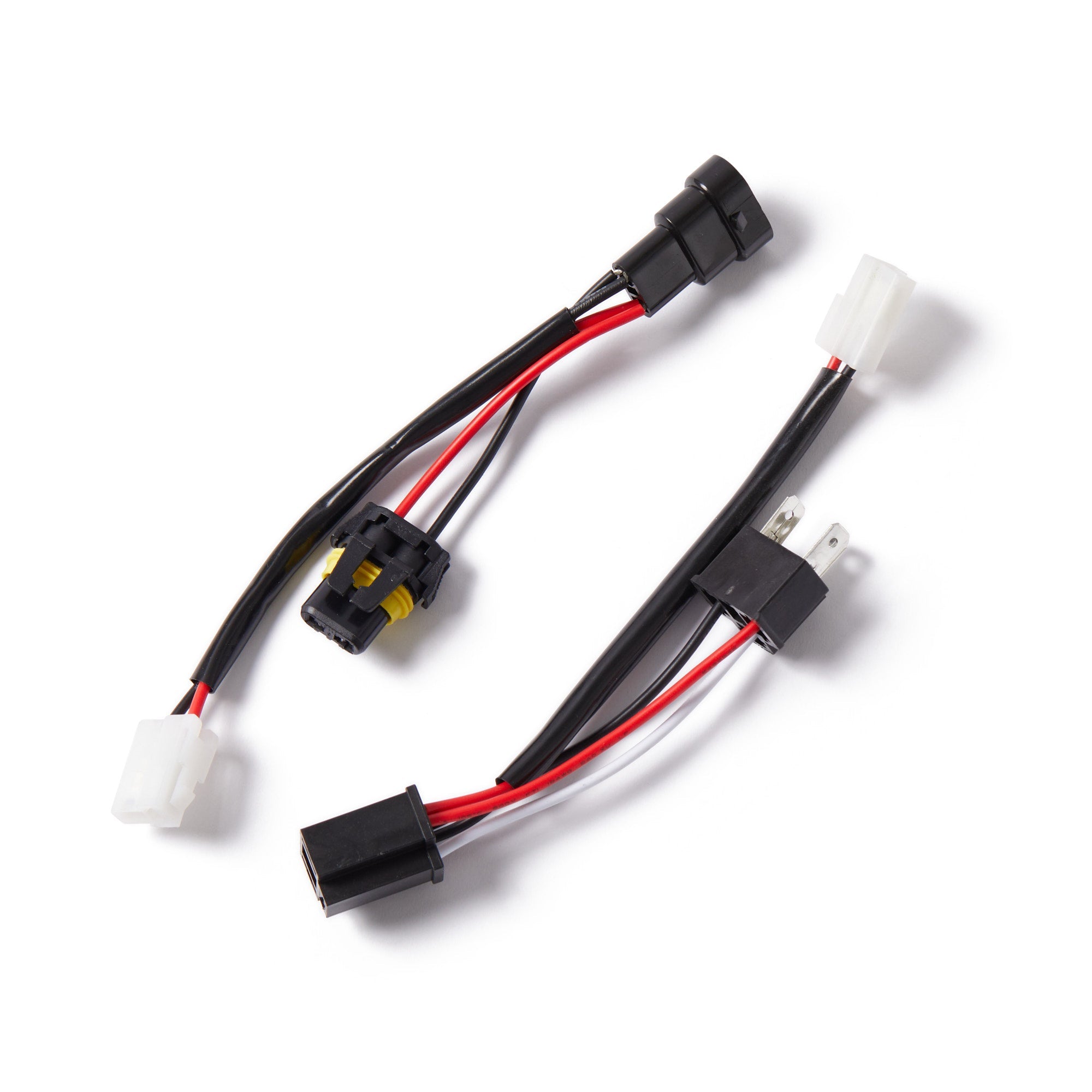

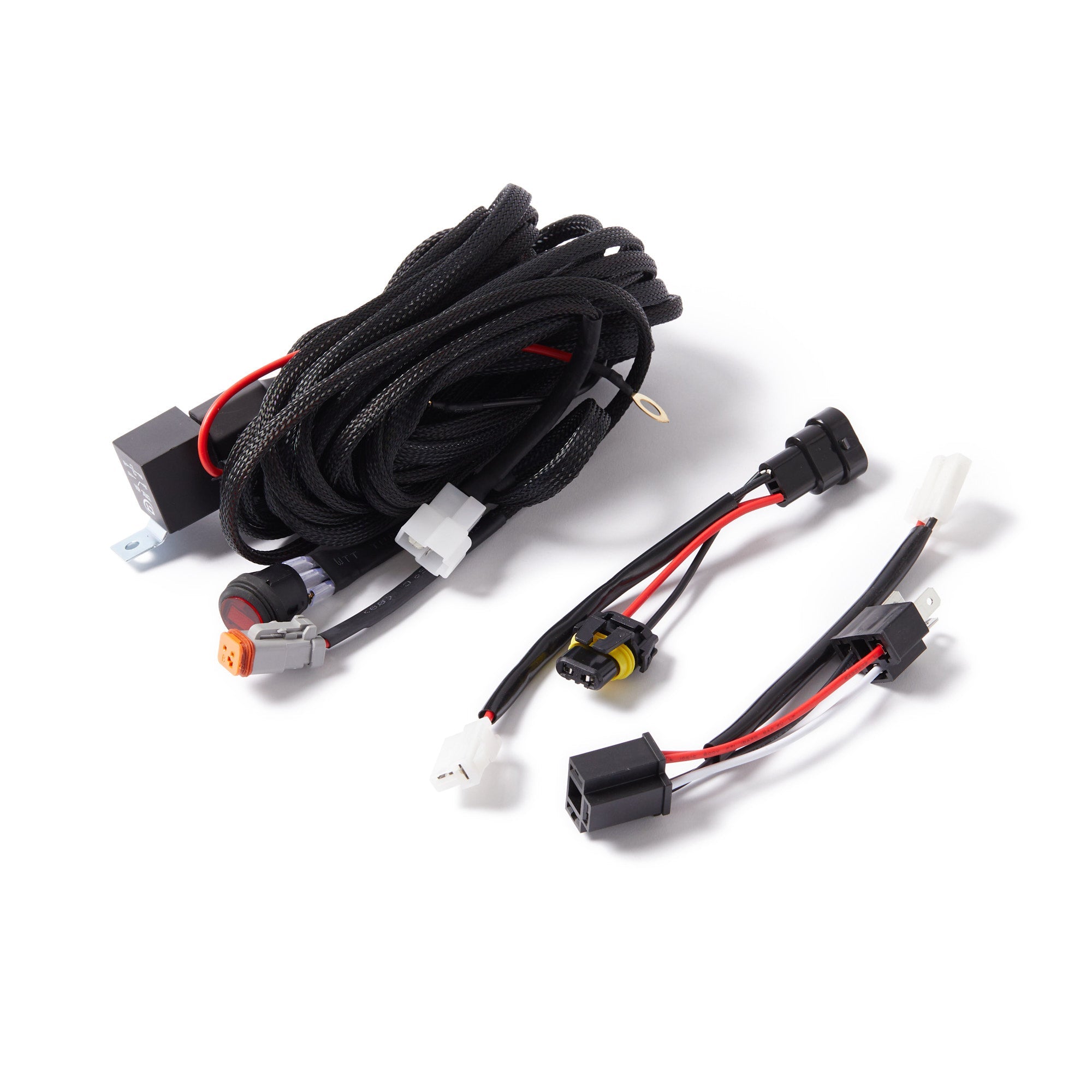

  • Wiring – Quick Fit Plug and Play Harness with H4 & HB3 connectors included.

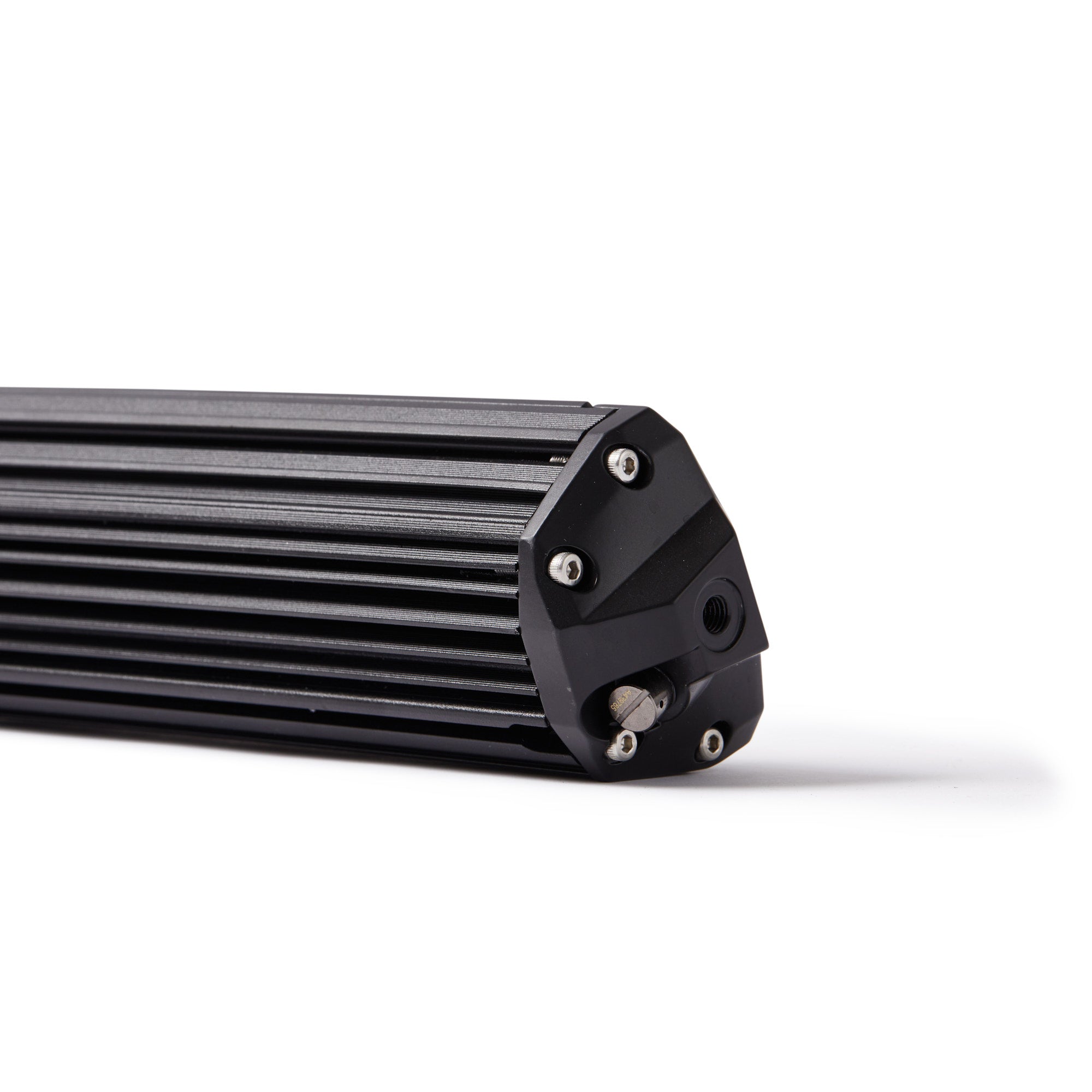

  • Housing Material – 6061 Aluminium Extrusion, DU Point Coating

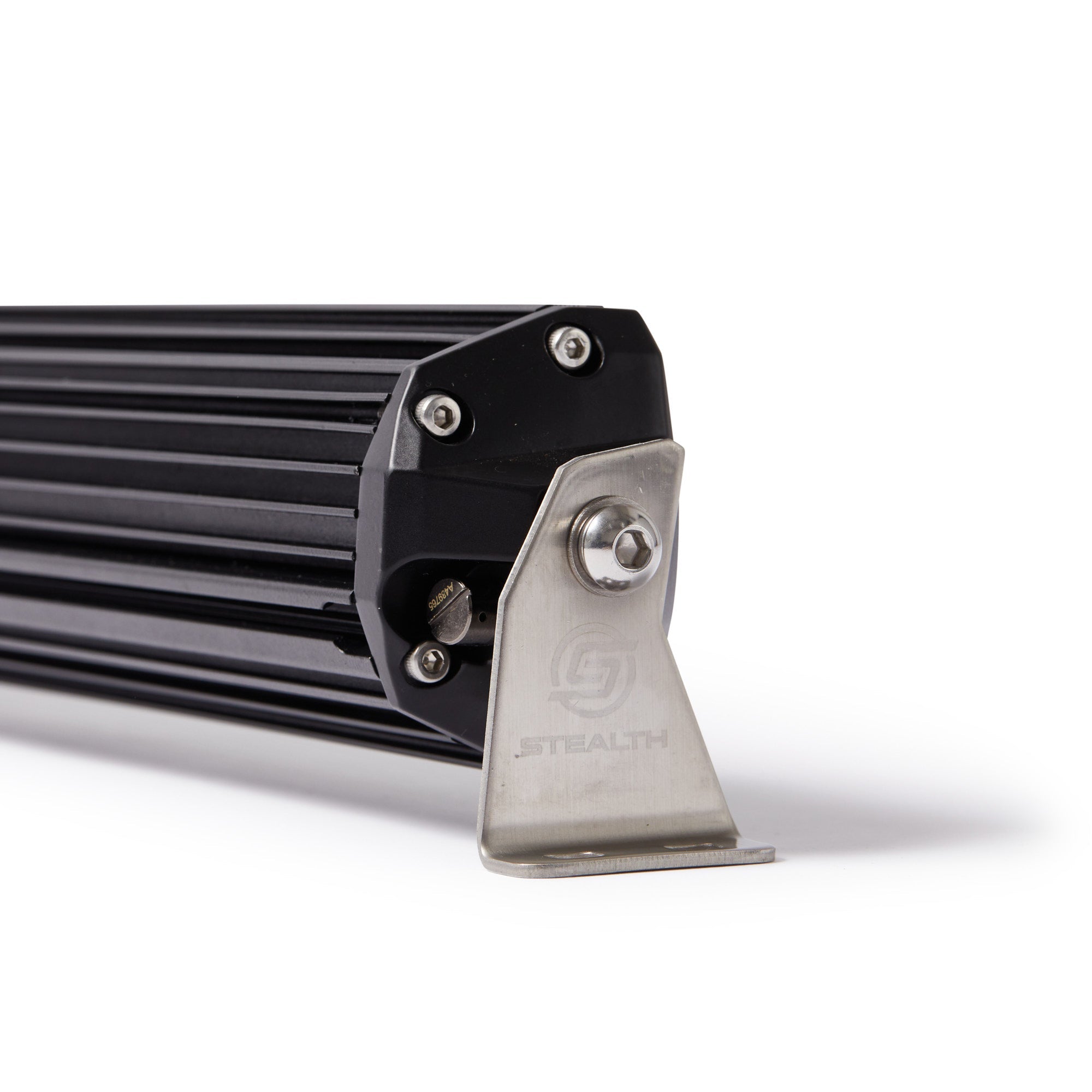

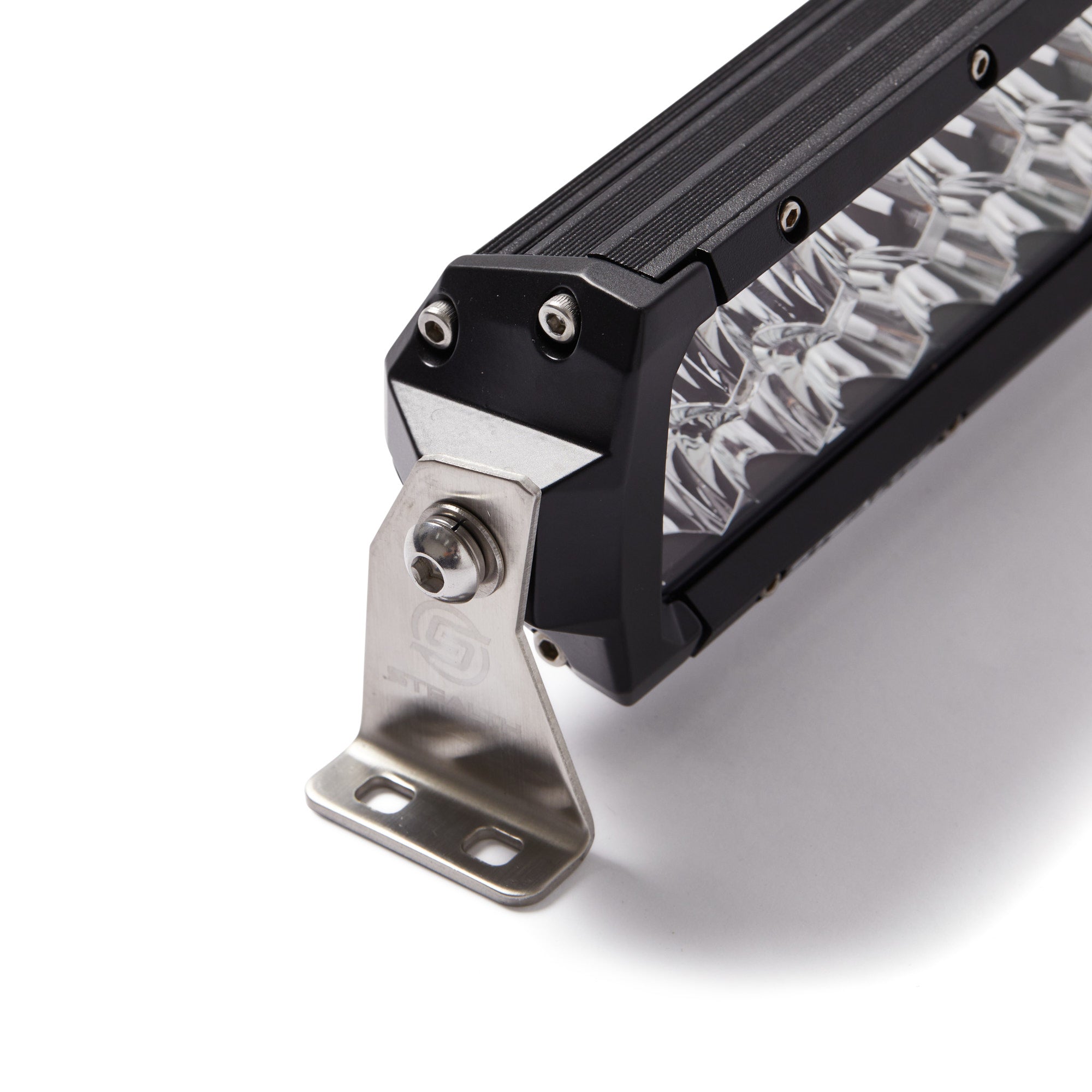

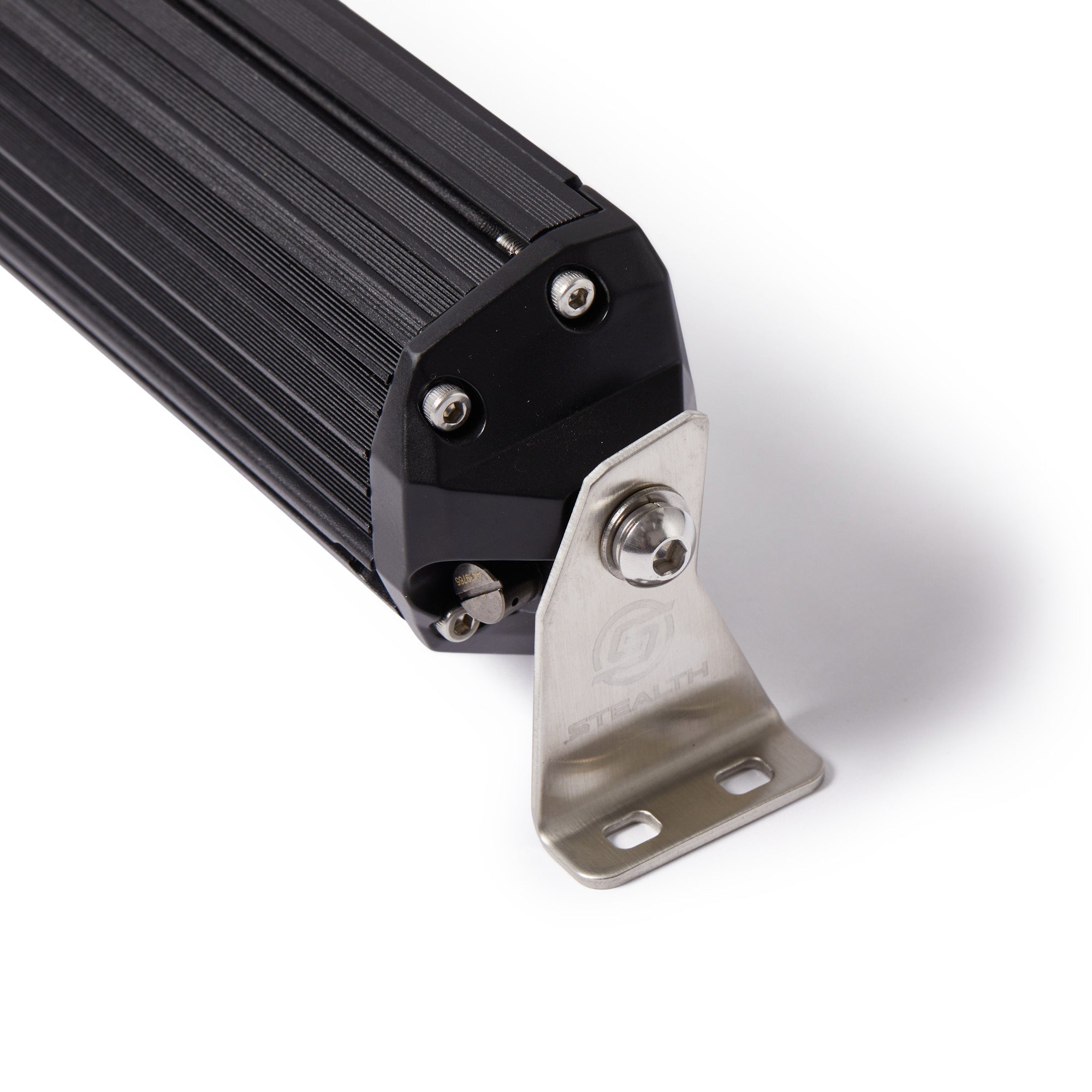

  • Mounting Brackets – 5mm Brushed Stainless Steel Side Brackets or (Optional Slide Mounts)
  • Polarity – Reverse Polarity Protection
  • Interference – Rated CISPR25 Standard
  • PHOTO METRIC DATA @ 6M Distance - 9480 LUX

DIMENSIONS

 What's supplied inside the box

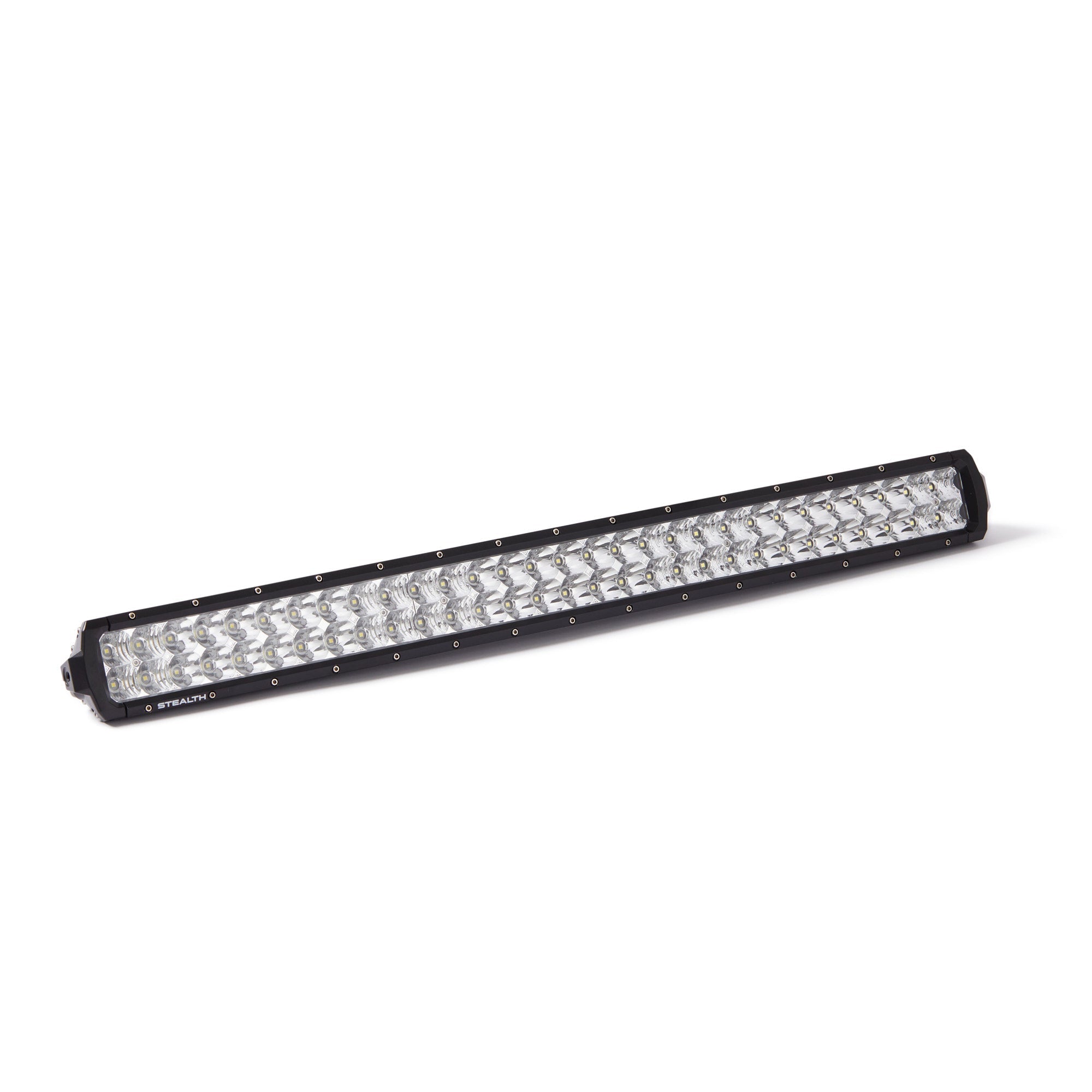

  • 1 x Stealth 30" Curved LED Light Bar.

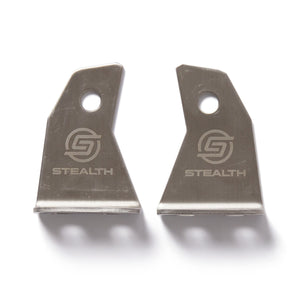

  • 2 x Stainless Mounting Feet & Stainless bolts.

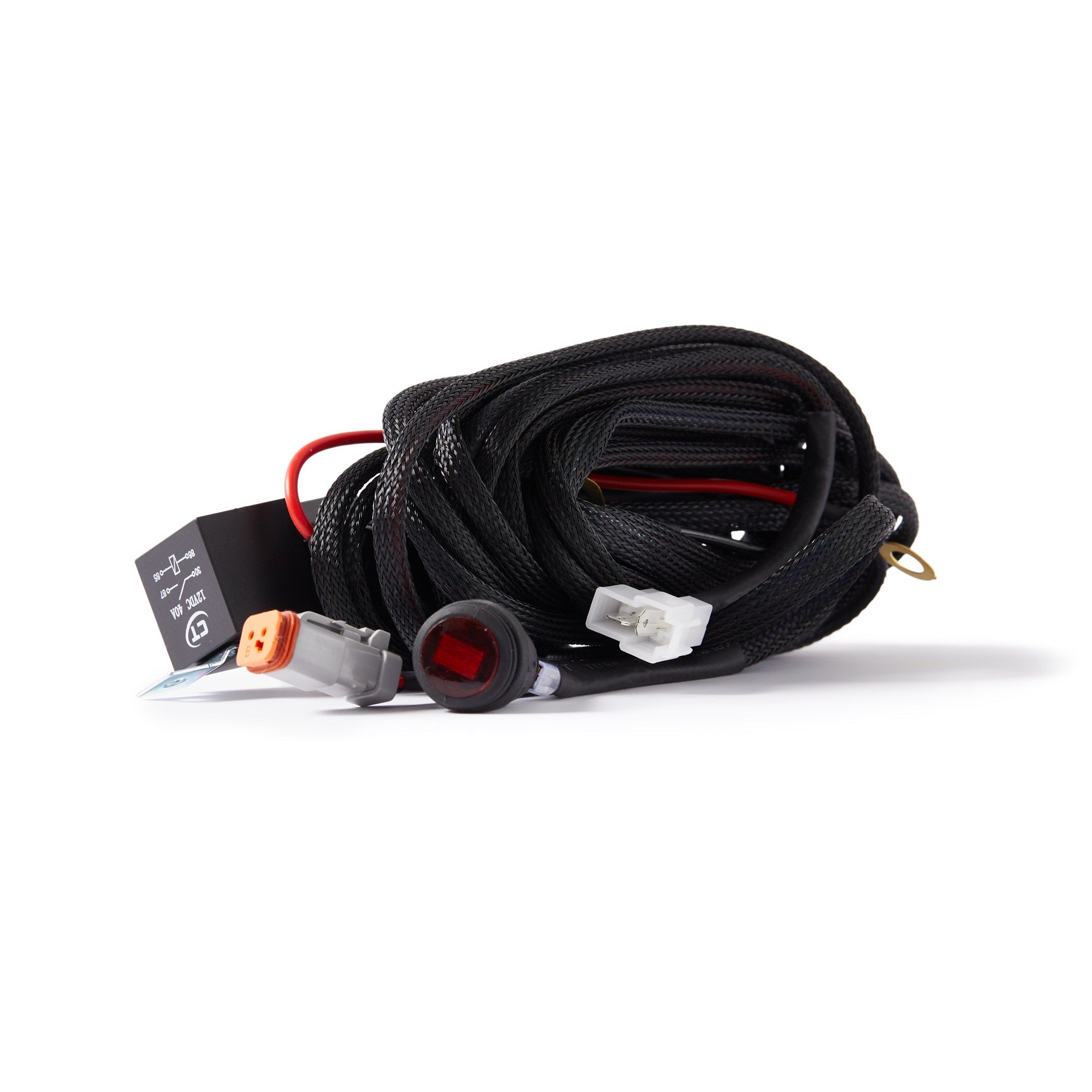

  • 1 x Quick Fit Wiring Harness.
