Toyota Tundra Unbound: Australia’s Premier GVM & GCM Legal Evolution.

Stop worrying about weight limits and start adventuring with absolute confidence. Offroad Industries (ORI) offers Australia’s most comprehensive, Federally Approved GVM (Gross Vehicle Mass) upgrades for the Toyota Australia Toyota Tundra 2023 - 2026 range—covering both the Limited and Platinum models.

By bundling our ORI GVM Packages with GCM testing and LS16 certification, we grant your truck true "Super-Truck" status. The LS16 code is our secret sauce: a specific engineering modification code for Gross Combination Mass Re-rating. This ensures your truck, your gear, and your 4.5T trailer are 100% legal together, whether registered Pre-Rego (Federal) or Post-Rego (State-based).

*Please note that some workshops may apply additional discretionary administration fees to the quoted installation and engineering price. Additionally, all Post-Registration GVM upgrades will incur additional local fees. Shipping is not included in the price.

ORI Federally Approved Packages

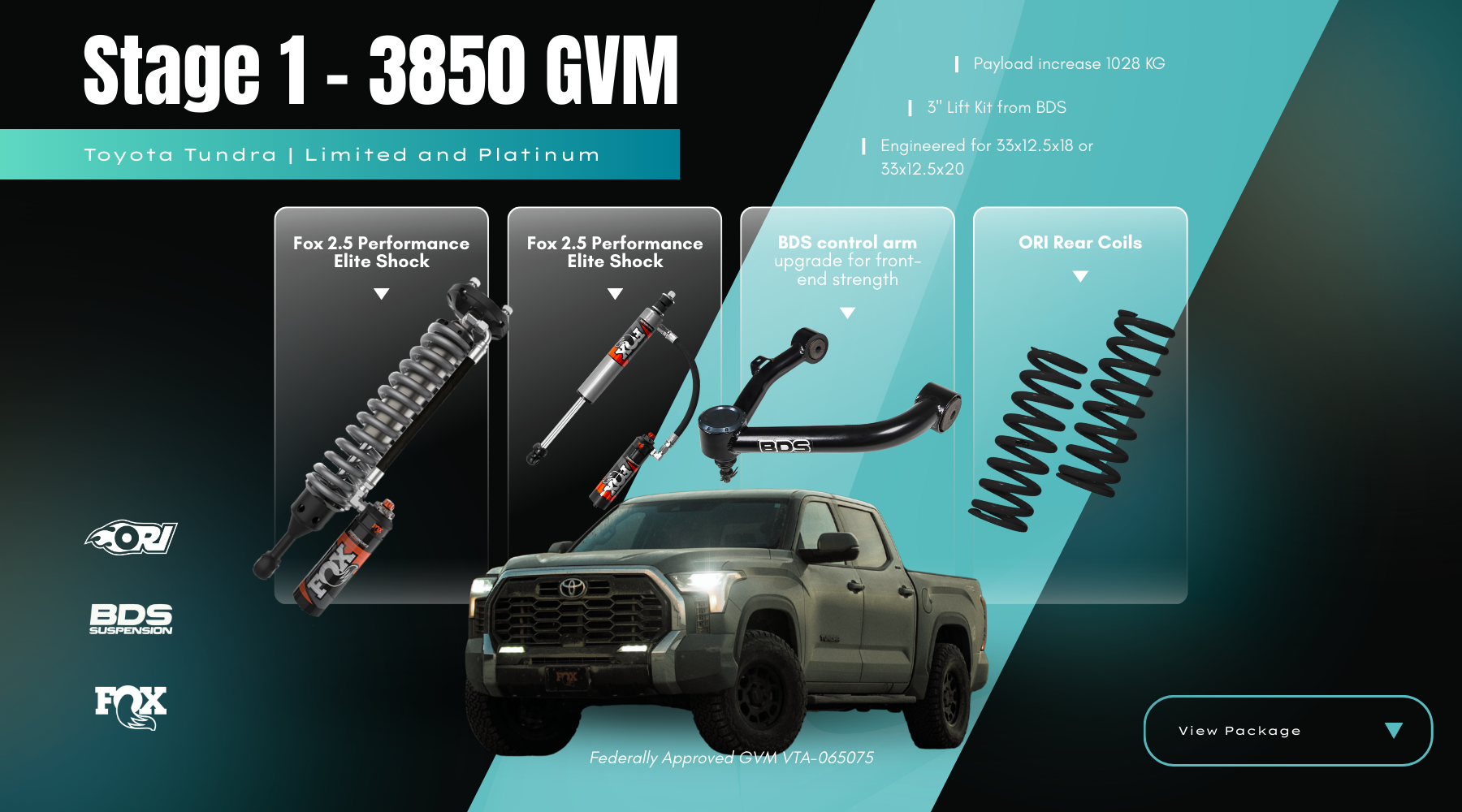

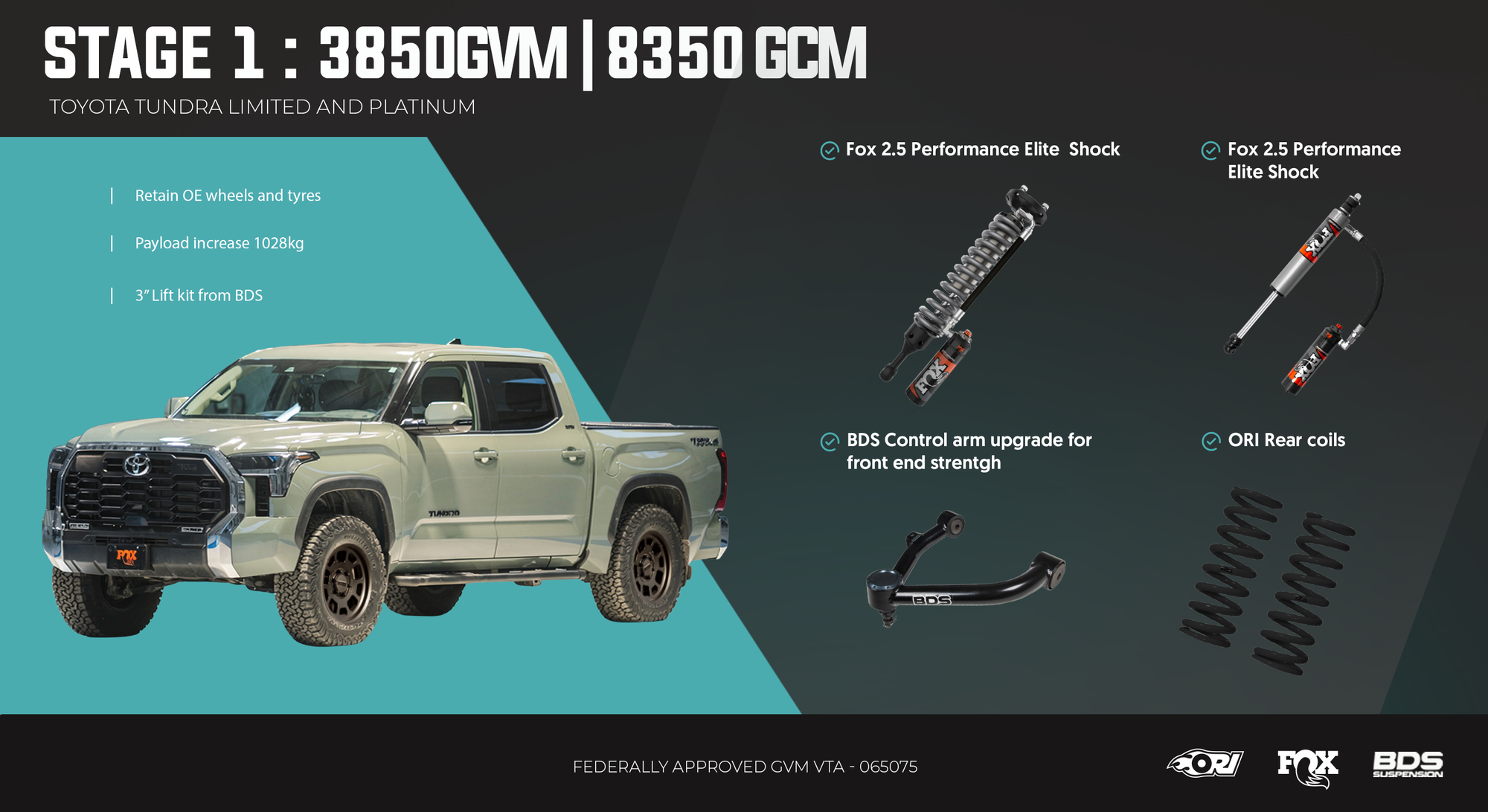

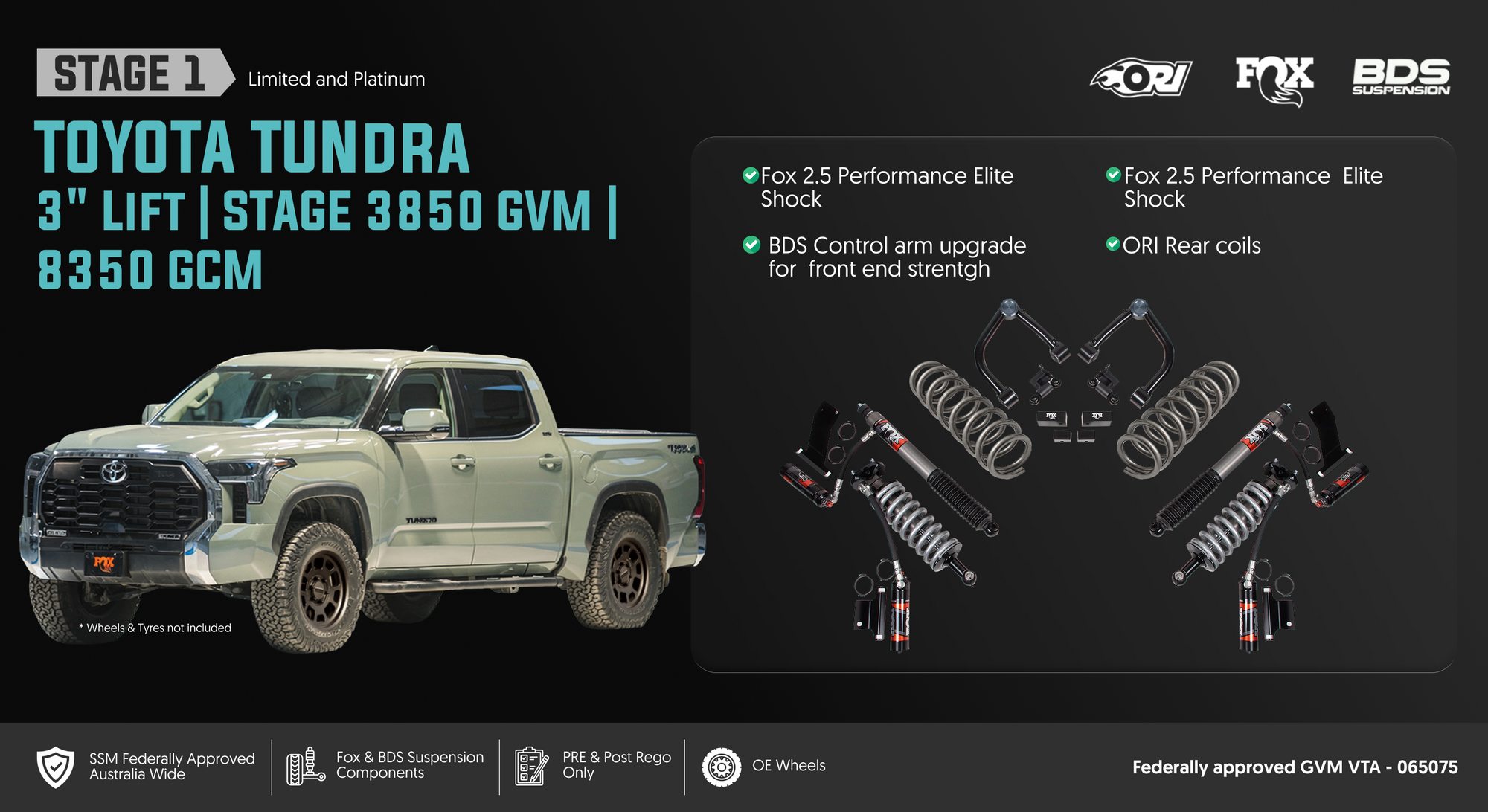

Stage 1: $15,499* Installed & Engineered Stage 1: The Weekender Family Getaway

The perfect entry point for a legal payload boost without the need for aftermarket wheels.

  • GVM Rating: 3,850 KG (Boosting payload to 1,028 KG) GCM Rating: 8,350 KG (Retains full 4.5T towing)
  • Key Features: Fox 2.5 Performance Elite suspension, ORI 150–300 KG coil packs, and heavy-duty BDS Upper Control Arms & Diff Drop.
  • Best For: Daily drivers and light touring. Ideal for owners needing to clear the "one-tonne" mark for FBT Tax Compliance while keeping their factory wheels.
  • The Benefit: Achieve a lifted, aggressive stance with premium USA-made shocks. This setup significantly improves stability under load without the added expense of new wheels and tyres. The Fox adjustability allows you to "dial in" your ride—stiffen it for the highway and soften it for the tracks with the simple turn of a knob.
  • Part Number: TUN-Stage1-GVM

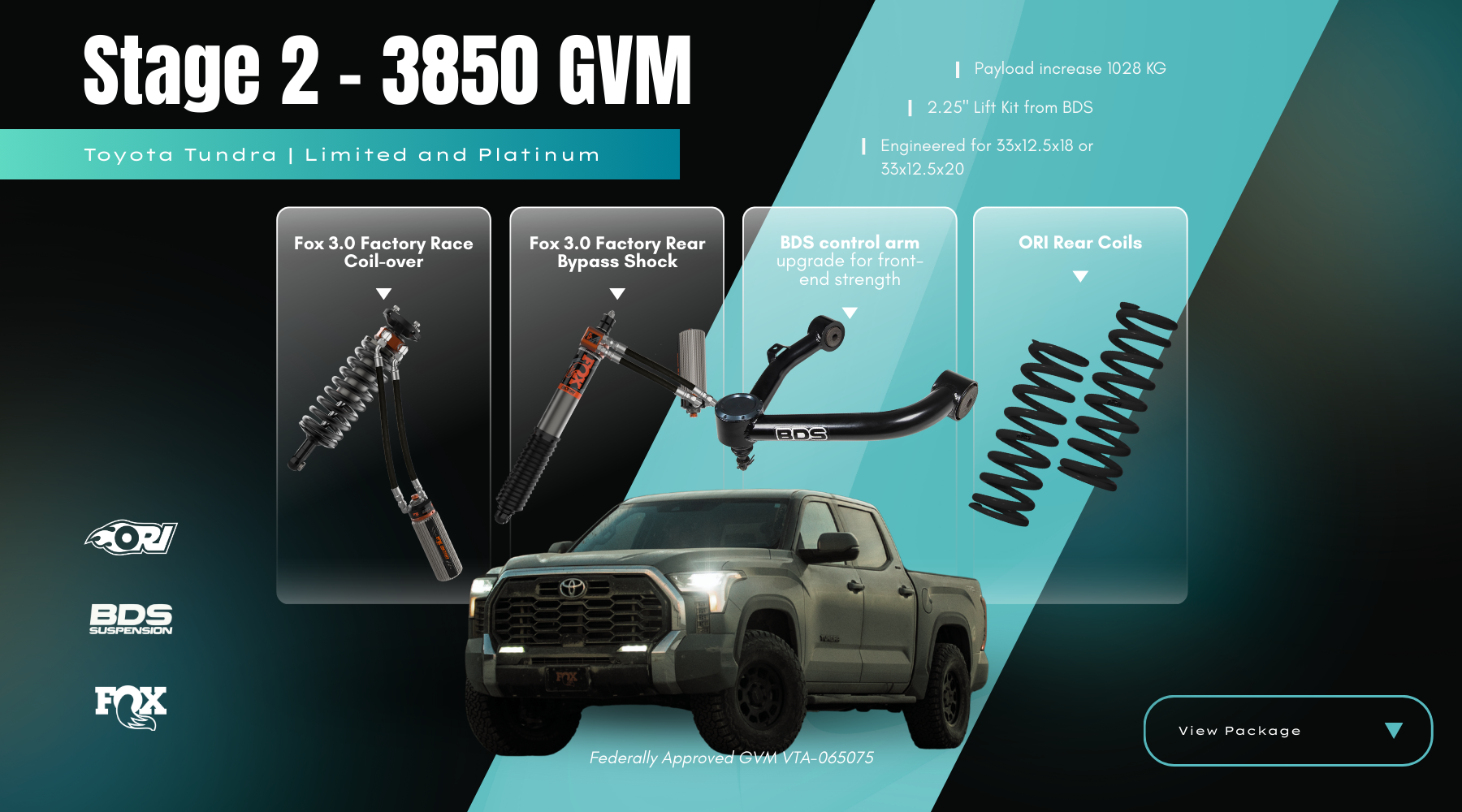

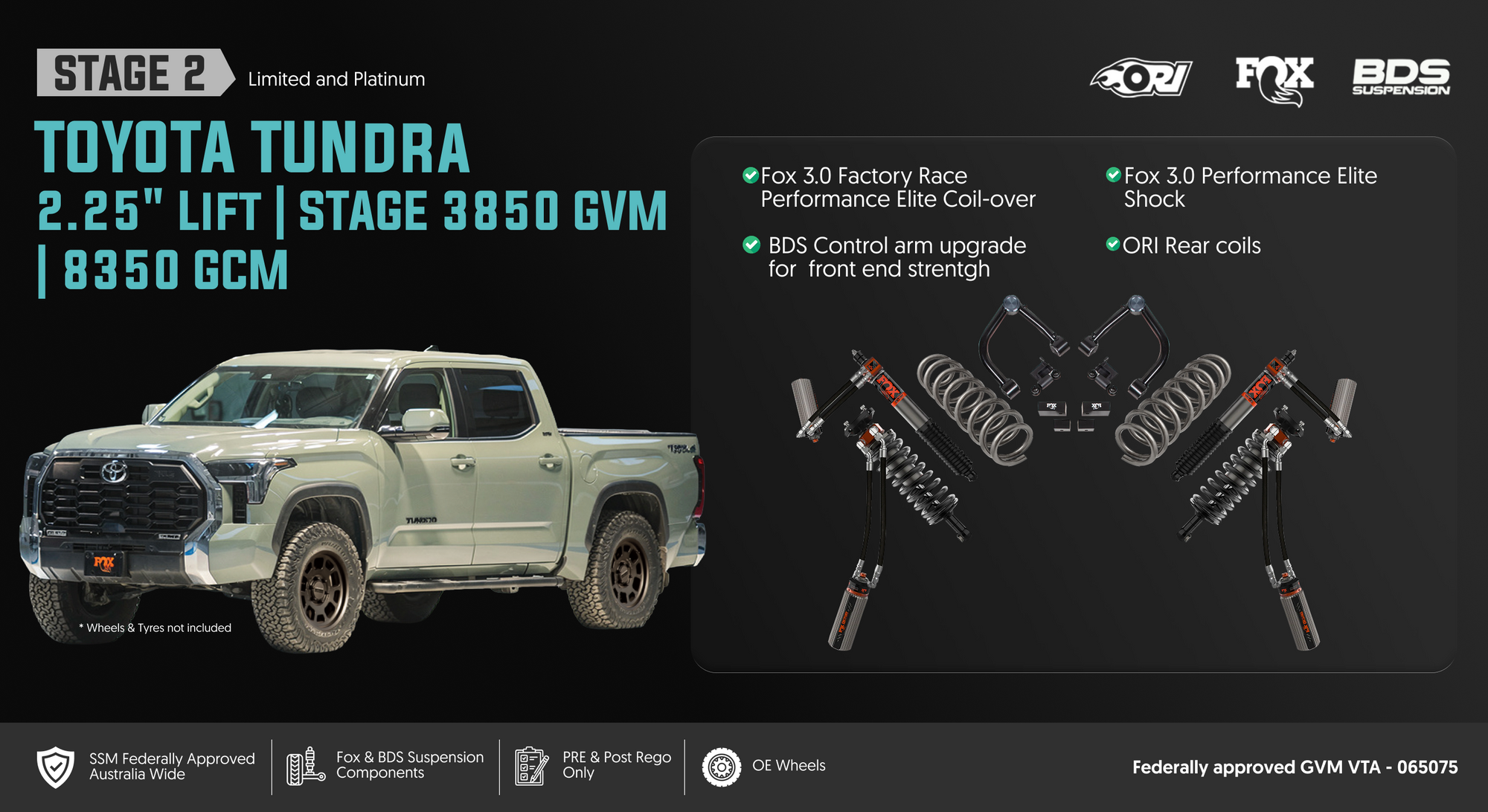

Stage 2: $22,499* Installed & Engineered Stage 2: The Performance Level-Up

Going all out with Fox 3.0 Race-Bred technology while retaining your factory wheel and tyre setup.

  • GVM Rating: 3,850 KG (Boosting payload to 1,028 KG) GCM Rating: 8,350 KG (Retains full 4.5T towing)
  • Key Features: Fox 3.0 Internal Bypass Race Series Shocks (Front & Rear), ORI coil package, BDS Upper Control Arms & Diff Drop.
  • Best For: 4WD tourers who tackle long-distance corrugations and demand elite damping without upgrading wheels or tyres.
  • The Benefit: Stepping up to the 3.0 platform provides massive oil volume and internal bypass technology. You get a plush, "cloud-like" ride on the road that transforms into a bottomless, race-ready suspension when the terrain gets technical.
  • Part Number: TUN-Stage2-GVM

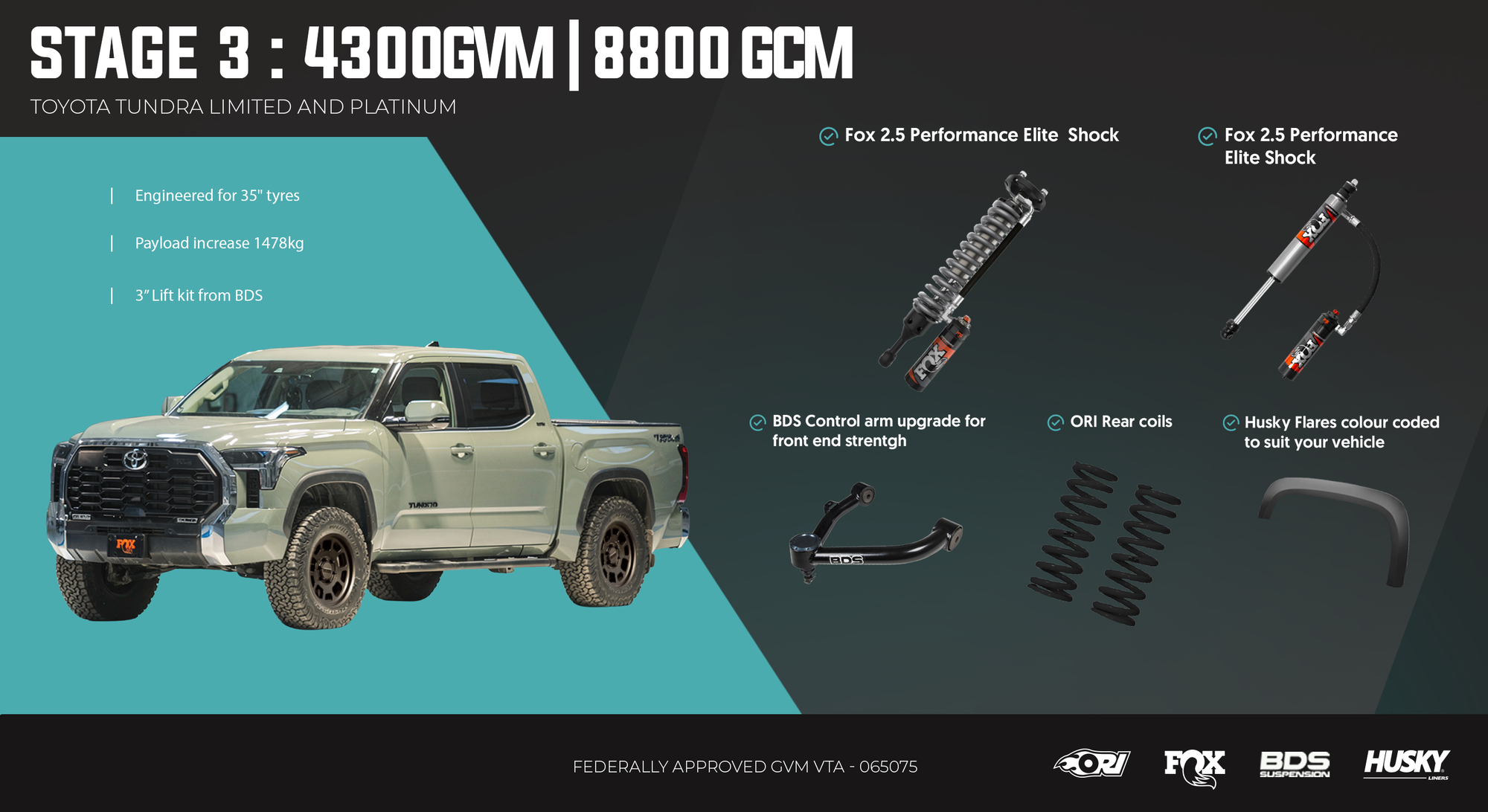

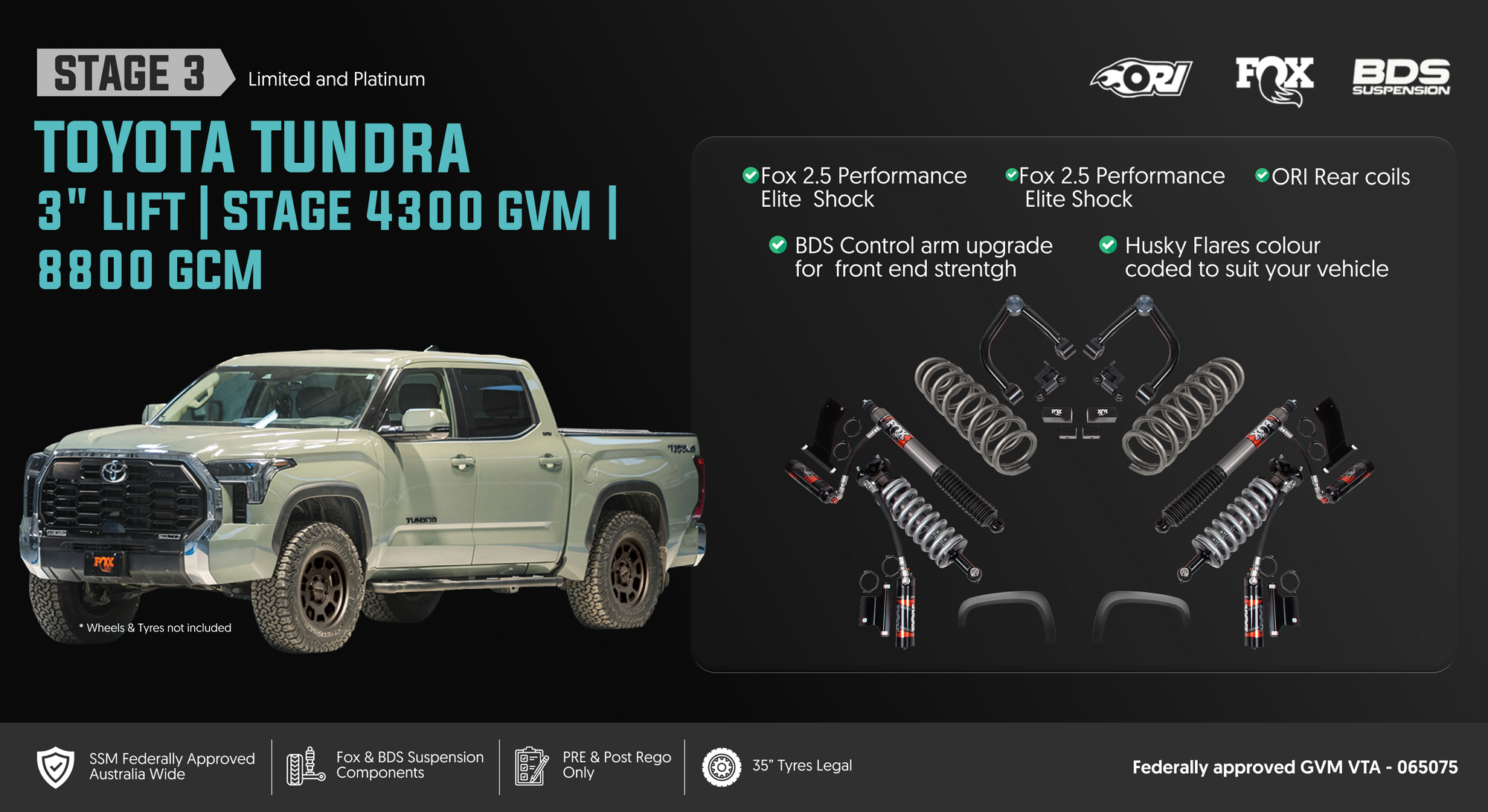

Stage 3: $20,999* Installed & Engineered Stage 3: The Heavy Hauler

Maximum legal capacity for the most demanding builds. Ideal for Tray & Canopy conversions.

  • GVM Rating: 4,300 KG (Approx. 1,478 KG payload) GCM Rating: 8,800 KG (The ultimate legal combination)
  • Key Features: Fox 2.5 Performance Elite suspension, ORI 500 KG heavy-duty coil packs.
  • Best For: Fully built rigs with rear drawer systems, rooftop tents, long-range tanks, or heavy permanent canopies.
  • The Benefit: A massive payload increase that transforms the Tundra into a true heavy-duty platform. This package solves the common "overweight" issue for fully kitted tourers while safely retaining its full 4.5T braked towing capacity.
  • Wheels & Tyres Required: Specific wheels and tyres are required.
  • Part Number: TUN-Stage3-GVM
Stage 4: $27,999* Installed & Engineered Stage 4: The "No Compromise" Build

The absolute peak of Toyota Tundra performance and legality in Australia.

  • GVM Rating: 4,300 KG (Approx. 1,478 KG payload)
  • GCM Rating: 8,800 KG
  • Key Features: Fox 3.0 Internal Bypass Race Series Shocks (Front & Rear), ORI heavy-duty coil package and engineered for 35's
  • Best For: The enthusiast who demands race-bred technology combined with maximum legal payload.
  • The Benefit: The Fox 3.0 Bypass shocks offer unparalleled heat dissipation and damping control. This is the ultimate "go-anywhere" setup that remains 100% legally compliant across Australia, even when fully loaded and towing the boat or caravan.
  • Part Number: TUN-Stage4-GVM

Toyota Tundra Limited & Platinum GVM Specifications

Factory
Stage 1
Stage 2
Stage 3
Stage 4
Gross Vehicle Mass (GVM)
3536 KG
3850 KG
3850 KG
4300 KG
4300 KG
Braked Towing Capacity (BTC)
4500 KG
4500 KG
4500 KG
4500 KG
4500 KG
Gross Combined Mass (GCM)
7825 KG
8350 KG
8350 KG
8800 KG
8800 KG
Kerb Weight
Limited 2792 KG
Platinum 2834 KG
Limited 2822 KG
Platinum 2864 KG
Limited 2822 KG
Platinum 2864 KG
Limited 2822 KG
Platinum 2864 KG
Limited 2822 KG
Platinum 2864 KG
Payload (bases on kerb weight)
758 KG
Limited 1028 KG
Platinum 986 KG
Limited 1028 KG
Platinum 986 KG
Limited 1478 KG
Platinum 1436 KG
Limited 1478 KG
Platinum 1436 KG
Payload Increase (%)
36%
36%
95%
95%
Front Axle Capacity
1850 KG
1850 KG
1850 KG
1850 KG
1850 KG
Rear Axle Capacity
1850 KG
2000 KG
2000 KG
2450 KG
2450 KG
Wheel Offsets
Pos 60
Pos 60
Pos 60
Pos 40, 35, 25, 18
Pos 40, 35, 25, 18
Wheel Load Rating
OEM
OEM
OEM
1225 KG
1225 KG
Tyre Load Rating
OEM
110 Q
110 Q
116 Q
116 Q
Requires Wheel/ Tyre Upgrade
OEM
OEM
OEM
✔
✔
Maximum Tyre Size
265/60/r20
265/60/r20
265/60/r20
35x12.5x17
35x12.5x18
35x12.5x20
35x12.5x17
35x12.5x18
35x12.5x20
Item
Part Number
Stage 1
Stage 2
Stage 3
Stage 4
Lift Kit Height
3"
2.25"
3"
2.25"
BDS Control Arms
BDS-128254
✔
✔
✔
✔
Fox 2.5 Performance Elite Coil-over (Front)
884-06-218
✔
✔
Fox 2.5 Performance Elite Rear Shock (Rear)
883-26-139
✔
✔
Fox 3.0 Factory Race Coil-over (Front)
883-06-219
✔
✔
Fox 3.0 Factory Rear Bypass Shock (Rear)
883-26-142
✔
✔
Husky Extenda Flare
2803926
✔
✔
Rear Coil Options
ORI-141H 100- 250 KG
✔
✔
KTRR-141HHD 300- 500 KG
✔
✔
Speedo Calibration
ORI-Speedo-Correct
✔
✔
GVM Part Number
TUN-Stage1-GVM
TUN-Stage2-GVM
TUN-Stage3-GVM
TUN-Stage4-GVM
