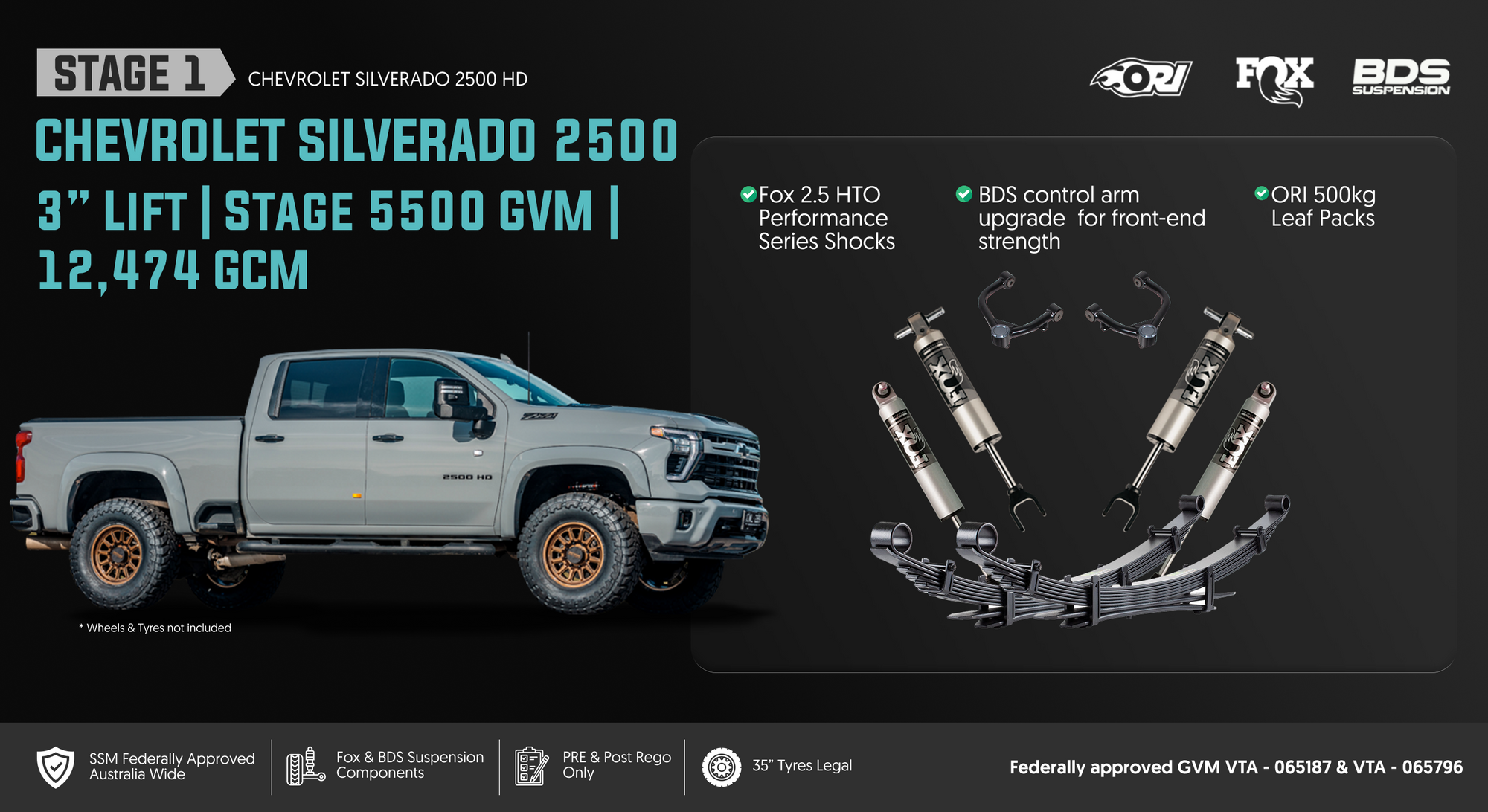

• SSM Federally Approved
• PRE REGO
• NB1 Compliance Vehicles
• Upgrade from NB1 to NB2 4495 kg → 5500 kg

• 3" Lift with Fox 2.5 HTO & BDS Control Arms • Bushwacker Flares • Engineered for 35x12.5x20 or 35x12.5x18 tyres • ORI 300 KG Rated Leaf Packs


• SSM Federally Approved
• PRE REGO
• NB1 Compliance Vehicles
• Upgrade from NB1 to NB2 4495 kg → 5900 kg

• 3" Lift with FOX 2.5 DSC • Performance Elite Series Shocks
• BDS control arms
• Bushwacker Flares
• Engineered for 35x12.5x18 or 35x12.5x20.
• ORI 500 KG Rated Leaf Packs.

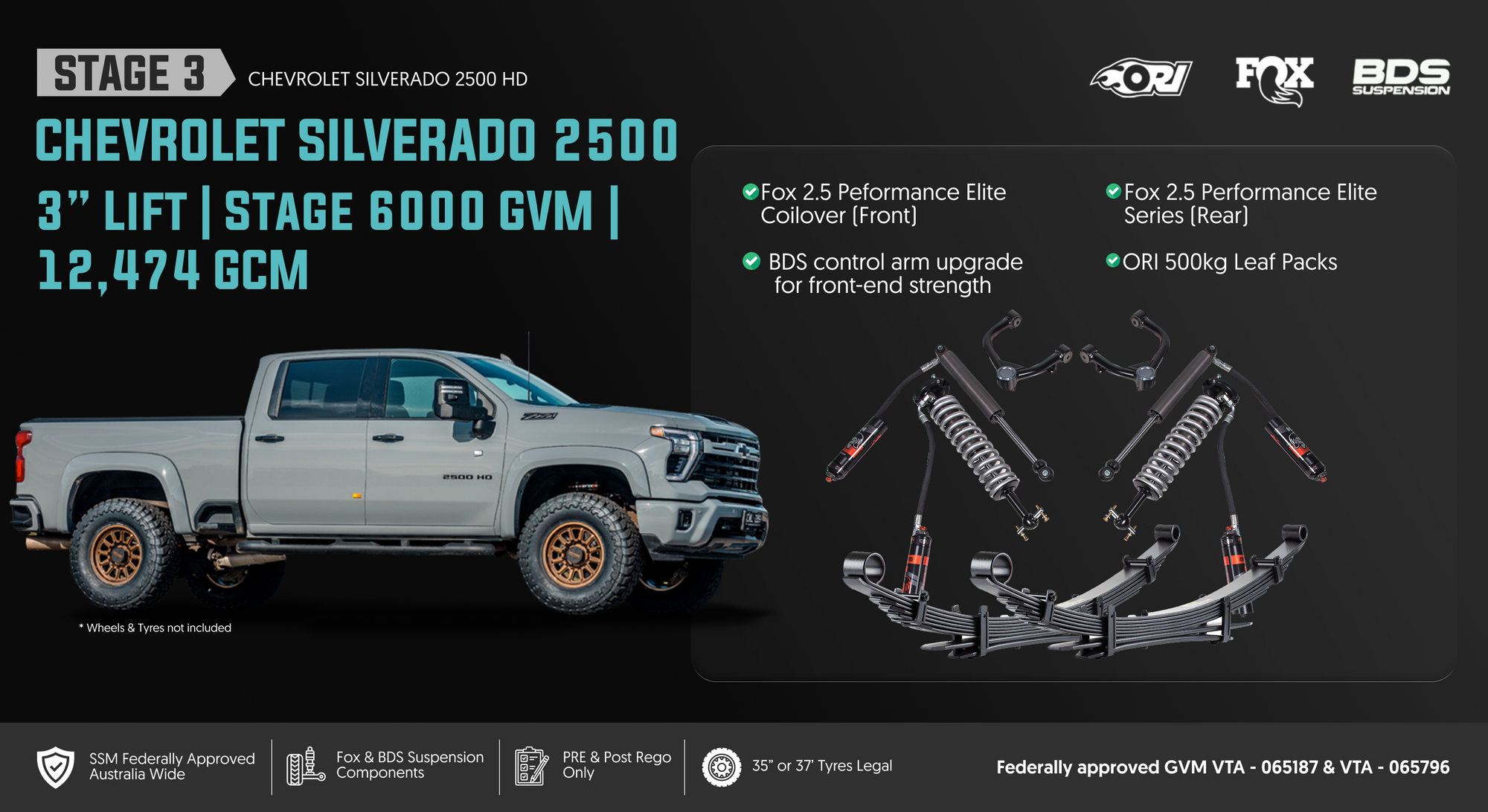

• SSM Federally Approved
• PRE REGO
• NB1 Compliance Vehicles
• Upgrade from NB1 to NB2 4495 kg → 5900 kg
• 3" Lift BDS Coil-over Conversion

• FOX 2.5 DSC Performance Elite Series Shocks
• BDS control arms
• Bushwacker Flares
• Engineered for 35x12.5x18 or 35x12.5x20.
• ORI 500 KG Rated Leaf Packs.

OEM Stage 1 Stage 2 Stage 3
Gross Vehicle Mass (GVM) 4495 NB1
5148 NB2
5500 KG 5900 KG 5900 KG
Braked Towing Capacity (BTC) 4500 KG 4500 KG 4500 KG 4500 KG
Gross Combined Mass (GCM) 12474 KG 12474 KG 12474 KG 12474 KG
Kerb Weight 3762 KG 3792 KG 3802 KG 3810 KG
Payload (bases on kerb weight) FROM NB1 NB1 733 kg
NB2 1386 kg
1708 KG 2098 KG 2090 KG
Payload Increase (%) 133% 186% 186%
Front Axle Capacity 2540 KG 2540 KG 2540 KG 2540 KG
Rear Axle Capacity 2994 KG 2994 KG 3360 KG 3360 KG
Wheel Offsets POS 47 Pos 12 / 18 Zero Pos 12 / 18 Zero
Wheel Load Rating 1600 KG 1800 KG 1800 KG
Tyre Load Rating 128Q 128Q 128Q
Requires Wheel/ Tyre Upgrade Yes Yes Yes
Maximum Tyre Size 35x12.5xR18 | 35x12.5xR20 35x12.5xR18 | 35x12.5xR20 35x12.5xR18 | 35x12.5xR20



Item Part Number Stage 1 Stage 2 Stage 3
Fox 2.5 HTO Performance Series (Front) 987-24-010 ✓
Fox 2.5 HTO Performance Series (Rear) 987-24-009 ✓
Fox 2.5 Performance Elite Series (Front) 883-26-084 ✓
Fox 2.5 Performance Elite Series (Rear) 883-26-085 ✓ ✓
Fox 2.5 Peformance Elite Coilover (Front) 884-06-337 ✓
BDS Control Arm BDS121304 ✓ ✓ ✓
Husky Extenda or Pocket Fender Flares 204986092 ✓ ✓ ✓
300 KG ORI Rear Leaf Packs ORI-CHVHD-300KG ✓
500 KG ORI Rear Leaf Packs ORI-CHVHD-500KG ✓ ✓
p (2).png__PID:d26f9468-6b37-4b2d-95ca-419fed0126a3
e5eb83b9-5476-4f1b-9dbe-257d2e4b5141 (7).png__PID:944aab54-d126-44d9-9d4f-cce8339b577f
b630f597-0cf2-41b6-a801-02b6b1ff055a (2).png__PID:4f93d56d-1396-41ac-ab96-d0f67e980e47

Description

MR305NV

MR709 HD Bead Grip

MR709 HD Bead Grip

Colour

Double Black Matte Black Titanium Machines

Matte Black & Machined

Machined

Offset

+18 +12 Zero, - 12

Pos 12

Pos 12
