RAM 2500 6th Gen with an ORI GVM upgrade
NB2Truck licence
ORI Fox BDS Suspension Husky Liners

RAM 2500 6th Gen 3" to 6.0" packages
New package coming soon!

  • SSM federally approved
    Australia wide
  • Fox & BDS suspension
    components
  • Pre-rego only
  • 35" | 37" tyres legal

Unleash the Full Potential of Your RAM 2500 6th Gen in Australia

While the RAM 2500 6th Gen is an absolute powerhouse straight from the factory, adding heavy accessories, towing large trailers, or installing a custom tray and canopy can easily push you past Australia's strict road limits. An ORI GVM upgrade is the ultimate solution.

Offroad Industries (ORI) is a Federally Approved Second Stage Manufacturer (SSM) delivering the most comprehensive GVM upgrade packages available for the RAM 2500 6th Gen. Fully engineered and completely compliant with Australian Design Rules, our kits have you covered for both Pre-Rego (Federal) and Post-Rego (State-based) applications. Designed specifically to maximize the 6th Gen platform, our upgrades unlock massive payload capacity, elevate your suspension handling, and keep your rig 100% legal on the road.

Our packages are currently going through federal approval a with view to be approved September 2026. This only applies for Ram Australia delivered vehicles.

ORI GVM Package —
RAM 2500 6th Gen

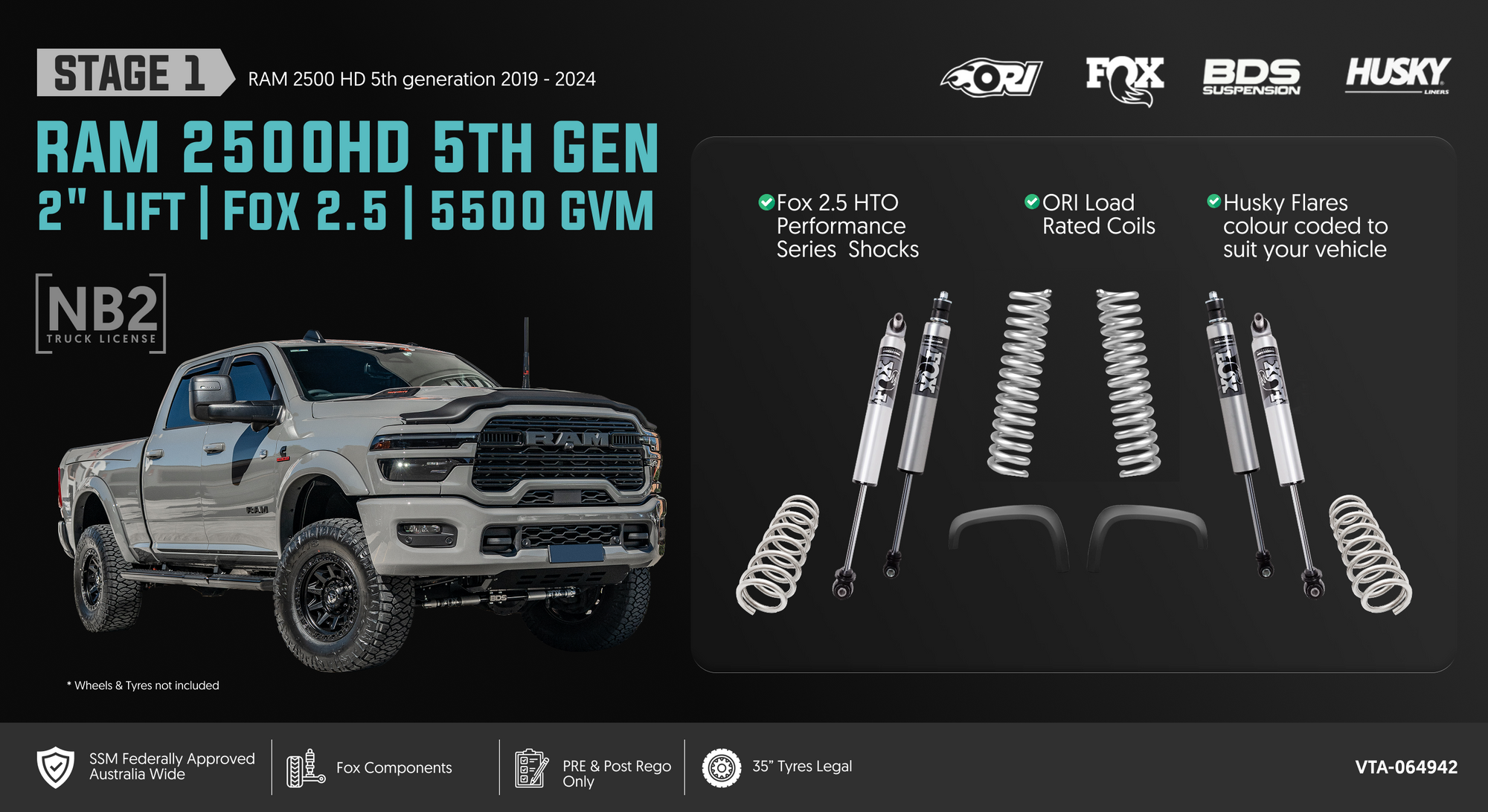

Stage 1$14,499 · Installed & engineered

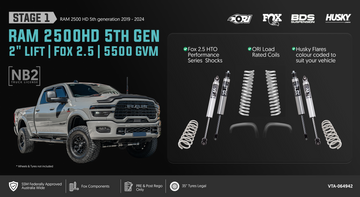

The Weekender — 2" Lift on 35s

The entry point to the 6th Gen programme, lifting GVM to 5500 KG on a modest two inch lift.

GVM
5500 KG | GCM: 12,750 KG | Braked Towing: 4500 KG
Lift & Tyres
2" lift, running up to 35x12.5 R18 or 35x12.5 R20.
Key features
Fox 2.5 Performance Series HTO shocks, Husky Colour coded leaf packs.
Best for
Daily drivers and light tourers who safe payload.

RAM 2500 6th Gen
GVM Specifications

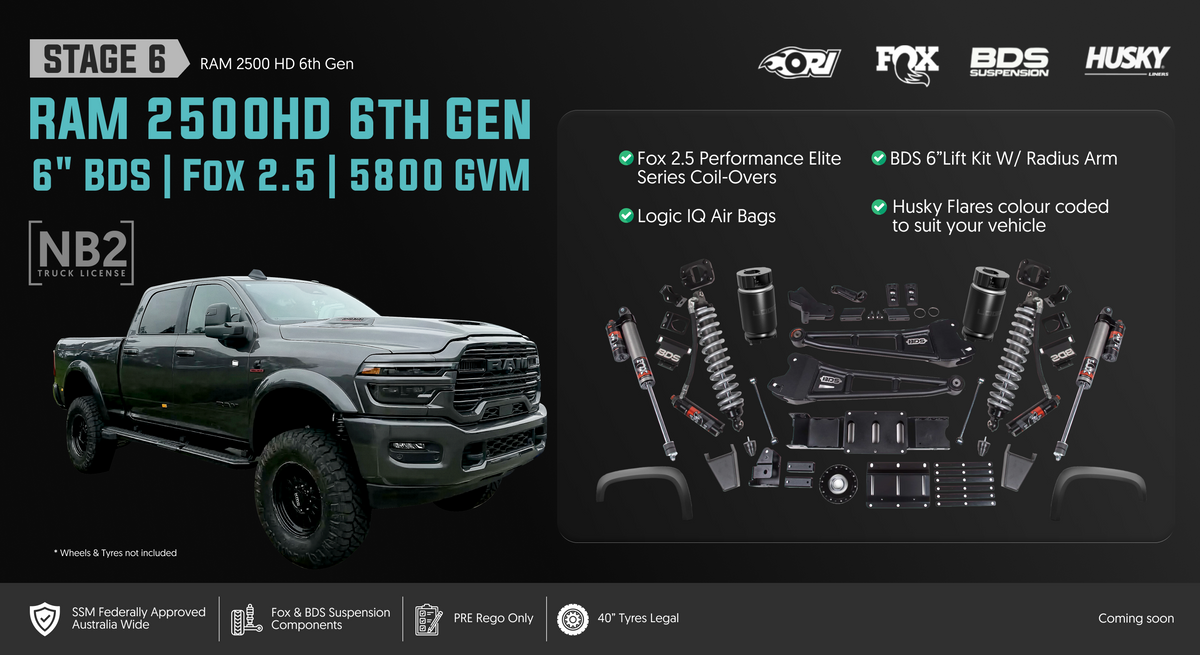

SpecificationOEMStage 1Stage 2Stage 3Stage 4Stage 5Stage 6
Gross Vehicle Mass (GVM)4495 KG NB15500 KG5890 KG5890 KG5890 KG5890 KG5800 KG
Braked Towing Capacity (BTC)4500 KG4500 KG4500 KG4500 KG4500 KG4500 KG4500 KG
Gross Combined Mass (GCM)12,750 KG12,750 KG12,750 KG12,750 KG12,750 KG12,750 KG12,750 KG
Kerb Weight3710 KG3760 KG3770 KG3830 KG3830 KG3830 KG3830 KG
Payload (based on kerb weight)886 KG1740 KG2120 KG2060 KG2060 KG2060 KG2060 KG
Front Axle Capacity2722 KG2722 KG2722 KG2722 KG2722 KG2722 KG2722 KG
Rear Axle Capacity2740 KG3175 KG3175 KG3175 KG3175 KG3175 KG3075 KG
Wheel OffsetsPOS 47Pos 18Pos 18Pos 18Pos 18Pos 18Pos 12 / Zero / -11
Wheel Load Rating1587 KG1600 KG1600 KG1600 KG1600 KG1600 KG1600 KG
Minimum Tyre Load Rating124 Q124 Q124 Q124 Q124 Q124 Q
Requires Wheel/ Tyre UpgradeOEM✔✔✔✔✔✔
Maximum Tyre Size35x12.5xR18, 35x12.5xR2035x12.5xR18, 35x12.5xR2037x12.5xR18, 37x12.5xR2037x12.5xR18, 37x12.5xR2037x12.5xR18, 37x12.5xR2040x13.5R17 / 40x13.5R18 / 40x13.5R20
ItemPart NumberStage 1Stage 2Stage 3Stage 4Stage 5Stage 6
Lift Height2"2"3"4"6"6"
Fox 2.5 Performance Series HTO (Front)987-24-045✔
Fox 2.5 Performance Series HTO (Rear)987-24-005✔
Fox 2.5 Performance Elite Series (Front)883-26-062✔
Fox 2.5 Performance Elite Series (Rear)883-26-065✔
ORI Front CoilsORI-400H✔
ORI Rear CoilsORI-401HH✔
BDS 3" Radius Arm KitBDS1624FPE✔
BDS 4" Radius Arm KitBDS2143FPE✔
BDS 6" Radius Arm KitBDS2135FPE✔
Husky Extenda Flare2805931✔✔✔✔✔✔
Husky DRT Flare2805938OOOOOO
AEV HighMark Fender Flares40408003AC✔
ORI Mud Flap BracketsORI-RAM2500-Mudflaps✔✔✔✔✔✔
Logic IQ Air Bag Coil Delete89-12140✔✔✔
Fox Steering Stabiliser (optional)983-02-158OOOOOO
BDS Twin Steering Stabiliser (optional)BDS2031DFOOOO
GVM Part NumberRAM-2500-6G-Stage1-GVMRAM-2500-6G-Stage2-GVMRAM-2500-6G-Stage3-GVMRAM-2500-6G-Stage4-GVMRAM-2500-6G-Stage5-GVMRAM-2500-6G-Stage6-GVM

GVM Enquiry? Contact Us Now

Your kit
Your details
Your message

No obligation. Our team will reply within one business day.

RAM 2500 6th Gen GVM Upgrades — Carry More, Tow Better, Go Further

The RAM 2500 6th Gen is one of the most capable heavy-duty trucks ever delivered to Australian shores, but its factory GVM rating can still limit what you can legally carry when you're fully kitted out with accessories, a loaded tray, and a trailer in tow. That's where an ORI GVM upgrade comes in.

A GVM upgrade isn't just a number change on paper — it's a complete engineering solution that gives your RAM 2500 the legal capacity to carry the gear you actually need, with the suspension components to back it up. Whether you're hauling tools for work, touring Australia with a heavy van, or running a tray and canopy conversion, our stage packages give you a fully certified, legal, and capable platform.

RAM 2500 6th Gen GVM Upgrade — Compliant & Certified for Australia

When you upgrade your RAM 2500 6th Gen's GVM with Offroad Industries, you get complete legal coverage across Australia. ORI is a Federally Approved Second Stage Manufacturer (SSM), which means your upgrade is recorded on the official Federal database — giving you true legal status whether you're registering Pre-Rego or Post-Rego.

Every package includes engineering certification and all relevant documentation. Our GVM kits use only the best components from world-leading brands including Fox Suspension and BDS, all specifically engineered and tested for the RAM 2500 6th Gen platform — nothing generic, nothing untested.

How to Choose the Right GVM Stage for Your RAM 2500 6th Gen

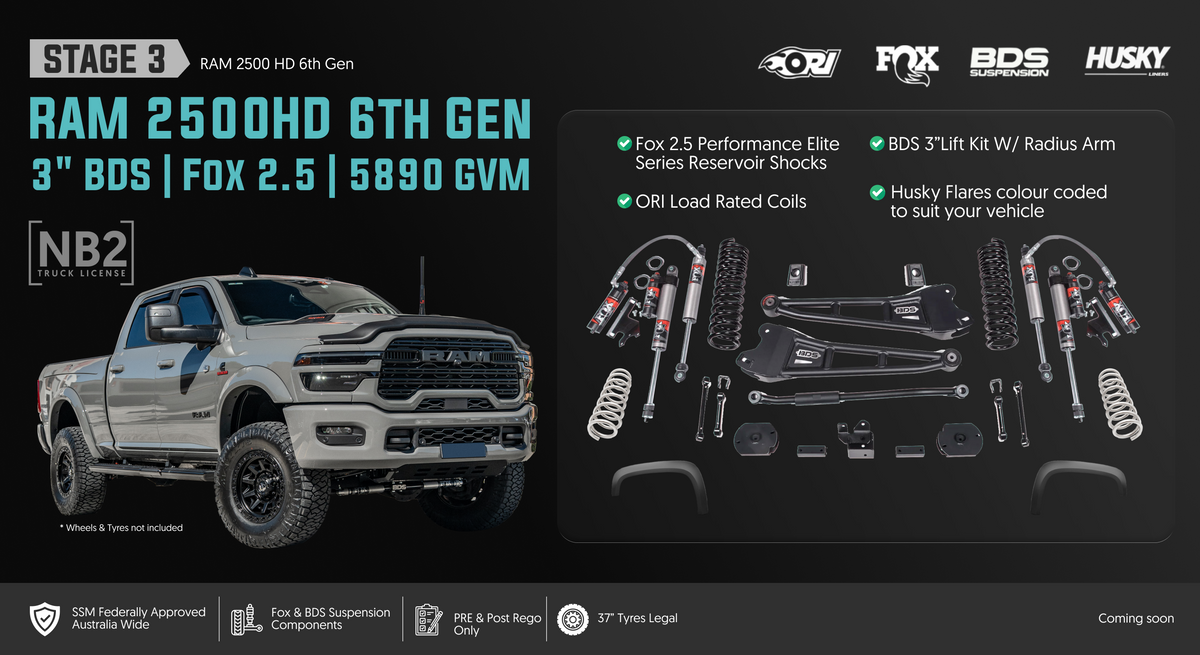

Choosing the right GVM stage comes down to what you carry, what you tow, and what you plan to do with your truck. Stages 1, 2 and 3 all take GVM to 5300 KG on your factory wheels and tyres, so the choice between them is really about the suspension package and how much lift you want, with Stage 3 adding a 3-inch lift and a BDS radius arm kit to keep the front geometry correct.

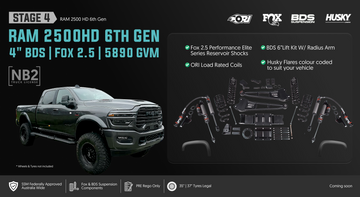

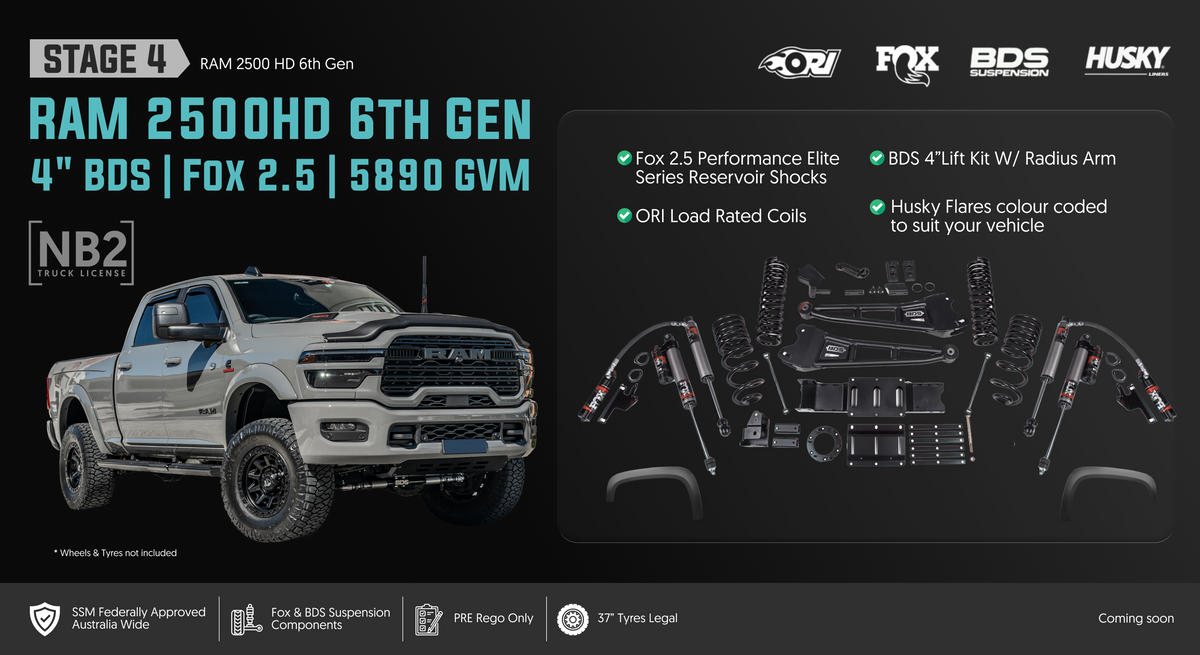

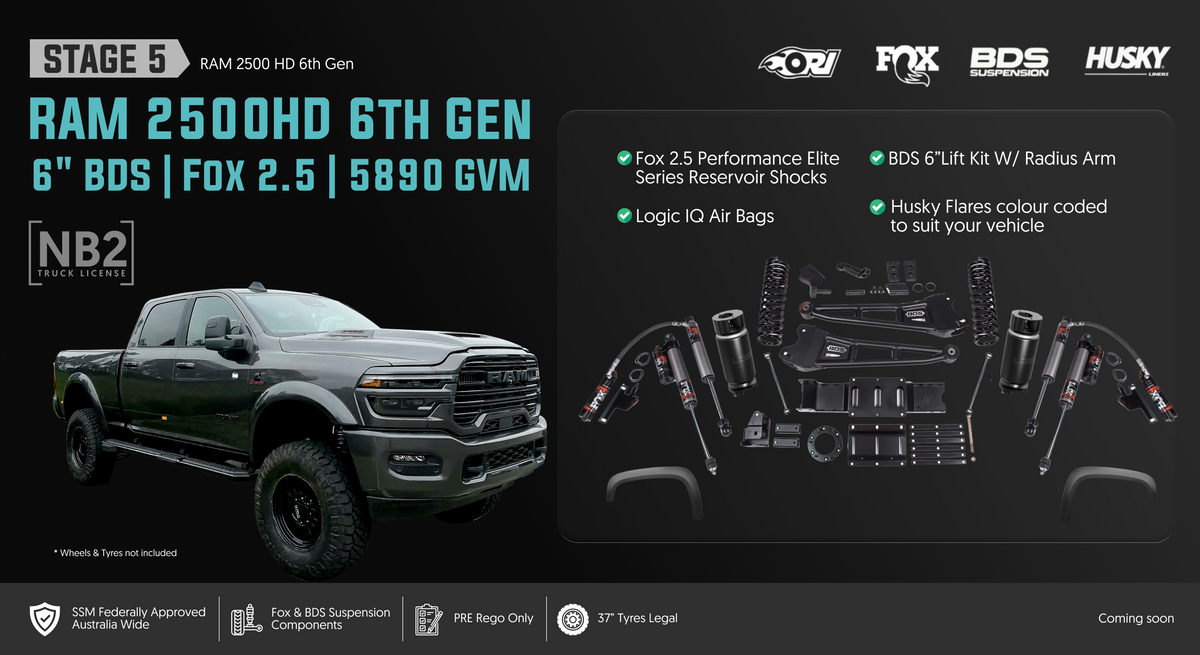

Stage 4 and Stage 5 take GVM to 5550 KG for the biggest legal payload in the range, 1914 KG and 1905 KG respectively. Both need load-rated wheels and tyres, and both hold the full 4500 KG braked towing capacity, which makes them the pick for tray conversions, permanent canopies, long-range fuel systems, and heavy towing.

Not sure which stage suits you? Contact our GVM experts and we’ll help you find the right fit.

RAM 2500 6th Gen GVM Upgrade — Compliance, Insurance & Registration

One of the most important aspects of any GVM upgrade is compliance. All ORI GVM packages for the RAM 2500 6th Gen are engineered to meet Australian Design Rules (ADR) and are registered through our SSM approval — meaning your upgrade is legal to drive in any Australian state or territory.

Because our upgrades go through proper federal engineering channels, your vehicle remains insured and your warranty position is clearly documented. We handle the paperwork and certification so you can focus on the road ahead. If you have questions about the process, our team is happy to walk you through exactly what's involved.

Why Choose ORI for Your RAM 2500 6th Gen GVM Upgrade?

Offroad Industries has engineered GVM upgrade systems for some of Australia's most demanding drivers across some of the country's harshest terrain. Our RAM 2500 6th Gen packages were developed specifically for this platform — not adapted from another vehicle — with components tested under Australian conditions.

With Fox Suspension and BDS as our key partners, every stage delivers premium ride quality, long-term durability, and genuine compliance. From installation and engineering through to certification and handover, ORI takes care of everything. Explore the package range above or get in touch with our team to start your upgrade journey.
