Stealth Lighting

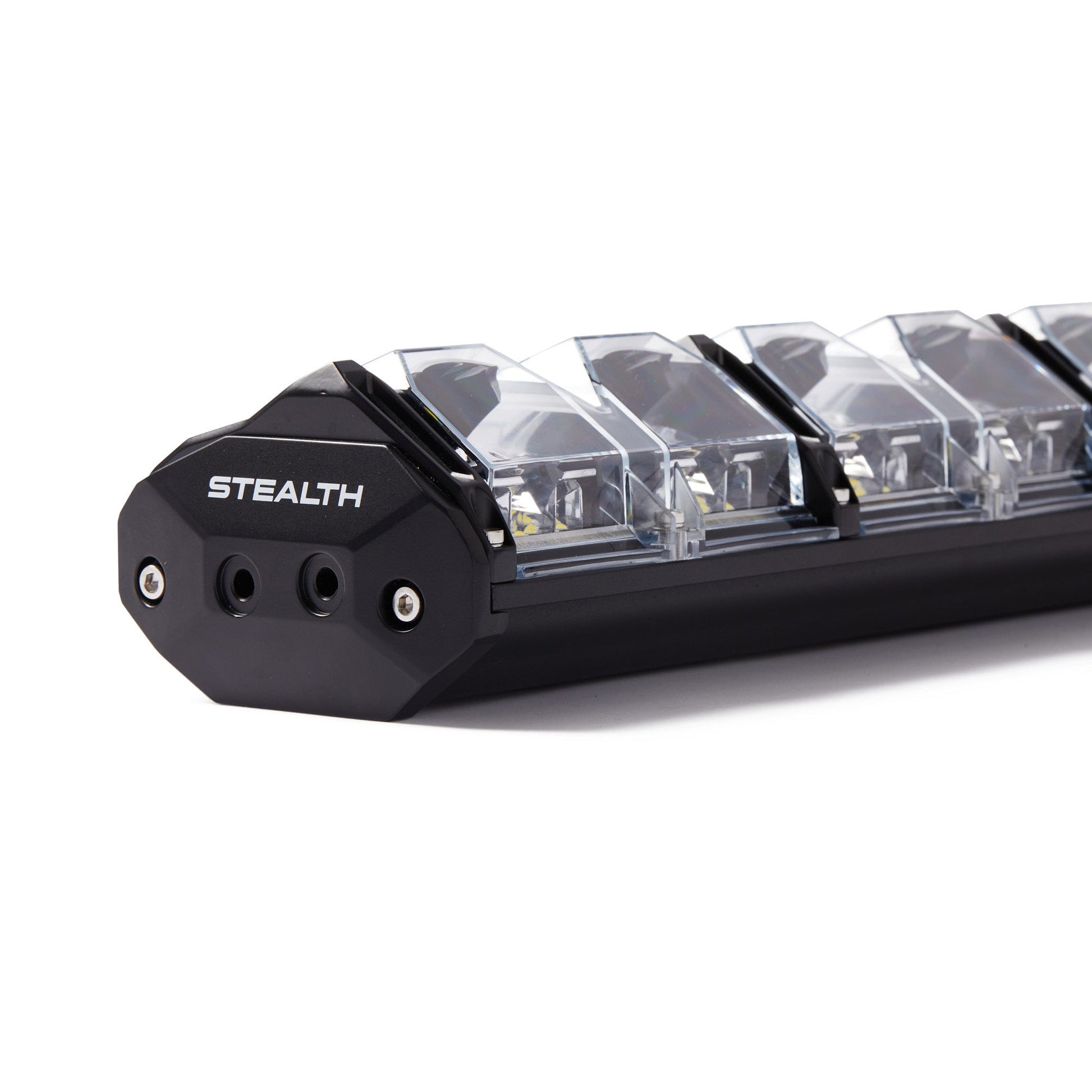

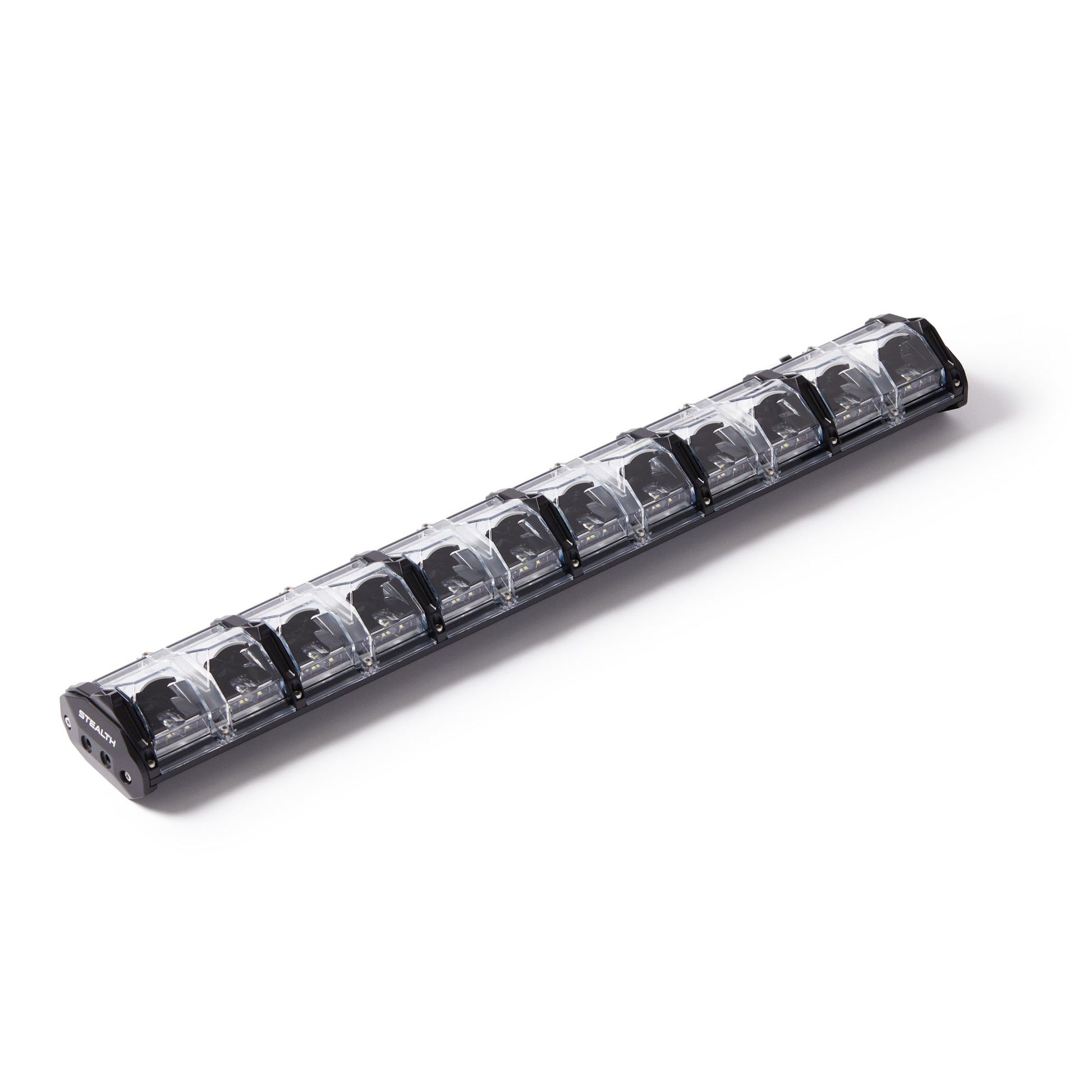

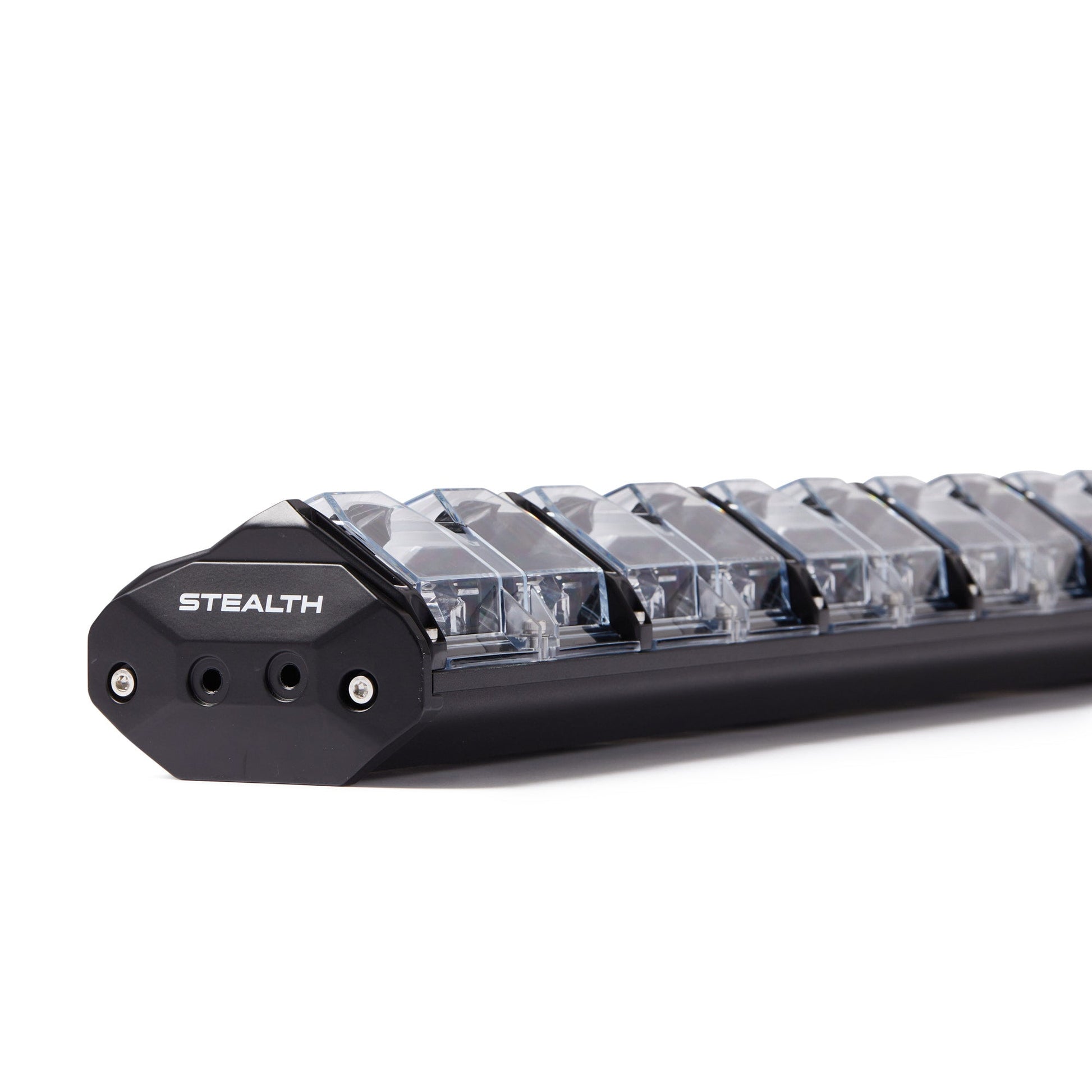

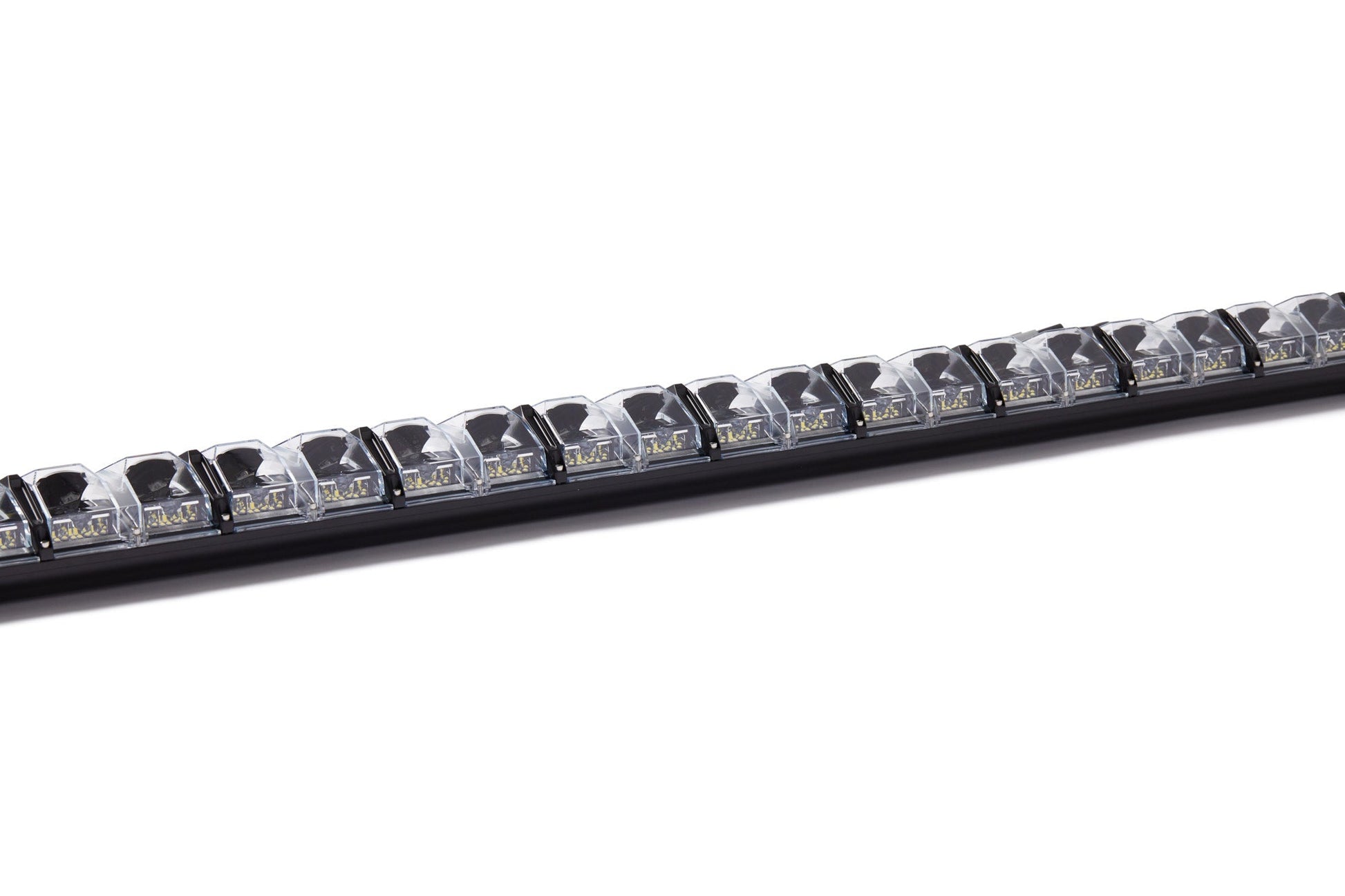

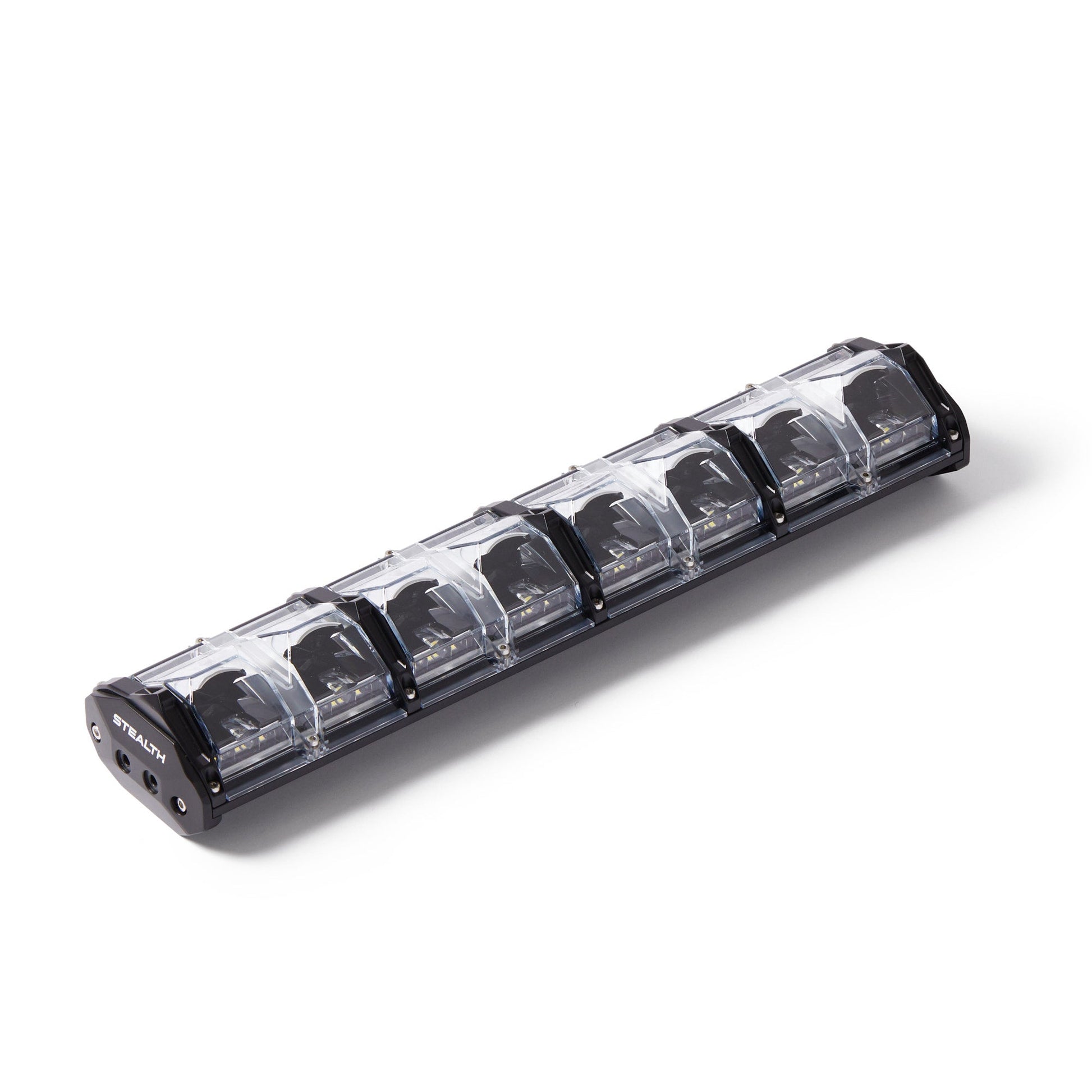

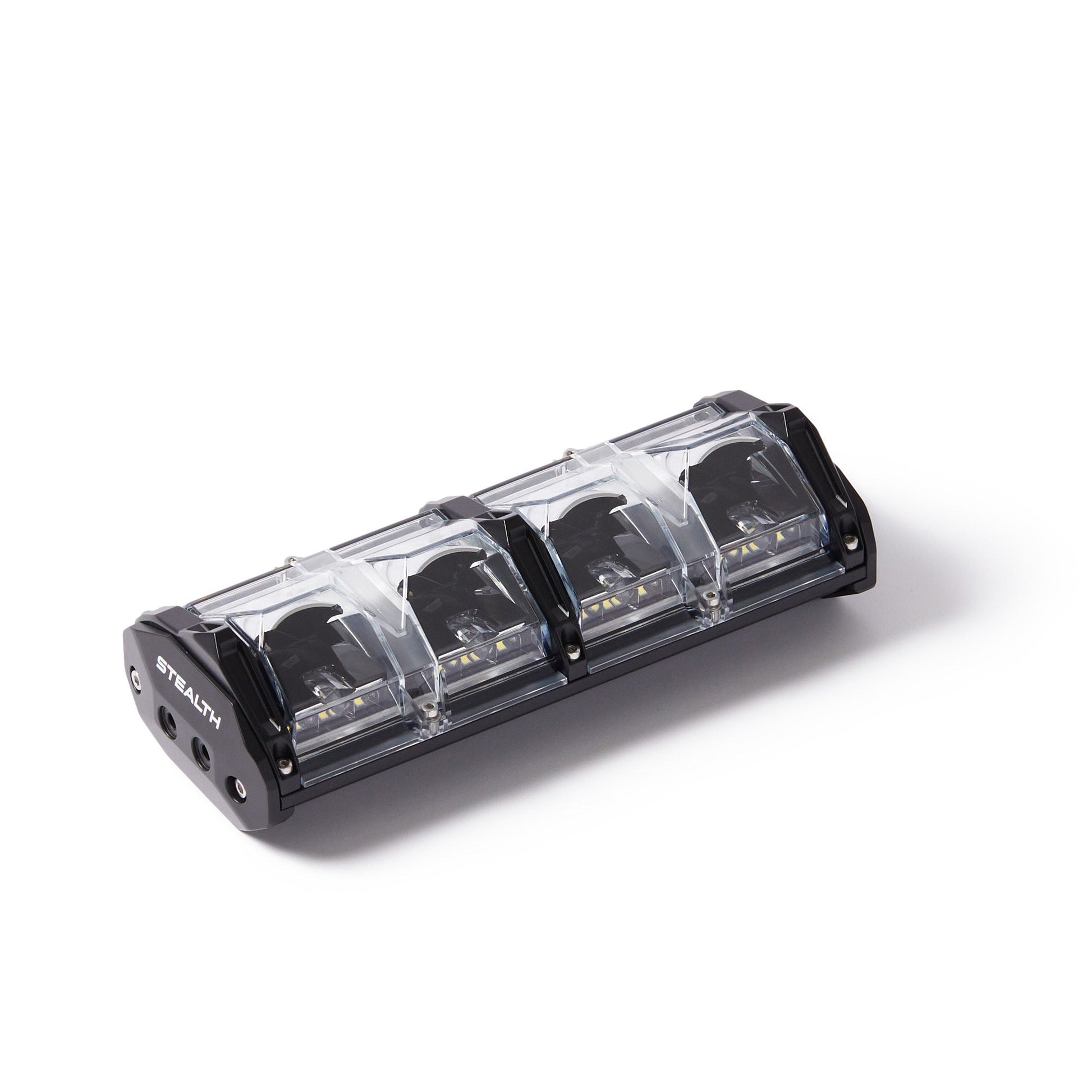

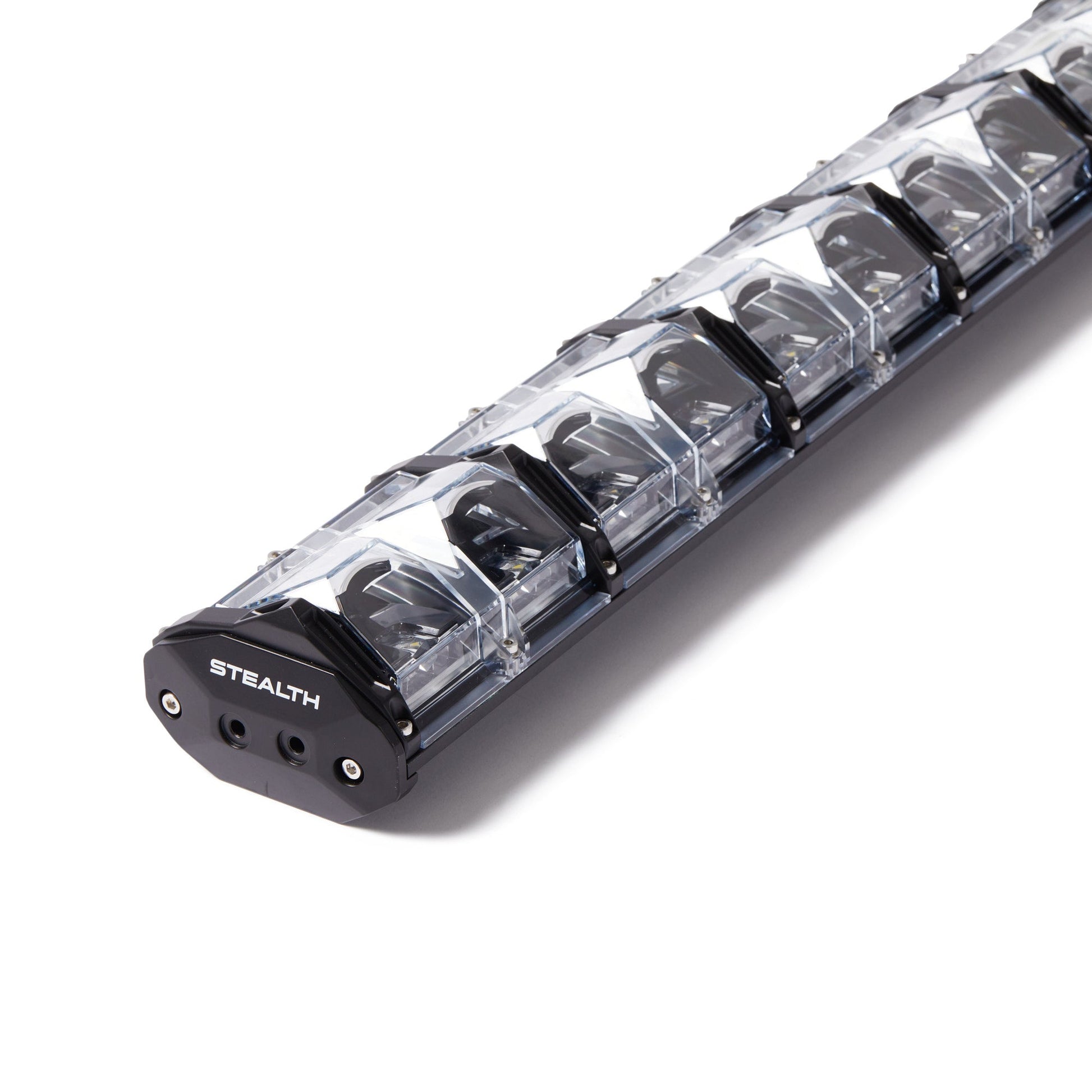

40" Stealth E Series LED Light Bar

2 items left


Plug and Play


Waterproof IP69K

3 year warranty





  • The E Series difference - The new E Series Light bars from Stealth is a new MULTI Function Light bar. It allows you to manually adjust the beam from spot to flood as well as adjusting the brighting of your driving beam. It also features a stunning RGB daytime running light Blue, Red, Green which can be activated with your parking lights.
  • Dust & Waterproof - Stealth Light bars have been tested in laboratories to have be given IP69K certification from dust and water ingression.
  • 5700 Kelvin Colour temperature, is a subtle white light reducing glare on road sign and less fatigue on your eyes.
  • Interference Free - Its been discussed in depth cheaper light bars cause a lot of radio interference Stealth LED Light bars rated to CISPR25, What Does that mean ? It will not cause issues with the FM/AM radio or UHF.
  • Durability - The Stealth Series LED Light bars, are finished with a specific DU PONT Coating thats been salt spray tested and UV Stable.

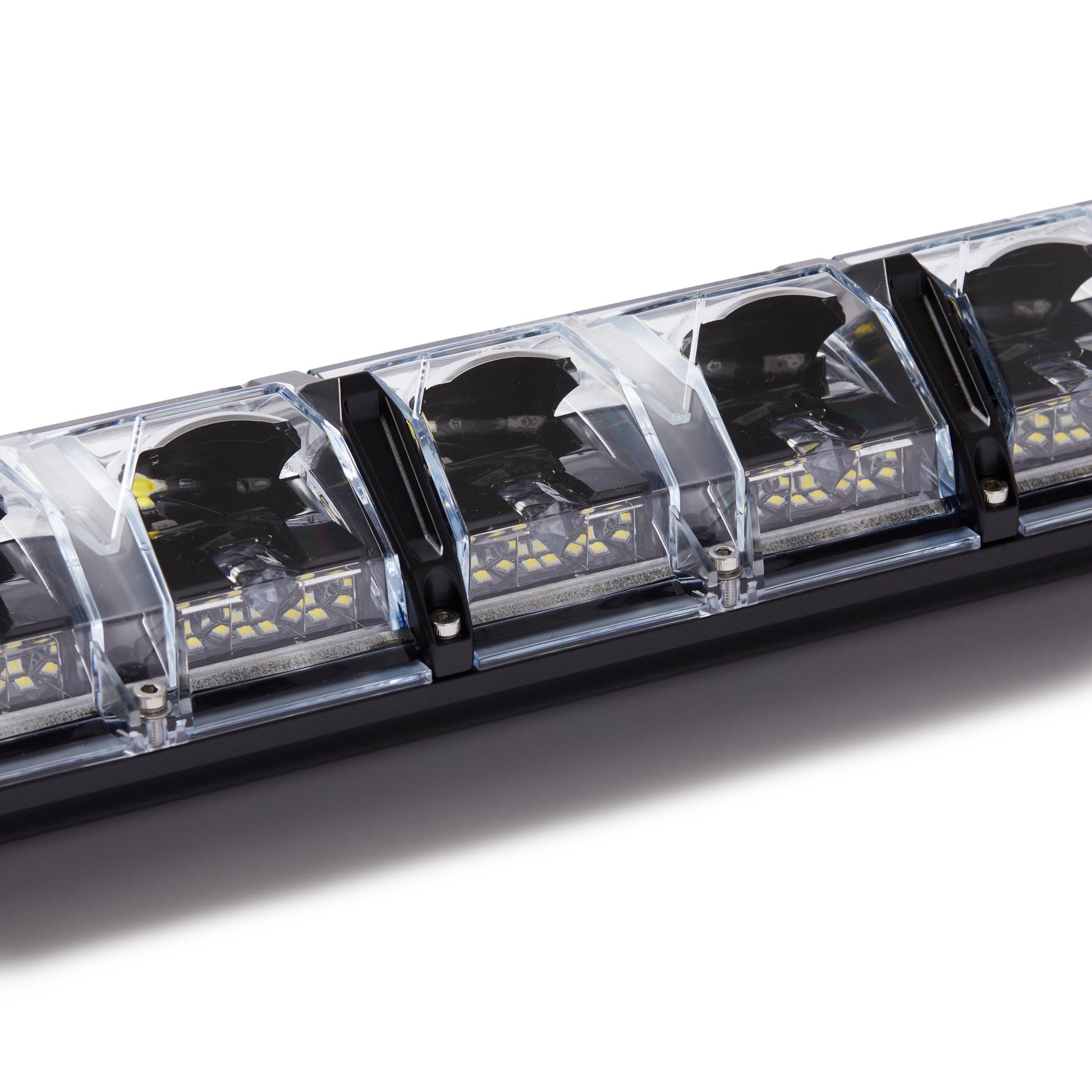

  • LED – 10w Genuine OSRAM LED's.
  • Effective Lumens - 40,500 Lumens
  • Voltage – 9-36V DC
  • Warranty – 3 Year Replacement Warranty
  • Amps  21.9A @ 12V DC
  • Power - 496w
  • Vibration – Vibration dampened and shockproof to 28G
  • Beam Pattern – Combination & Spot Beam
  • IP Rating – IP69K – Waterproof up to 3 meters
  • Colour Temperature - 5700 Kelvin
  • Connections – Waterproof Deutsch® connector

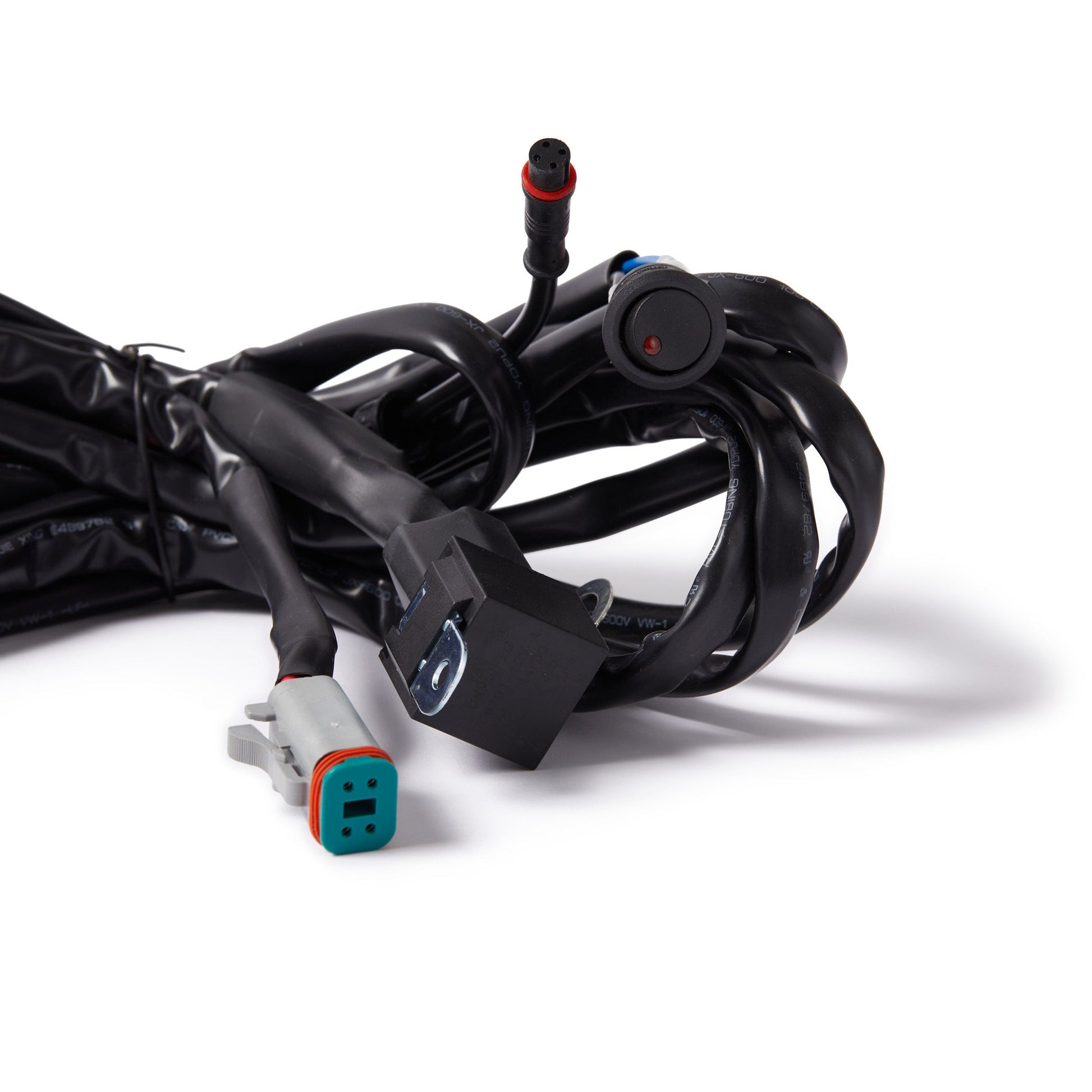

  • Wiring – Deluxe Wiring Harness, on off/switch LED Indicator Inline Fuse 12v 40A relay including plug in control pad.

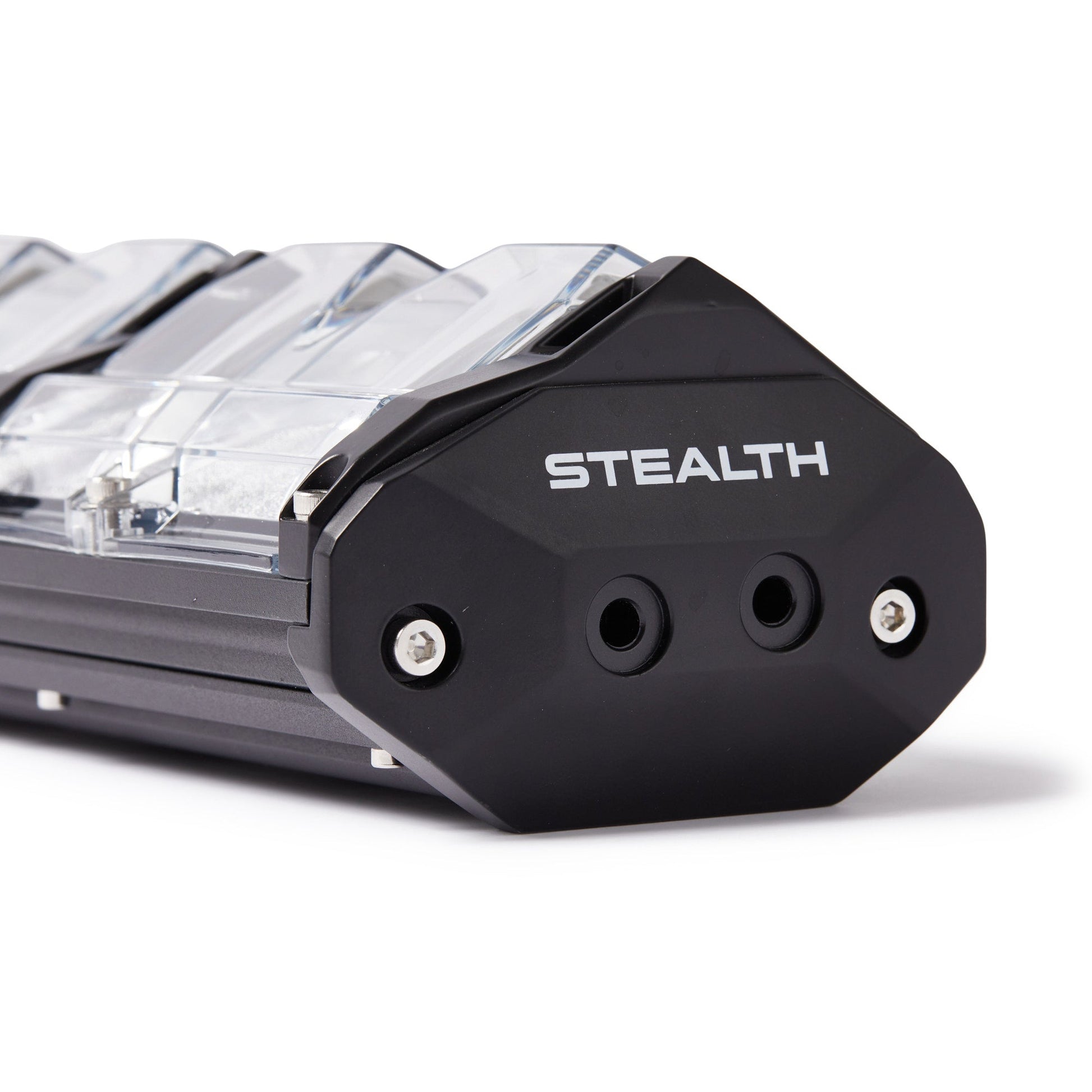

  • Housing Material – 6061 Aluminium Extrusion, DU Point Coating

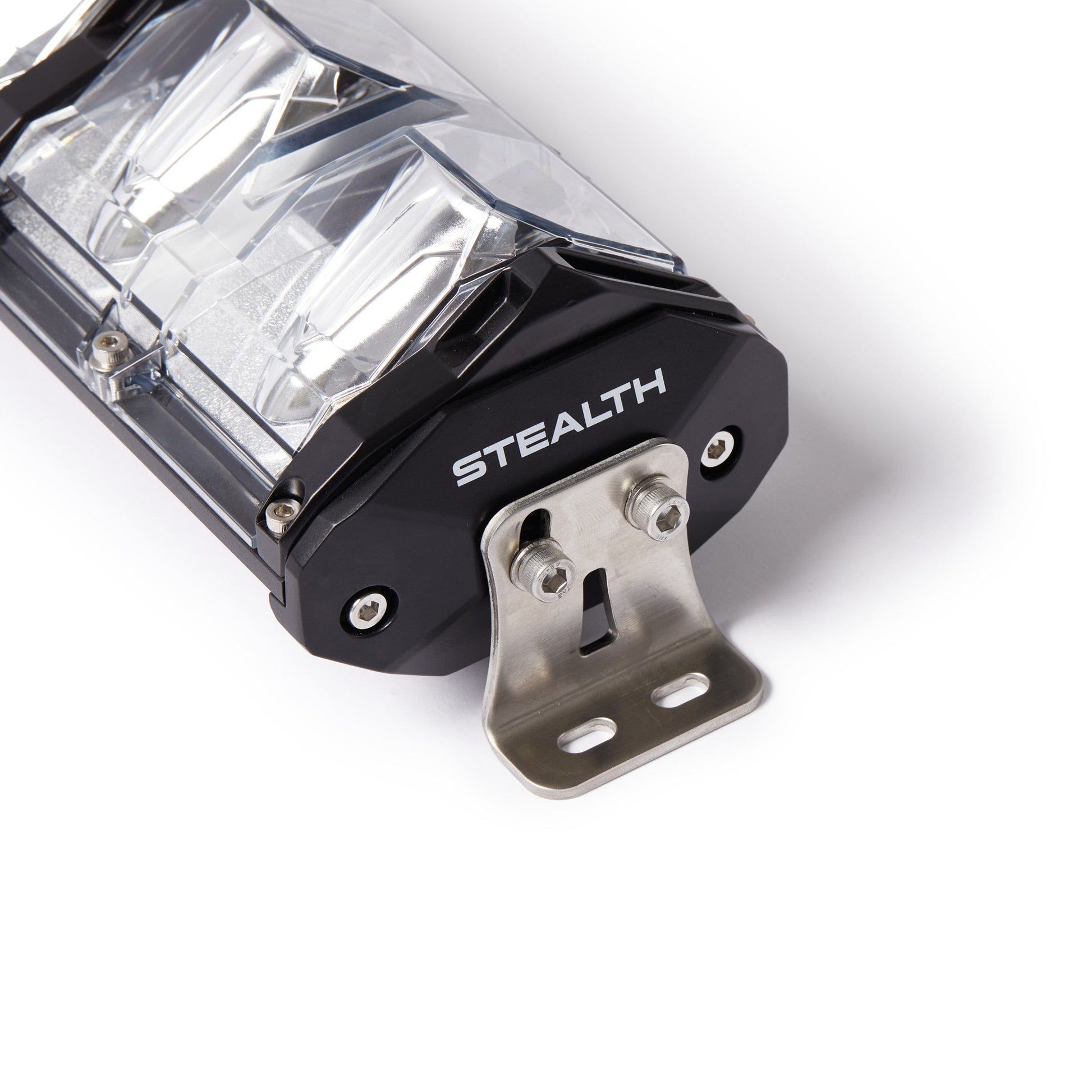

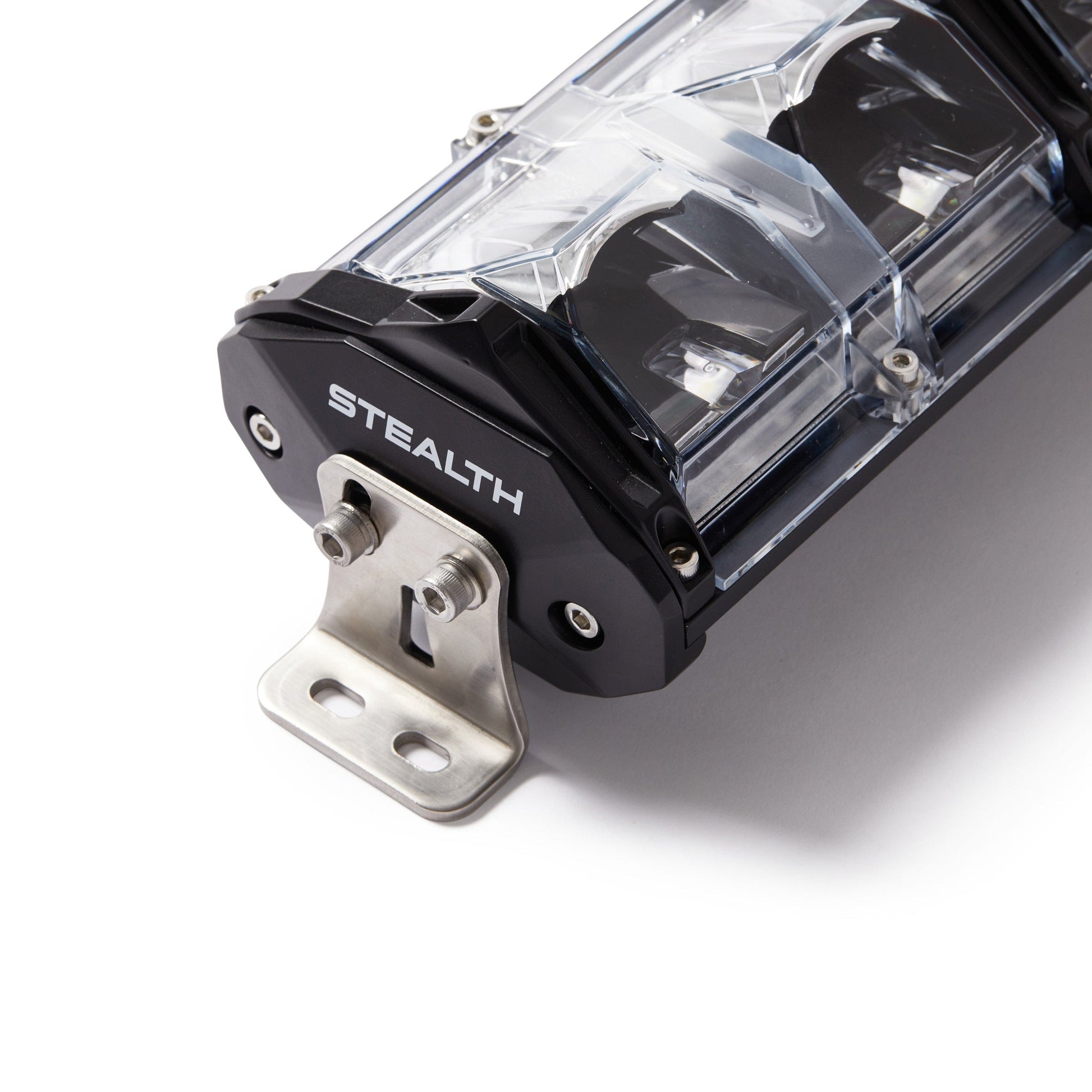

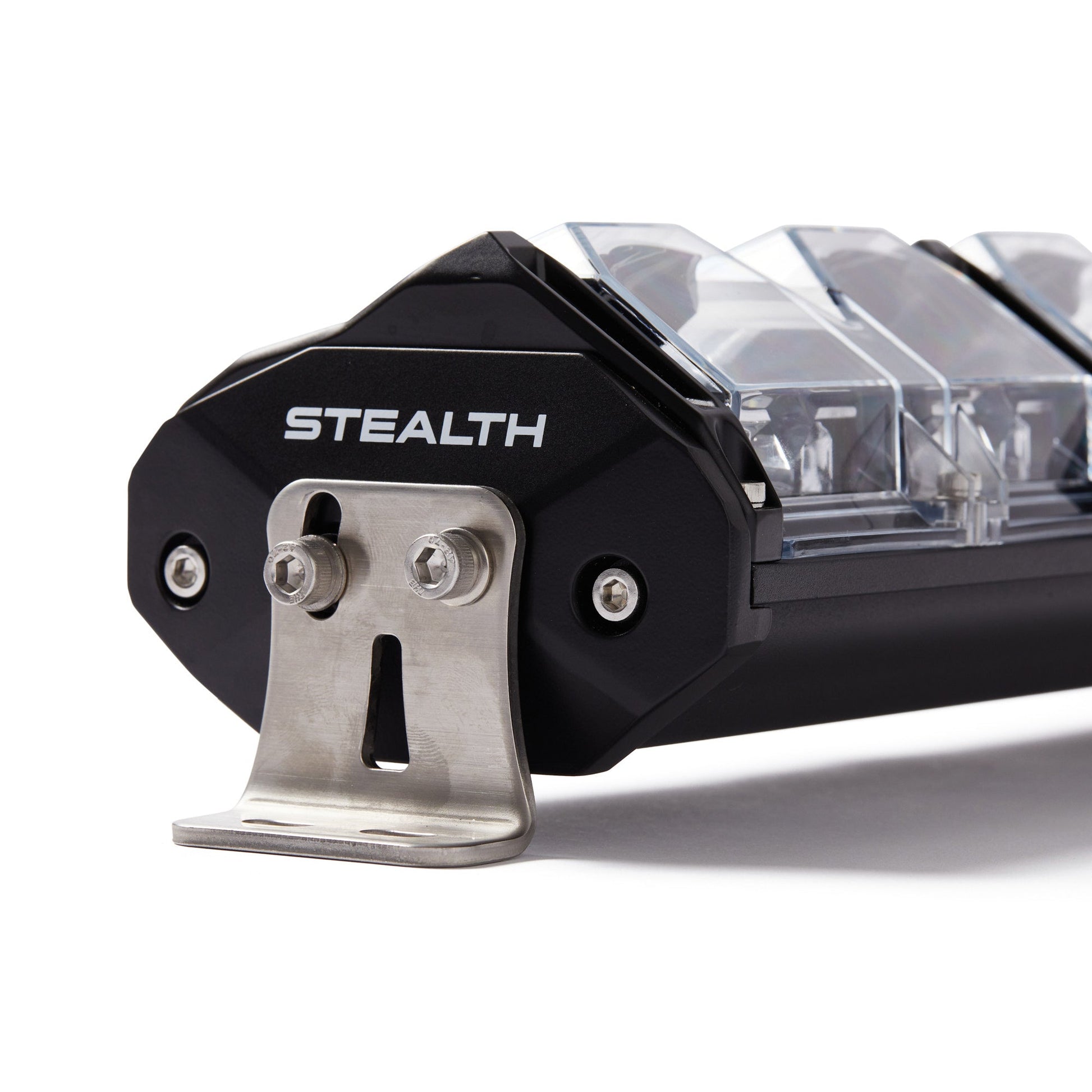

  • Mounting Brackets – 5mm Brushed Stainless Steel Side Brackets
  • Polarity – Reverse Polarity Protection
  • Interference – Rated CISPR25 Standard


 What's supplied inside the box

  • 1 x Stealth E Series 40" LED Light Bar.
  • 2 x Stainless Mounting Feet & Stainless bolts.
  • 1 x Deluxe Wiring Harness, on off/switch LED Indicator Inline Fuse 12v 40A relay * Will require wiring to be spliced into high beam trigger*

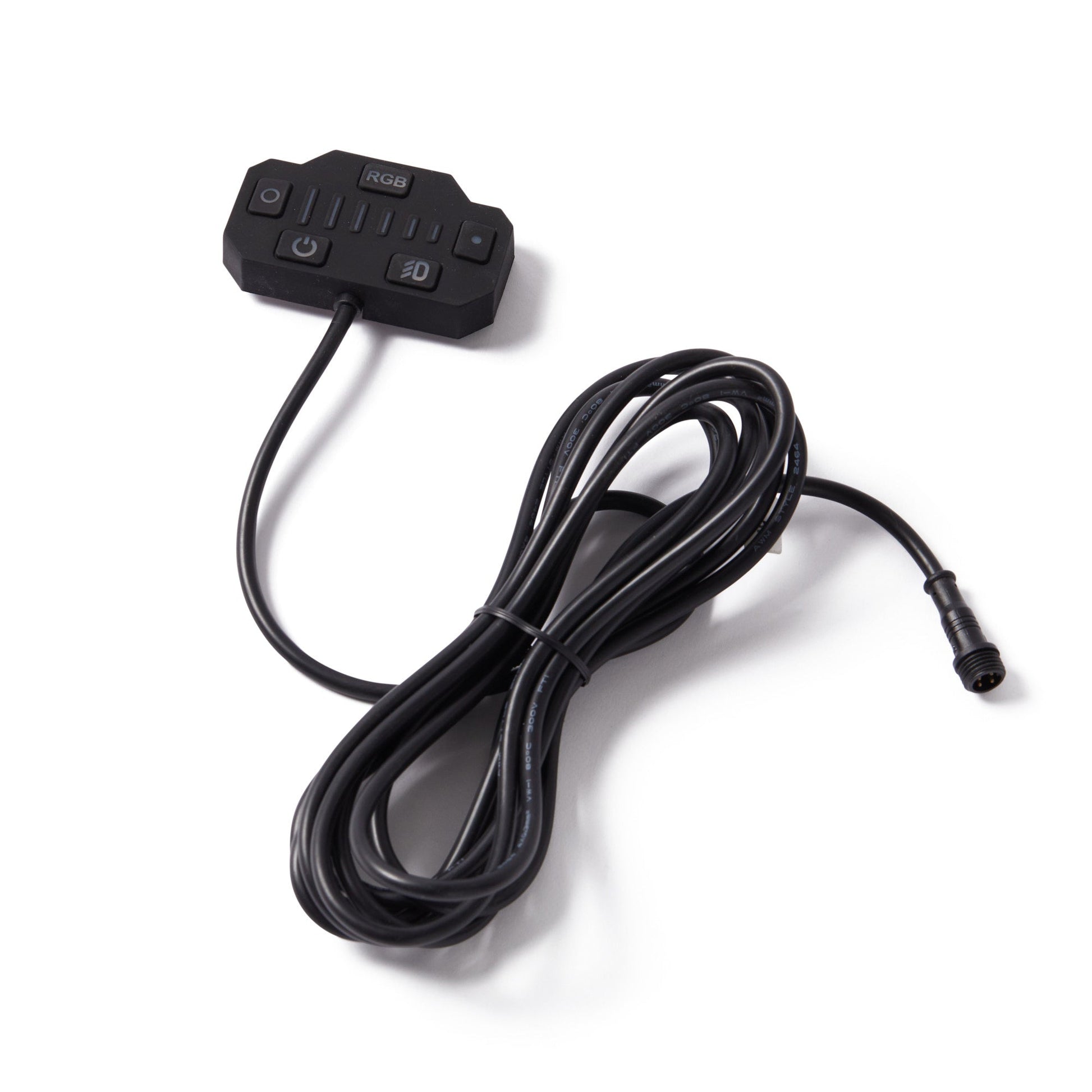

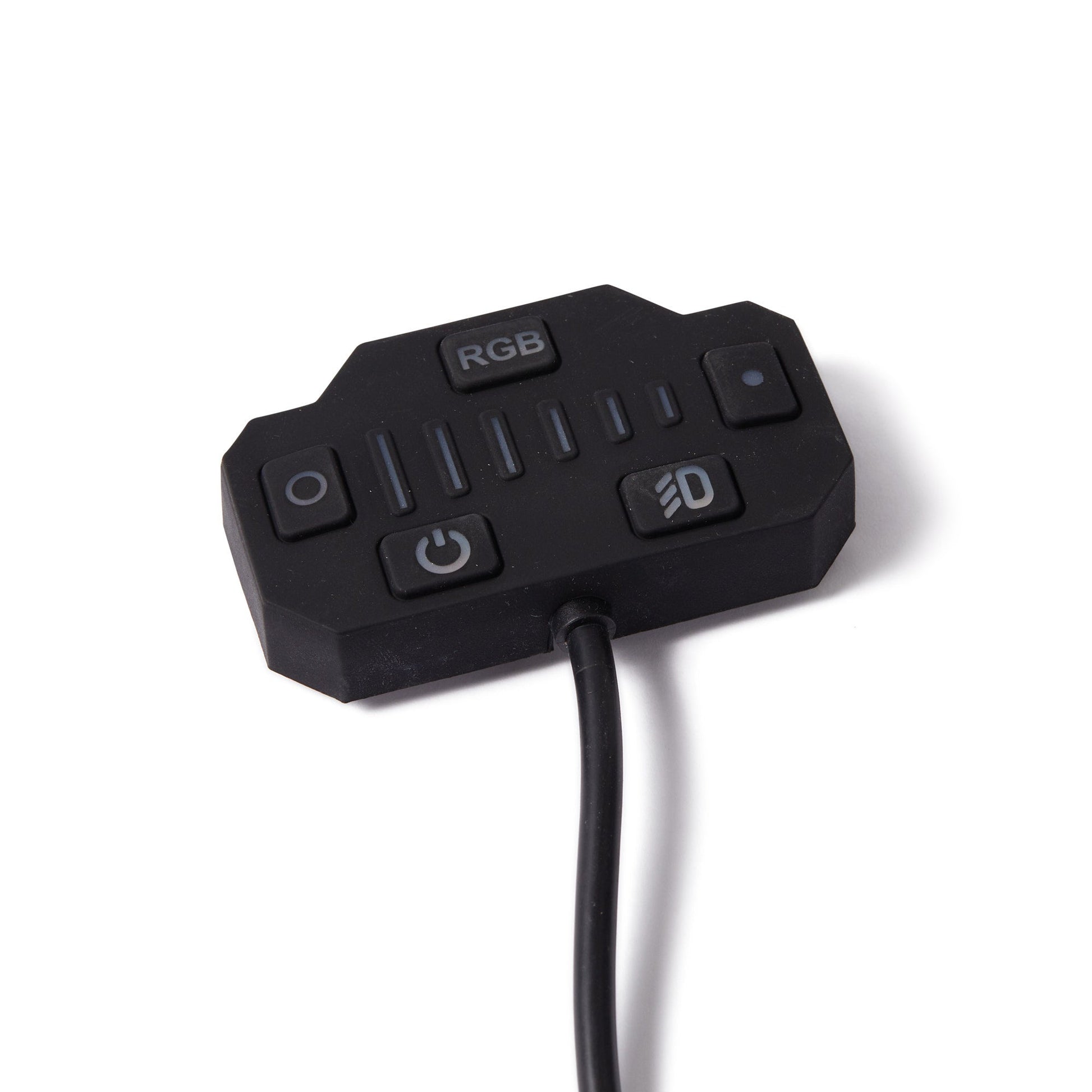

  • 1 x Stealth Smart Controller.
