Stage 1 Chevrolet Silverado 1500 LTZ ZR2 NB1
GVM Upgrade Package

Stage 1 Chevrolet Silverado 1500 LTZ ZR2 NB1 PRE

Chevrolet Silverado 1500 LTZ.

GVM
3650kg
GCM
8150kg
Braked Towing
4500kg
Payload
1077kga 42.28% increase on the factory 757kg
SKU CHV-1500-Stage1-NB1-PRE
$21,499.00 AUDInstalled & engineered
Find Installers
Know your weight? Use the GVM calculator

Specifications

Included

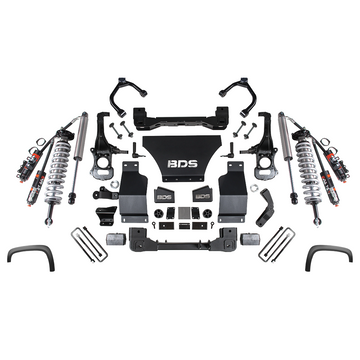

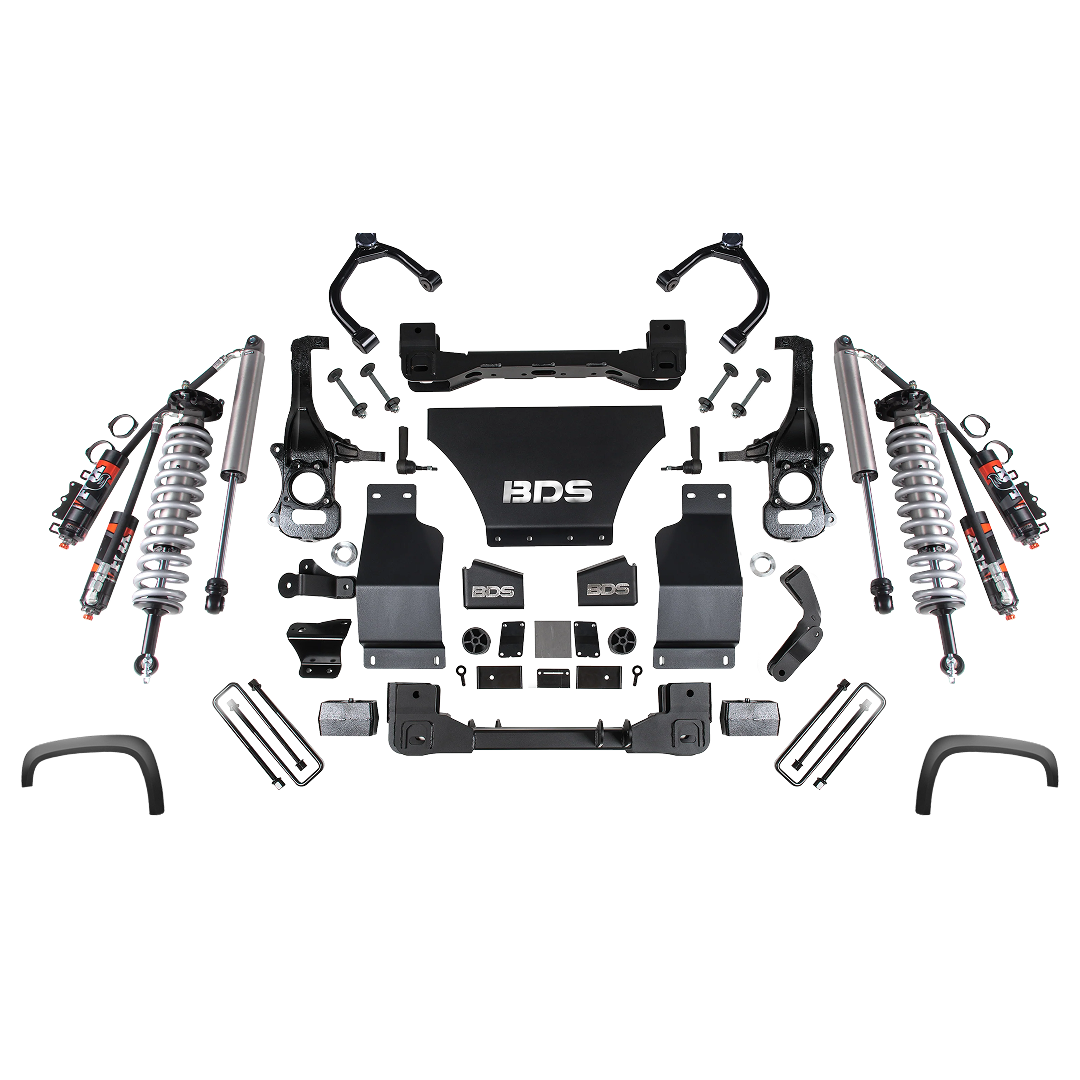

BDS 4" suspension kit with Fox 2.5 Performance Elite (BDS1757FPE), BDS control arm upgrade for front-end strength (BDS121260), Bushwacker Extenda Flare or Rough Country SF1 flares, ORI mud flaps and brackets.
Best For
LTZ owners who want the lifted stance and 35s without giving up any towing capacity, and who need the one tonne payload for ATO purposes.
Compliance
SSM federally approved Australia wide, Fox and BDS suspension components, PRE rego only (VTA-064440).

Lift & Tyres: 4" BDS lift, 35" tyres legal, running up to 35x12.5 R18 or 35x12.5 R20.

Wheels and tyres not included.

Key benefits

  • Increased legal payload capacity

    A premium GVM upgrade is only as good as the team that installs it. That’s why the ORI GVM network is thoroughly serviced and supported by Authorised Installers right across Australia.

    Whether you are in Victoria, WA, Queensland, or anywhere in between, our certified partners ensure your upgrade is fitted to the highest standard.

    Complete Compliance & Peace of Mind:

    Every ORI GVM upgrade installed by our network comes with full Second Stage of Manufacture (SSM) or state-level engineering compliance. Drive with confidence knowing your vehicle is fully legal, insured, and built to handle the heaviest loads across any state or territory.

  • Upgraded Fox & BDS suspension

    A premium GVM upgrade is only as good as the team that installs it. That’s why the ORI GVM network is thoroughly serviced and supported by Authorised Installers right across Australia.

    Whether you are in Victoria, WA, Queensland, or anywhere in between, our certified partners ensure your upgrade is fitted to the highest standard.

    Complete Compliance & Peace of Mind:

    Every ORI GVM upgrade installed by our network comes with full Second Stage of Manufacture (SSM) or state-level engineering compliance. Drive with confidence knowing your vehicle is fully legal, insured, and built to handle the heaviest loads across any state or territory.

  • Federal engineering approval

    Second Stage of Manufacture (SSM) federal approval is the most comprehensive and legally robust method for increasing a vehicle's Gross Vehicle Mass (GVM) in Australia. Unlike post-registration upgrades, which rely on state-based engineering for vehicles already on the road, SSM certification occurs before a brand-new vehicle is first registered. Securing this federal approval provides several critical structural and legal advantages for vehicle owners:Nationwide Legal Recognition: Because SSM is a federal approval, the upgraded GVM is legally recognised in every Australian state and territory from day one. State-level engineering approvals often only apply within the issuing state, meaning you might have to pay for re-certification if you move and transfer the vehicle's registration interstate.

What's included

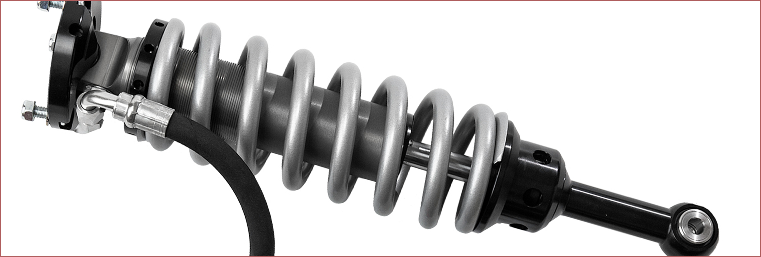

  • Fox SuspensionFox 2.5 Perfomance Elite Series Suspension
  • BDS componentsBDS 4" Suspension kit, full subframe drop, perfect cv angles and BDS upper Control arms.
  • ORI Leaf springsORI Heavy duty custom designed 200kg leaf packs
  • Engineering certificationFederally Approved GVM package under our VTA approval numbers for VTA-066635 | VTA-064440 engineered with 35" tyres.
BDS Suspension
Fox Suspension

Installation process

  1. Step 1: Request a quote

    Send us your vehicle details and we prepare a package quote.

  2. Step 2: Book your install

    Choose an approved installer near you and book a date.

  3. Step 3: Get certified

    We complete the upgrade and issue engineering certification.
