Stage 2 Ford F150 Platinum Lariat XLT GVM
GVM Upgrade Package

Stage 2 Ford F150 Platinum Lariat XLT GVM PRE

Increased strength and a legal one-tonne payload, upgrading to Fox 2.5 DSC suspension while retaining OE wheels and tyres.

GVM Rating
3700kg (Approx. 1224KG payload)
GCM
8200kg (Retains 4.5T towing)
Upgrades
SKU FRD-F150-Stage2-GVM-PRE
$15,499.00 AUDInstalled & engineered
Find Installers
Know your weight? Use the GVM calculator

Specifications

Key Features

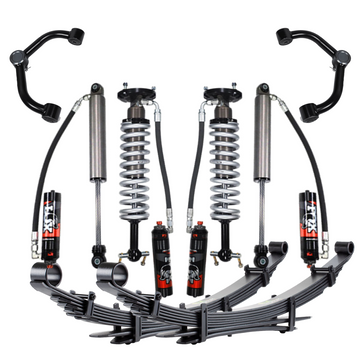

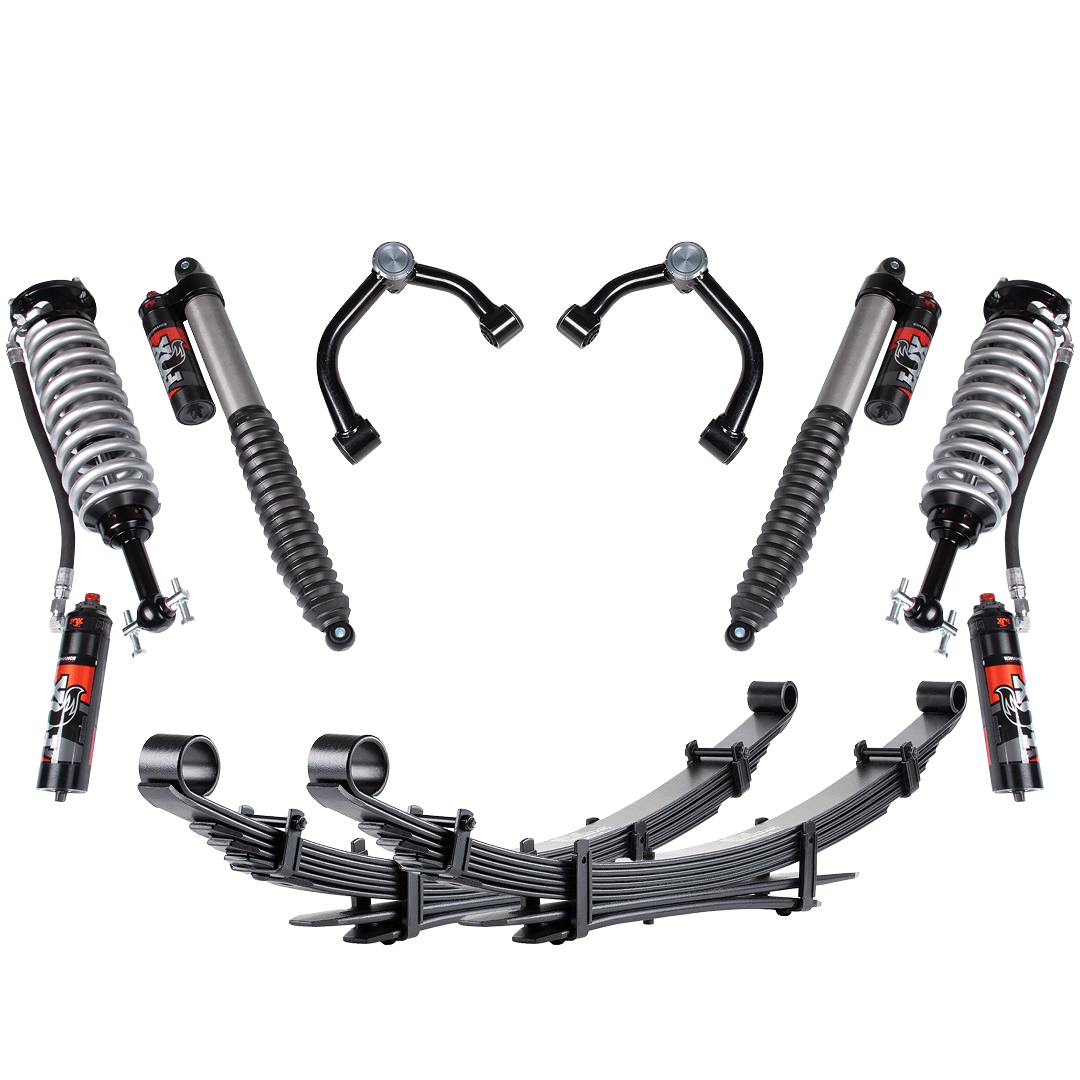

Fox 2.5 Performance Elite Suspension, ORI 200kg heavy-duty leaf packs, and heavy-duty BDS Control Arms.
Best For
4WD tourers who drive long distances on corrugated roads, heavily loaded with a bull bar and high tow-ball weight. Perfect for maximising performance without upgrading wheels or tyres.
The Benefit

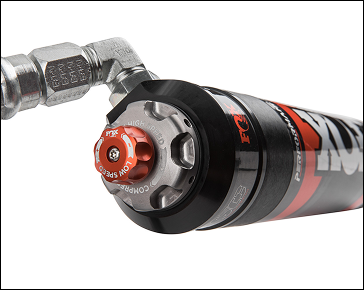

The DSC adjustability allows you to "dial in" your ride—stiffen it for the highway and soften it for the tracks with the simple turn of a knob.

Key benefits

  • Increased legal payload capacity

    A premium GVM upgrade is only as good as the team that installs it. That’s why the ORI GVM network is thoroughly serviced and supported by Authorised Installers right across Australia.

    Whether you are in Victoria, WA, Queensland, or anywhere in between, our certified partners ensure your upgrade is fitted to the highest standard.

    Complete Compliance & Peace of Mind:

    Every ORI GVM upgrade installed by our network comes with full Second Stage of Manufacture (SSM) or state-level engineering compliance. Drive with confidence knowing your vehicle is fully legal, insured, and built to handle the heaviest loads across any state or territory.

  • Upgraded Fox & BDS suspension

    Built on the Best: FOX & BDS Suspension

    Our GVM packages don't just increase your legal payload—they completely transform your ride.

    BDS Suspension: Legendary American engineering built to handle the massive weight and torque of full-size trucks without sacrificing ride quality.

    FOX Racing Shocks: Race-proven damping technology that delivers fade-free performance, whether you're towing a massive caravan on the highway or hitting corrugated outback tracks.

  • Federal engineering approval

    Second Stage of Manufacture (SSM) federal approval is the most comprehensive and legally robust method for increasing a vehicle's Gross Vehicle Mass (GVM) in Australia. Unlike post-registration upgrades, which rely on state-based engineering for vehicles already on the road, SSM certification occurs before a brand-new vehicle is first registered. Securing this federal approval provides several critical structural and legal advantages for vehicle owners:Nationwide Legal Recognition: Because SSM is a federal approval, the upgraded GVM is legally recognised in every Australian state and territory from day one. State-level engineering approvals often only apply within the issuing state, meaning you might have to pay for re-certification if you move and transfer the vehicle's registration interstate.

What's included

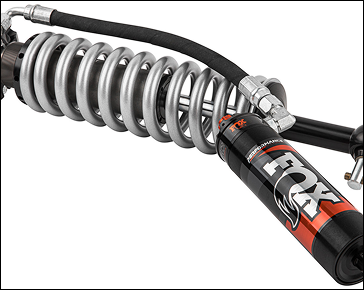

  • Fox SuspensionFox 2.5 Perfomance Elite Suspension.
  • BDS componentsBDS Upper Control Arms.

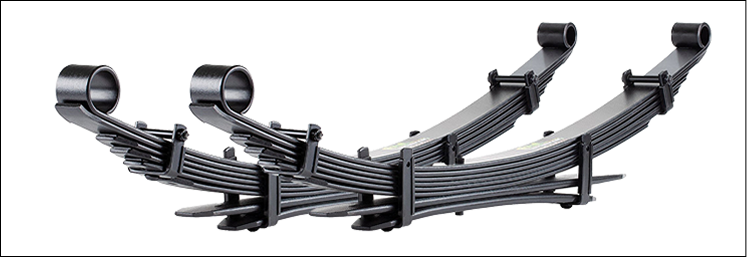

  • ORI Leaf SpringsORI heavy duty leaf springs 200kg option.
  • Engineering certificationFederally Approved VTA-064837
BDS Suspension
Fox Suspension

Installation process

  1. Step 1: Request a quote

    Send us your vehicle details and we prepare a package quote.

  2. Step 2: Book your install

    Choose an approved installer near you and book a date.

  3. Step 3: Get certified

    We complete the upgrade and issue engineering certification.
