Stage 3 Ford F150 Platinum Lariat XLT GVM PRE 200
Maximum legal capacity for the most demanding builds. Ideal for Tray & Canopy conversions, legally delivering a huge GVM with 4.5T towing capacity.
- GVM Rating
- 4300kg (Approx. 1819kg payload)
- GCM
- 8800kg
Specifications
- Key Features
- Fox 2.5 Performance Elite suspension, ORI 400kg leaf packs, and required load-rated wheels & tyres.
- Best For
- Fully built rigs with rear drawer systems, rooftop tents, long-range tanks, or heavy permanent canopies.
- The Benefit
- A massive payload increase that transforms the Ford F150 into a true heavy-duty platform while safely retaining its full 4.5T braked towing capacity.
- IMPORTANT
- If you plan to run 35" Tyres, you will need to run aftermarket flares
Max Tyre size without flare is 285/75/18 - on Postive 35 Offset.
Key benefits
Increased legal payload capacity
A premium GVM upgrade is only as good as the team that installs it. That’s why the ORI GVM network is thoroughly serviced and supported by Authorised Installers right across Australia.
Whether you are in Victoria, WA, Queensland, or anywhere in between, our certified partners ensure your upgrade is fitted to the highest standard.
Complete Compliance & Peace of Mind:
Every ORI GVM upgrade installed by our network comes with full Second Stage of Manufacture (SSM) or state-level engineering compliance. Drive with confidence knowing your vehicle is fully legal, insured, and built to handle the heaviest loads across any state or territory.
Upgraded Fox & BDS suspension
Built on the Best: FOX & BDS Suspension
Our GVM packages don't just increase your legal payload—they completely transform your ride.
BDS Suspension: Legendary American engineering built to handle the massive weight and torque of full-size trucks without sacrificing ride quality.

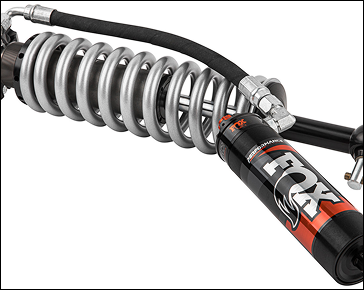

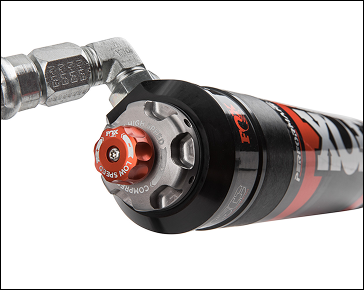

FOX Racing Shocks: Race-proven damping technology that delivers fade-free performance, whether you're towing a massive caravan on the highway or hitting corrugated outback tracks.
Federal engineering approval
Second Stage of Manufacture (SSM) federal approval is the most comprehensive and legally robust method for increasing a vehicle's Gross Vehicle Mass (GVM) in Australia. Unlike post-registration upgrades, which rely on state-based engineering for vehicles already on the road, SSM certification occurs before a brand-new vehicle is first registered. Securing this federal approval provides several critical structural and legal advantages for vehicle owners:Nationwide Legal Recognition: Because SSM is a federal approval, the upgraded GVM is legally recognised in every Australian state and territory from day one. State-level engineering approvals often only apply within the issuing state, meaning you might have to pay for re-certification if you move and transfer the vehicle's registration interstate.

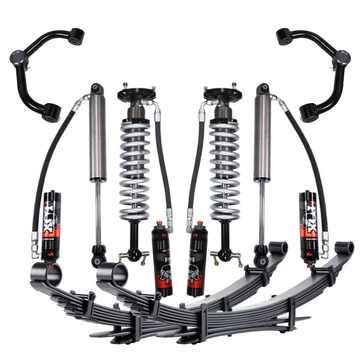

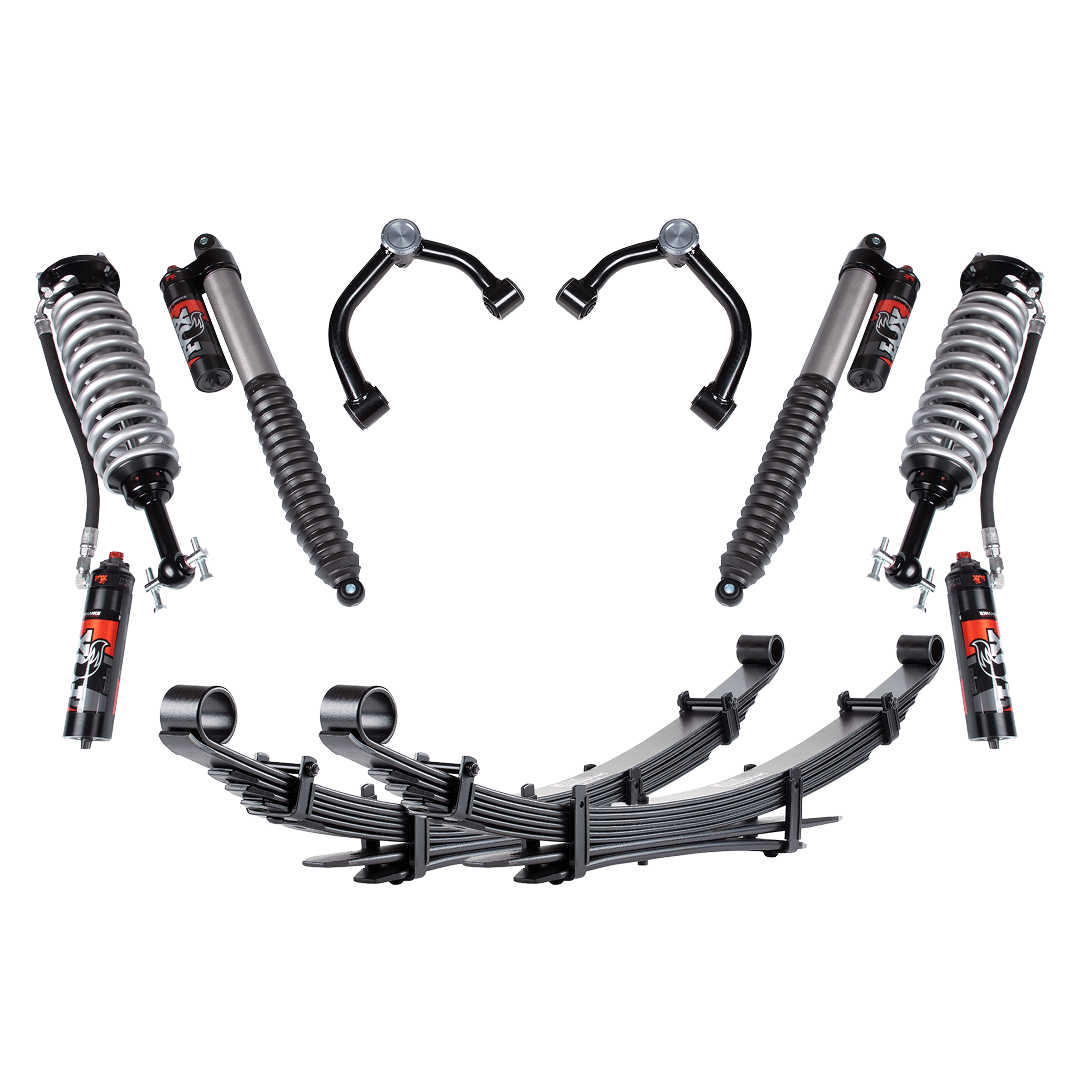

What's included
Fox SuspensionFox 2.5 Perfomance Elite Series Suspension
BDS componentsBDS Upper Control Arms.

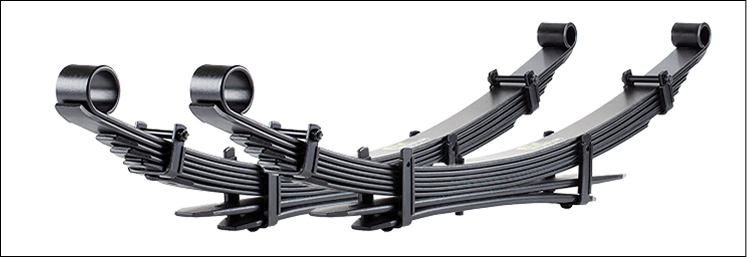

ORI Leaf SpringsORI Heavy duty leaf springs, 200kg, 400kg options
- Engineering certificationFederally Approved GVM VTA-064837 upto 35" tyres legal Australia Wide.



Installation process
-
Step 1: Request a quote
Send us your vehicle details and we prepare a package quote.
-
Step 2: Book your install
Choose an approved installer near you and book a date.
-
Step 3: Get certified
We complete the upgrade and issue engineering certification.
