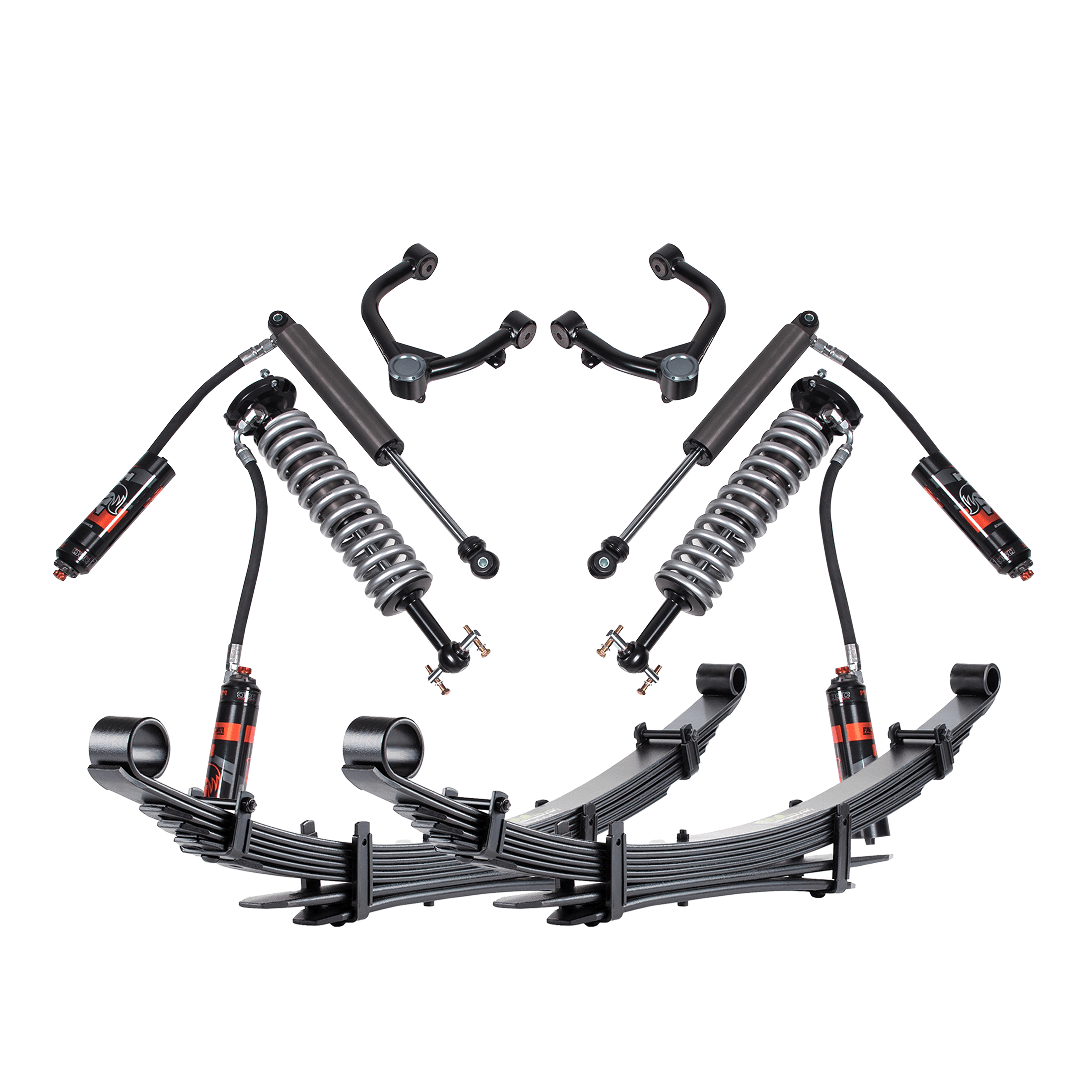

Stage 4 Chevrolet Silverado 1500 LTZ ZR2 GVM 4250
GVM Upgrade Package

Stage 4 Chevrolet Silverado 1500 LTZ ZR2 GVM 4250 Upgrade 200 PRE

Maximum legal capacity for the most demanding builds. Ideal for Tray Canopy builds and for the customer who wants to run 35" Tyres legally.

GVM Increase
 4250kg (approx. 1672kg payload) upto GCM Increase rating  8750kg * ZR2 8450kg
Upgrades
SKU CHV-1500-Stage4-GVM-200-PRE
$16,999.00 AUDInstalled & engineered
Find Installers
Know your weight? Use the GVM calculator

Specifications

Key Features
 Fox 2.5 Performance Elite suspension, ORI 400kg leaf packs, and required load-rated wheels/tyres.
Best For
 Fully built rigs with rear drawer systems, rooftop tents, and long-range tanks or the ultimate tourer with Tray and Canopies fitted.
Benefit
 Massive payload increase that transforms the Silverado into a true heavy-duty platform while retaining 4.5T braking towing capacity.

Note: Chevy Silverado ZR2 has reduced GCM due to the 4.2T towing capacity.

Key benefits

  • Increased legal payload capacity

    Nationwide Network of Authorised Installers

    A premium GVM upgrade is only as good as the team that installs it. That’s why the ORI GVM network is thoroughly serviced and supported by Authorised Installers right across Australia.

    Whether you are in Victoria, WA, Queensland, or anywhere in between, our certified partners ensure your upgrade is fitted to the highest standard.

    Complete Compliance & Peace of Mind:

    Every ORI GVM upgrade installed by our network comes with full Second Stage of Manufacture (SSM) or state-level engineering compliance. Drive with confidence knowing your vehicle is fully legal, insured, and built to handle the heaviest loads across any state or territory.

  • Upgraded Fox & BDS suspension

    Nationwide Network of Authorised Installers

    A premium GVM upgrade is only as good as the team that installs it. That’s why the ORI GVM network is thoroughly serviced and supported by Authorised Installers right across Australia.

    Whether you are in Victoria, WA, Queensland, or anywhere in between, our certified partners ensure your upgrade is fitted to the highest standard.

    Complete Compliance & Peace of Mind:

    Every ORI GVM upgrade installed by our network comes with full Second Stage of Manufacture (SSM) or state-level engineering compliance. Drive with confidence knowing your vehicle is fully legal, insured, and built to handle the heaviest loads across any state or territory.

  • Federal engineering approval

    Second Stage of Manufacture (SSM) federal approval is the most comprehensive and legally robust method for increasing a vehicle's Gross Vehicle Mass (GVM) in Australia. Unlike post-registration upgrades, which rely on state-based engineering for vehicles already on the road, SSM certification occurs before a brand-new vehicle is first registered. Securing this federal approval provides several critical structural and legal advantages for vehicle owners:Nationwide Legal Recognition: Because SSM is a federal approval, the upgraded GVM is legally recognised in every Australian state and territory from day one. State-level engineering approvals often only apply within the issuing state, meaning you might have to pay for re-certification if you move and transfer the vehicle's registration interstate.

What's included

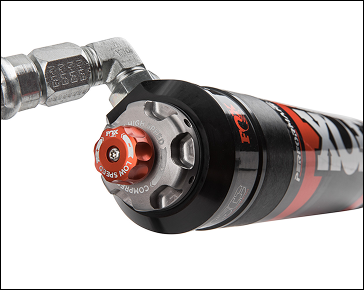

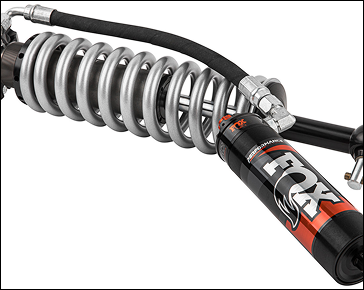

  • Fox SuspensionFox 2.5 Performance Series Suspension, engineered with 35" tyres
  • BDS componentsBDS Upper Control Arms.

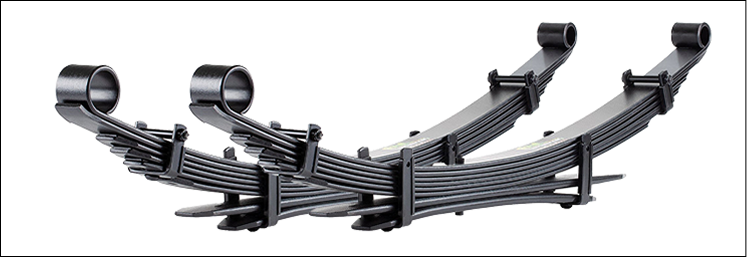

  • ORI Leaf SpringsORI Heavy duty custom designed leaf springs with ubolts and bushes
  • Engineering certificationFederally Approved GVM package under our VTA approval numbers for VTA-066635 | VTA-064440
BDS Suspension
Fox Suspension

Installation process

  1. Step 1: Request a quote

    Send us your vehicle details and we prepare a package quote.

  2. Step 2: Book your install

    Choose an approved installer near you and book a date.

  3. Step 3: Get certified

    We complete the upgrade and issue engineering certification.
