883-06-166
Fox PERFORMANCE ELITE SERIES 2.5 SHOCK DT RAM 1500 3" 2019+
$4,499.99

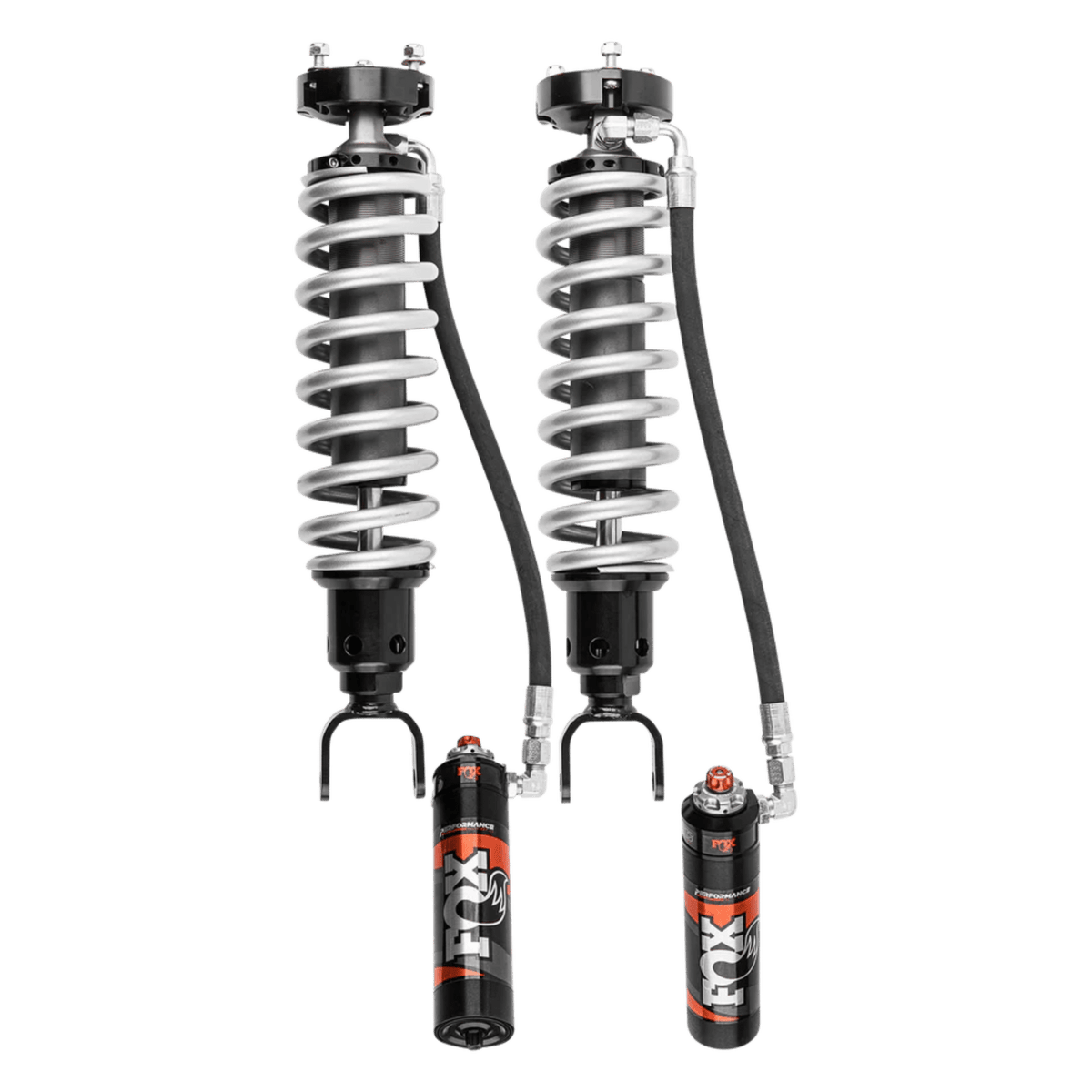

Fox PERFORMANCE ELITE SERIES 2.5 SHOCK DT RAM 1500 3" 2019+
Before production, all our shocks endure rigorous testing and prove themselves through intense abuse by top athletes in the race industry. We constantly push limits to deliver the same level of precise control and proven performance that you can truly experience. Our Performance Elite Series Coil-over Reservoir shocks, easily installed, provide superior damping in all types of terrain.
Coil-over shocks provide suspension damping and suspend the weight of the vehicle. The integrated coil spring can be adjusted for preload and ride height and come pre-set to level your vehicle right out of the box. Experience for yourself the incredible performance and precise control that Performance Elite Series Coil-over Reservoir shocks deliver.
Vehicle Suitability
- DT RAM 1500 2019+
- Will require a after market UCA
- Will not work on a DS RAM
Fox Product Specifications 883-06-166
| PART NUMBER | 883-06-166 |
| FEATURES | Performance Tuned For Vehicle Specific Application; Aluminum Body Dissipates Heat Faster Than Steel; External Reservoir System Dissipates Heat Fast; Black Anodized CNC Machined Aluminum Components |
| SERIES | Performance Elite |
| TRAVEL | 6.24 |
| FRONT LIFT HEIGHT | 2-3 |
| BODY | 2.5" Impact extruded and CNC machined 6061-T6 hard anodized aluminum body resists rust over time |
| BODY PLATING | Hard-anodized for a durable finish |
| COMPONENTS | Black-anodized, CNC-machined 6061-T6 billet aluminum |
| SHAFT | 7/8" hard chrome plated steel shafts |
| PISTON | 6061-T6 hard-anodized, high flow aluminum piston |
| VALVING | Application specific valving to maximize performance |
| SEALS | Redundant sealing pack system main seal, wiper seal, scraper seal |
| BEARINGS | PTFE-lined, heat-treated, alloy steel spherical |
| EXTENDED LENGTH | 23.07 |
| COMPRESSED LENGTH | 16.83 |
| TOP MOUNT | TM |
| BOTTOM MOUNT | Clevis |
| FITMENT NOTES | Requires Upper Control Arm | Does Not Fit Air Ride Models |
