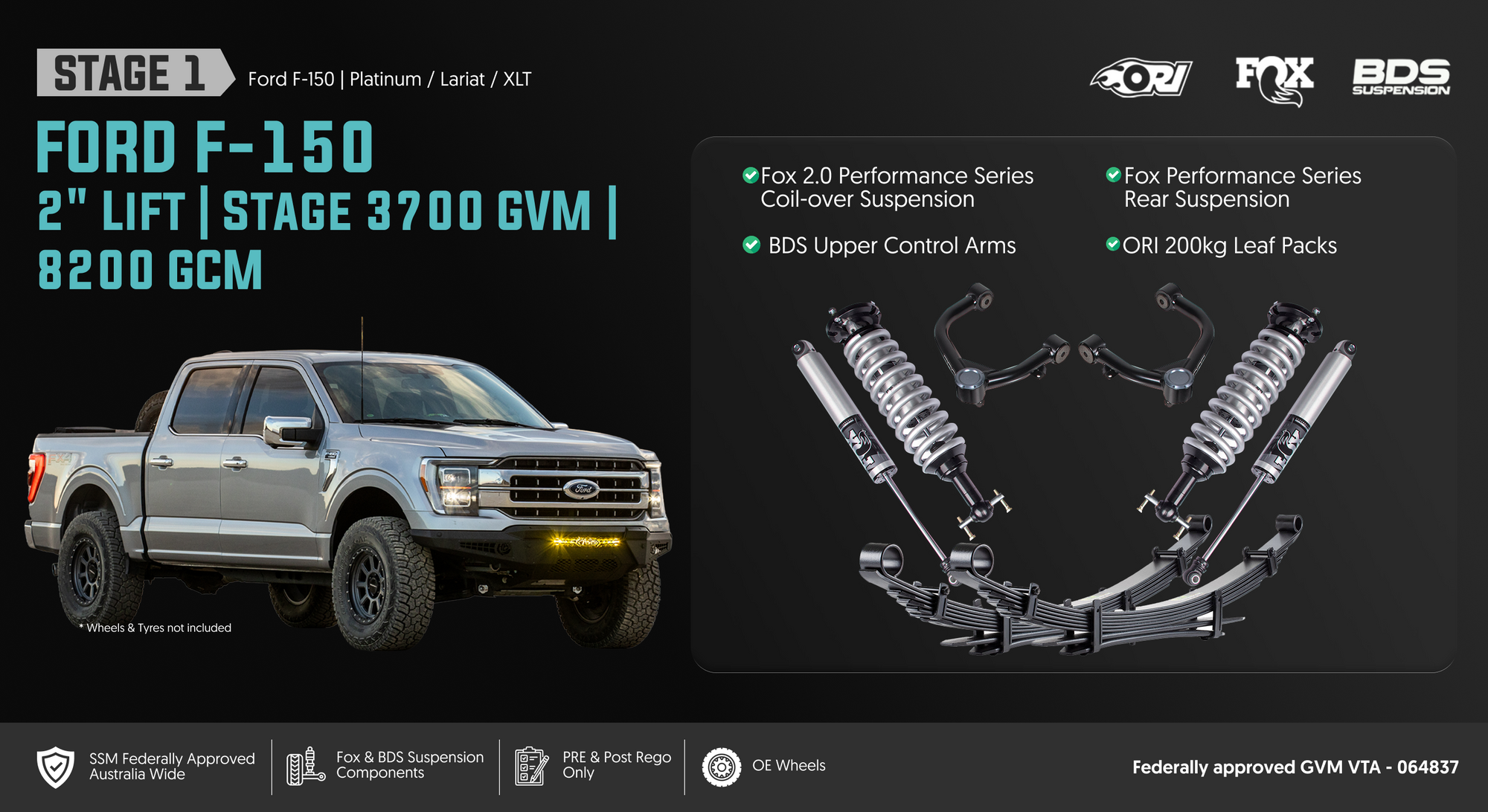

• Fox 2.0 Performance Series Suspension
• BDS Upper Control Arms
• ORI 200KG leaf packs

• OE Wheels & Tyres Approved
• Federally Approved GVM & GCM
• Increase Payload to 1224KG

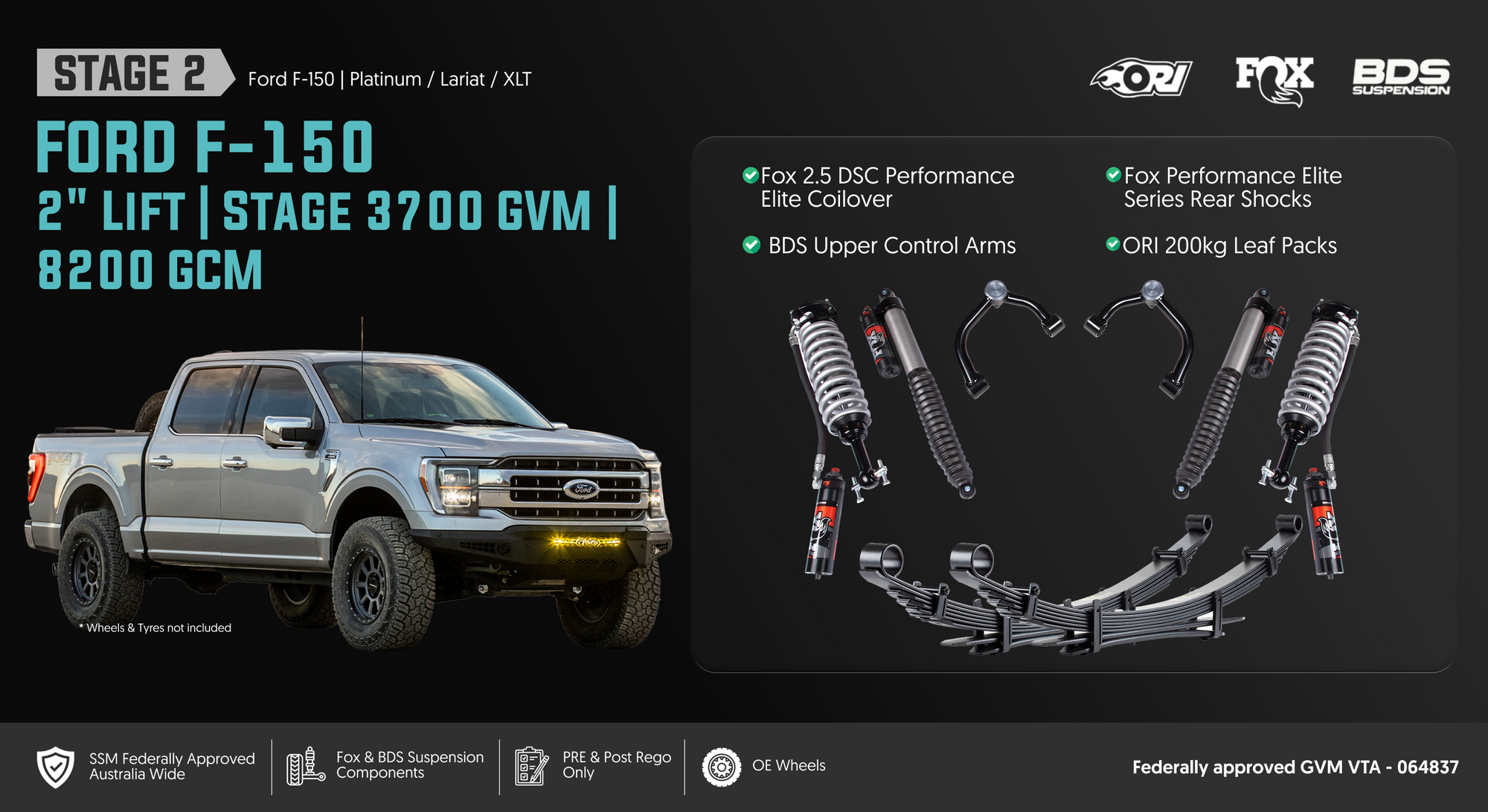

• Fox 2.5 Performance Series Suspension
• BDS Upper Control Arms
• ORI 200KG leaf packs

• OE Wheels & Tyres Approved
• Federally Approved GVM & GCM
• Increase Payload to 1219KG


• Fox 2.5 Performance Series Suspension
• BDS Upper Control Arms
• ORI 200KG or 400KG leaf packs

• Load Rated Wheels & Tyres required
• Federally Approved GVM & GCM
• Increase Payload to 1819KG

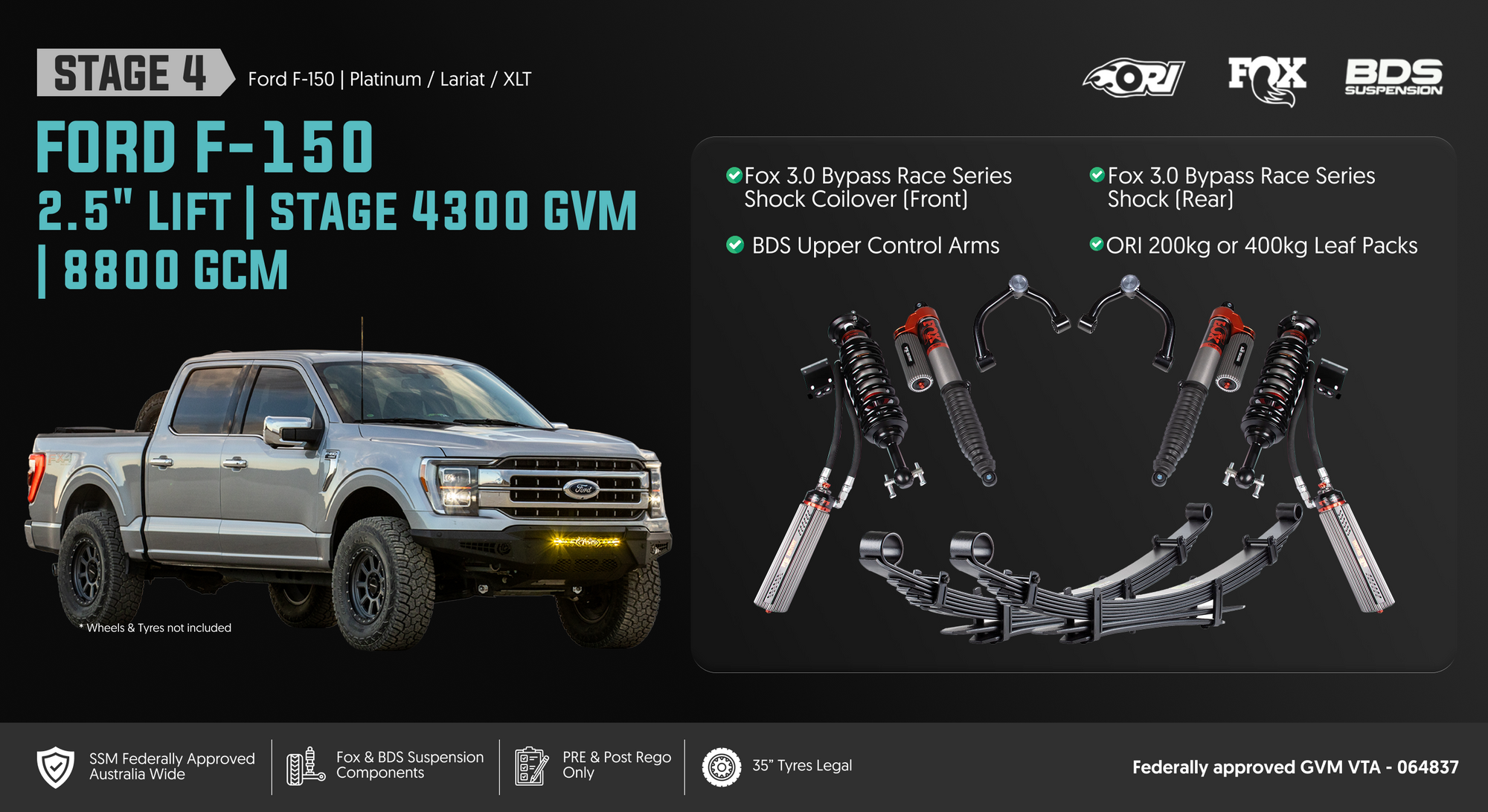

• Fox 3.0 Factory Race Series Suspension
• BDS Upper Control Arms
• ORI 200KG or 400KG leaf packs

• Load Rated Wheels & Tyres required
• Federally Approved GVM & GCM
• Increase Payload to 1819KG

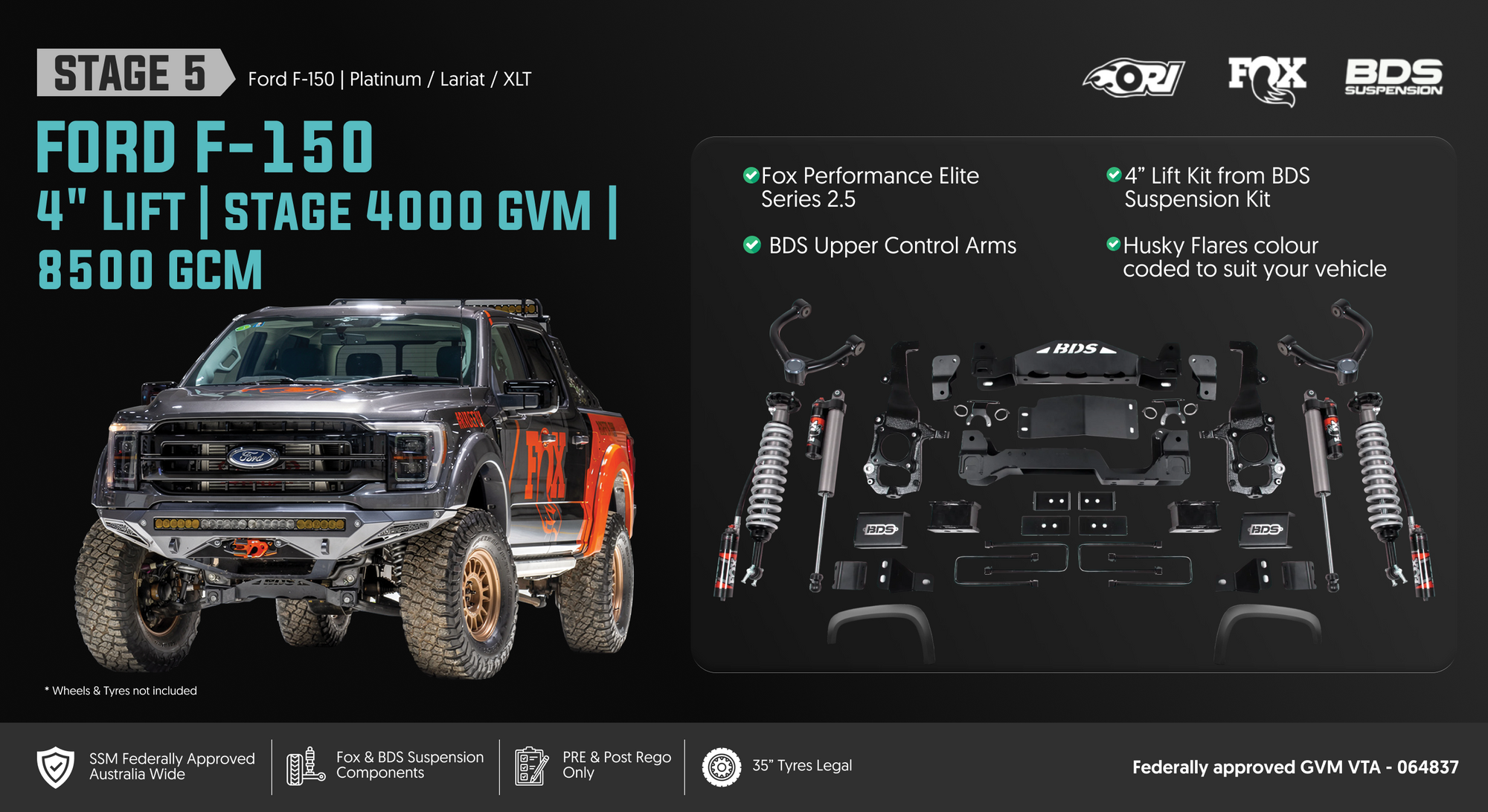

• 4" BDS Suspension with Fox 2.5 Performance Elite
• BDS Upper Control Arms
• ORI 200KG or 400KG leaf packs
• Engineered for 35x12.5x18 Tyres
• Load Rated Wheels & Tyres Required

• Awaiting Federally Approved GVM
• Increase Payload to 1519KG
• Ford 150, Lariat, XLT, Platinum models only
• Pre REGO SSM Only


• 6" BDS Suspension with Fox 2.5 Performance Elite
• BDS Upper Control Arms
• ORI 200KG or 400KG leaf packs
• Engineered for 35x12.5x18 Tyres
• Load Rated Wheels & Tyres Required

• Awaiting Federally Approved GVM
• Increase Payload to 1200KG
• Ford 150, Lariat & Platinum models only
• Pre REGO SSM Only


Factory OEM Stage 1 Stage 2 Stage 3 Stage 4 Stage 5 Stage 6
Gross Vehicle Mass (GVM) 3220 KG 3700 KG 3700 KG 4300 KG 4300 KG 4000 KG 3700 KG
Braked Towing Capacity (BTC) 4500 KG 4500 KG 4500 KG 4500 KG 4500 KG 4500 KG 4500 KG
Gross Combined Mass (GCM) 7720 KG 8200 KG 8200 KG 8800 KG 8800 KG 8000 KG 3700 KG
Kerb Weight 2451 KG 2476 KG 2481 KG 2481 KG 2481 KG 2491 KG 2491 KG
Payload (bases on kerb weight) 769 KG 1224 KG 1219 KG 1819 KG 1819 KG 1819 KG 1219 KG
Payload Increase (%) 0% 59.18% 58.52 % 136.54% 136.54% 136.54% 58.52 %
Front Axle Capacity 1565 KG 1700 KG 1700 KG 1850 KG 1850 KG 1700 KG 1700 KG
Rear Axle Capacity 1565 KG 2000 KG 2000 KG 2450 KG 2450 KG 2300 KG 2000 KG
Wheel Offsets 44 44 44 35 30 25 18 12 0 35 30 25 18 12 0 Pos 18 12 0 Pos 18 12 0
Wheel Load Rating 1050 KG 1050 KG 1074.5 KG 1200 KG 1200 KG 1200 KG 1074.5 KG
Tyre Load Rating 1050 KG 1050 KG 1074.5 KG 1200 KG 1200 KG 1200 KG 1074.5 KG
Requires Wheel/ Tyre Upgrade N/A N/A N/A
Maximum Tyre Size 275/60 R20 275/60 R20 275/60 R20 35x12.5x18 35x12.5x18 35x12.5x18 37x13.5x18



Item Part Number Stage 1 Stage 2 Stage 3 Stage 4 Stage 5 Stage 6
Lift Size 2" 2" 2" 2.5 4" 6"
Fox 2.0 Performance Series Coilovers (Front) 985-02-146
Fox 2.0 Performance Series Rear Shocks 985-24-265
Fox 2.5 Performance Elite Series 2.5 Coil-Over 883-06-199
Fox Performance Elite Series 2.5 Reservoir Shock 883-26-122
Fox 3.0 Bypass Race Series Shock Coilover (Front)
Fox 3.0 Bypass Race Series Shock (Rear)
BDS Upper Control Arms BDS123262
BDS 4" Suspension Kit with Fox 2.5 Performance Elite
BDS 6" Suspension Kit with Fox 2.5 Performance Elite
LED Autolamps Cat 6 Indicators *Required on SWB
ORI 200kg Leaf Packs ORI-FRD-200KG
ORI 400kg Leaf Packs ORI-FRD-400KG
Load-Rated Wheels Required
