RAM 2500 GVM Upgrades: Carry More, Tow Better, Travel Farther

If you’re ready to get the most from your Ram 2500, getting a GVM upgrade is for you. It isn’t just an upgrade or numbers on paper, Ram 2500 GVM upgrades give you  about changing a number on paper, more support, more rugged potential, and even greater abilities to haul heavy loads of gear. Generally, when you drive your Ram 2500 off the lot, you’ll be sitting in the NB1 category, which is a broad ranging limit when it comes to how much weight you can legally carry. Certain vehicles - like the Ram 2500 - are built for more and can easily be transformed into beasts with upgraded suspension and coils to do your hard-working truck justice.

If you’re left wanting more - whether that’s more gear, heavier tools, or some serious touring equipment when you’re heading off into the wilds of Australia, our GVM upgrades can get you there. Discover the freedom of going further and explore the range of RAM 2500 GVM upgrades here at Offroad Industries.

GVM Upgrade RAM 2500: Common Questions and What to Ask Your Installer

Before you commit to a Ram 2500 GVM upgrade pack, there are a few key things worth clarifying regarding your vehicle. First, you’ll want to check how the upgrade changes your total payload and towing limits on your specific truck, along with the Class it’ll be in if you get a certain upgrade completed.

You’ll also want to check whether your current wheels and tyres are up for the job. With greater weight acting on them, along with a change in ground clearance, you may need to upgrade those too.

Finally, you might have questions regarding the timeframe and paperwork sign off, which we can help you with. If you have questions and want to speak to our team, contact us any time for more information.

Ori Proposed GVM Packages

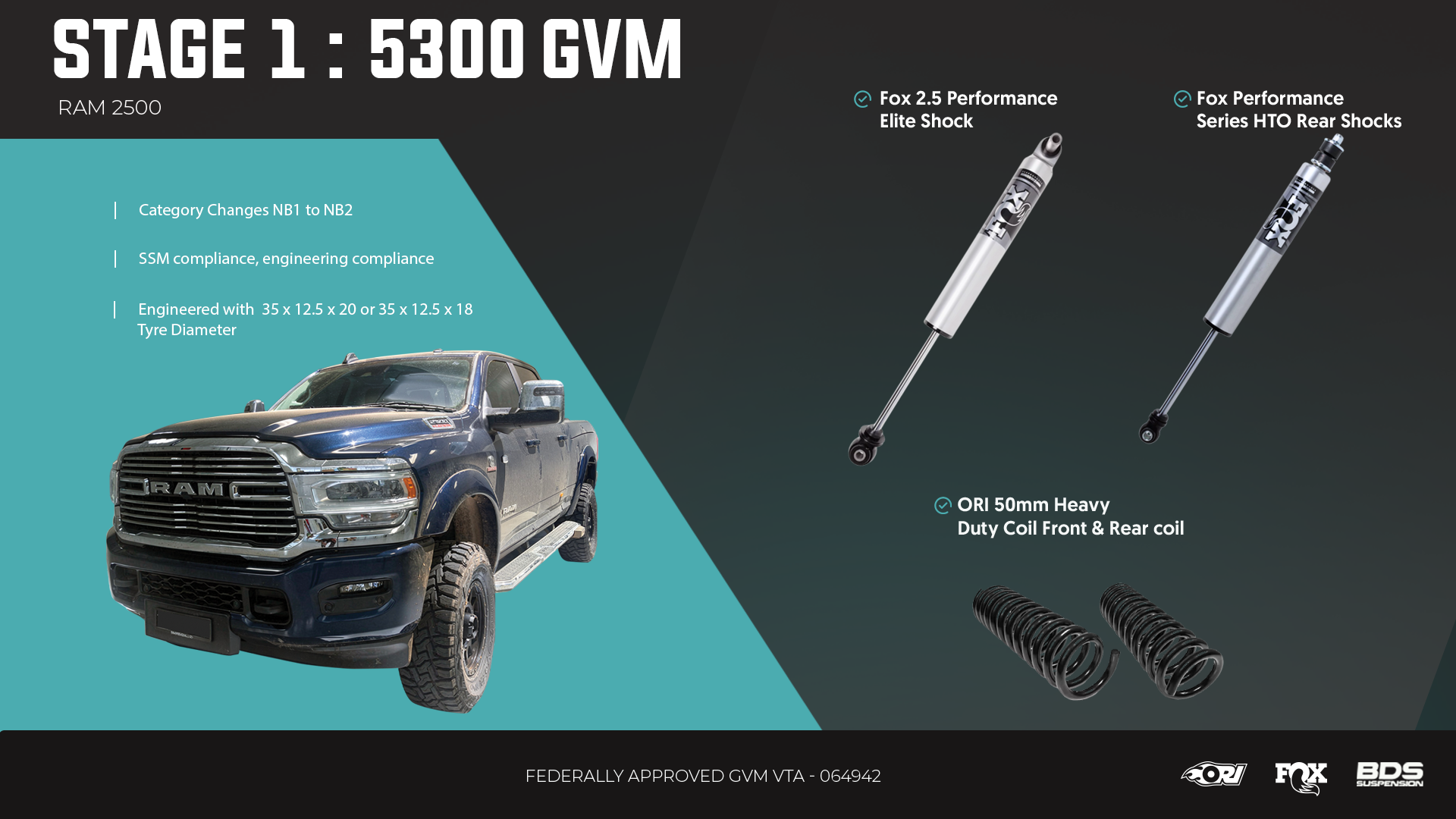

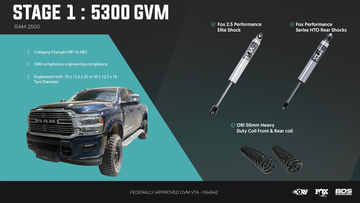

Stage 1: $10,500 - Installed & Engineered STAGE 1 : 5300 GVM
  • Fox 2.5 HTO Performance Series Suspension
  • ORI 50mm Front and Rear Coils
  • SSM Federally Approved GVM
  • Category Changes from NB1 to NB2
  • 4459 Upgraded 5300 GVM
Stage 2: $15,000 - Installed & Engineered STAGE 2 : 5300 GVM
  • Fox 2.5 Performance Elite Suspension
  • ORI 50mm Front and Rear Coils
  • SSM Federally Approved GVM
  • Category Change from NB1 to NB2
  • 4495 Upgraded to 5300 GVM
Stage 3: $17,499 - Installed & Engineered STAGE 3 : 5300 GVM
  • 3" BDS Radius Suspension Package
  • Fox 2.5 Performance Elite Suspension
  • BDS Front Coils and Rear Coils
  • SSM Federally Approved GVM
  • Category Change NB1 to NB2 .
  • 4495 Upgraded 5300 GVM
Stage 4: $15,000 - Installed & Engineered STAGE 4 : 5550 GVM
  • Fox 2.5 Performance Elite Suspension
  • ORI 50mm Front and Rear Coils
  • SSM Federally Approved GVM
  • Engineered for 35x12.5x18 or 15x12.5x20
  • Category Change NB1 to NB2 .
  • 4495 Upgraded 5550 GVM
Stage 5: $17,499 - Installed & Engineered STAGE 5 : 5550 GVM
  • 3" BDS Radius Suspension Package
  • Fox 2.5 Performance Elite Suspension
  • BDS Front Coils and Rear Coils
  • SSM Federally Approved GVM
  • Engineered for 35x12.5x18 or 35x12.5x20
  • Category Change NB1 to NB2 .
  • 4495 Upgraded 5550 GVM

Note: Pricing does not include freight or post-rego sign-off fee. Our GVM program only applies to RAM Australia Converted vehicle that are NB1 Complained

RAM 2500HD Specfictions

OEM
Stage 1
Stage 2
Stage 3
Stage 4
Stage 5
Gross Vehicle Mass (GVM)
4495 KG NB1
5300 KG
5300 KG
5300 KG
5550 KG
5550 KG
Braked Towing Capacity (BTC)
4500 KG
4500 KG
4500 KG
4500 KG
4500 KG
4500 KG
Gross Combined Mass (GCM)
12 695 KG
12474 KG
12474 KG
12474 KG
12474 KG
12474 KG
Kerb Weight
3609 KG
3620 KG
3639 KG
3645 KG
3639 KG
3645 KG
Payload (bases on kerb weight) FROM NB1
886 KG
1680 KG
1661 KG
1655 KG
1914 KG
1905 KG
Payload Increase (%)
90%
87.50%
86.80%
116.10%
115.01 %
Front Axle Capacity
2722 KG
2720 KG
2720 KG
2720 KG
2720 KG
2720 KG
Rear Axle Capacity
2740 KG
2840 KG
2840 KG
2840 KG
2840 KG
2840 KG
Wheel Offsets
POS 47
Pos 12 / 18
Pos 12 / 18
Pos 12 / 18
Pos 12 / 18
Pos 12 / 18
Wheel Load Rating
1587 KG
1600 KG
1600 KG
1600 KG
1600 KG
1600 KG
Tyre Load Rating
1600 KG
1600 KG
1600 KG
1650 KG
1650 KG
Requires Wheel/ Tyre Upgrade
NA
NA
NA
Maximum Tyre Size
35x12.5xR18 | 35x12.5xR20
35x12.5xR18 | 35x12.5xR20
35x12.5xR18 | 35x12.5xR20
35x12.5xR18 | 35x12.5xR20
35x12.5xR18 | 35x12.5xR20
Item
Part Number
Stage 1
Stage 2
Stage 3
Stage 4
Stage 5
Lift Height
2"
2"
3"
2"
3"
Fox 2.5 HTO Performance Series (Front)
987-24-004
Fox 2.5 HTO Performance Series (Rear)
987-24-005
Fox 2.5 Performance Elite Series (Front)
883-26-062
Fox 2.5 Performance Elite Series (Rear)
883-26-065
ORI Front Coils
KDFR-400H
ORI Rear Coils
KDRR-401HH
BDS 3" Radius Arm Kit
BDS1653FPE
Husky Extenda Flare
2805931
