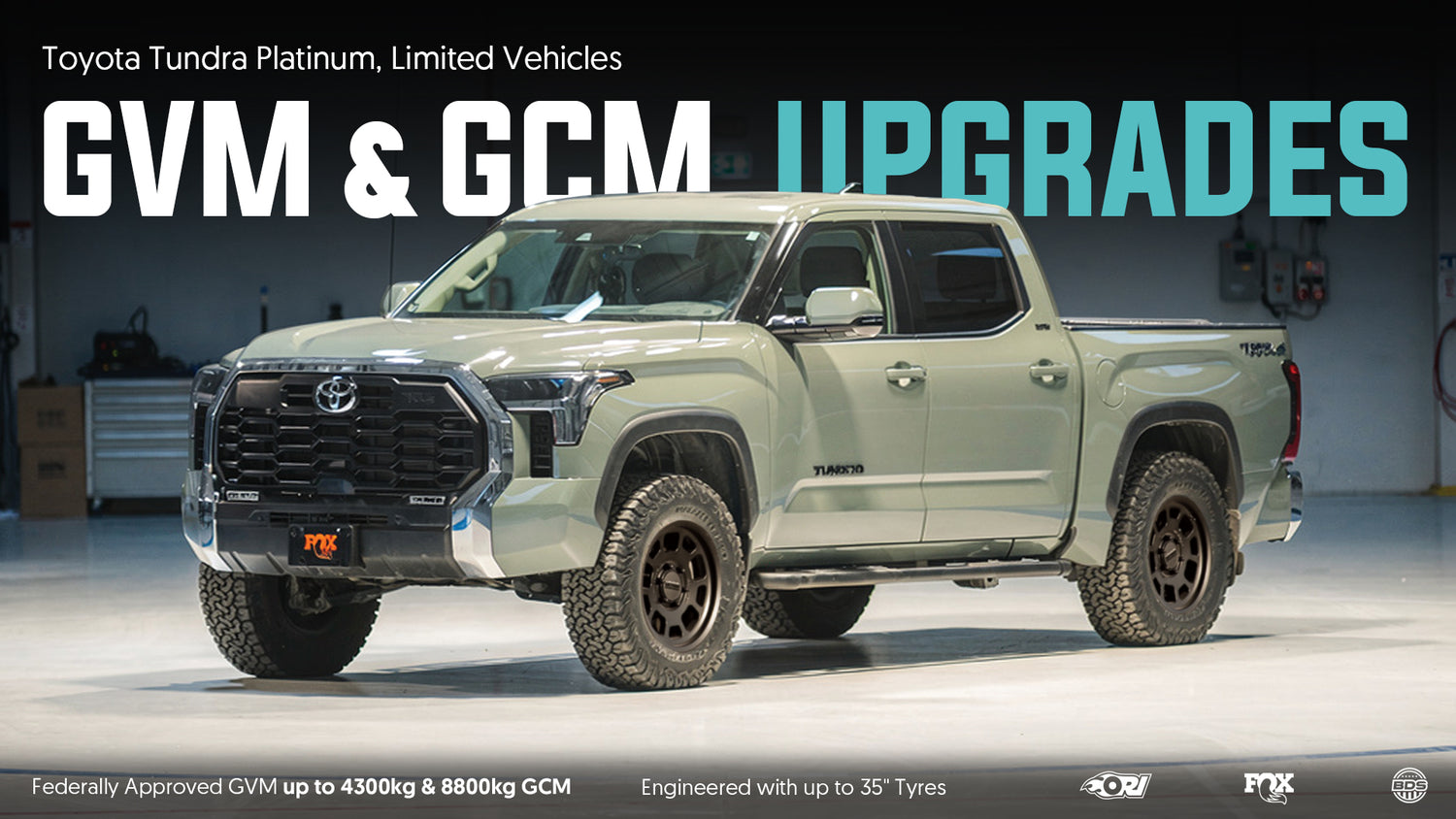

Toyota Tundra Unbound: Australia’s Premier GVM & GCM Legal Evolution.

Stop worrying about weight limits and start adventuring with absolute confidence. Offroad Industries (ORI) offers Australia’s most comprehensive, Federally Approved GVM (Gross Vehicle Mass) upgrades for the Toyota Australia Tundra range—covering both the Limited and Platinum models.

By bundling our ORI GVM Packages with GCM testing and LS16 certification, we grant your truck true "Super-Truck" status. The LS16 code is our secret sauce: a specific engineering modification code for Gross Combination Mass Re-rating. This ensures your truck, your gear, and your 4.5T trailer are 100% legal together, whether registered Pre-Rego (Federal) or Post-Rego (State-based).

ORI Federally Approved Packages

Stage 1: $15,499 Installed & Engineered Stage 1: The Weekender Family Getaway

The perfect entry point for a legal payload boost without the need for aftermarket wheels.

  • GVM Rating: 3,850kg (Boosting payload to 1,028kg) GCM Rating: 8,350kg (Retains full 4.5T towing)
  • Key Features: Fox 2.5 Performance Elite suspension, ORI 150–300kg coil packs, and heavy-duty BDS Upper Control Arms & Diff Drop.
  • Best For: Daily drivers and light touring. Ideal for owners needing to clear the "one-tonne" mark for FBT Tax Compliance while keeping their factory wheels.
  • The Benefit: Achieve a lifted, aggressive stance with premium USA-made shocks. This setup significantly improves stability under load without the added expense of new wheels and tyres. The Fox adjustability allows you to "dial in" your ride—stiffen it for the highway and soften it for the tracks with the simple turn of a knob.
Stage 2: $22,499 Installed & Engineered Stage 2: The Performance Level-Up

Going all out with Fox 3.0 Race-Bred technology while retaining your factory wheel and tyre setup.

  • GVM Rating: 3,850kg (Boosting payload to 1,028kg) GCM Rating: 8,350kg (Retains full 4.5T towing)
  • Key Features: Fox 3.0 Internal Bypass Race Series Shocks (Front & Rear), ORI coil package, BDS Upper Control Arms & Diff Drop.
  • Best For: 4WD tourers who tackle long-distance corrugations and demand elite damping without upgrading wheels or tyres.
  • The Benefit: Stepping up to the 3.0 platform provides massive oil volume and internal bypass technology. You get a plush, "cloud-like" ride on the road that transforms into a bottomless, race-ready suspension when the terrain gets technical.

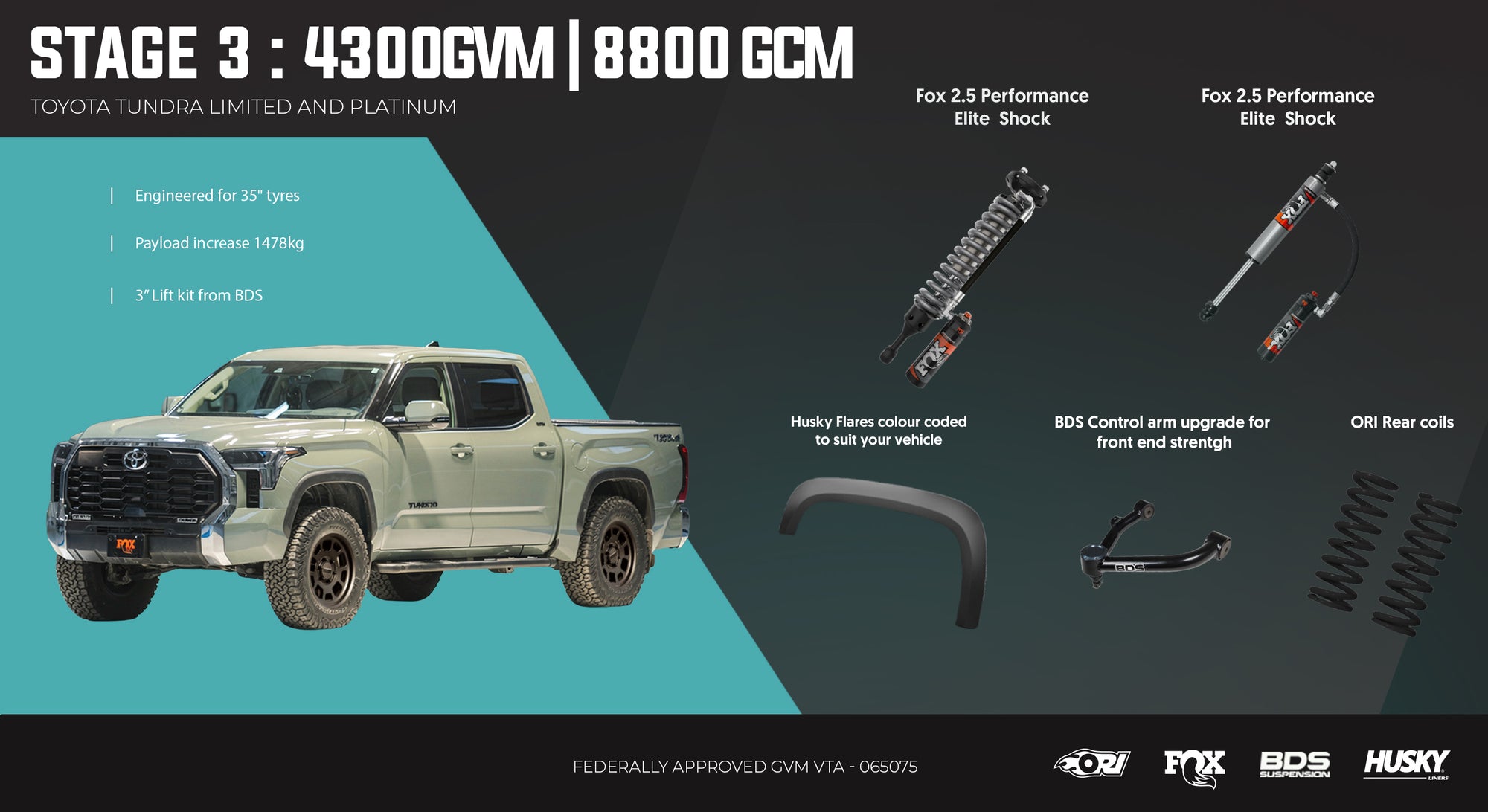

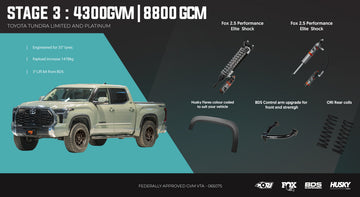

Stage 3: $20,999 Installed & Engineered Stage 3: The Heavy Hauler

Maximum legal capacity for the most demanding builds. Ideal for Tray & Canopy conversions.

  • GVM Rating: 4,300kg (Approx. 1,478kg payload) GCM Rating: 8,800kg (The ultimate legal combination)
  • Key Features: Fox 2.5 Performance Elite suspension, ORI 500kg heavy-duty coil packs, load-rated wheels, and engineered 35” tyres.
  • Best For: Fully built rigs with rear drawer systems, rooftop tents, long-range tanks, or heavy permanent canopies.
  • The Benefit: A massive payload increase that transforms the Tundra into a true heavy-duty platform. This package solves the common "overweight" issue for fully kitted tourers while safely retaining its full 4.5T braked towing capacity.

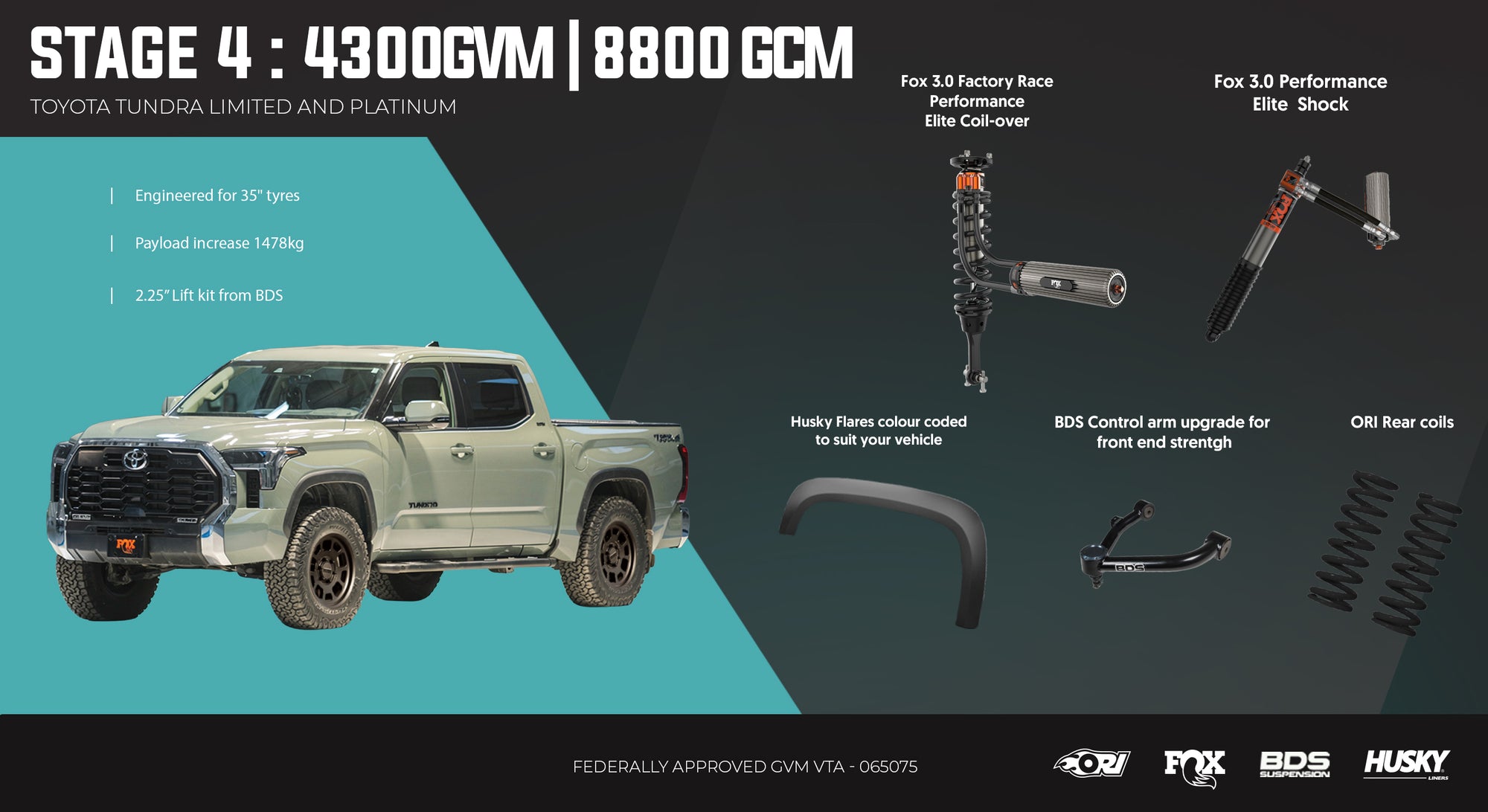

Stage 4: $27 999 Installed & Engineered Stage 4: The "No Compromise" Build

The absolute peak of Toyota Tundra performance and legality in Australia.

  • GVM Rating: 4,300kg (Approx. 1,478kg payload)
  • GCM Rating: 8,800kg
  • Key Features: Fox 3.0 Internal Bypass Race Series Shocks (Front & Rear), ORI heavy-duty coil package, and engineered 35” tyres.
  • Best For: The enthusiast who demands race-bred technology combined with maximum legal payload.
  • The Benefit: The Fox 3.0 Bypass shocks offer unparalleled heat dissipation and damping control. This is the ultimate "go-anywhere" setup that remains 100% legally compliant across Australia, even when fully loaded and towing the boat or caravan.

Toyota Tundra Limited & Platinum GVM Specifications

Factory
Stage 1
Stage 2
Stage 3
Stage 4
Gross Vehicle Mass (GVM)
3536 KG
3850 KG
3850 KG
4300kg
4300kg
Braked Towing Capacity (BTC)
4500 KG
4500 KG
4200 KG
4500 KG
4500 KG
Gross Combined Mass (GCM)
7825 KG
8350 KG
8350 KG
8800kg
8800kg
Kerb Weight
Limited 2792 KG
Platinum 2834 KG
Limited 2822 KG
Platinum 2864 KG
Limited 2822 KG
Platinum 2864 KG
Limited 2822 KG
Platinum 2864 KG
Limited 2822 KG
Platinum 2864 KG
Payload (bases on kerb weight)
758 KG
Limited 1028 KG
Platinum 986 KG
Limited 1028 KG
Platinum 986 KG
Limited 1478 KG
Platinum 1436 KG
Limited 1478 KG
Platinum 1436 KG
Payload Increase (%)
36%
36%
95%
95%
Front Axle Capacity
1850 KG
1850 KG
1850 KG
1850 kg
Rear Axle Capacity
1850 KG
2000 KG
2000 KG
2450 kg
2450 kg
Wheel Offsets
OE Wheels
OE Wheels
Pos 40, 35, 25, 18
Pos 40, 35, 25, 18
Wheel Load Rating
OE
OE
1225 KG
1225 KG
Tyre Load Rating
OE Tyres
OE Tyres
1250 kg
1250 kg
Requires Wheel/ Tyre Upgrade
NA
NA
✓
✓
Maximum Tyre Size
265/60/r20
265/60/r20
265/60/r20
35x12.5x17
35x12.5x18
35x12.5x20
35x12.5x17
35x12.5x18
35x12.5x20
Item
Part Number
Stage 1
Stage 2
Stage 3
Stage 4
Lift Kit Height
3"
2.25"
3"
2.25"
BDS Control Arms
BDS-128254
✔
✔
✔
✔
Fox 2.5 Performance Elite Coil-over
884-06-318
✔
✔
Fox 2.5 Performance Elite Rear Shock
883-26-139
✔
✔
Fox 3.0 Factory Race Coil-over
883-06-219
✔
✔
Fox 3.0 Factory Rear Bypass Shock
883-26-142
✔
✔
Husky Extenda Flare (Optional for 35" Tyres)
2803926
✔
✔
Rear Coil Options
KTRR-141H 100- 250 KG
✔
✔
KTRR-141HHD 300- 500 KG
✔
✔
Speedo Calibration Tool
ORI-Speedo-Tool
✔
✔
ORI Mud Flap Solution Kit
ORI-Tun-Mudflap
✔
✔
GVM Part Number
TUN-Stage1-GVM
TUN-stage2-GVM
TUN-Stage3-GVM
TUN-Stage4-GVM

GVM Enquiry? Contact us Now
