BDS 3-3 Inch Lift Kit | FOX 2.0 Adventure Series Snap | Toyota Hilux (06-26) N80 N90

Toughen Up Your Hilux N80 N90: BDS Suspension Upgrades (Now at ORI)

Here at ORI, we’re stoked to stock the BDS high-performance suspension upgrades for the Toyota Hilux. If you want to sort out your Lux’s ride quality, beef up its strength, and make it an absolute weapon off-road, this is the gear.

Note: this will work won on the New Toyota Hilux N90 with 4bolt top hat as you will reuse the orginal top hat for installation

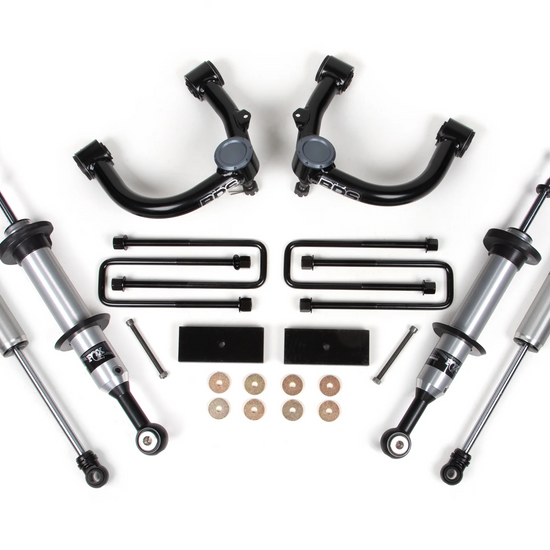

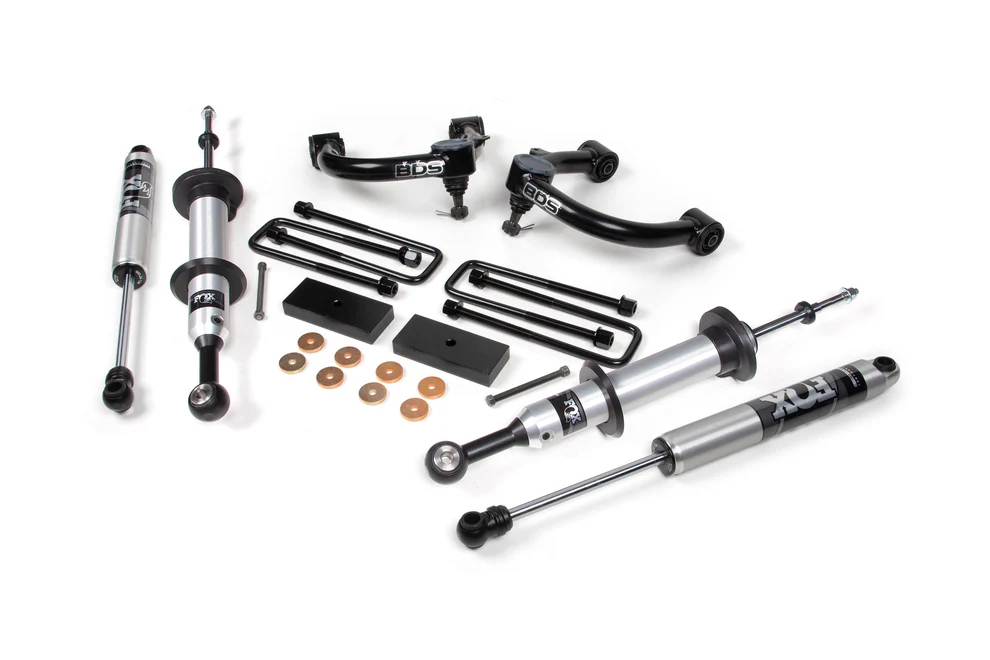

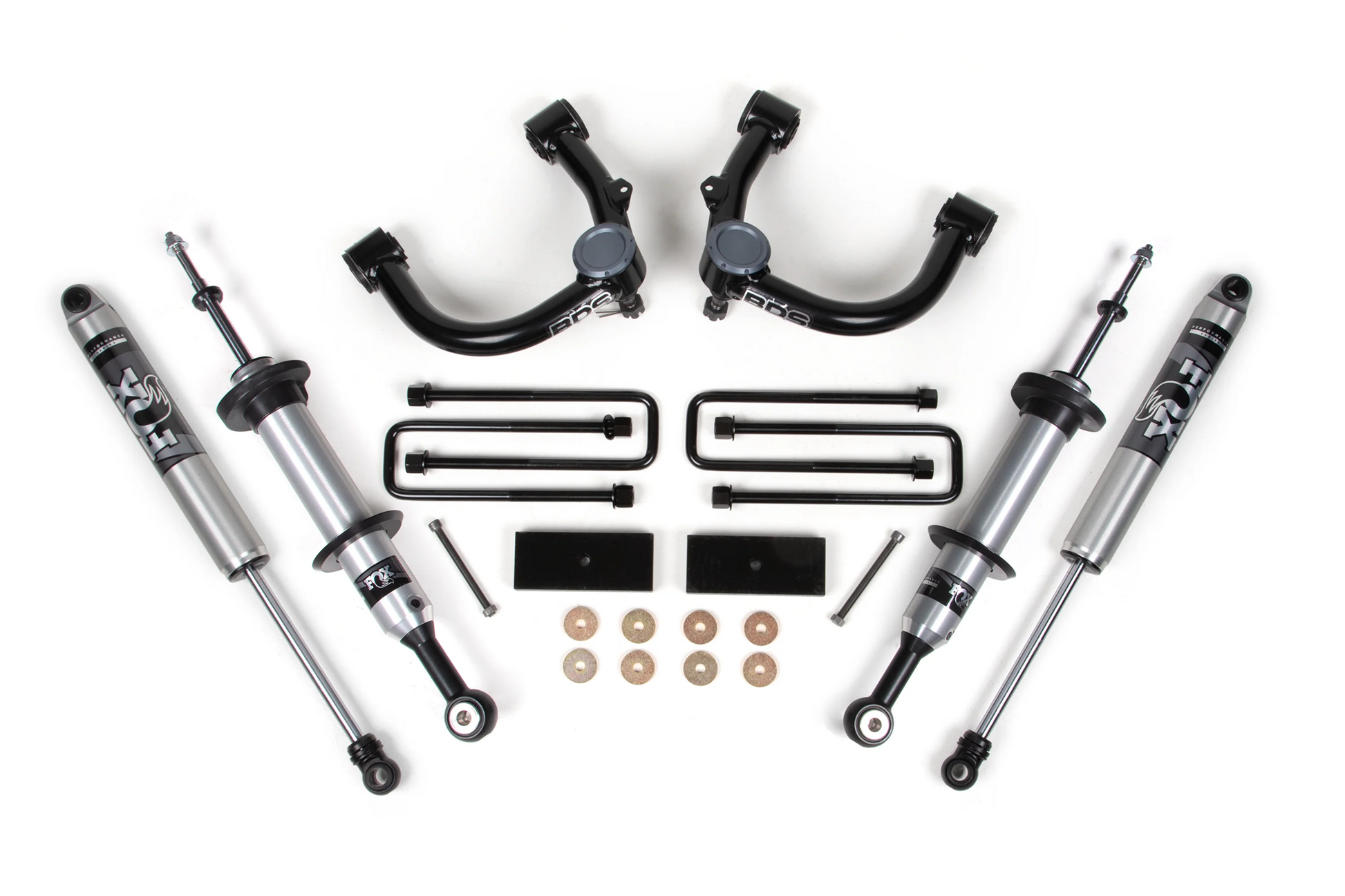

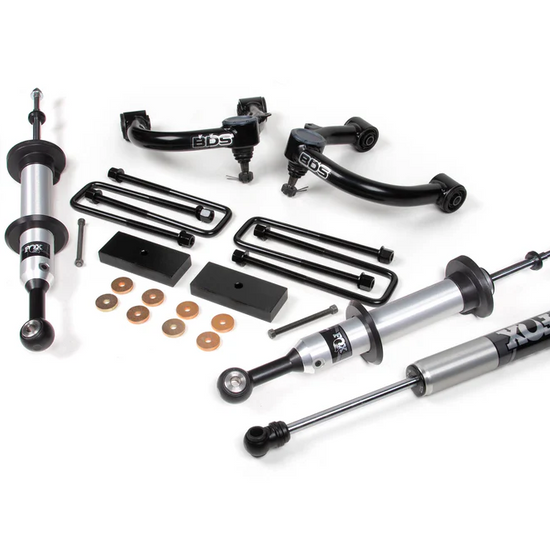

This system pairs heavy-duty BDS upper control arms (UCAs) with your choice of Fox Performance Series coil-over options:

• Fox 2.0 Snap Ring Struts

Every setup is built to handle the rough stuff while giving you better handling and control on the blacktop. Out the back, BDS and Fox Ride Engineering have teamed up to perfectly tune the rear shocks to match the Hilux’s aggressive factory leaf spring rate.

Whether you're loading up the tray for a job, heading off grid for the weekend, or just want a more planted ride around town, this ensures a balanced, responsive feel and maximum performance. It’s the suspension solution the Hilux was always meant to have.

Features & Benefits

• 2-3" of lift (depending on your front coil-over choice).

• Beefy BDS upper control arms to maximize strength and unlock more suspension travel.

• Customisable performance with your choice of Fox coil-over options.

• Front and rear Fox shocks specifically designed and tuned for the Hilux.

• Rear shocks valved perfectly for the factory Hilux leaf springs.

• Dead-set stability and control across all driving conditions, dirt or tarmac.

• Easy, bolt-on installation. * Total peace of mind: Backed by BDS’s legendary No Fine Print Warranty, plus Factory Protection and drivetrain warranty included.

Recommended Tyres & Wheels

(Note: A bit of trimming may be required to clear these)

• 285/70 on 16x8 rims with 4.5 in. Backspace

• 285/70 on 17x8 rims with 4.5 in. Backspace

Deep Dive: FOX 2.0 Performance Series Snap Ring Strut

If you opt for the 2.0 setup, here is what you are getting under the guards:

• 2-inch impact-extruded aluminium body that runs cool and resists rust.

• Internal floating piston (IFP) monotube design.

• CNC machined 6061-T6 aluminium mounting ends.

• Massive 5/8-inch hard chrome plated, heat-treated alloy steel shaft.

• Race-developed high-flow piston design.

• Application-specific valving to squeeze out max performance for your Hilux.

• Long-lasting clear anodised finish to handle Aussie conditions.

• Snap Ring Spring Seat designed to re-use your OEM spring.
