BDS1589FPE

BDS 3 Inch Lift Kit | FOX 2.5 Performance Elite Coil-Over | Ford F150 (14-20) 4WD

BDS 3 Inch Lift Kit | FOX 2.5 Performance Elite Coil-Over | Ford F150 (14-20)

Elevate your 2014-2020 Ford F150 truck with this top-of-the-line 3-inch lift kit, complete with FOX Performance Elite 2.5 coil-over shocks from BDS Suspension. Experience improved stance, performance, and capability as you go higher and bolder, with room for up to 35" tires.

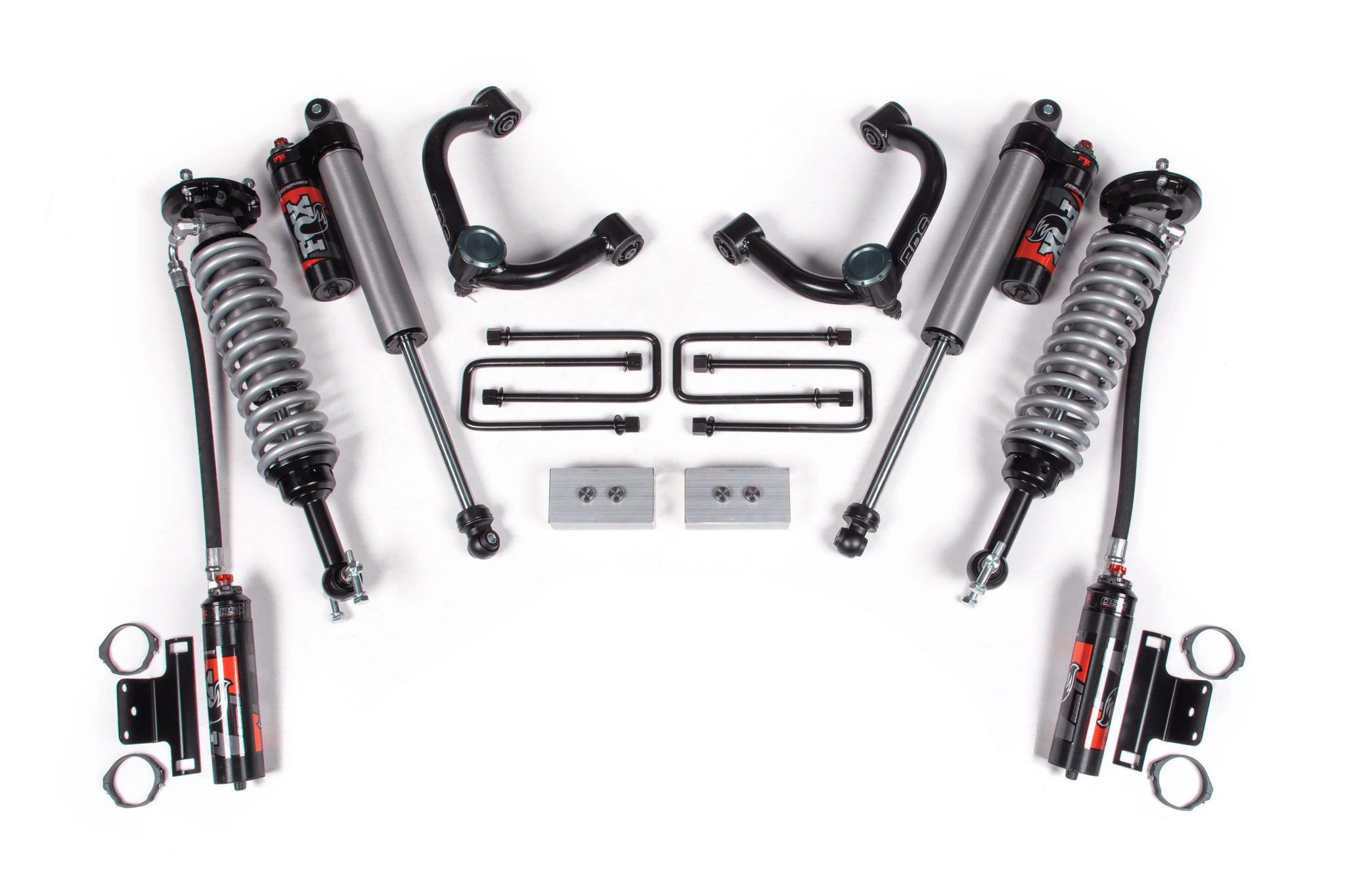

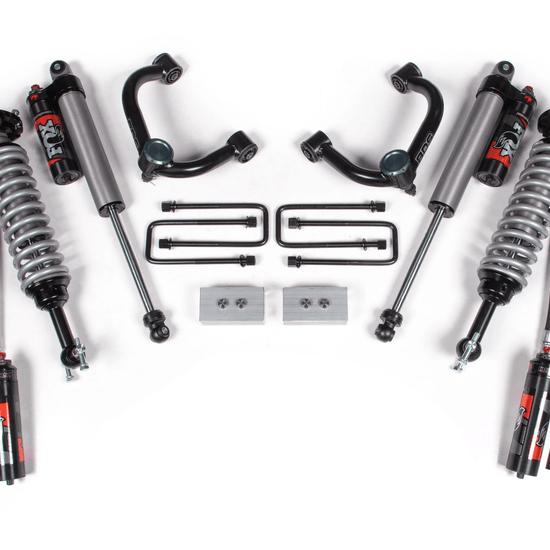

Up front the lift kit includes FOX 2.5 Performance Elite Series remote reservoir coil-over shocks and heavy duty tubular upper control arms for increased strength. In the rear this kit utilizes a complementary set of FOX 2.0 Performance shocks for the smoothest ride.

FOX-021-CMYK-HiRes.png__PID:d54ebeb3-8397-4bf5-9159-569ba3bda665

FOX Performance Elite

FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodised aluminium reservoir to increase cooling efficiency.

HD Upper Control Arms (UCAs)

Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.

Features & Benefits

  • FOX 2.5 coil-over shocks designed specifically for increase travel and the ability to soak up the roughest terrain
  • DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs
  • High clearance crossmembers improve strength and offroad capability
  • Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
  • Top mounted strut spacers to provide lift and install easily
  • Differential skid plate for improved offroad protection
  • Rear lift blocks and u-bolts to lift and level the stance

Recommended Tires & Wheels

(Trimming may be required)

  • 35 x 12.5 with 20 x 9 and 5.5 in. Backspace

Rear Shock Option

FOX 2.5 Performance Elite Series

  • Increased off-road capabilities
  • Easily adjust your shock for terrain, load and speed
  • 2.5-inch Impact extruded aluminium body
  • Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
  • External reservoir design separates shock oil from the high-pressure nitrogen
  • DSC - Dual Speed Compression Adjuster comes standard
  • Fully serviceable for a lifetime of use
  • 1-year Manufacturer's Warranty
