BDS 5 Inch Lift Kit | Toyota Tundra (22-26) 4WD

BDS 5 Inch Lift Kit | Toyota Tundra (22-26) 4WD

Elevate your 2022–2026 Toyota Tundra 4WD to stratospheric heights—literally and figuratively—with the BDS 5-inch suspension lift kit, engineered with FOX 2.5 Performance Elite coil-overs that transform your truck from "nice weekend warrior" to "absolute terrain-conquering legend." This comprehensive system pairs aluminium-bodied FOX 2.5 PE coil-overs with precision-machined steering knuckles, heavy-duty skid plates, and progressive-rate rear coil springs, delivering the perfect marriage of aggressive stance and refined on-road manners. Whether you're clearing 37-inch rubber or simply want your Tundra to command respect in any parking lot, BDS has engineered every component—from the high-clearance crossmembers to the DSC-adjustable remote reservoirs—to ensure your truck performs as impressively as it looks. Factory Protection Plus warranty included, because we're confident enough to back our work.

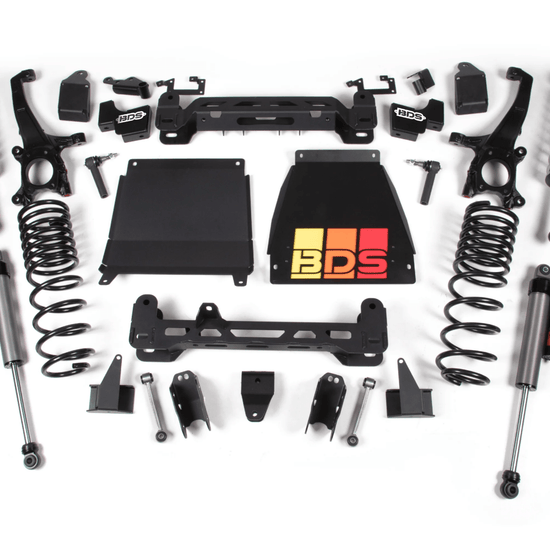

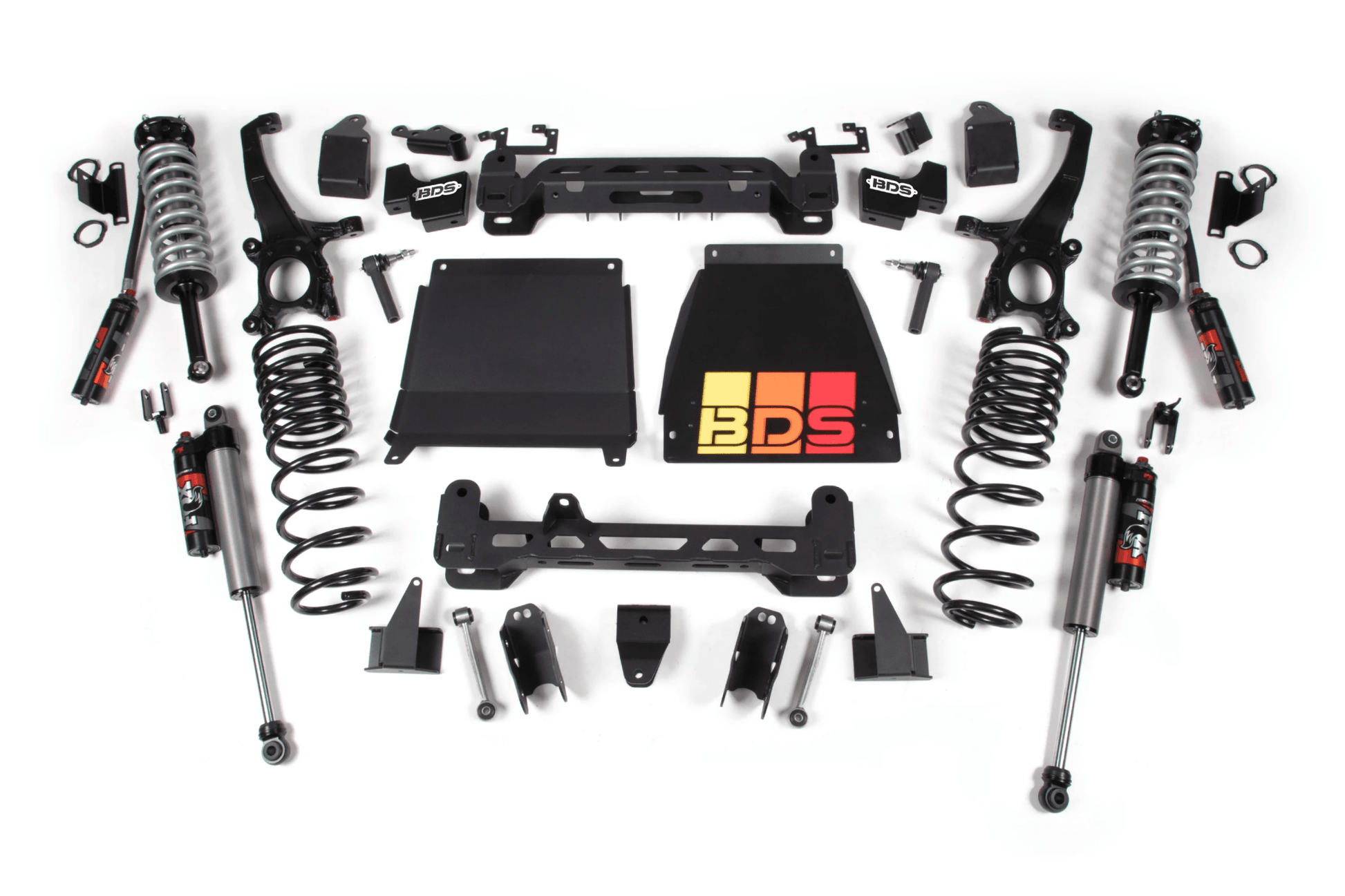

This kit takes advantage of BDS's tried-and-true high-clearance architecture for improved ground clearance, strength, and off-road protection, while correcting suspension and steering geometry for great on-road handling characteristics. Up front, this kit pairs the FOX 2.5 PE coil-overs with high-arched, 1/4-inch thick steel crossmembers, while properly relocating the front differential to correct CV operating angles and protect it with heavy-duty, laser-cut skid plates featuring the iconic tri-color stripe backing plate. Steering geometry is corrected at the new, taller ride height with CNC-machined ductile iron steering knuckles, along with highstrength tie rod ends, allowing for improved control and ESC system compatibility. These, combined with the provided sway bar drops, bump stop extensions, brake line brackets, FOX reservoir mounts, and supplied hardware packs, provide a comprehensive front suspension lift ready for whatever you throw at it. In the rear, this kit utilizes a pair of ProRide coil springs, a track bar relocation bracket, extended sway bar links, and control arm brackets to lift and level the stance while maintaining suspension geometry and load capacity. For shocks, you have the option of FOX 2.0 IFP Performance Series gas shocks or an upgrade to the FOX 2.5 Performance Elite (PE) Series piggyback reservoir shocks to match the front and further enhance vehicle performance and adjustability.

FOX 2.5 PE Coil-Overs

FOX 2.5 Performance Elite (PE) coil-overs offer next-level performance for both on-road comfort and off-road capability. Tuned and ready to install right out of the box, these aluminum-bodied FOX 2.5-inch diameter coil-overs are the latest iteration of FOX suspension technology, built for durability. Their lighter design, better heat dispersion, and race-proven components make them the best all-around product. These include DSC (Dual Speed Compression) adjusters on the remote reservoir for additional fluid capacity and high-speed/low-speed compression tuning, allowing you to easily dial in performance to match any terrain with the turn of the knobs.

HD Components

All BDS kits come with a No Fine Print Warranty, and to ensure our kits are the best they can be, we use high-strength American steel, high-clearance, fully welded crossmembers, the latest manufacturing processes, and quality inspection at every step of the way. Get the most out of your truck with BDS Suspension and FOX.
