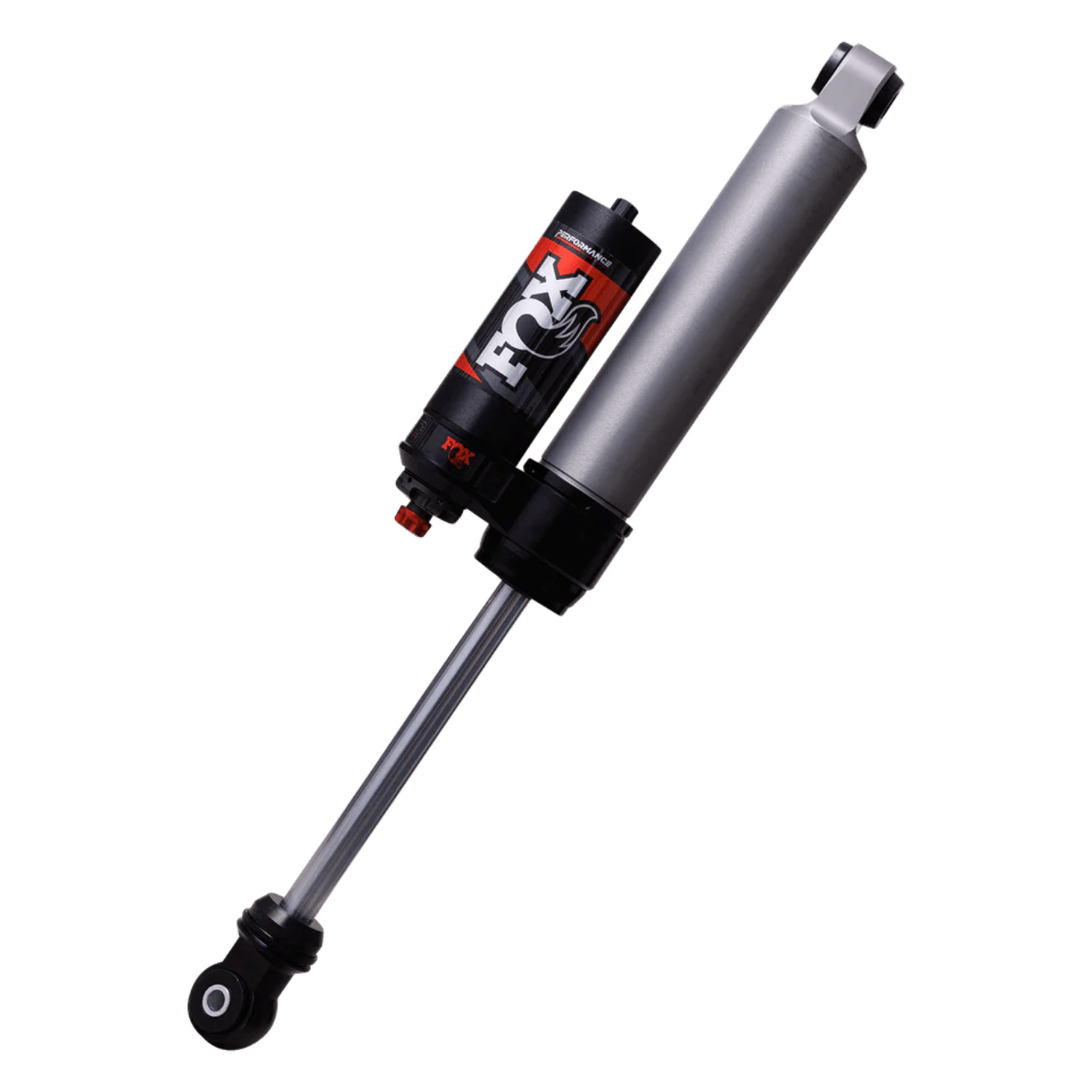

FOX FORD RANGER PX3 PERFORMANCE ELITE SERIES 2.5 REAR RESERVOIR SHOCK - ADJUSTABLE
-
Shipping Calculated on checkout
Competitive Pricing
FOX FORD RANGER PX3 PERFORMANCE ELITE SERIES 2.5 REAR RESERVOIR SHOCK - ADJUSTABLE
Flatten that aggressive nose-dive with FOX Performance Elite 2.5 shocks designed for your Ford Ranger PX3. These adjustable rear reservoir units deliver a level stance while keeping full droop travel intact—no compromises. Your suspension gains serious articulation for tackling gnarly terrain, giving your truck the poise and capability it deserves.

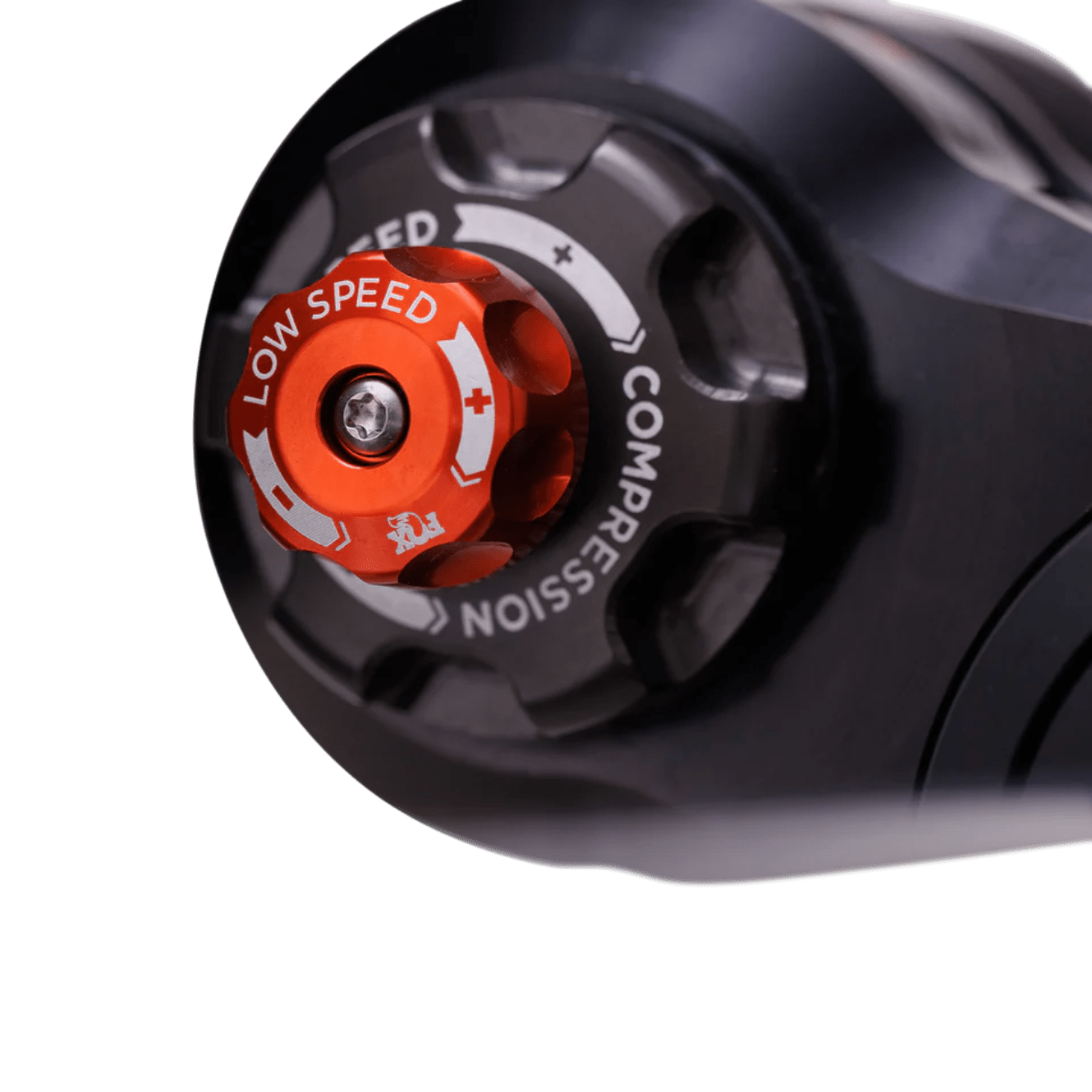

Type III anodisation prevents corrosion and wear of the 2.5-inch aluminium bodies. External reservoirs increase oil capacity and decrease the harshness associated with nitrogen ramp-up. Each reservoir features a Dual Speed Compression (DSC) adjuster strategically mounted to eliminate interference with aggressive tires at full lock.
Performance Elite Series 2.5 shocks provide versatility without compromise to navigate rough terrain and enhance on-road manners while remaining comfortable and in control.
| PART NUMBER | 883-26-154 |
| FEATURES |
2.5" impact-extruded and CNC-machined 6061-T6 Type III anodised aluminium body 7/8" hard chromed steel shafts Vehicle-specific tuning maximises performance Redundant sealing pack system: main seal, wiper seal, scraper seal External reservoir, with DSC adjuster |
| SERIES | Performance Elite |
| TRAVEL | 9.68 |
| BODY | 2.5" impact extruded and CNC machined 6061-T6 hard anodised aluminium body resists rust over time |
| BODY PLATING | Hard-anodised for a durable finish |
| COMPONENTS | Black-anodised, CNC-machined 6061-T6 billet aluminium |
| SHAFT | 7/8" hard chrome plated heat-treated alloy steel |
| PISTON | Race-developed high-flow piston design |
| EXTENDED LENGTH | 25.81 |
| COMPRESSED LENGTH | 16.13 |
| TOP MOUNT | Eyelet |
| BOTTOM MOUNT | Eyelet |
| FITMENT NOTES | Does not fit North American Ford Ranger |
