Fox Performance Series 2.0 Suspension DT RAM 1500

Fox Performance Series DT RAM 1500 2"

Experience the ultimate in suspension technology with our bolt-on, Performance Series Coil-over IFP shock. Packed with advanced features and cutting-edge technology, this shock stands out from the rest. Its metal impact extruded aluminum body provides superior cooling and is resistant to rust, while the vehicle-specific upper mount boasts a composite bushing that eliminates noise and vibration. Upgrade your ride with Fox Performance Series 2.0 Suspension DT RAM 1500.


Locking, spring preload rings that allow easy ride height and preload adjustment retain a top quality racing coil, selected to deliver the optimal spring rate. Performance Series Coil-Over IFP shocks bolt on with no modifications and are designed to level your truck front-to-rear. Applications are available for stock and lifted trucks that re-use the stock shock.

Inside is an internal reservoir with Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving. The easy-to-install, Performance Series 2.0 Coil-over IFP provides a comfortable on-road ride and predictable off-road handling in even the toughest conditions.

Vehicle Suitability

  • DT RAM 1500 laramie 2019 - 2024
  • *Will not suit Limited models with factory air.

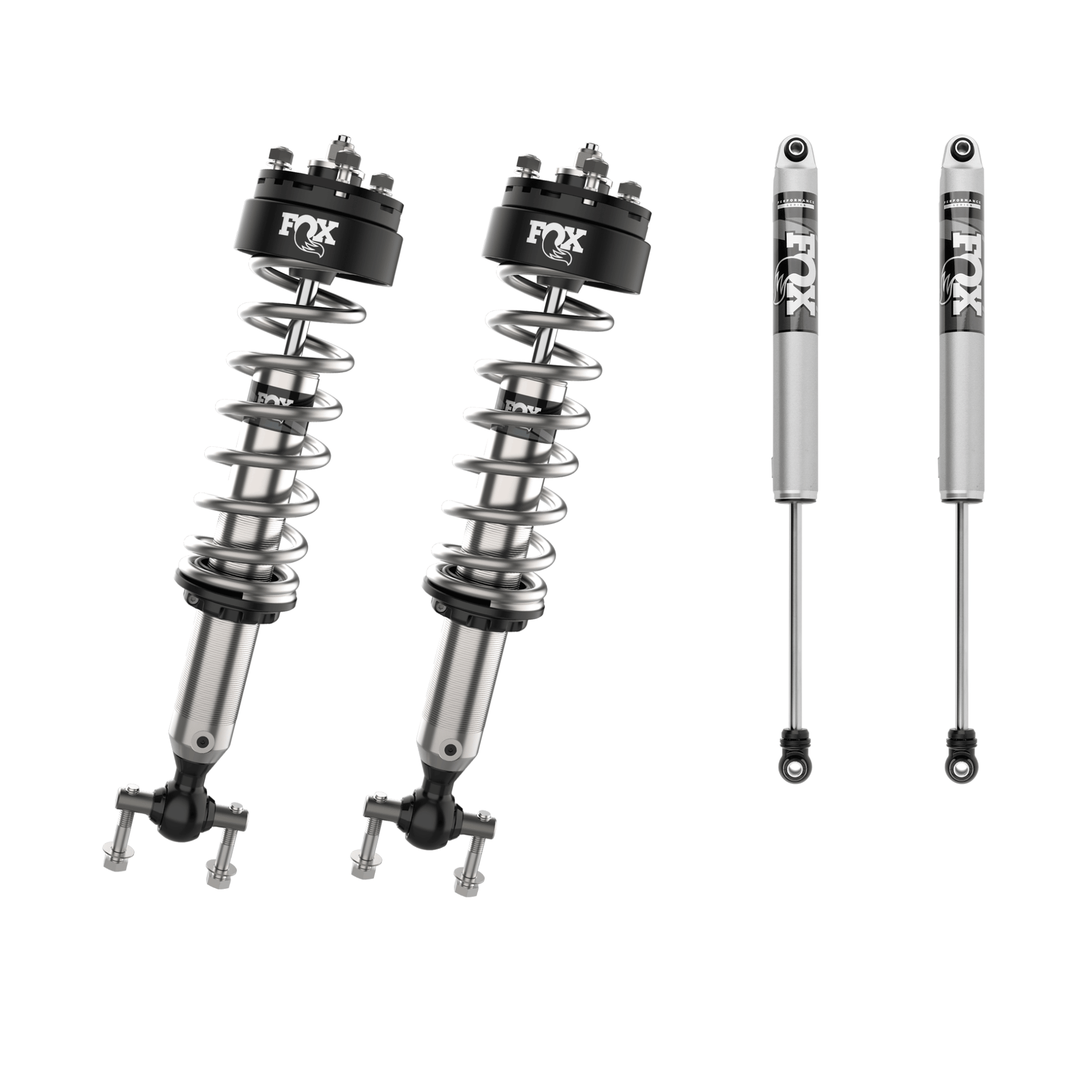

What Included FOX Performance Series DT RAM 1500 kit

  • 985-02-136 x Pair
  • 985-24-231 x Pair


Body 2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
Body Plating Clear-anodized for a durable finish
Reservoir Internal IFP mono-tube reservoir design
Components Black-anodized, CNC-machined 6061-T6 billet aluminum
Shaft 5/8" hard chrome plated heat-treated alloy steel
Piston Race-developed high-flow piston design
Valving Application specific valving to maximize performance
Seals Redundant sealing pack system main seal, wiper seal, scraper seal
Bearing Large diameter, heavy-duty spherical
Adjustments Ride height preload ring
Extended 20.860
Compressed 15.460
Travel 5.390
Top Mount OEM
Bottom Mount Clevis
Fitment notes Does Not Fit Air Ride Models
