883-06-113

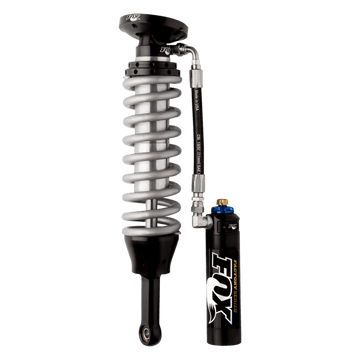

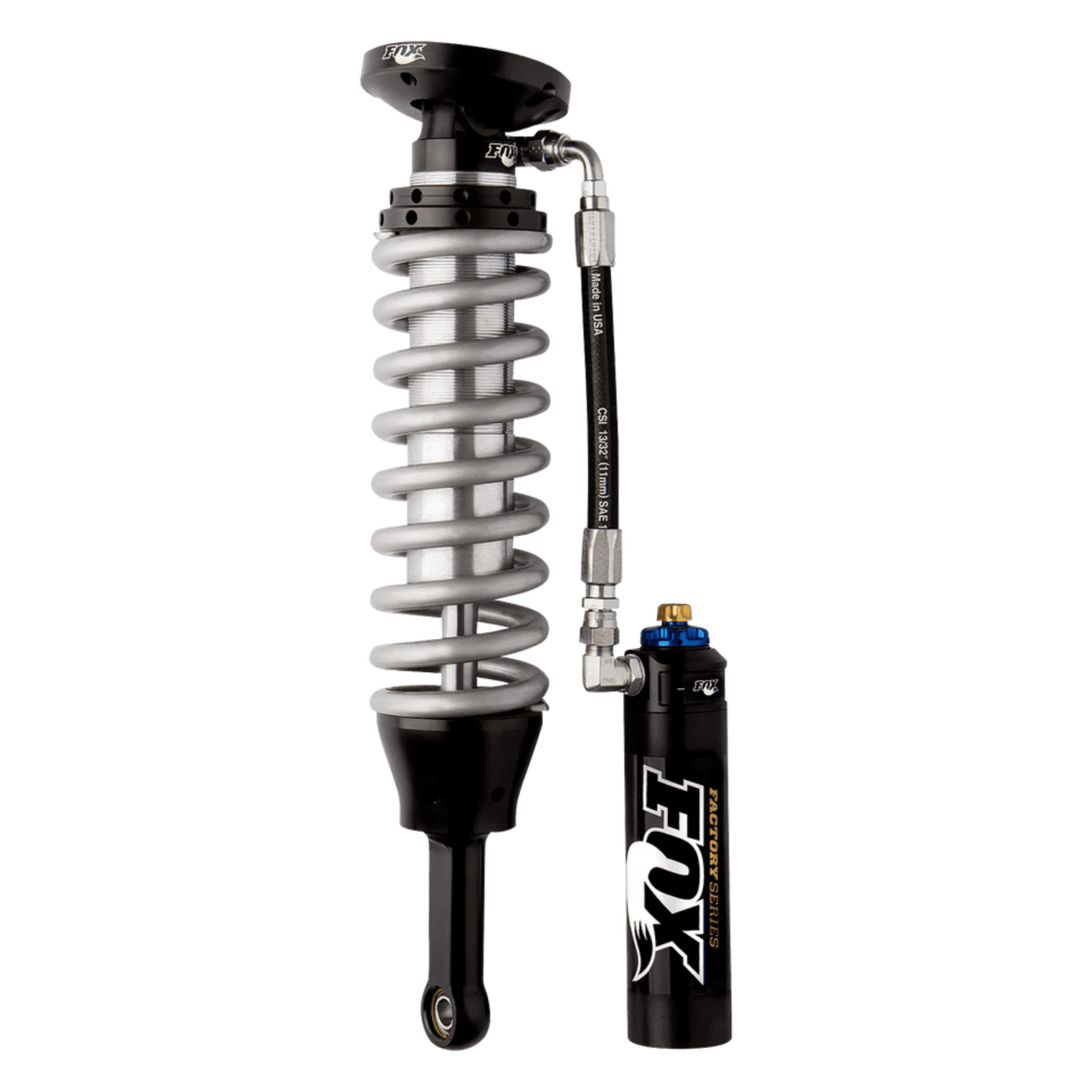

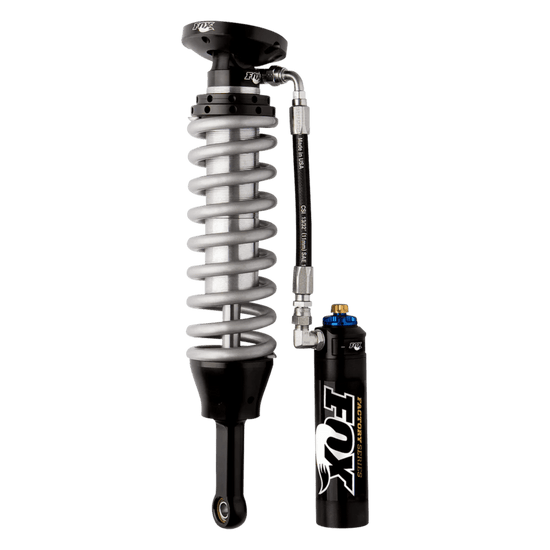

Fox TOYOTA LAND CRUISER | 2.5 FACTORY RACE SERIES 08 - 21

Every Fox shock undergoes rigorous testing by elite racing athletes before reaching your hands. We've pushed performance limits to deliver the exact control and race-validated quality you'll instantly notice. Our Factory Race Series Coil-over Reservoir shocks for your Toyota Land Cruiser bolt on with ease, delivering superior damping across all terrains—from rocky trails to smooth highways. Experience the difference that champions demand.

Coil-over shocks provide suspension damping and suspend the weight of the vehicle. The integrated coil spring can be adjusted for preload and ride height and come pre-set to level your vehicle right out of the box. Experience for yourself the incredible performance and precise control that Factory Series Coil-over Reservoir shocks deliver.



PART NUMBER 883-06-113
FEATURES Performance Tuned For Vehicle Specific Application; Durable Zinc Plated Seamless Alloy Body; External Reservoir System Dissipates Heat Fast; Black Anodized CNC Machined Aluminum Components
SERIES Factory Race
TRAVEL 5.46
FRONT LIFT HEIGHT 0-2
BODY 2.5” smooth bore zinc plated seamless steel body
BODY PLATING Zinc-plated and double-clear coated for long lasting finish
RESERVOIR 2.5" Smooth bore and honed seamless alloy reservoir
COMPONENTS Black-anodized, CNC-machined 6061-T6 billet aluminum
SHAFT 7/8" hard chrome plated steel shafts
PISTON 6061-T6 hard-anodized, high flow aluminum piston
VALVING Application specific valving to maximize performance
SEALS Redundant sealing pack system main seal, wiper seal, scraper seal
BEARINGS PTFE-lined, heat-treated, alloy steel spherical
EXTENDED LENGTH 23.01
COMPRESSED LENGTH 17.55
TOP MOUNT TM
BOTTOM MOUNT Eyelet
FITMENT NOTES 200 Series
SPRING RATE Application specific, adjustable 3.0 Eibach® racing springs
