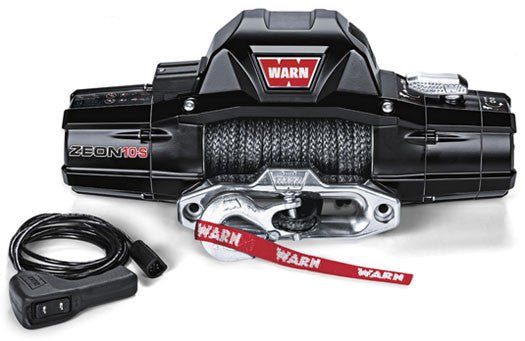

WARN ZEON 10-s Winch Sythentic Rope

Warn

  • 1,99995
  • Save $80005


Offroad Industries are now distributors of Warn Winches, we are now able to offer you these great winches and ship anywhere in Australia.

About the Warn ZEON 10-S

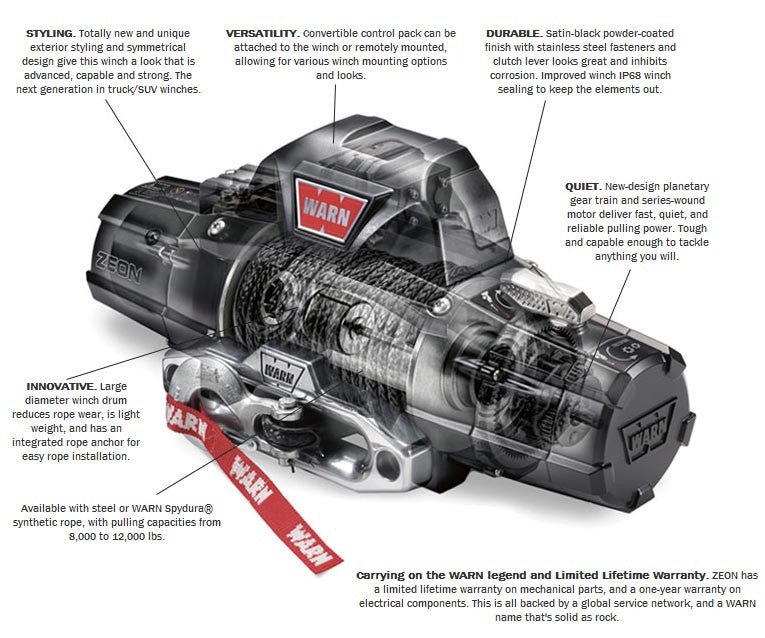

Choose your way to conquer the terrain. The ZEON 10-S is tough enough to tackle anything you will, with a look that is advanced, capable and strong. Muck-busting sealing keeps out everything but the good times. Add a hyper-durable cast-aluminum housing, satin-black finish, and 10,000 lbs. single-line pulling capacity and, well, you've got a workhorse unit you can trust for years to come.

  • 10,000 lb. (4536 kg) single-line pulling capacity.
  • Includes 100' of 3/8" WARN Spydura synthetic rope, a temperature-resistant sleeve on the first layer, a ballistic nylon sliding sleeve for abrasion resistance, and a polished aluminum hawse fairlead
  • Convertible control pack can be attached to the winch or remotely mounted, allowing for various winch mounting options and looks. (Relocation kit required and sold separately*)
  • Updated planetary gear train and series-wound motor deliver fast, quiet, and reliable pulling power.
  • Satin-black powder-coated finish with stainless steel fasteners and clutch lever looks great and inhibits corrosion. Improved winch sealing to keep the elements out.
  • Large diameter winch drum reduces rope wear, is light weight, and has an integrated rope anchor for easy rope installation.
ON 10-S SPECS/PART NUMBER
Part number: 89680 (for International sales only)
Rated line pull: 10,000 lbs. (4536 kg) single-line
Motor: 12V DC, series wound
Electrical controls: Contactor
Remote Control: Remote switch, 12' (3.7m) lead
Geartrain: 3-stage planetary
Gear ratio: 216:1
Clutch (freespooling): Rotating ring gear
Brake: Automatic mechanical cone
Drum diameter/Length: 3.15"/9.0" (80mm/229mm)
Weight (kit shipping): 75 lbs. (34 kg)
Rope: 3/8" x 100' (9.5mm x 30.5m) Spydura synthetic
Fairlead: Hawse
Recommended Battery: 650 CCA minimum for winching
Battery leads: 2 gauge, 72" (1.83m)
Finish: Satin-black powder coat
12V DC PERFORMANCE SPECS
Line Pull
Lbs.(Kgs.)
Line Speed
FT./min(M/min.)
Motor
Current
Pull by layer
layer/Lbs(Kgs.)
0 33 (10.27) 62 amps 1/10000 (4536)
2000 (910) 14.9 (4.5) 144 amps 2/8245 (3740)
4000 (1810) 11.2 (3.4) 215 amps 3/7014 (3181)
6000 (2720) 8.5 (2.6) 380 amps 4/6103 (2768)
8000 (3630) 6.5 (2.0) 353 amps
10000 (4536) 4.8 (1.5)

409 amps





Winch Dimensions:
Integrated configuration: 24.25" L x 7.15" D x 10.52" H
(615.9mm L x 181.6mm D x 267.1mm H)
Low-profile configuration: 24.25" L x 7.15" D x 7.84" H
(615.9mm L x 181.6mm D x 199.02mm H)

Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)
