8.5" Stealth R Series LED Driving Lights


Plug and Play

9200 LM

(Each Light)

Waterproof IP69K

3 year warranty





  • The Stealth R Series difference - The new Stealth r series driving lights, are an entry level driving light that pack powerful punch without the price. They feature AR OPTICS lens using combination beam output which provides excellent coverage.
  • Dust & Waterproof - Stealth Light bars have been tested in laboratories to have be given IP69K certification from dust and water ingression.
  • 5700 Kelvin Colour temperature, is a subtle white light reducing glare on road sign and less fatigue on your eyes.
  • Interference Free - Its been discussed in depth cheaper light bars cause a lot of radio interference Stealth LED Lights rated to CISPR25, What Does that mean ? It will not cause issues with the FM/AM radio or UHF.
  • Durability - The Stealth Series LED Light bars, are finished with a specific DU PONT Coating thats been salt spray tested and UV Stable.


  • LED – 5w Genuine OSRAM LED's.
  • Effective Lumens - 9200 Lumens
  • Voltage – 9-36V DC
  • Warranty – 3 Year Replacement Warranty
  • Amps   7A @ 12V DC
  • Power - 92w
  • Beam Pattern – Combination.
  • Lense - Genuine GE LEXAN
  • IP Rating – IP69K – Waterproof up to 3 meters
  • Colour Temperature - 5700 Kelvin
  • Connections – Waterproof Deutsch® connector
  • Wiring – Quick Fit Plug and Play Harness with H4 & HB3 connectors included.
  • Housing Material – 6063 Heavy Die Cast Aluminium Housing.
  • Mounting Brackets – Marine Grade Stainless Steel 316
  • Polarity – Reverse Polarity Protection
  • Interference – Rated CISPR25 Standard
  • Weight - 2.2Kg Each
  • Photo Metric - 1 LUX 950 Meters


 What's supplied inside the box

  • 2x Stealth R Series LED Driving Lights

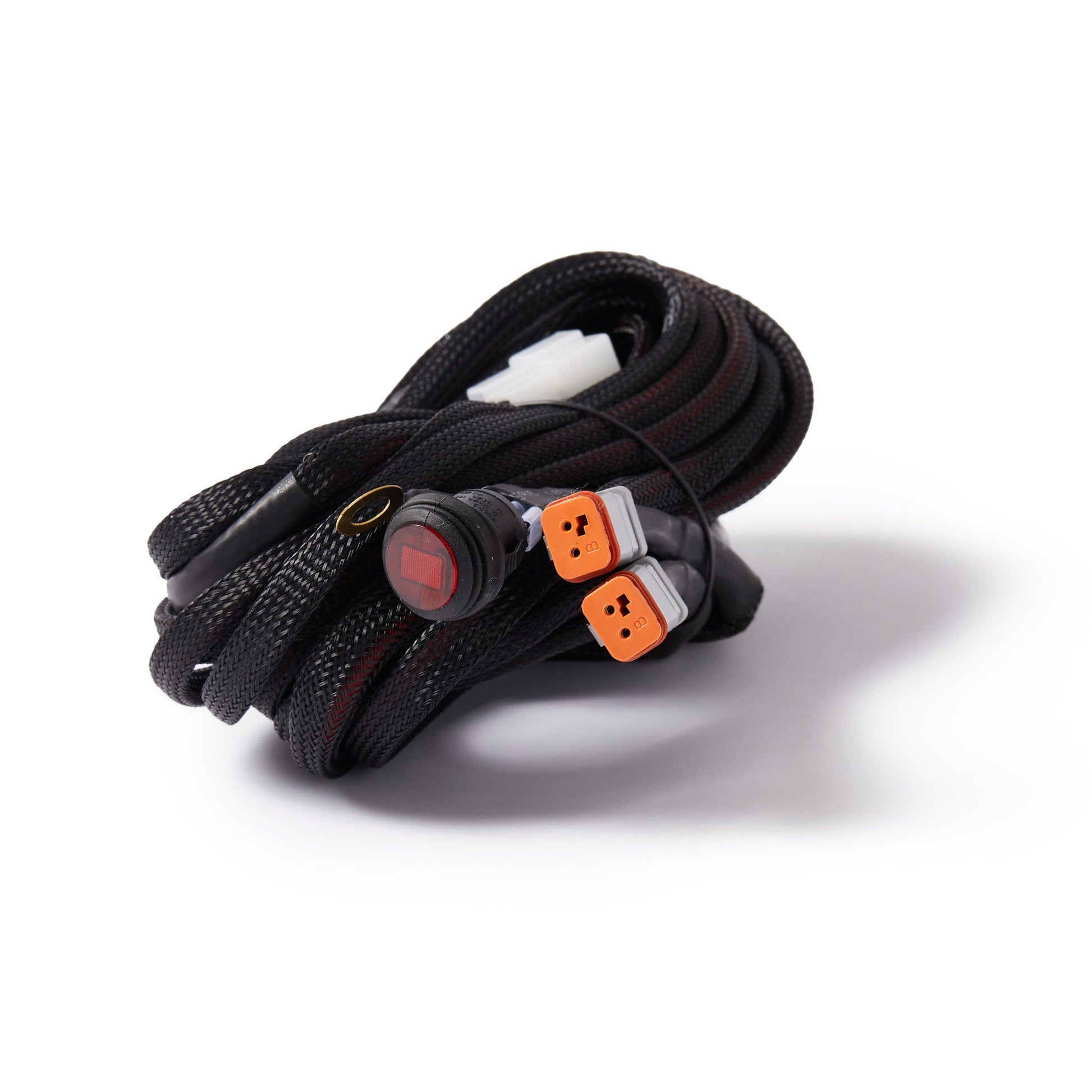

  • 1 x Quick Fit Plug & Play Wiring Harness, with two deutch connectors to connect two driving lights. H4 & HB3 Quick installation connectors.
