BDS840PES

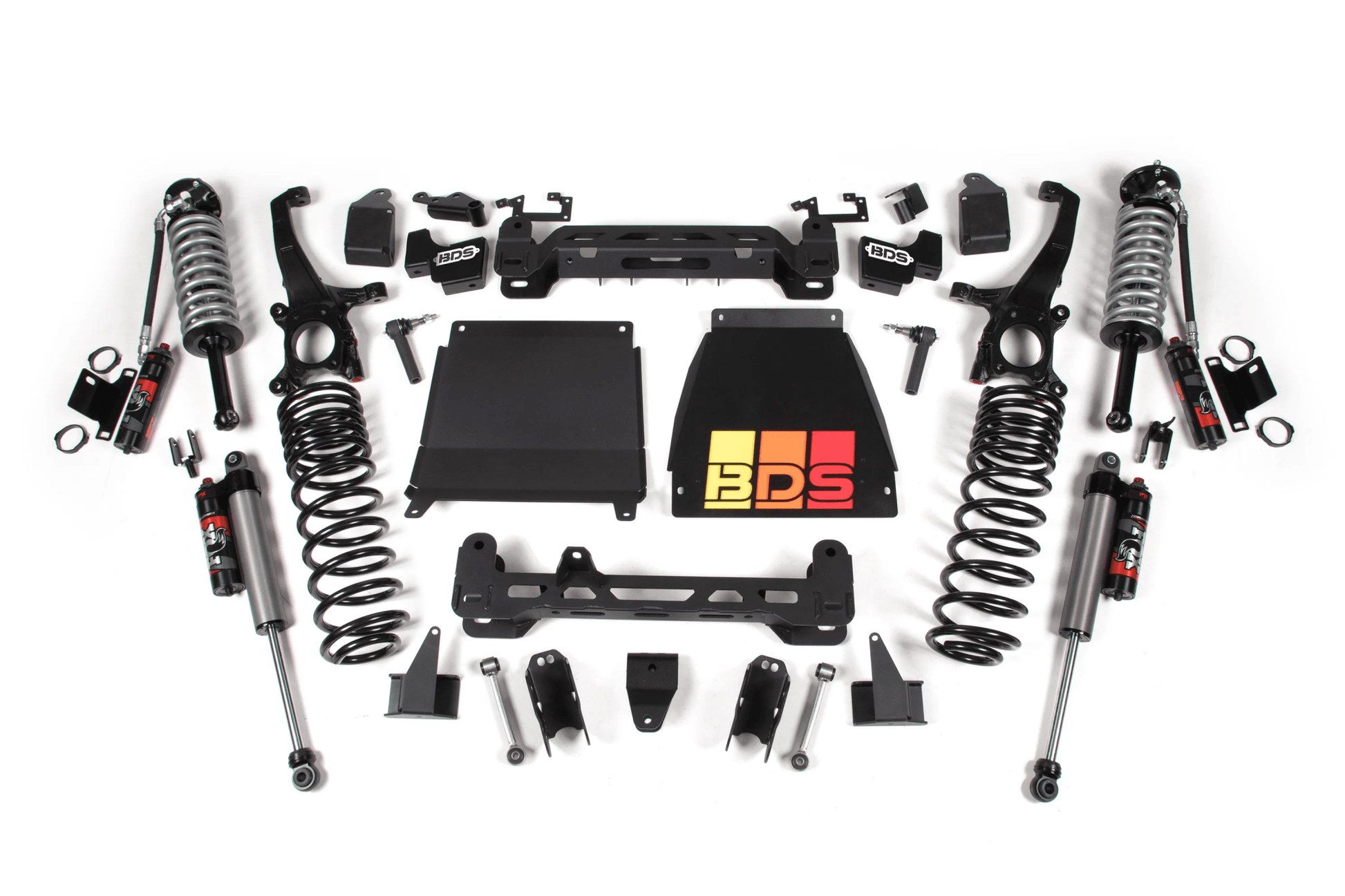

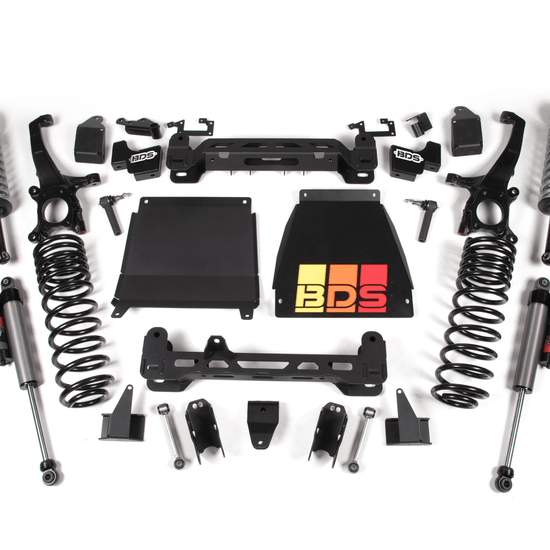

BDS 7 Inch Lift Kit | Toyota Tundra (22-25) 4WD

BDS 7 Inch Lift Kit | Toyota Tundra (22-25) 4WD

Transform your Toyota Tundra into the ultimate powerhouse with the BDS 7-inch lift kit equipped with FOX 2.5 Performance Elite coil-overs and shocks. This kit features top-of-the-line aluminum-bodied FOX 2.5 Performance Elite coil-over shocks, engineered for easy installation and impressive performance on any terrain. Increase your truck's travel, adjustability with DSC, and heat dispersion, giving you the confidence to conquer the toughest off-road challenges. Elevate your stance, improve performance, and unlock the potential of your truck with BDS and clear space for tires up to 37 inches.

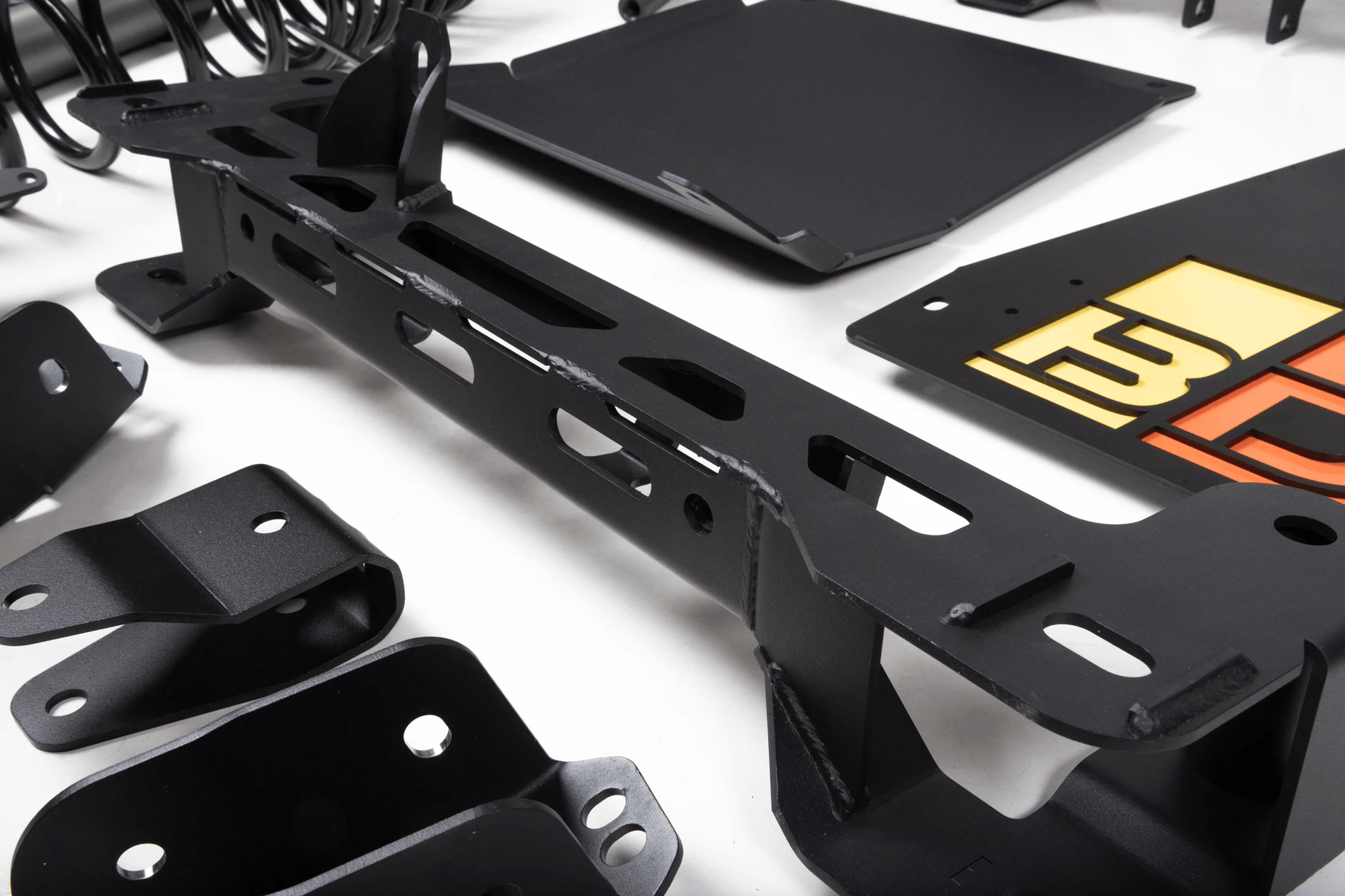

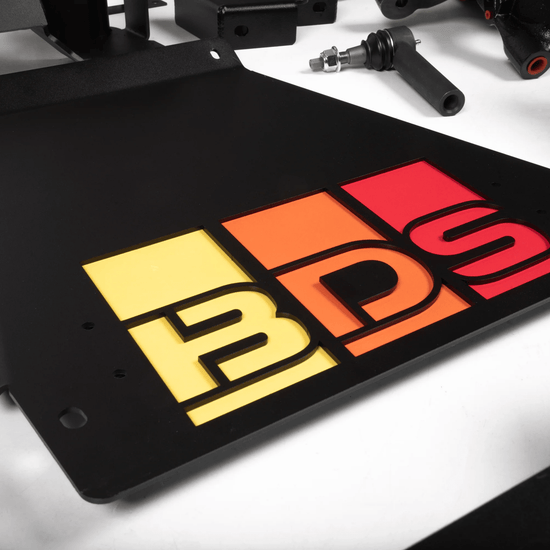

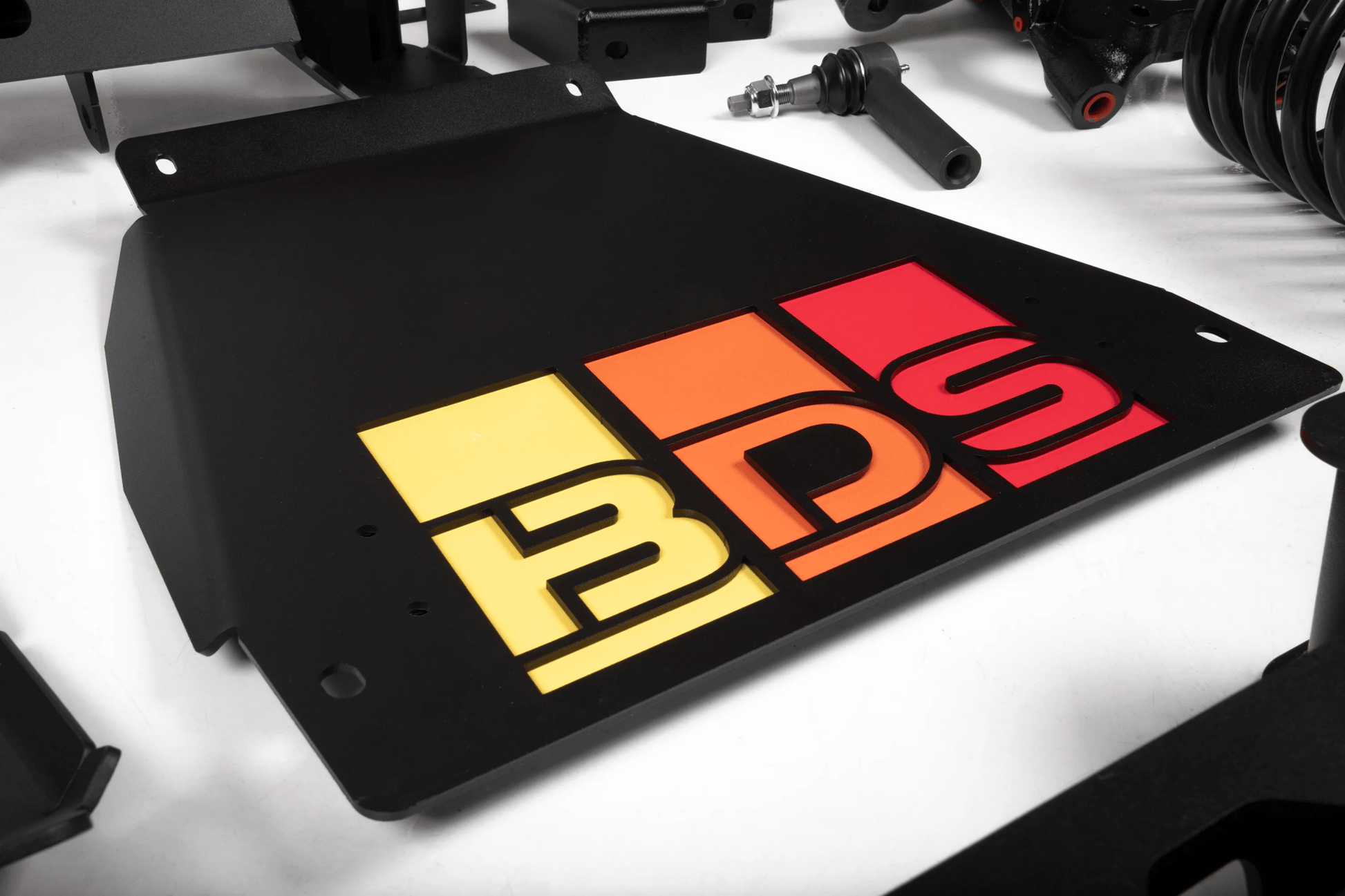

This kit takes advantage of BDS's proven high-clearance architecture for improved ground clearance, strength, and off-road protection, while correcting suspension and steering geometry for excellent on-road handling characteristics. Up front, the kit pairs the FOX 2.5 PE Coil-Overs with high-arched, 1/4-inch thick steel crossmembers, properly relocating the front differential to correct CV operating angles and protecting it with heavy-duty, laser-cut skid plates featuring the iconic tri-color stripe backing plate. Steering geometry is corrected at the new, taller ride height with CNC-machined ductile iron steering knuckles and high-strength tie rod ends, improving control and ESC system compatibility. These, along with the provided sway bar drops, bump stop extensions, brake line brackets, FOX reservoir mounts, and hardware packs, create a comprehensive front suspension lift ready for any challenge. In the rear, the kit utilizes a pair of ProRide coil springs, a track bar relocation bracket, extended sway bar links, and control arm brackets to lift and level the stance while maintaining suspension geometry and load capacity. For shocks, you have the option of FOX 2.0 IFP Performance Series gas shocks or an upgrade to the FOX 2.5 Performance Elite (PE) series piggyback reservoir shocks to match the front and further enhance vehicle performance and adjustability.

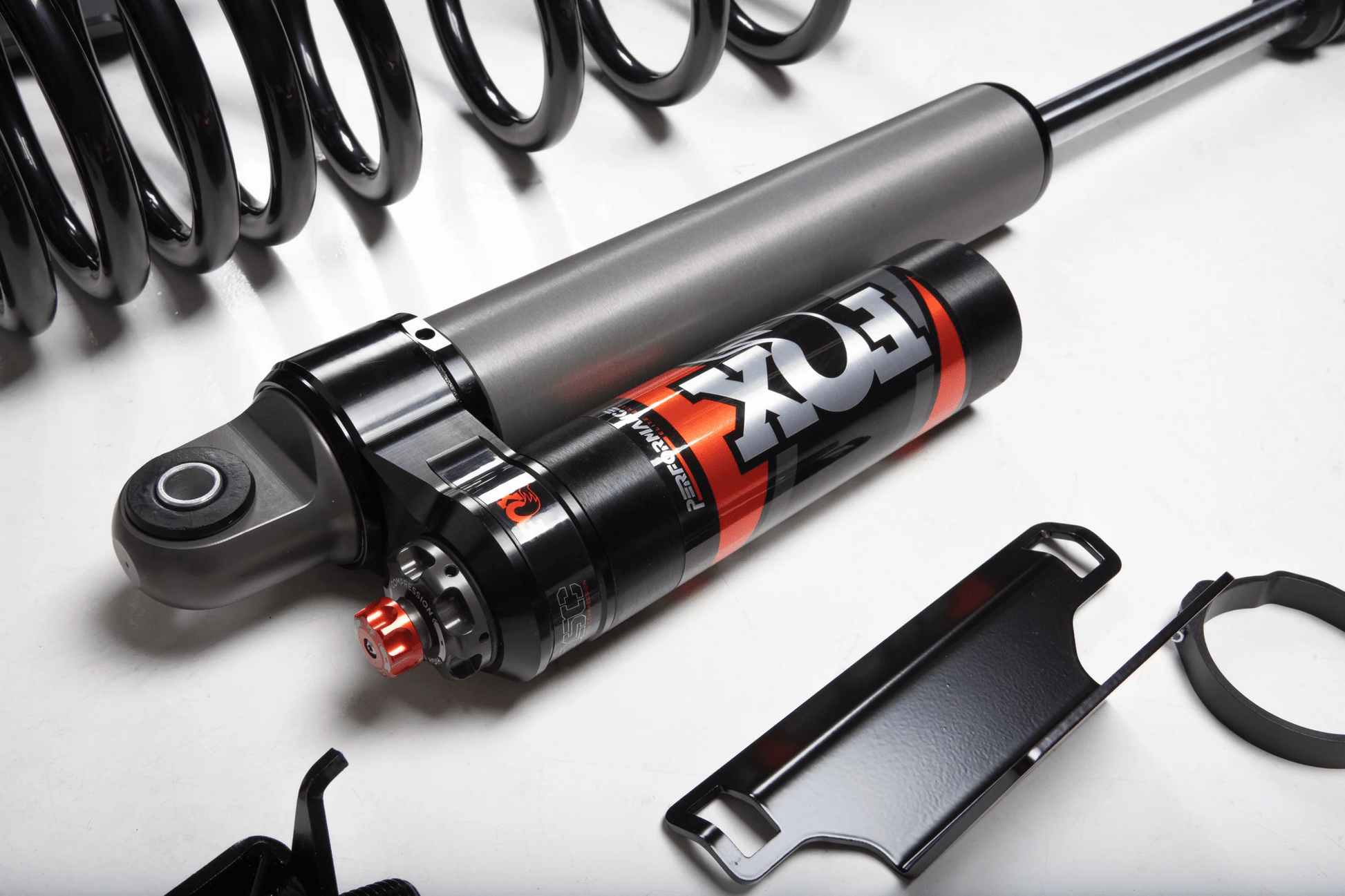

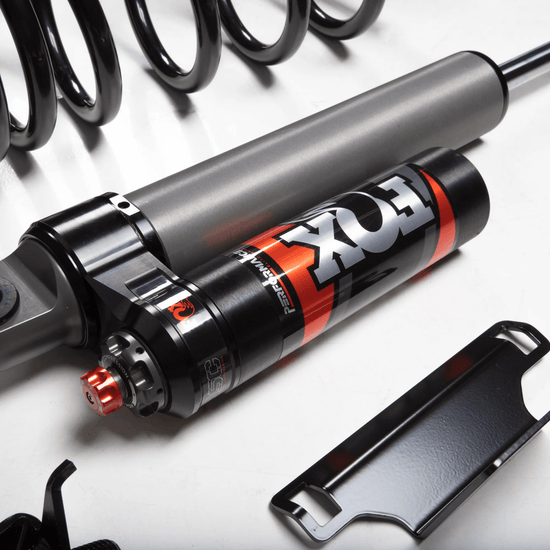

FOX 2.5 PE Coil-Overs

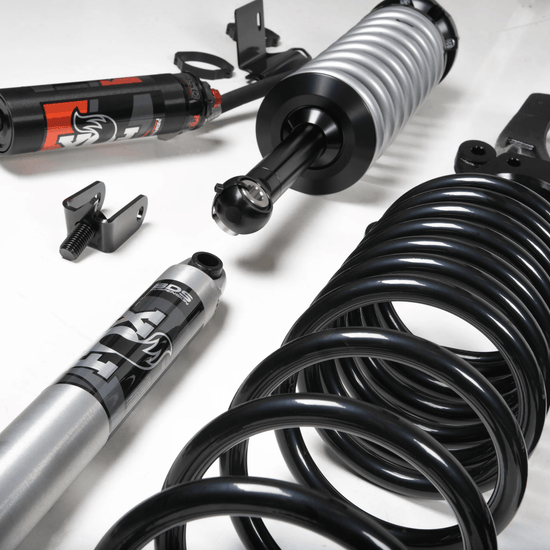

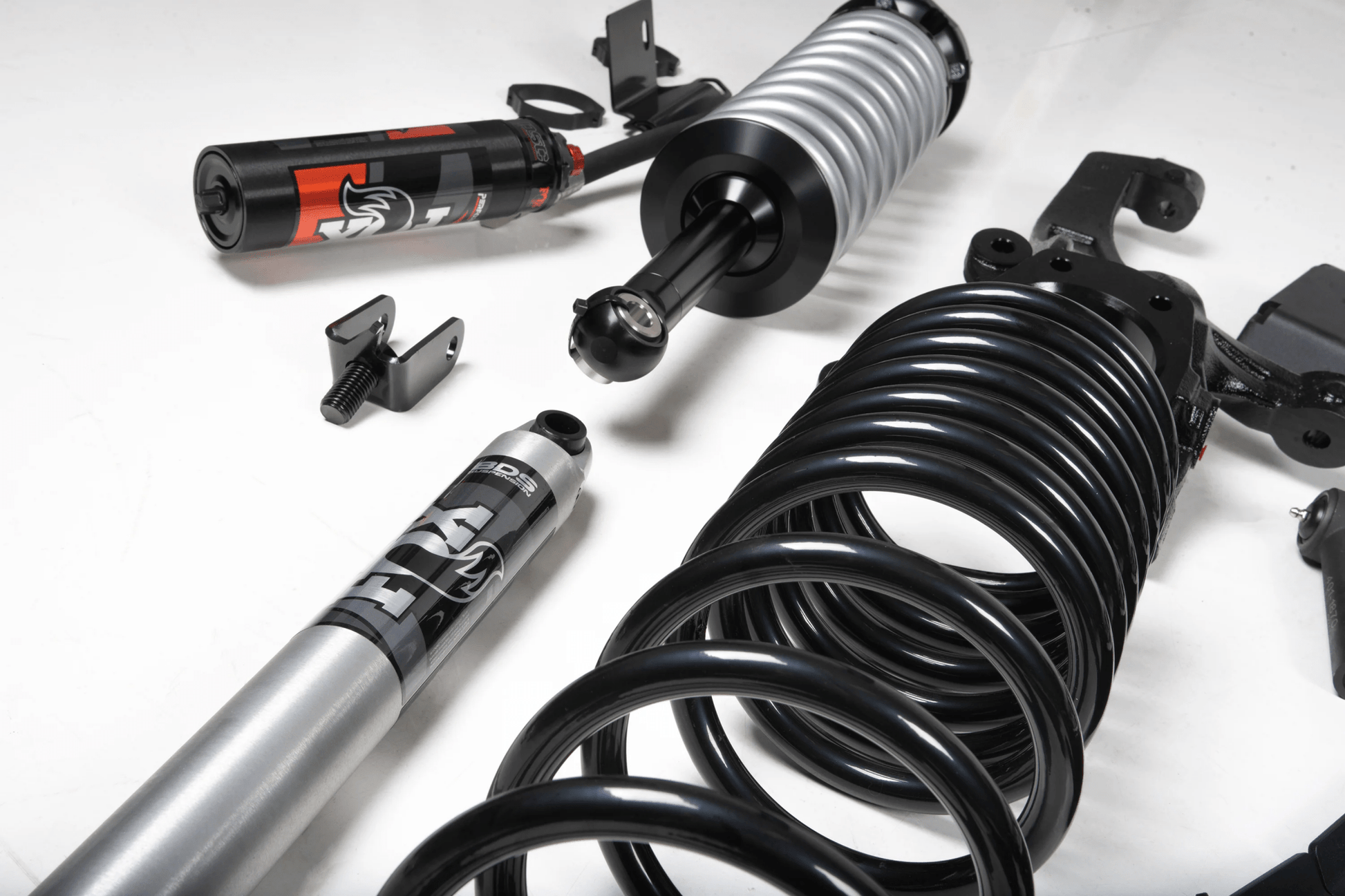

FOX 2.5 Performance Elite (PE) coil-overs offer next-level performance for both on-road comfort and off-road capability. Tuned and ready to install right out of the box, these aluminum-bodied, 2.5-inch diameter coilovers are the latest iteration of FOX suspension technology, built to withstand tough conditions. Their lighter design, improved heat dispersion, and race-proven components make them the best all-around product. These coil-overs feature DSC (Dual Speed Compression) adjusters on the remote reservoir for additional fluid capacity and high-speed/low-speed compression tuning, allowing you to easily dial in performance to match any terrain with a simple turn of the knobs.

HD Components

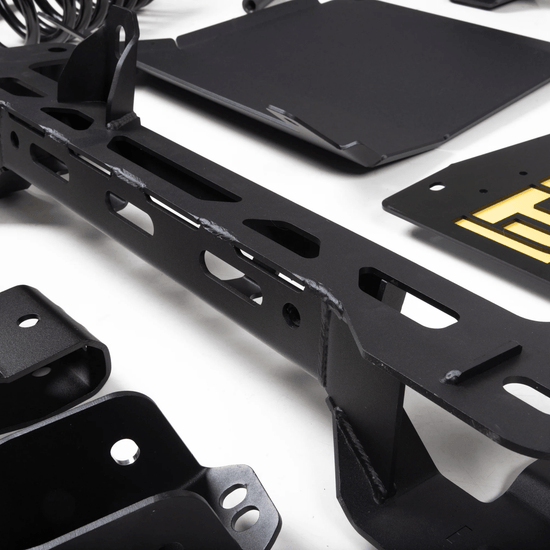

All BDS kits come with a No Fine Print Warranty. To ensure our kits are the best they can be, we use high-strength American steel, high-clearance, fully welded crossmembers, the latest manufacturing processes, and thorough quality inspections at every step. Get the most out of your truck with BDS Suspension and FOX.



Features & Benefits

  • FOX 2.5 Performance Elite series coilovers and choice of FOX 2.0 or 2.5 (PE) rear shocks for improved ride quality, performance, and capability
  • High clearance crossmember design maximizes ground clearance Robust steering knuckles and tie rod ends to maintain ESC system compliance
  • Fullwidth mult-piece skid plate system improved offroad protection
  • Progressive rate rear coil springs improve ride quality, load capacity and suspension travel
  • Factory Protection Plus drivetrain warranty included.

Recommended Tyres & Wheels

(Trimming may be required)

  • 37 x 12.5 with 18 x 9 and 5 in. Backspace
  • 35 x 12.5 with 20 x 9 and 5"-6" in. Backspace
  • 37 x 12.5 with 20 x 9 and 5.6 in. Backspace
