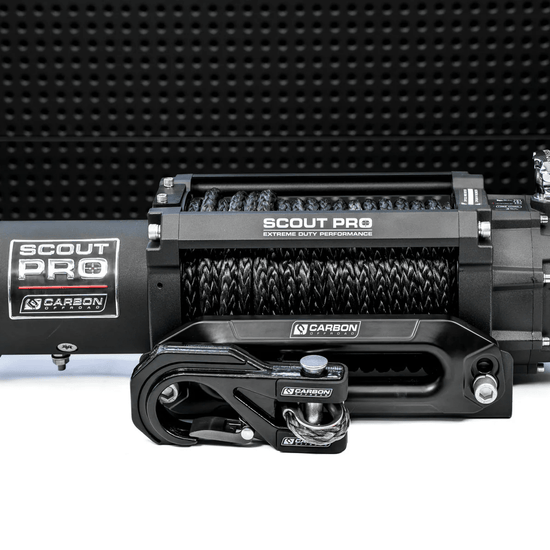

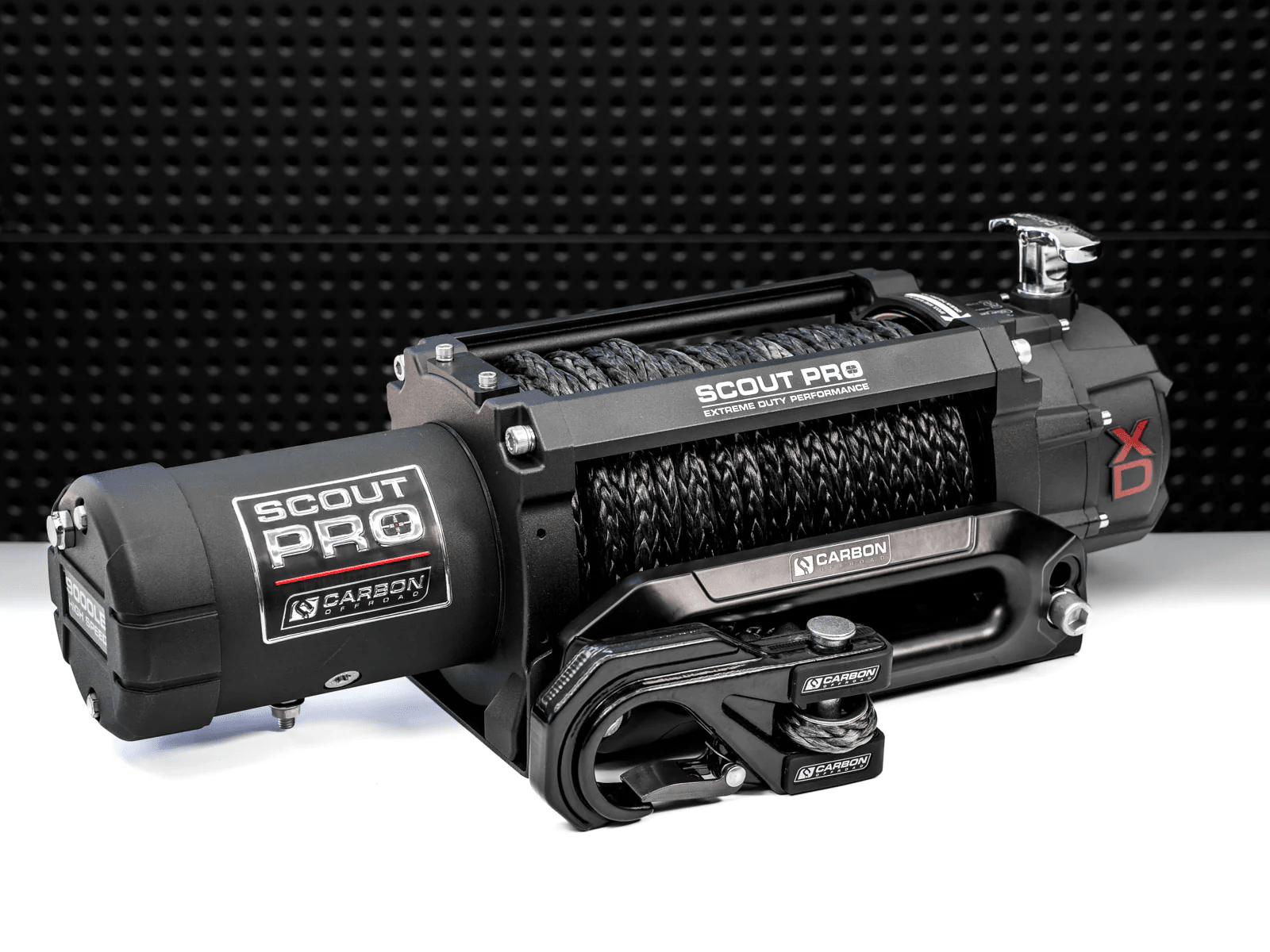

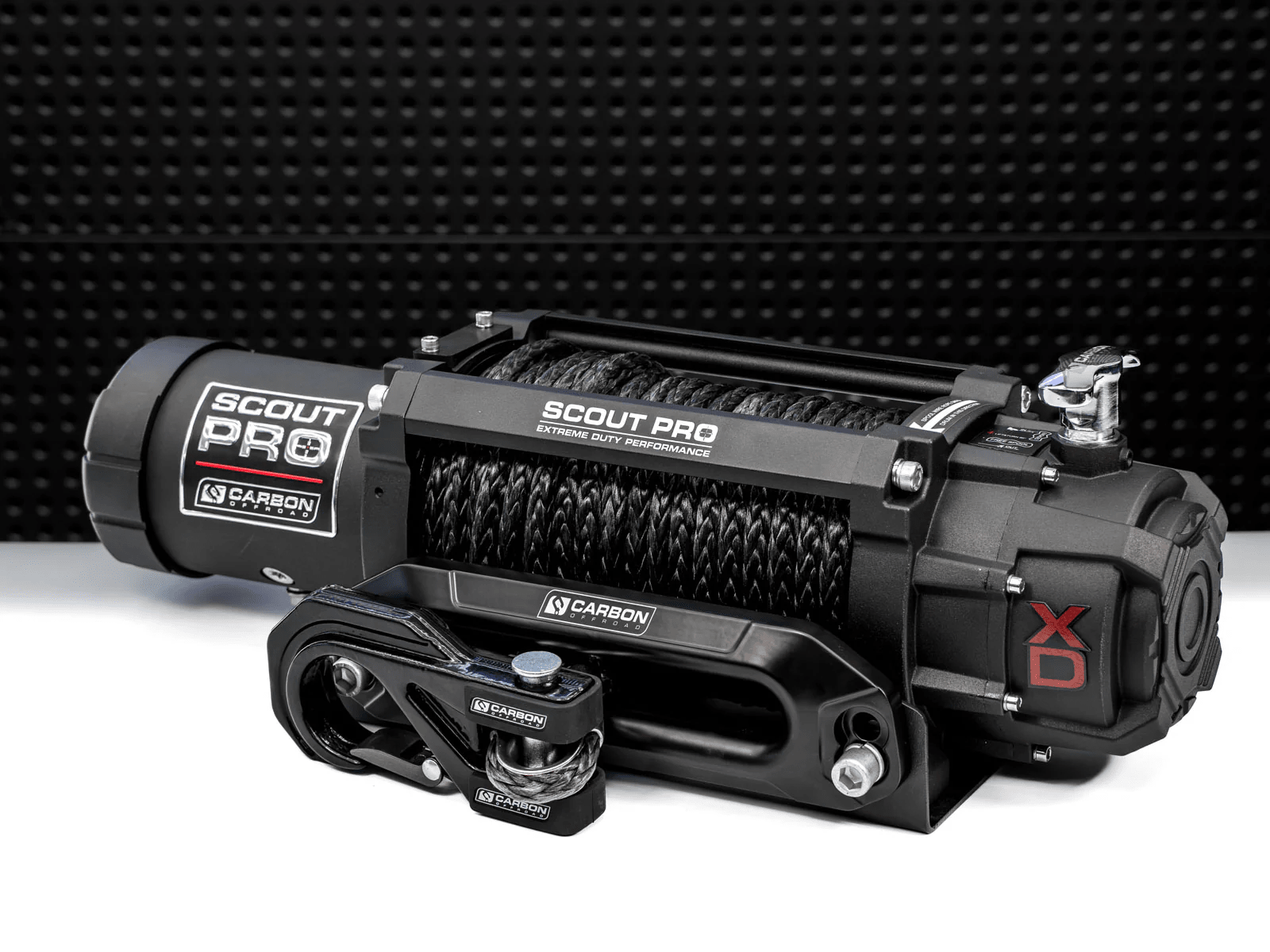

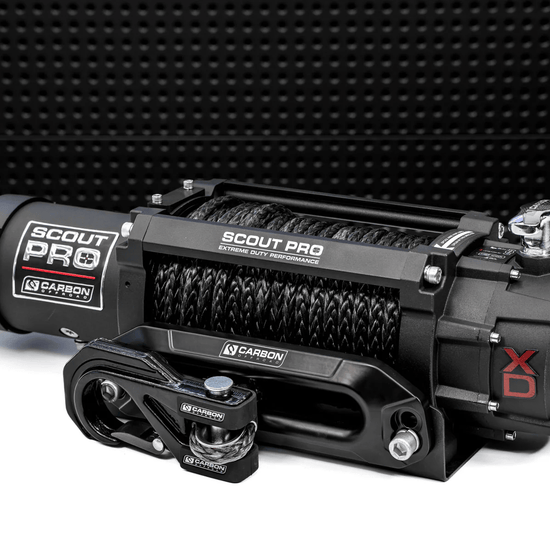

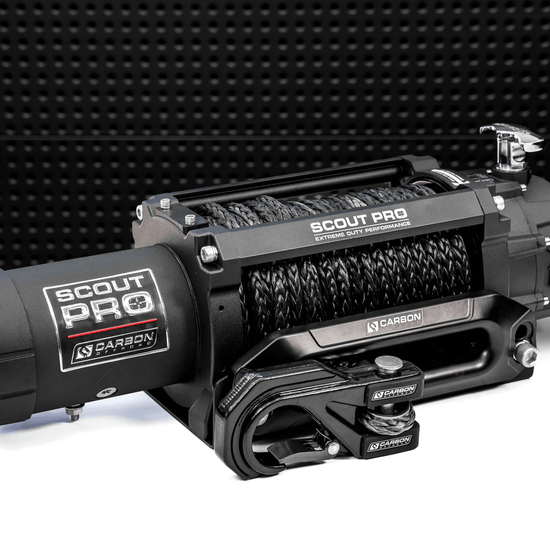

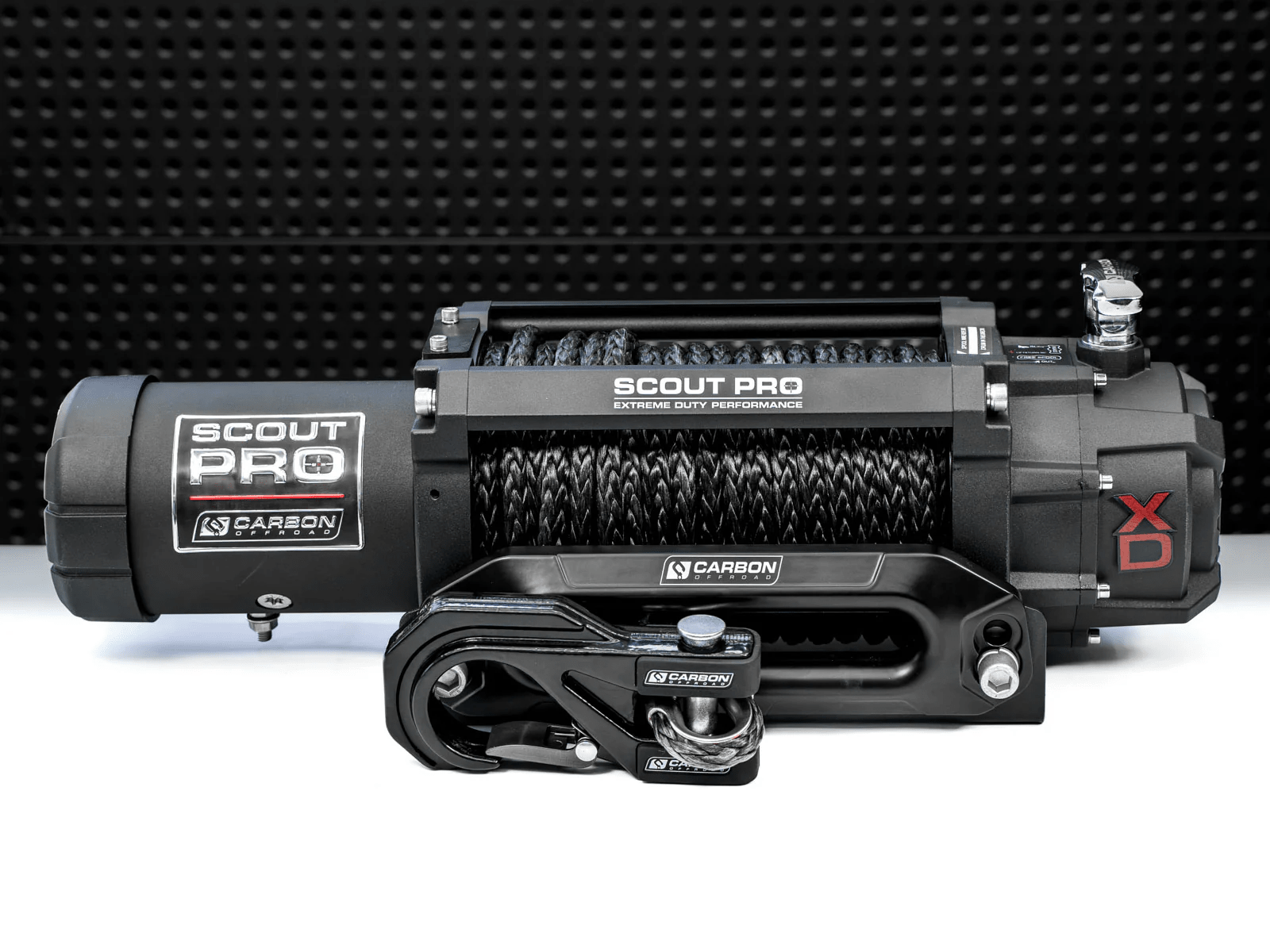

Carbon Scout Pro - 15000lb Winch V3

Carbon Scout Pro - 15000lb Winch V3

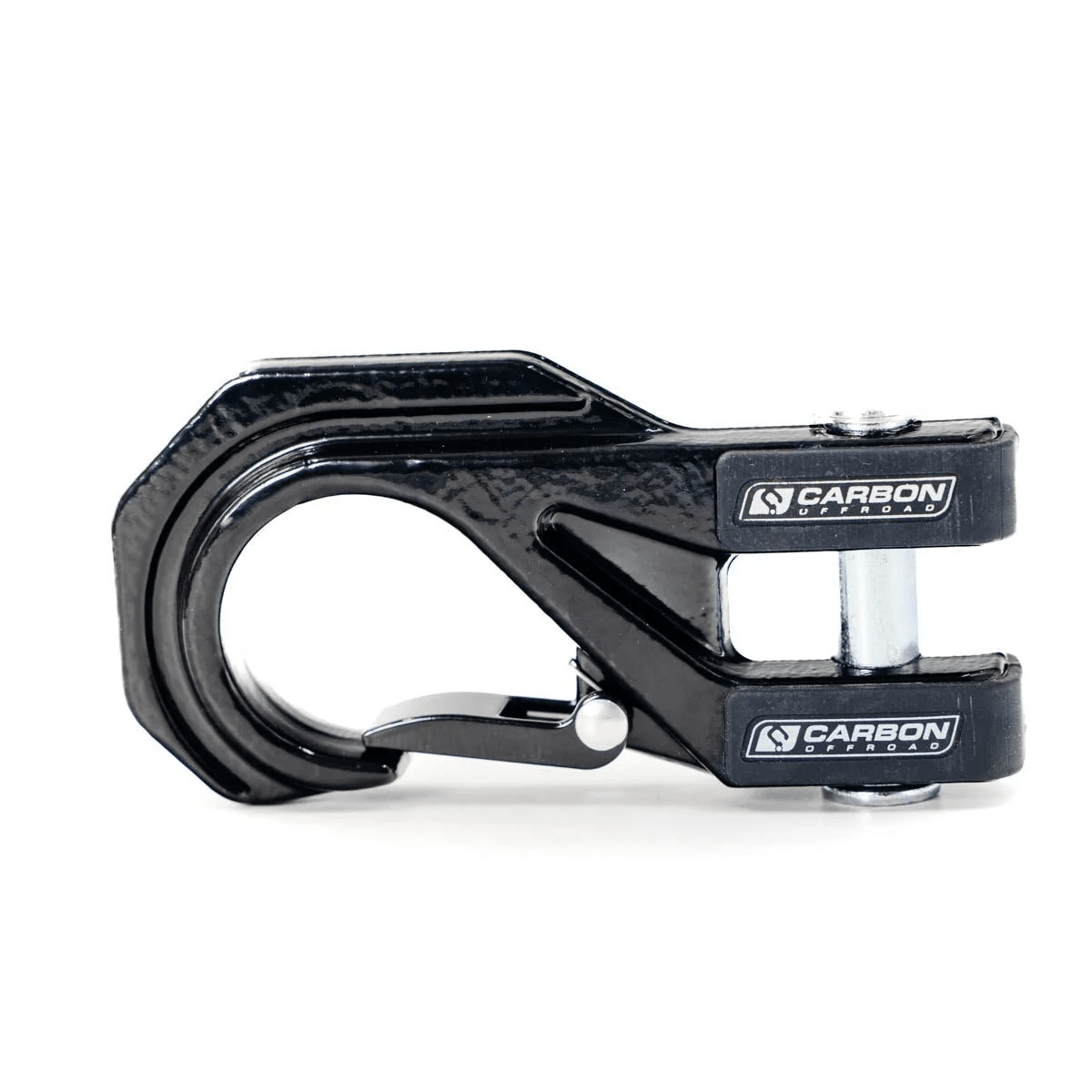

Carbon Offroad Scout Pro 15K Winch—15,000lb pulling power bridging 12K and truck-grade 20K units. Features a 7.0HP motor, 11mm UHMWPE rope, forged thimble, MegaPro hook, premium fairlead, and wired/wireless remotes. Built tough for heavy rigs and extreme off-road recoveries.

• Part number: CW-XD15-V3
• Rated line pull: 15000 lbs, (6803kg) single-line
• Motor: 12V DC 7 HP series wound motor (24V option available)
• Remote Control: Wired with 3.6m lead
• Wireless Remote Control: Included
• Geartrain: 3-Stage Planetary
• Gear Ratio: 218:1
• Rotating Ring Gear
• Brake: Automatic brake in the motor bracket
• Fairlead: Carbon Offroad MEGAPRO Premium CNC billet type 3 hard anodised multi position fairlead
• Lifetime Mechanical Warranty
• 5 Year Electrical Warranty
• 5 Year Water Ingress Protection Warranty

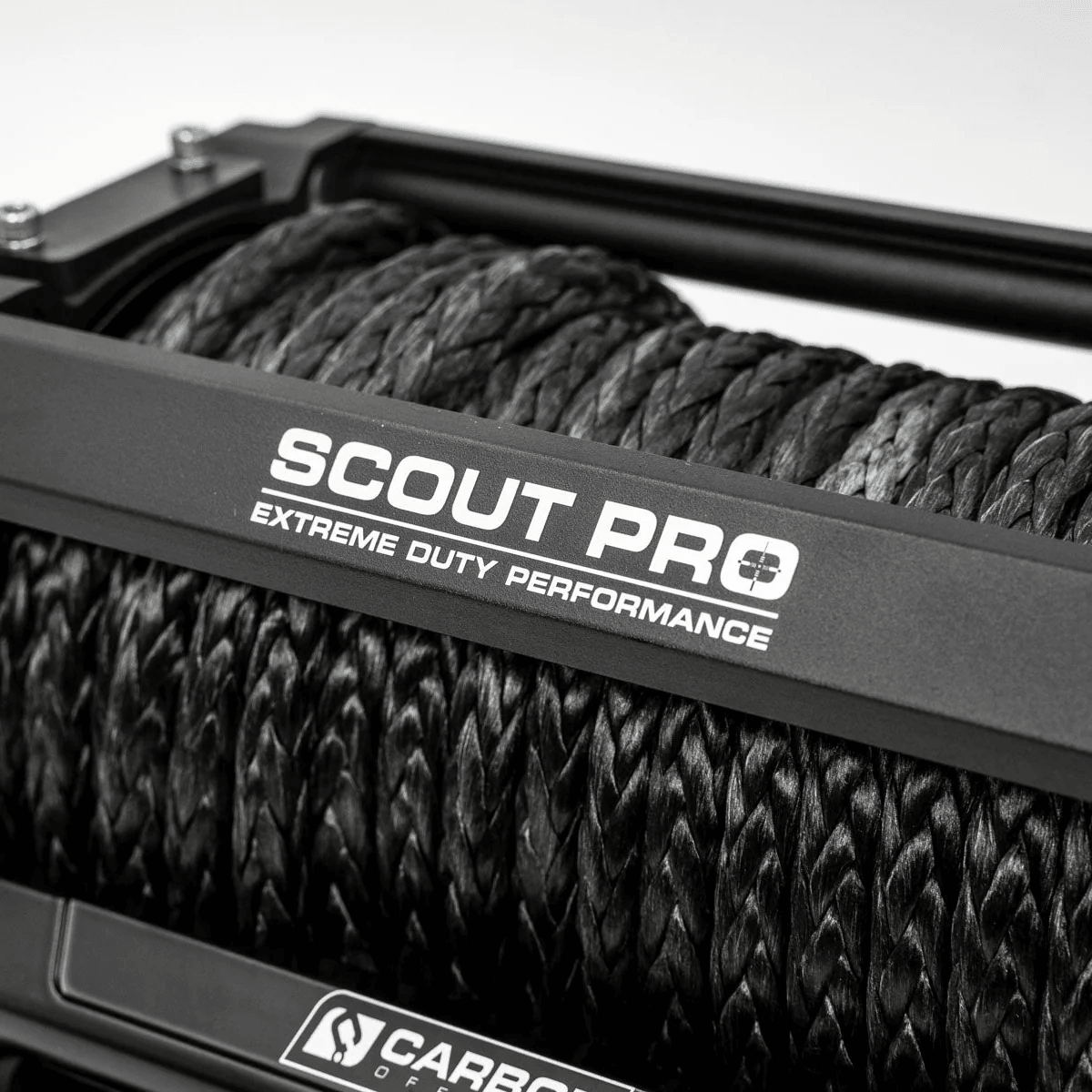

• Synthetic Rope: 24m x 11mm diameter
• Drum Diameter/Length: 63.5mm x 224mm
• Mounting Bolt Pattern: 254mm x 114.3mm
• Recommended Battery: 650 CCA minimum for winching
• Winch Dimensions (L x W x H): 556.5 x 158 x 187mm
• Packing Dimensions (L x W x H): 580 x 200 x 220mm

• Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead: 26.7
