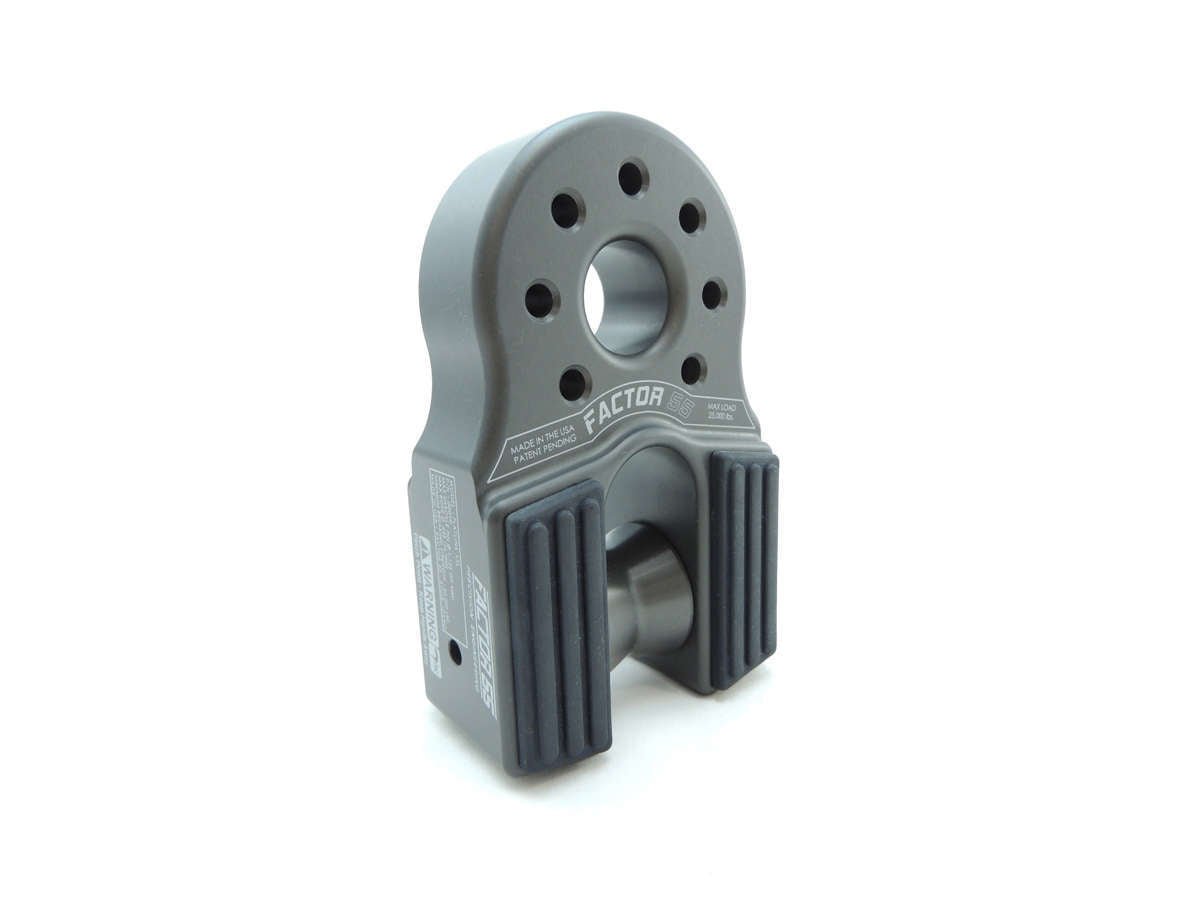

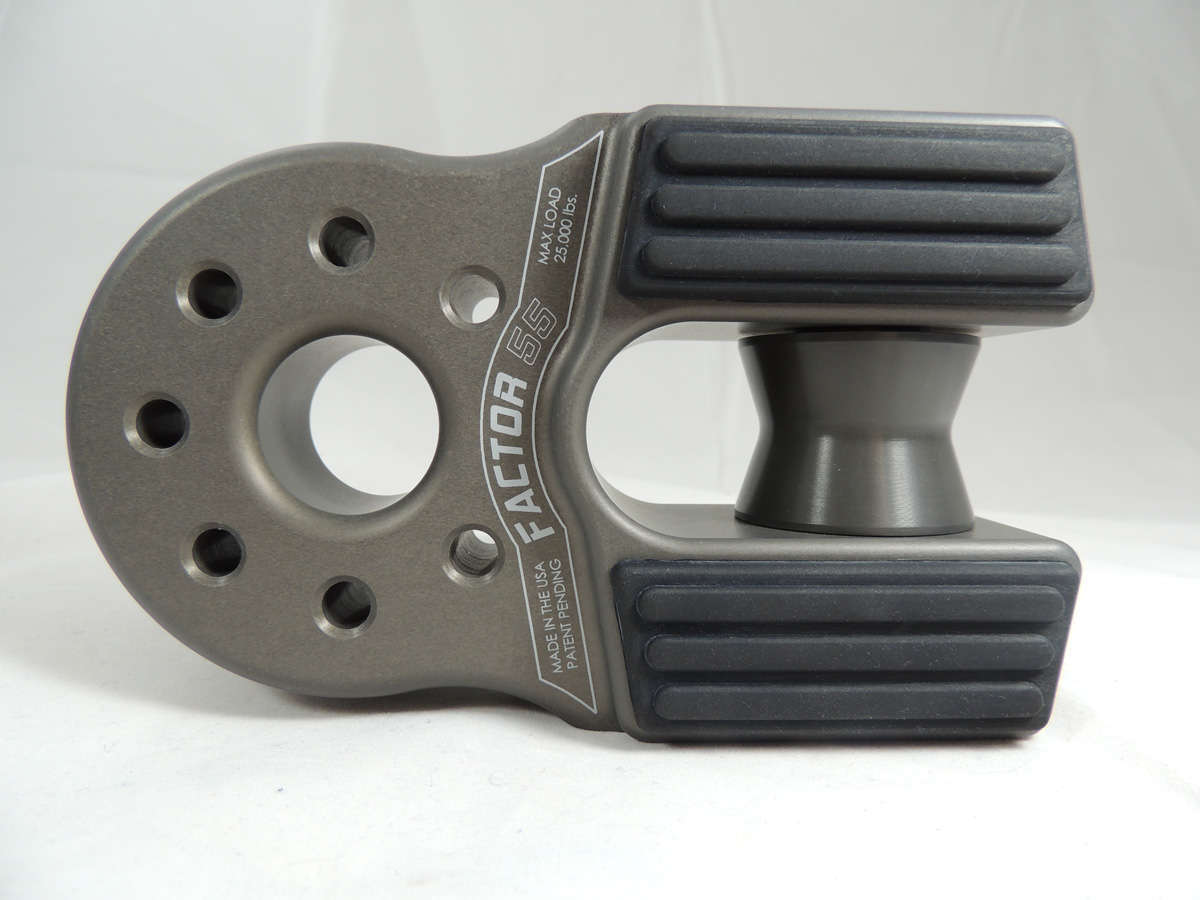

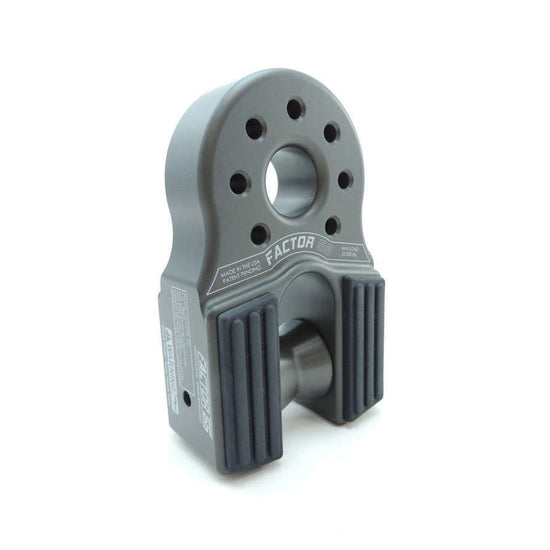

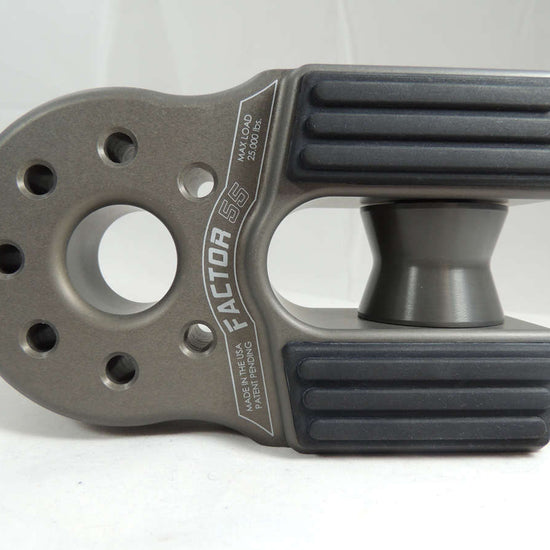

Flat Link XXL - Gray
Factor 55 FlatLink XXL
Factor 55 FlatLink XXL

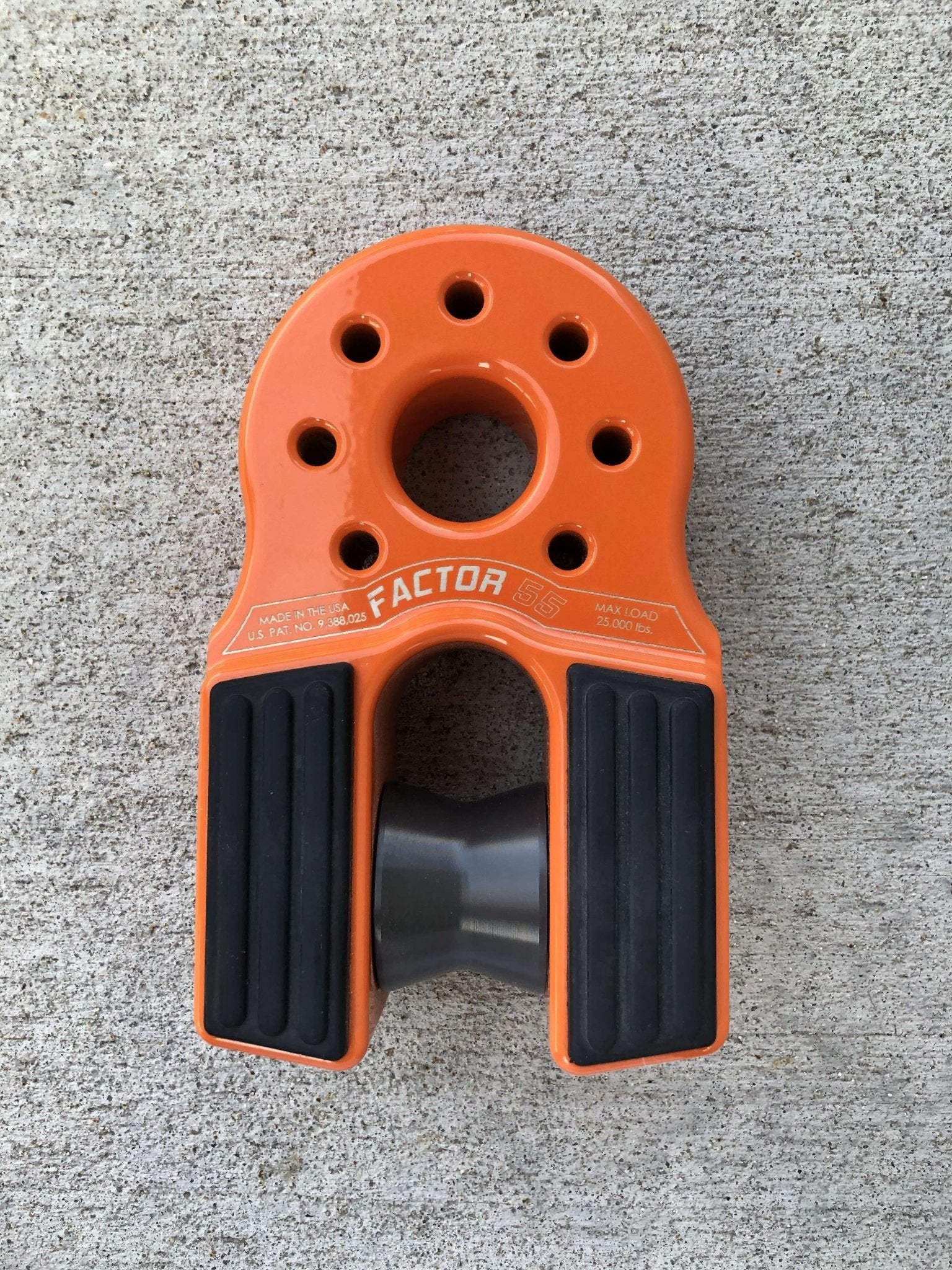

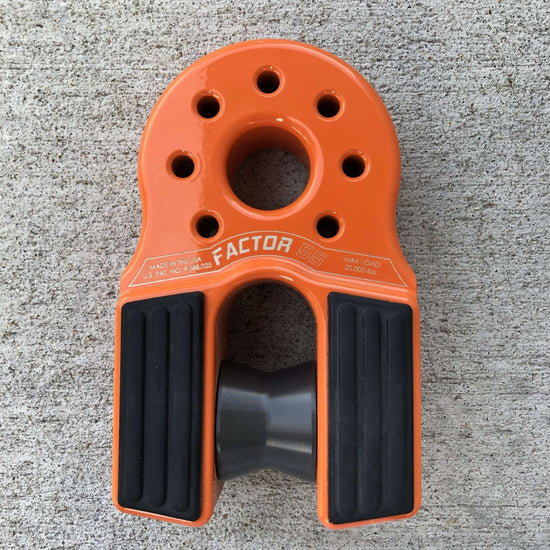

Flat Link XXL - Orange

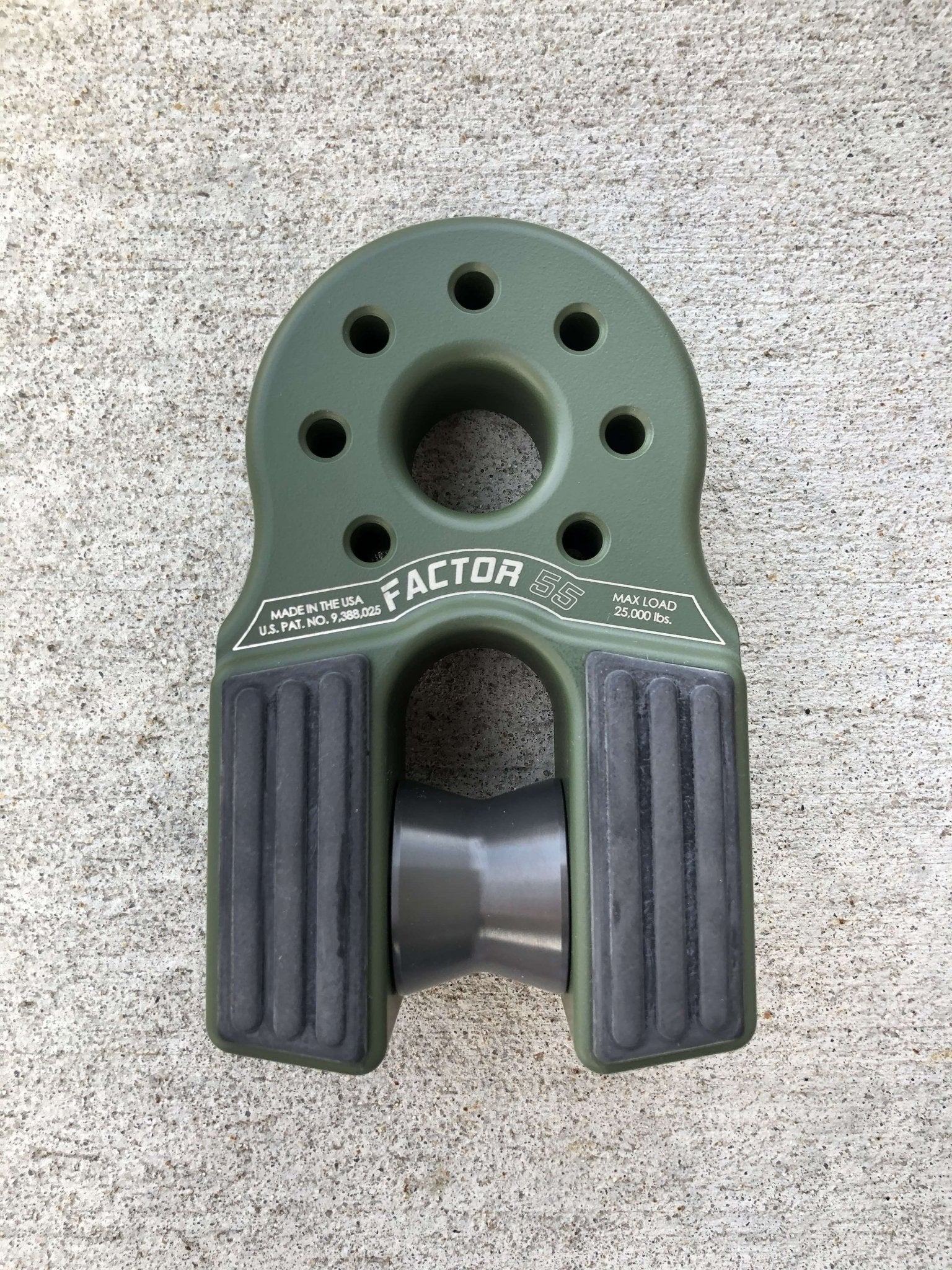

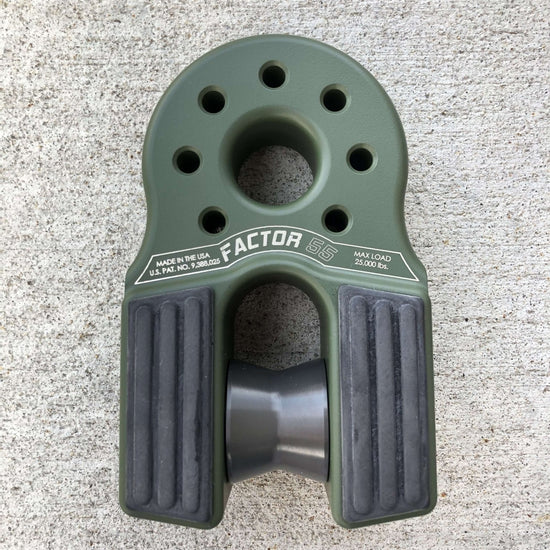

Flat Link XXL - OD Green
Flat Link XXL - Gray
Factor 55 FlatLink XXL
Factor 55 FlatLink XXL
Flat Link XXL - Orange
Flat Link XXL - OD Green
Factor 55

00090-06

Factor 55 FlatLink XXL

Regular price $329.95
/
Tax included.

Factor 55 FlatLink XXL - Product Details

The FlatLink XXL is the bigger brother of the Flat Link designed specifically for larger vehicle applications.

Factor 55 FlatLink XXL is world’s first foldable winch shackle mount with self centring load spool.

Compatible with wire rope diameters of up to 3/4″ and synthetic rope tube thimbles up to 5/8″ in diameter. Fits shackle pin diameters of 1 1/8″. 7/8″ diameter titanium double shear pin. Minimum breaking strength of 65,000 lbs.

 All Factor 55 products are made in the USA and distributed in Australia by Offroad Industries.

Technical Specifications of the Flat Link XXL

  • Replace conventional winch hooks with a safer more secure shackle/D-ring
  • Safer recoveries through the practice of Closed System Winching
  • Lightweight – Precision CNC machined 6000 series Military Grade Aluminium
  • No splicing required – double shear pin design
  • Designed for both steel cable and synthetic winch rope eyes
  • Equipped with a shear pin load centring spool for wire rope applications
  • Foldable and stows rattle free against fairleads
  • Integrated EPDM rubber pads for fairlead protection
  • Fits common 7/8 and 1” screw pin shackle sizes (1.0 and 1.125 pin diameters)
  • For synthetic rope diameters up to 5/8 and wire rope up to 1”
  • Available in the Military Specification Hard Anodising (Mil-A-8625 F Type III) Grey
  • 7/8” diameter double shear pin
  • Max Rated Load: 26,000 pounds
  • Ultimate Strength: 68,000 pounds
  • Weight: 1.44583kg
