883-06-199

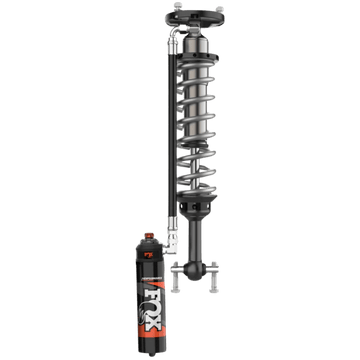

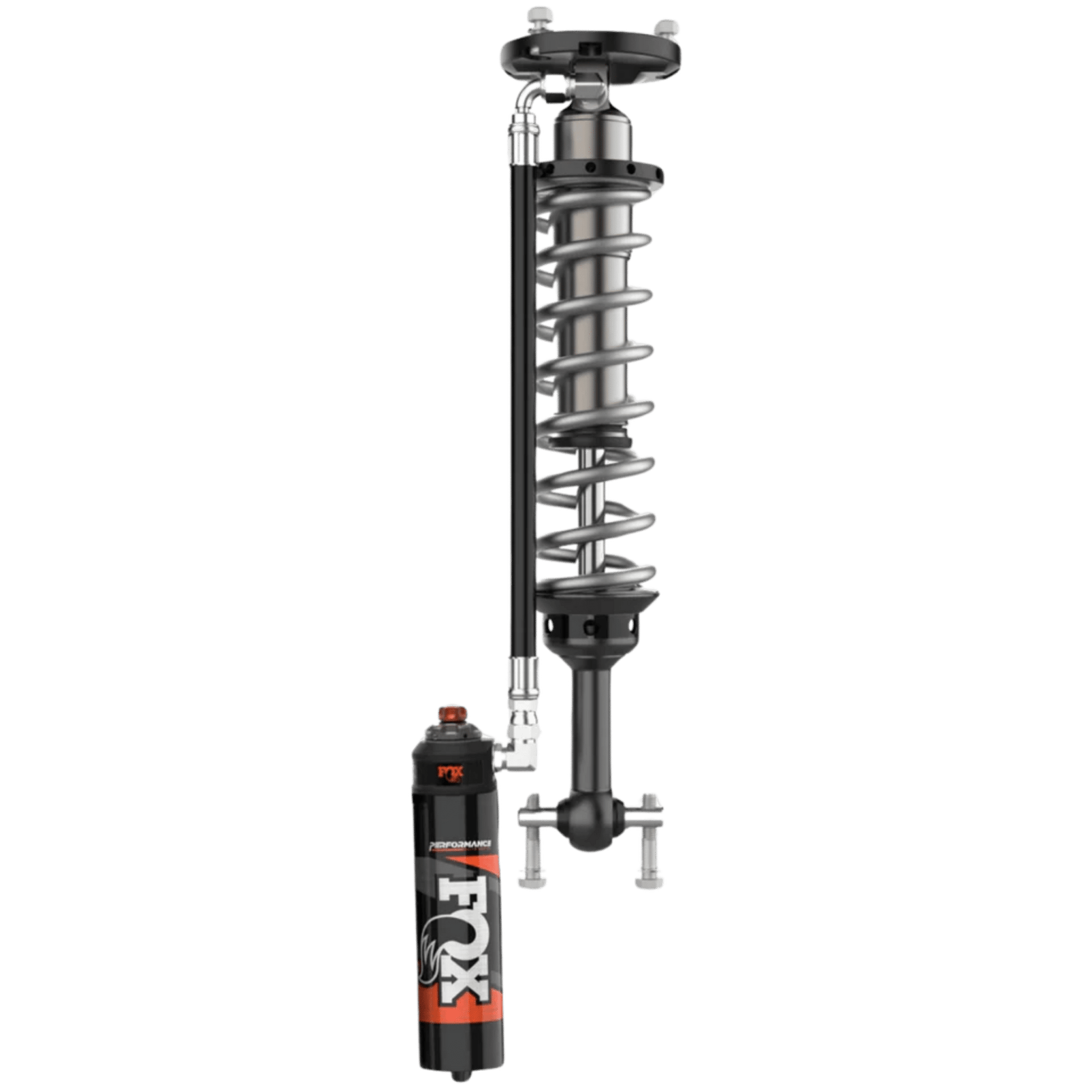

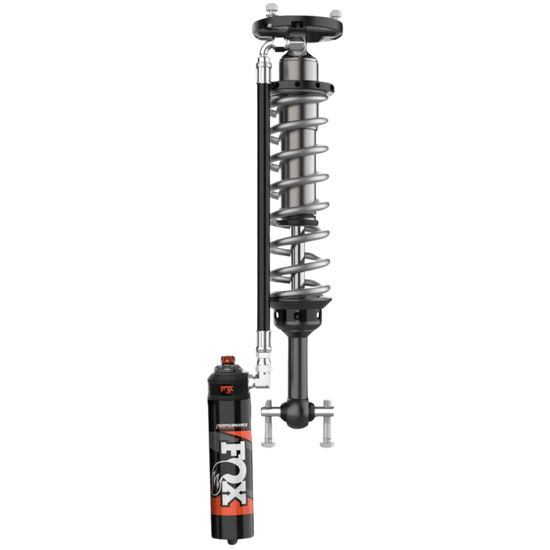

Enhance your driving experience with FoX PERFORMANCE ELITE SERIES 2.5 COIL-OVER shocks for the 2021+ Ford F150. Say goodbye to the forward rake and hello to a level ride height, improved suspension articulation, and ultimate driving performance!
Type III anodisation prevents corrosion and wear of the 2.5-inch aluminum bodies. External reservoirs increase oil capacity, remove dead space from the shock body, and decrease the harshness associated with nitrogen ramp-up. Cooler shock temperatures, more travel, and consistent damping forces result. Each reservoir features a Dual Speed Compression (DSC) adjuster; strategically mounted to eliminate interference with aggressive tires at full lock.
Quickly adapt your shocks for load, environment, and driving style using the DSC adjusters as the high-flow piston manages stability through all types of terrain. FOX shocks are designed and engineered to support the damping of your rig with the presumption that you’re engaged in various activities. Realize the potential of your F-150 on the next adventure.
Performance Elite shocks provide the versatility required to navigate rough terrain and improve on-road manners while remaining comfortable and in control.
Vehicle Suitability
PART NUMBER | 883-06-199 |
FEATURES | 2.5" impact extruded and CNC machined 6061-T6 Type III anodized aluminum body Application-specific springs 7/8" hard chrome-plated steel shafts Vehicle-specific valving to maximize performance Redundant sealing pack system: main seal, wiper seal, scraper seal Rear shaft boot to protect against roost spray |
SERIES | Performance Elite |
TRAVEL | 5.58 |
FRONT LIFT HEIGHT | 2 |
EXTENDED LENGTH | 23.32 |
COMPRESSED LENGTH | 16.94 |
TOP MOUNT | OEM |
BOTTOM MOUNT | Bar Pin |
FITMENT NOTES | Zero lift on Tremor |
