Toyota Landcruiser LC300 GVM
Own a Toyota Landcruiser LC300 and need a GVM upgrade? We've secured federal approval for 4200 GVM packages featuring Fox suspension options. Choose the Stage 1 upgrade with Fox 2.5 Performance Elite Suspension or go for the Stage 2 with Fox 3.0 Factory Race Suspension.
Both upgrades are federally approved under VTA-064924, ensuring reliable performance and enhanced capability for your LC300. Elevate your vehicle’s strength and suspension today with our trusted packages.

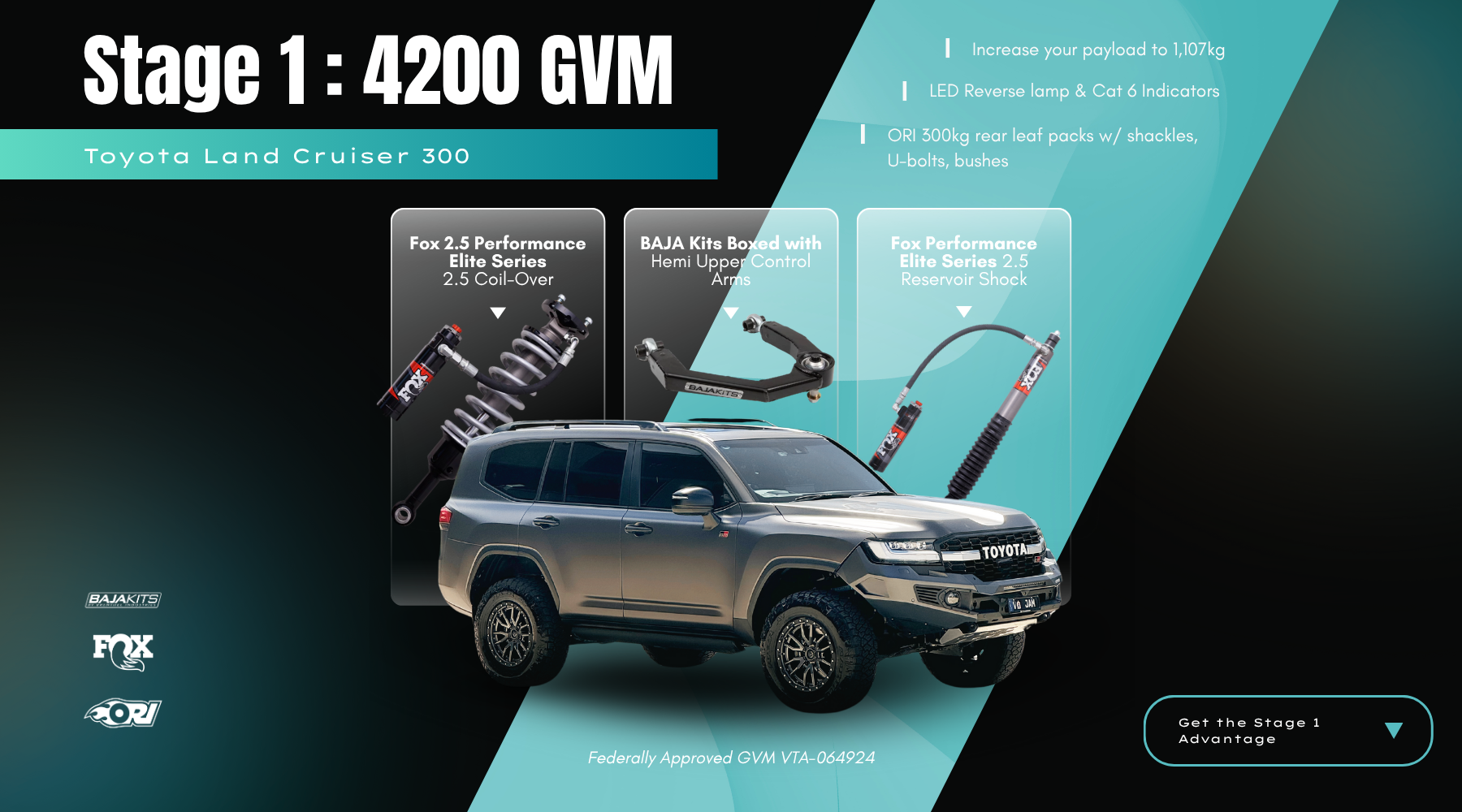

Stage 14200 GVM Toyota Landcruiser LC300 with Fox 2.5 Peformance Elite Suspension Federally Approved VTA-064924
$15,500 Installed & Engineered

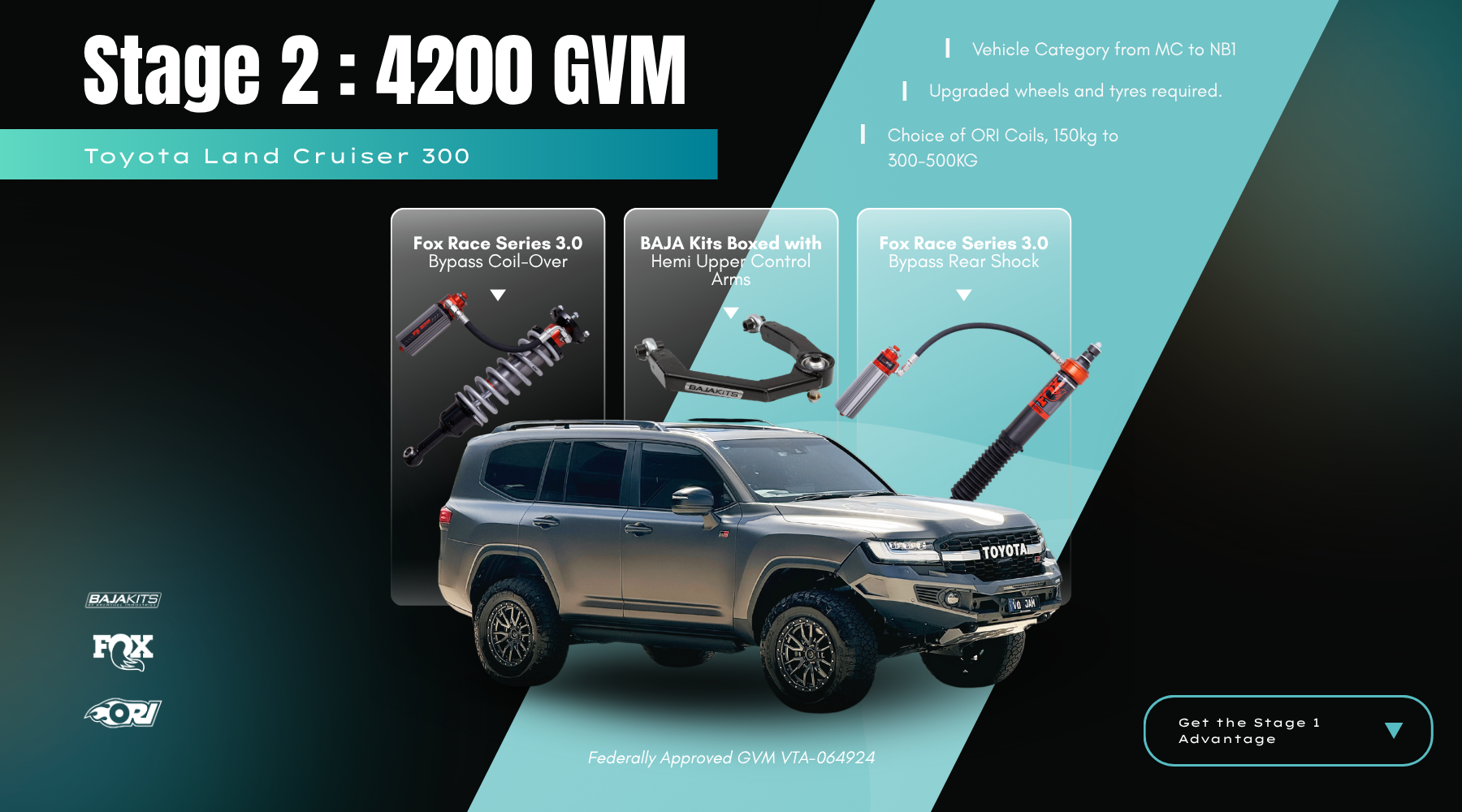

Stage 24200 GVM Toyota Landcruiser LC300 with Fox 3.0 Factory Race Suspension Federally Approved VTA-064924
$22,500 Installed & Engineered.
ORI Toyota Land Cruiser LC300 GVM Packages
• Fox 2" with 2.5 Performance Elite Suspension
• BAJA Kits Control Arms
• Federally Approved VTA-064924
• Vehicle Category change from MC to NB1
• LED Reverse lamp & CAT 6 Indicator
• Adjustable Rear Panhard
• Fox 3.0 Factory Race Suspension
• BAJA Kits Control Arms
• ORI Coil Packs
• Category change from MC to NB1
• CAT 6 Indicator
• Federally Approved VTA-064924
About Toyota Landcruiser LC300
| Factory | Stage 1 | Stage 2 | |
| Gross Vehicle Mass (GVM) | 3280 KG | 4200 KG | 4200 KG |
| Braked Towing Capacity (BTC) | 3500 KG | 3500 KG | 3500 KG |
| Gross Combined Mass (GCM) | 6750 KG | 6750 KG | 6750 KG |
| Kerb Weight | 2580 KG | 2620 KG | 2630 KG |
| Payload (bases on kerb weight) | 650 KG | 1580 KG | 1570 KG |
| Payload Increase (%) | 0% | 143% | 141% |
| Front Axle Capacity | 1480 KG | 1840 KG | 1840 KG |
| Rear Axle Capacity | 1850 KG | 2360 KG | 2360 KG |
| Wheel Offsets | plus 60 | 60 + 50 +40 +35 + 25 | 60 + 50 +40 +35 + 25 |
| Wheel Load Rating | 925 KG | 1285 KG | 1285 KG |
| Tyre Load Rating | 925 KG | 1285 KG | 1285 KG |
| Requires Wheel/ Tire Upgrade | X | Required | Required |
| Maximum Tire Size | 265/65R18 | 265/65R18 | 265/65R18 |
| Item | Part Number | Stage 1 | Stage 2 |
| Fox 2.5 Performance Elite Series 2.5 Coil-Over | 883-06-240 | ✔ | |
| Fox Performance Elite Series 2.5 Reservoir Shock | 883-26-155 | ✔ | |
| Fox Race Series 3.0 Bypass Coil-over | 883-06-231 | ✔ | |
| Fox Race 3.0 Bypass Rear Shock | 883-26-147 | ✔ | |
| Upper Control Arms Baja Kits | BJK8311001 | ✔ | ✔ |
| Rear Adjustable Panhard | ORI-PH-LC300 | ✔ | ✔ |
| LED Autolamps Cat 6 Indicators | 77ACM2 | ✔ | ✔ |
| ORI Coil Packs | KTRR-141HD | ✔ | ✔ |
| ORI Billet Support Brace | ORI-Billet-coilhat | ✔ | ✔ |
| Reverse Light | ORI-LED | ✔ | ✔ |
