  • WARN VR EVO 10 12V WINCH - WIRE ROPE
    WARN VR EVO 10 12V WINCH - WIRE ROPE
    WARN VR EVO 10 12V WINCH - WIRE ROPE
    WARN VR EVO 10 12V WINCH - WIRE ROPE
    Sold out

    EVO-10

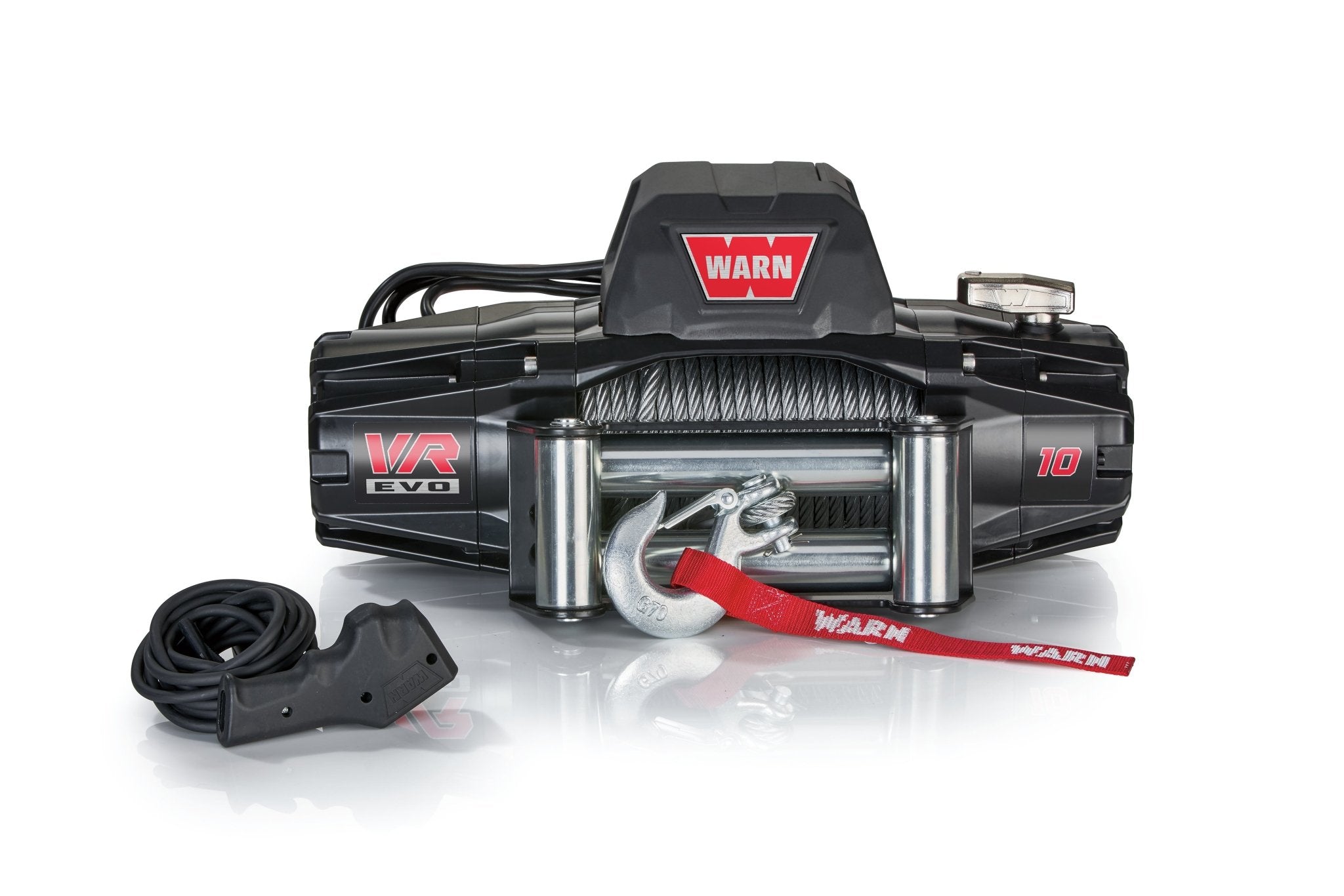

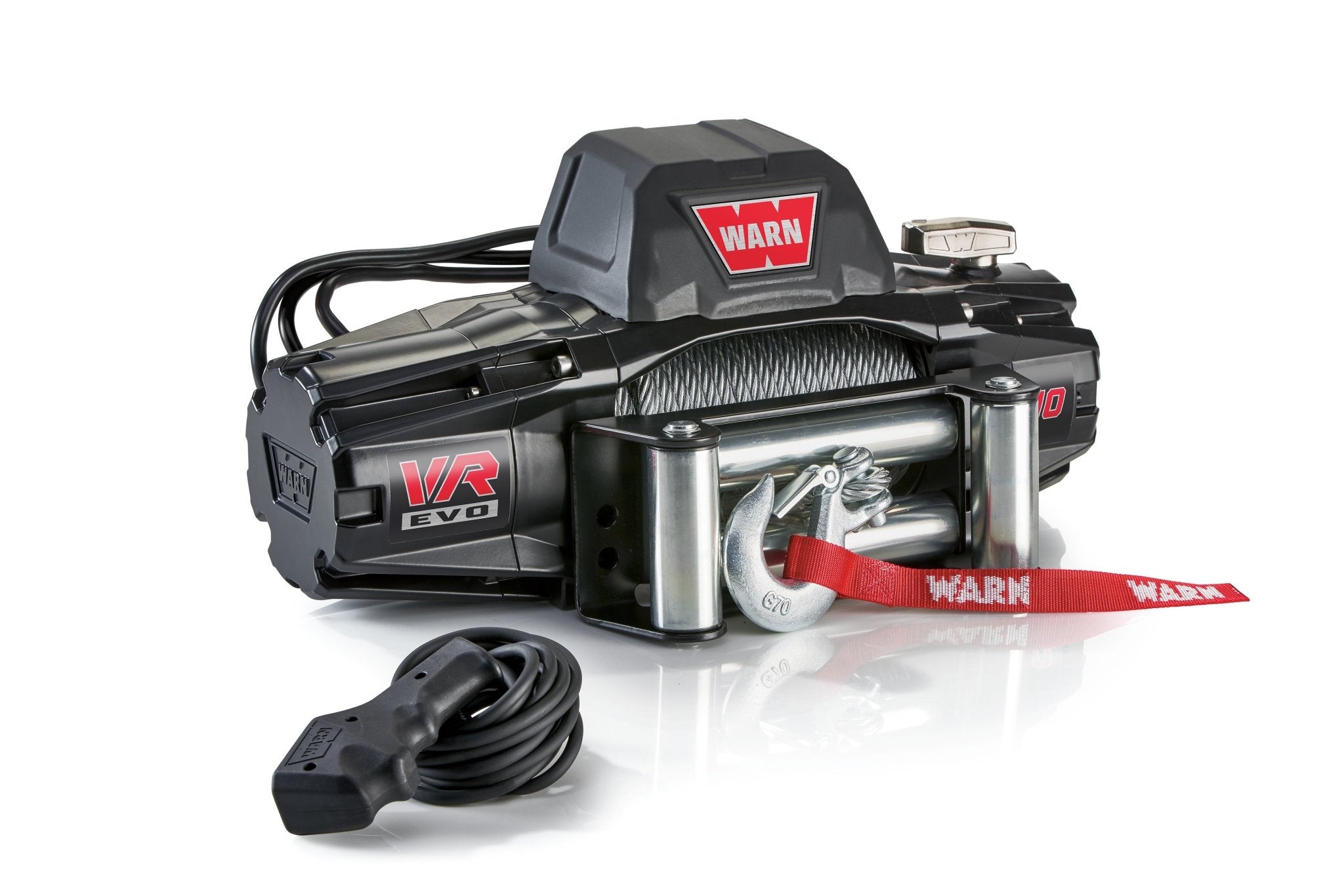

    WARN VR EVO 10 12V WINCH - WIRE ROPE
    $999.95

    Ideal weight capacity and line speed for 1/2-ton pickups, Jeeps, and larger SUVs. The VR EVO 10 features IP68-rated waterproof construction, an ultra-reliable Albright® contactor inside a relocatable control pack, and a state-of-the-art, two-in-one remote for added ease of use and versatility. With it’s fast line-speed and lower amp draw, the VR EVO series of winches are the hardest-working standard-duty winches we’ve ever made, with tactical styling that looks great up front and at a price that won’t pull you out of your budget.

    • A powerful series-wound motor and planetary gear train deliver faster line speed under load, with lower amp draw

    • IP68-rated waterproof winch construction keeps the elements out

    • High-performance Albright contactor delivers maximum reliability

    • Control packs can be relocated for low-profile installations

    • Durable, one-piece cast-aluminum tie-plate for added strength and durability

    • Two-in-one remote with wired AND wireless options for ease of use and versatility

    • Limited lifetime warranty for mechanical parts and 7 years on the electrical

    • Designed, engineered, and tested by WARN engineers in the U.S.A.

    Specifications

    Part number: EVO-10-103252
    Rated line pull: 4536kg (10000 lbs.)
    Motor: 12V series wound
    Electrical controls: Albright Contactor
    Remote Control: 2 in 1 plug-in remote with wireless capability and 3.5M lead
    Geartrain: 3-Stage Planetary
    Gear ratio: 218:1
    Clutch (freespooling): Rotating ring gear
    Brake: Spring brake
    Drum diameter/Length: 6.73cm/23cm (2.5″/ 9.0″)
    Shipping weight:  41.7 kg (91.93 lbs.)
    Net product weight: 33.9 kg (74.74 lbs.)
    Rope: 9mm x 27.4m (354″x 90′)
    Fairlead: Roller
    Recommended Battery: 650 CCA minimum for winching
    Battery leads: 25m x 2M
    Finish: Powder coating over primer undercoating

    12V DC Performance Specifications (first layer of drum)

    Line Pull
    Kg. (Lbs.)    		 Line Speed
    M/min. (FT./min)    		 Motor
    Current    		 Pull by layer
    layer/Kg. (Lbs)
    0 8.3 (27.1) 58 amps 1/4536 (10000)
    910 (2000) 4.2 (13.9) 125 amps 2/3627 (7996)
    1810 (4000) 3.0 (9.9) 185 amps 3/3021(6661)
    2720 (6000) 2.5 (8.2) 244 amps 4/2589(5708)
    3630 (8000) 2.0 (6.5) 303 amps 5/2265 (4993)
    4540 (10000) 1.6 (5.2) 358 amps
